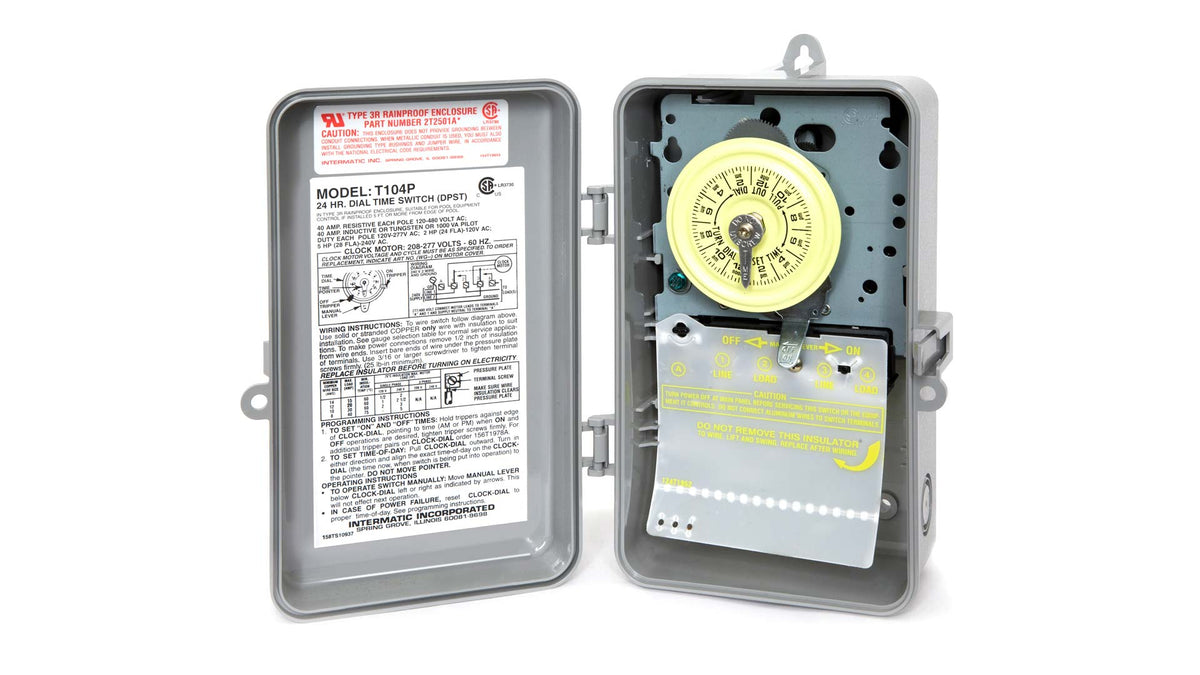

Intermatic 230 Volt Commercial Timer

$249.95

Quick Facts

Feature	Detail
Application	230-Volt Fountains and Aerators
Voltage Rating	208 to 277 Volts
Current Rating	40 Amps
Daily Cycles	Up to 12 ON/OFF Cycles Per Day
Trippers	Two Included
Clock Motor	Self-Lubricating
Manual Override	Yes, Without Changing Programmed Settings
SKU	20039

A Note Before You Order

This timer is designed for 230-volt fountain and aerator applications and is rated for 208 to 277 volts and up to 40 amps. Confirm that the electrical requirements of your equipment are compatible with the timer before installation. Follow the included wiring diagram and applicable electrical requirements during installation.

Intermatic 230 Volt Commercial Timer

The Intermatic 230 Volt Commercial Timer provides scheduled control for 230-volt fountains and aerators in demanding residential and commercial applications. By allowing equipment to operate according to a programmed schedule, the timer can help manage operating time and reduce unnecessary energy use.

The timer is rated for 208 to 277 volts and 40 amps and supports up to 12 ON/OFF cycles per day. It features a self-lubricating clock motor, two trippers, and a manual override switch that allows temporary operation without changing the programmed settings.

Specifications & Details

Specification	Detail
Product	Intermatic 230 Volt Commercial Timer
Model	20039
Voltage Rating	208 to 277 Volts
Current Rating	40 Amps
Programming	Up to 12 ON/OFF Cycles Per Day
Trippers	2 Included
Clock Motor	Self-Lubricating
Manual Override	Yes, Programmed Settings Remain Unchanged
Wiring	Wiring Diagram Included
Application	Residential and Commercial Fountain and Aerator Applications
UPC	810094921767
SKU	20039

Features & Operation

Scheduled Operation

The timer allows fountains and aerators to operate according to programmed ON/OFF schedules, with support for up to 12 ON/OFF cycles per day.

Manual Override

A manual override switch provides temporary control of connected equipment without changing the programmed timer settings.

Clock Motor

The self-lubricating clock motor is designed for dependable operation and long-term use in scheduled fountain and aerator applications.

Included Trippers

Two trippers are included for setting the timer's programmed ON and OFF periods.

Installation & Setup

Wiring Diagram

An easy-to-follow wiring diagram is provided to assist with installation and connection of the timer.

The timer is rated for 208 to 277 volts and up to 40 amps. Verify the connected fountain or aerator falls within these electrical ratings before installation.

Frequently Asked Questions

Question	Answer
What is this timer designed for?	It is designed to provide scheduled control for 230-volt fountains and aerators in residential and commercial applications.
What voltage is the timer rated for?	The timer is rated for 208 to 277 volts.
What is the maximum current rating?	The timer is rated for up to 40 amps.
How many ON/OFF cycles can be programmed?	The timer supports up to 12 ON/OFF cycles per day.
Does it include trippers?	Yes. Two trippers are included.
Does the timer have a manual override?	Yes. The manual override switch allows operation without changing the programmed settings.
Is the clock motor self-lubricating?	Yes. The timer uses a self-lubricating clock motor.
Does it include a wiring diagram?	Yes. An easy-to-follow wiring diagram is included for installation.
What is the model number?	The model number is 20039.
