Intermatic 115 Volt Residential Timer

$109.95

Quick Facts

Feature	Detail
Voltage	115 Volt
Application	Fountains, Aerators, and Lighting Systems
Timer Type	24-Hour Outdoor Timer
Maximum On Time	23½ Hours
Trippers Included	Two On and Two Off Trippers
Tripper Capacity	Up to 12 Sets
Cord	3-Foot Outdoor-Grade Cord with Grounded Plug
Case Dimensions	5" H × 5½" W × 3¾" D
Model	Intermatic 20036

A Note Before You Order

This timer is designed for 115-volt applications. It should be connected to a GFCI-protected outdoor outlet. Confirm that your fountain, aerator, or lighting system is compatible with the timer before installation.

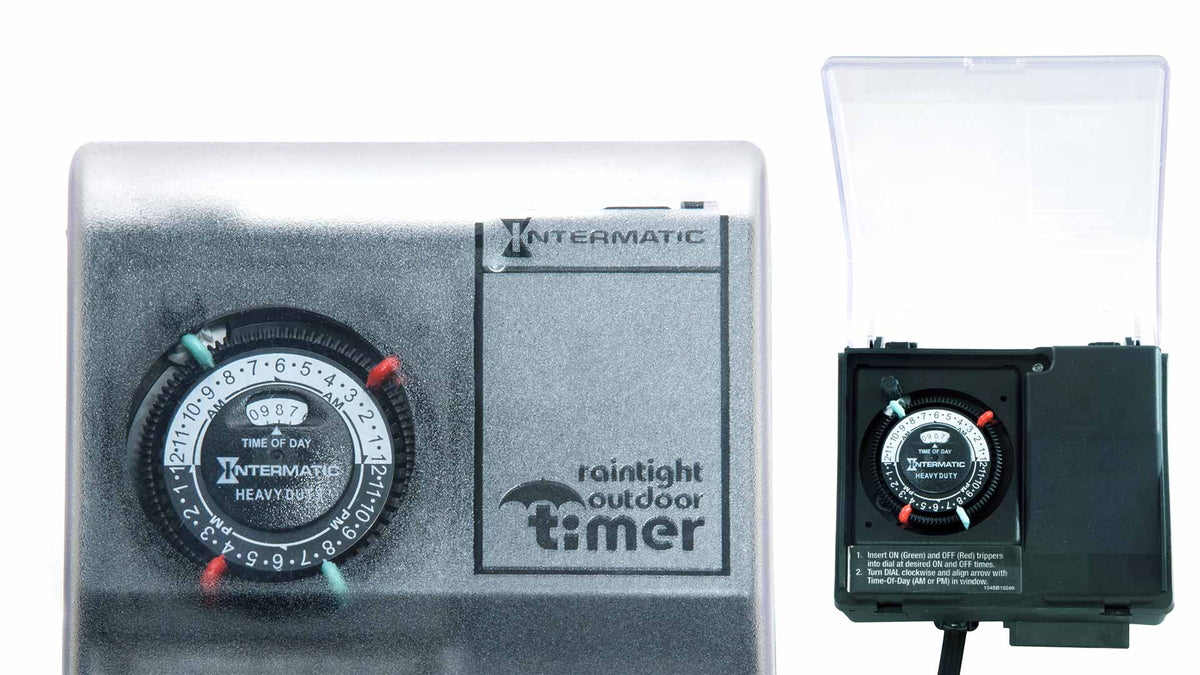

Intermatic 115 Volt Residential Timer

The Intermatic 115 Volt Residential Timer provides automatic scheduling for compatible 115-volt fountains, aerators, and lighting systems. Its 24-hour dial lets you set operating periods without manually switching your equipment on and off.

The outdoor-grade timer includes a 3-foot grounded cord and comes with two on trippers and two off trippers. The dial can accept up to 12 sets of trippers, giving you flexibility when setting multiple operating periods throughout the day.

Timer Configuration

115-Volt Operation

The timer is designed for 115-volt residential applications and can be used to automate compatible fountains, aerators, and lighting systems.

24-Hour Scheduling

The 24-hour timer dial allows scheduled operation throughout the day. The maximum continuous on period is 23½ hours.

Tripper Capacity

Two on trippers and two off trippers are included. The dial can accept up to 12 sets of trippers for additional scheduling flexibility.

Specifications & Details

Specification	Detail
Voltage	115 Volt
Timer Type	24-Hour Residential Timer
Maximum On Time	23½ Hours
Included Trippers	Two On and Two Off Trippers
Maximum Trippers	Up to 12 Sets
Cord Length	3 Feet
Plug	Three-Prong Grounded Plug
Case Material	Outdoor-Grade Plastic
Height	5 Inches
Width	5½ Inches
Depth	3¾ Inches
SKU / MPN	20036
UPC	810094921750

Installation & Operation

Power Connection

Plug the timer into a GFCI-protected outdoor outlet. The timer uses a three-prong grounded plug and is designed for outdoor applications.

Equipment Connection

Connect a compatible 115-volt fountain, aerator, or lighting system directly to the timer. Confirm that the connected equipment is appropriate for the timer before use.

Scheduling

Set the desired operating periods using the included on and off trippers. Additional trippers can be added when multiple operating periods are needed.

Features & Applications

Outdoor-Grade Construction

The timer features an outdoor-grade plastic case and outdoor-grade cord for use with compatible exterior water feature equipment.

Fountain and Aerator Scheduling

Use the timer to automate operating schedules for compatible 115-volt fountains and aerators, helping reduce the need for manual switching.

Lighting Control

The timer can also be used to schedule compatible 115-volt outdoor lighting systems.

Frequently Asked Questions

Question	Answer
What voltage is this timer designed for?	This residential timer is designed for 115-volt applications.
What can the timer control?	It is designed for compatible 115-volt fountains, aerators, and lighting systems.
How long can the timer stay on?	The timer has a 23½-hour maximum on time within its 24-hour operating cycle.
How many trippers are included?	The timer comes with two on trippers and two off trippers.
How many trippers can the dial accept?	The dial can accept up to 12 sets of trippers.
Does it have a grounded plug?	Yes. It includes a 3-foot cord with a three-prong grounded plug.
Is the timer suitable for outdoor use?	Yes. The timer features an outdoor-grade plastic case and outdoor-grade cord.
What are the timer dimensions?	The case measures 5 inches high by 5½ inches wide by 3¾ inches deep.
What is the model number?	The model number and MPN are 20036.
