Scott Aerator Triad Fountain For Medium, Residential Ponds

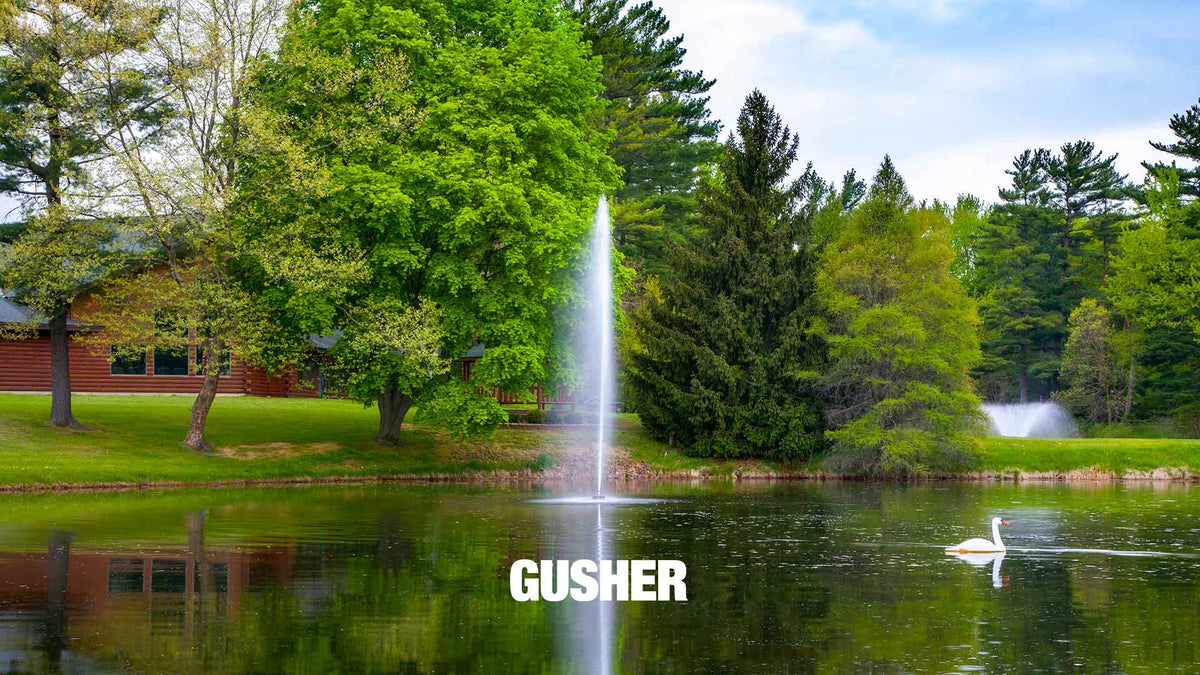

triad gusher

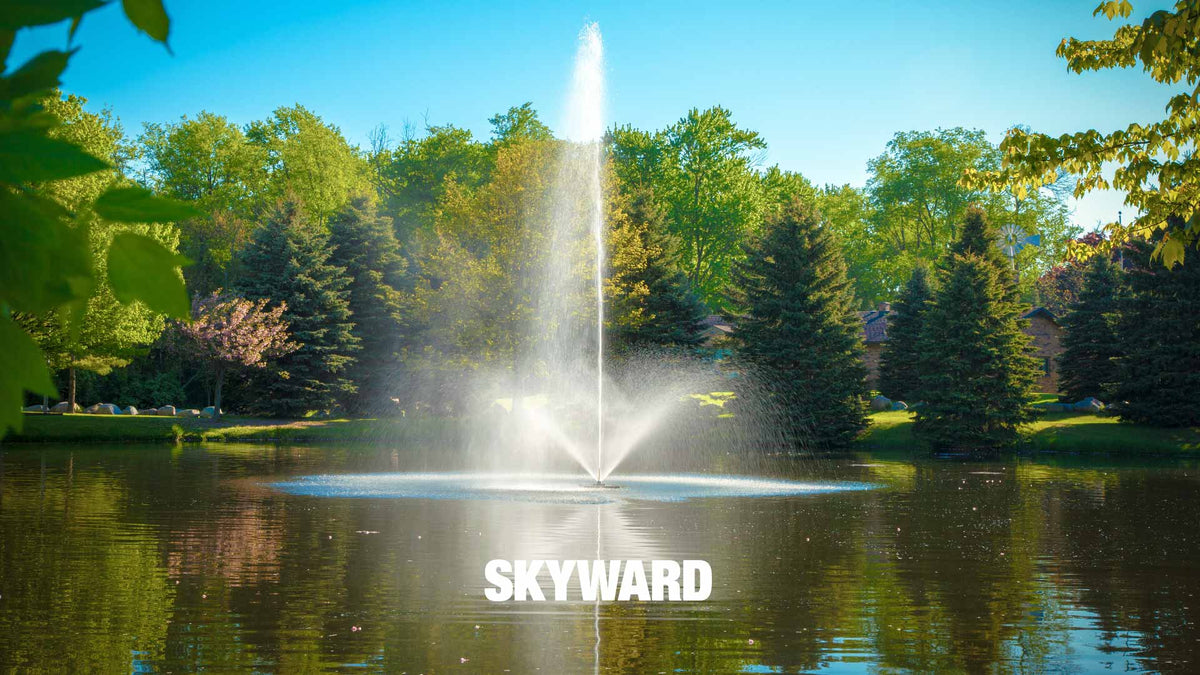

triad skyward
Authorized Dealer
Scott Aerator

Scott Aerator

Scott Aerator Triad Fountain For Medium, Residential Ponds

$2,829.00 $2,979.00
-5%
In stock
Motor: ¾ hp 115 volts
  • ¾ hp 115 volts
  • ¾ hp 230 volts
  • 1 hp 115 volts
  • 1 hp 230 volts
  • 1½ hp 230 volts
Cord Length: 100 feet
  • 100 feet
  • 150 feet - Unavailable
  • 200 feet - Unavailable
  • 250 feet - Unavailable

Estimated delivery between October 25 and October 27.

Free Shipping
Residential and Commercial Use
Backed by Real Expert Support
Delivered With Care, Direct to Your Door
Scott Aerator Triad Fountain For Medium, Residential Ponds
$2,829.00 $2,979.00
$2,829.00 $2,979.00
Options
Motor: ¾ hp 115 volts
  • ¾ hp 115 volts
  • ¾ hp 230 volts
  • 1 hp 115 volts
  • 1 hp 230 volts
  • 1½ hp 230 volts
Cord Length: 100 feet
  • 100 feet
  • 150 feet - Unavailable
  • 200 feet - Unavailable
  • 250 feet - Unavailable



Quick Facts

Feature Detail
Motor Options 2 HP or 3 HP
Voltage 230V
Flow Rate 135 or 170 Gallons Per Minute
Design Three-Tier Floating Pond Fountain with Center Column
Motor Oil-Free Stainless Steel Submersible Motor
Operation Designed for 24-Hour Continuous Operation
Water Compatibility Fresh Water and Salt Water
Motor Warranty 5 Years

A Note Before You Order

The Amherst Fountain Large is available with 230V motors. A GFCI is required for operation, and the manufacturer recommends installation by a licensed electrical contractor. Always disconnect power whenever swimmers are present. Select the correct voltage and power configuration before purchasing.

Scott Aerator Amherst Fountain for Large, Commercial Ponds

The Amherst Fountain combines a classic three-tier water display with the circulation and oxygen transfer needed to support a healthier aquatic environment. Its large-pond configurations are available with 2 HP and 3 HP motors, producing flow rates of 135 or 170 gallons per minute.

The three-tier design is topped by a prominent center column, creating a defined display across the surface of larger ponds and commercial water features. The 3 HP configuration can reach up to 35 feet in height, while the 2 HP model produces an 18-foot by 35-foot spray pattern. The oil-free stainless steel submersible motor is designed for continuous operation in both fresh and salt water.

Configuration Guide

Amherst Fountain 2 HP

The 2 HP model operates at 230V and produces 135 gallons per minute. It features a 100-foot, 10-gauge submersible power cord and requires a minimum pond depth of 56 inches.

The 2 HP configuration creates an approximately 18-foot by 35-foot spray pattern and requires two 45-pound weights or concrete blocks for anchoring.

Amherst Fountain 3 HP

The 3 HP model operates at 230V and produces 170 gallons per minute. It features a 100-foot, 10-gauge submersible power cord and requires a minimum pond depth of 60 inches.

The 3 HP configuration creates an approximately 20-foot by 40-foot spray pattern and requires two 55-pound weights or concrete blocks for anchoring.

Specifications & Details
Specification Detail
Motor Oil-Free Stainless Steel Submersible Motor
Motor Sizes 2 HP and 3 HP
Voltage 230V
Frequency 60 Hz
Phase Single Phase
Motor Speed 3,450 RPM
Flow Rate 135 GPM for 2 HP; 170 GPM for 3 HP
Minimum Depth 56 inches for 2 HP; 60 inches for 3 HP
Power Cord 100 feet standard, 10-gauge, submersible
Spray Dimensions 18' x 35' for 2 HP; 20' x 40' for 3 HP
Water Compatibility Fresh Water or Salt Water
Operation 24 Hours Per Day
Current Draw 10 Amps for 2 HP; 13.3 Amps for 3 HP
Installation & Assembly

Anchoring

The Amherst Fountain is anchored using two nylon ropes attached to the fountain and weighted anchors positioned on the pond bottom. The 2 HP model requires two 45-pound weights or concrete blocks, while the 3 HP model requires two 55-pound weights or concrete blocks. Anchoring weights and ropes are not included.

Electrical Installation

The Amherst Fountain requires 230V electrical power and a GFCI. The manufacturer recommends using a licensed electrical contractor for electrical installation. Always disconnect power before working on the fountain and whenever swimmers are present.

Power Cord

A 100-foot, 10-gauge submersible power cord is provided with the large Amherst Fountain configurations. Longer power cord lengths can be ordered when required for the installation.

Maintenance & Winter Operation

Routine Maintenance

The Amherst Fountain is designed for low-maintenance operation. Its oil-free stainless steel submersible motor does not require oil changes, and the fountain does not require a control box for normal operation.

Winter Operation

The manufacturer recommends leaving the Amherst Fountain in place during winter. Turn off the power during freezing conditions and restore power after the ice thaws. The fountain is designed to withstand subzero temperatures without damage.

Water Compatibility

The Amherst Fountain is approved for use in both fresh water and salt water environments.

Warranty

5-Year Motor Warranty

The Amherst Fountain motor is covered by an unconditional 5-year warranty according to the manufacturer. The fountain uses a stainless steel, oil-free, submersible motor designed for continuous operation.

Frequently Asked Questions
Question Answer
What is the Amherst Fountain designed to do? It creates a three-tier water display while circulating water and transferring oxygen throughout the pond.
What motor sizes are available? The large Amherst Fountain is available with 2 HP and 3 HP motor configurations.
What voltage does the large Amherst Fountain use? Both the 2 HP and 3 HP configurations operate at 230V.
How much water does it move? The 2 HP model provides approximately 135 gallons per minute, while the 3 HP model provides approximately 170 gallons per minute.
What pond depth is required? The 2 HP model requires a minimum pond depth of 56 inches. The 3 HP model requires a minimum pond depth of 60 inches.
Can the Amherst Fountain be used in salt water? Yes. The Amherst Fountain is approved for both fresh water and salt water.
Can it run continuously? Yes. The Amherst Fountain is designed for 24-hour-per-day operation.
Does the Amherst Fountain require winterizing? No complicated winterizing procedure is required. The manufacturer recommends shutting off the power during freezing conditions and leaving the fountain in place until the ice thaws.
Is a GFCI required? Yes. A GFCI is required for operation.
Are lights available? Yes. Light kits can be added to the Amherst Fountain at the time of purchase or later.
How is the fountain anchored? Two nylon ropes are used with weighted anchors or concrete blocks. The 2 HP model requires two 45-pound weights, while the 3 HP model requires two 55-pound weights.
Downloads

Pond Fountain Motor Specs

View Pond Fountain Motor Specs PDF

Pond Fountain Specs & Assembly

View Pond Fountain Specs & Assembly PDF

Triad Fountain Brochure

View Triad Fountain Brochure PDF

Pond Fountain Comparison Brochure

View Pond Fountain Comparison Brochure PDF
