Scott Aerator Replacement Electric Motor
Authorized Dealer
Scott Aerator

Scott Aerator

Scott Aerator Replacement Electric Motor

$639.95

In stock
Motor Size: ⅓ hp 115 volts
  • ⅓ hp 115 volts
  • ½ hp 115 volts
  • ¾ hp 115 volts
  • 1 hp 115 volts
  • ⅓ hp 230 volts
  • ½ hp 230 volts
  • ¾ hp 230 volts
  • 1 hp 230 volts
  • 1½ hp 230 volts
  • 2 hp 230 volts - without control box
  • 2 hp 230 volts - with control box
  • 3 hp 230 volts - without control box
  • 3 hp 230 volts - with control box

Estimated delivery between October 25 and October 27.

Free Shipping
Residential and Commercial Use
Backed by Real Expert Support
Delivered With Care, Direct to Your Door
Scott Aerator Replacement Electric Motor

$639.95

$639.95

Options
Motor Size: ⅓ hp 115 volts
  • ⅓ hp 115 volts
  • ½ hp 115 volts
  • ¾ hp 115 volts
  • 1 hp 115 volts
  • ⅓ hp 230 volts
  • ½ hp 230 volts
  • ¾ hp 230 volts
  • 1 hp 230 volts
  • 1½ hp 230 volts
  • 2 hp 230 volts - without control box
  • 2 hp 230 volts - with control box
  • 3 hp 230 volts - without control box
  • 3 hp 230 volts - with control box

Quick Facts

Feature Detail
Motor Type Submersible Replacement Electric Motor
Horsepower Options 1/3 HP, 1/2 HP, 3/4 HP, 1 HP, 1-1/2 HP, 2 HP, or 3 HP
Voltage Options 115V or 230V, depending on motor configuration
Construction Corrosion-Resistant Stainless Steel Exterior
Shaft Stainless Steel Splined Shaft
Standard Phase Single Phase
Motor Lead 18 Inches Standard
Certifications UL 778 Recognized, CSA Certified, ANSI/NSF 61 Certified
Warranty 1 Year

A Note Before You Order

Choose the replacement motor based on the required horsepower and voltage for your equipment. The 2 HP and 3 HP models require a compatible control box, and Scott Aerator states that operating these motors without the correct control box can result in motor failure and void the warranty. Power cord extensions are available separately when additional lead length is needed.

Scott Aerator Replacement Electric Motor

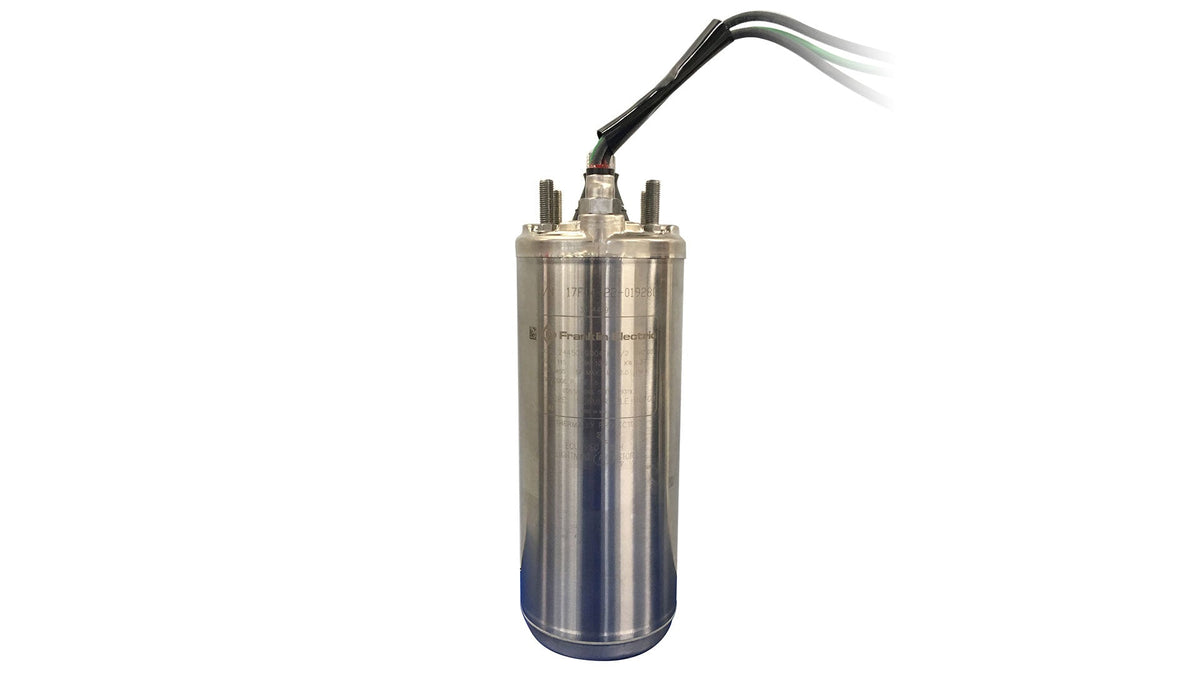

Scott Aerator replacement electric motors are submersible motors designed for use with compatible Scott Aerator equipment. The motors feature corrosion-resistant stainless steel construction and are built for applications where the motor operates in water.

Multiple horsepower and voltage configurations are available, from 1/3 HP through 3 HP. Standard motors are single phase, while three-phase, 50 Hz, and larger motor options are available by contacting Scott Aerator. The standard motor includes an 18-inch motor lead, with power cord extensions available separately.

Motor Configuration Guide

1/3 HP Motors

Available in 115V and 230V configurations. These models are offered as standard single-phase replacement motors.

115V MPN: 20001.3. 230V MPN: 20001.32.

1/2 HP Motors

Available in 115V and 230V configurations for compatible Scott Aerator equipment.

115V MPN: 20000. 230V MPN: 20002.

3/4 HP Motors

Available in 115V and 230V configurations for compatible Scott Aerator equipment.

115V MPN: 20003.751. 230V MPN: 20003.75.

1 HP Motors

Available in 115V and 230V configurations for compatible Scott Aerator equipment.

115V MPN: 20004.1. 230V MPN: 20004.

1-1/2 HP Motor

The 1-1/2 HP replacement motor is available in a 230V configuration.

230V MPN: 20001.

2 HP Motor

The 2 HP replacement motor is available in 230V and can be selected with or without a control box.

MPN: 20006. A compatible control box is required for operation.

3 HP Motor

The 3 HP replacement motor is available in 230V and can be selected with or without a control box.

MPN: 20003.3. A compatible control box is required for operation.

Specifications & Details
Specification Detail
Motor Type Submersible Electric Motor
Horsepower 1/3 HP, 1/2 HP, 3/4 HP, 1 HP, 1-1/2 HP, 2 HP, or 3 HP
Voltage 115V or 230V
Phase Single Phase Standard
Frequency Standard models; 50 Hz available by request
Exterior Corrosion-Resistant Stainless Steel
Shaft Stainless Steel Splined Shaft
Motor Lead 18 Inches Standard
Mounting NEMA Mounting Dimensions
Control Box Required for 2 HP and 3 HP Models
Warranty 1 Year
Motor Construction & Features

Stainless Steel Construction

The motor uses a corrosion-resistant, all-stainless-steel exterior designed for submersible applications.

Sealed Motor Design

The motor features hermetically sealed windings and an anti-track, self-healing resin system.

Water-Lubricated Operation

The motor uses a water-lubricated design with a Kingsbury-type thrust bearing and pressure-equalizing diaphragm.

Protection Features

A filter check valve and built-in lightning arrestors are included on all single-phase models, as well as the 200V and 230V three-phase models listed by the manufacturer.

Installation & Electrical Requirements

Motor Compatibility

The replacement motor should be matched to the horsepower, voltage, and equipment requirements of the application. Selecting the correct configuration is important for proper operation.

Control Boxes

The 2 HP and 3 HP motors use three wires and require the appropriate control box. Scott Aerator states that the motor and control box function as a single assembly and that using an incorrect control box or operating without one can cause motor failure and void the warranty.

Power Cord Extensions

Motors are supplied with an 18-inch motor lead by default. Power cord extensions are available separately when additional cord length is required.

Maintenance & Service

Submersible Motor Care

The motor is designed for submersible operation and incorporates sealed windings, a water-lubricated design, and corrosion-resistant stainless steel construction.

Replacement Selection

Before replacing a motor, verify the existing equipment requirements, including horsepower, voltage, phase, and control box configuration where applicable.

Additional Motor Options

Scott Aerator states that three-phase, 50 Hz, and larger motor options are available by request.

Warranty

1-Year Motor Warranty

Scott Aerator states that its replacement electric motors are covered by a one-year warranty. For 2 HP and 3 HP models, the manufacturer requires the correct control box as part of the motor assembly, and improper control box use can void the warranty.

Frequently Asked Questions
Question Answer
What horsepower options are available? Replacement motors are available in 1/3 HP, 1/2 HP, 3/4 HP, 1 HP, 1-1/2 HP, 2 HP, and 3 HP configurations.
What voltage options are available? The available configurations include 115V and 230V, depending on the motor size.
Are the motors single phase? Single-phase motors are the standard option. Three-phase motors are available by contacting Scott Aerator.
Do the 2 HP and 3 HP motors require a control box? Yes. Scott Aerator states that the 2 HP and 3 HP motors require the correct control box for operation.
What cord length comes standard? The motor comes with an 18-inch motor lead by default. Power cord extensions are available separately.
What is the motor made from? The motor has a corrosion-resistant, all-stainless-steel exterior and a stainless steel splined shaft.
What certifications does the motor have? The motors are UL 778 recognized for North American voltages and are CSA and ANSI/NSF 61 certified.
Does the motor have a warranty? Yes. Scott Aerator states that replacement electric motors include a one-year warranty.
Are three-phase or 50 Hz motors available? Scott Aerator states that three-phase, 50 Hz, and larger motors are available by request.
