Scott Aerator Gusher Fountain For Large, Commercial Ponds

Keep your pond healthy by infusing oxygen with the help of the Gusher Fountain.

$5,039.00 $5,299.00

Options

Quick Facts

Feature	Detail
Motor Options	2 HP or 3 HP
Voltage	230V Standard
Flow Rate	130 GPM for 2 HP; 170 GPM for 3 HP
Spray Height	Up to 40 Feet with 2 HP; Up to 50 Feet with 3 HP
Motor	Oil-Free Stainless Steel Submersible Motor
Operation	Designed for 24-Hour Continuous Operation
Water Compatibility	Fresh Water and Salt Water
Motor Warranty	5 Years

A Note Before You Order

Select the correct motor configuration and cord length for your installation before ordering. The Gusher uses 230V motors for the 2 HP and 3 HP commercial configurations. A GFCI is required, and the manufacturer recommends using a licensed electrical contractor. Do not use an extension cord to supply power to the motor. Always disconnect power whenever swimmers are present.

Scott Aerator Gusher Fountain For Large, Commercial Ponds

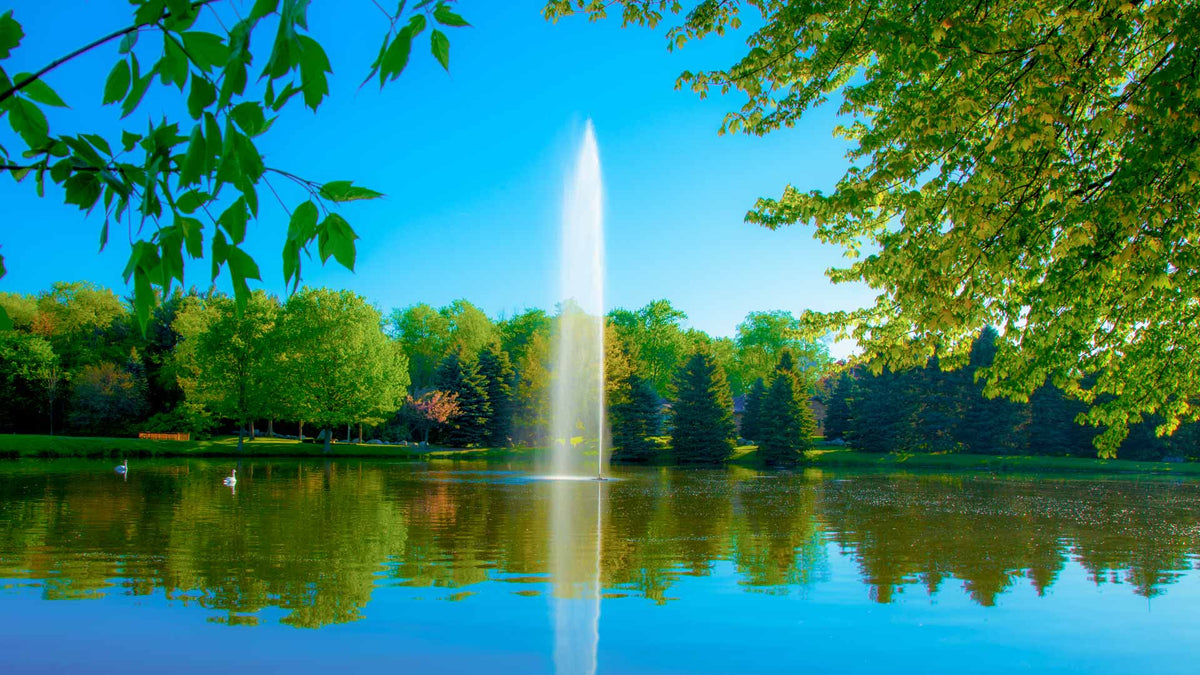

The Gusher Fountain is built for large commercial ponds and water features where a tall, highly visible display and continuous water circulation are important. Its dense, cascading geyser pattern creates a strong vertical display while moving water through the pond and adding oxygen to the water.

The large Gusher is available with 2 HP and 3 HP oil-free stainless steel submersible motors. The 2 HP model produces up to a 40-foot spray pattern, while the 3 HP model reaches up to 50 feet. Both configurations are designed for 24-hour operation, require no routine oil changes, and can be used in fresh or salt water.

Configuration Guide

Gusher Fountain 2 HP

The 2 HP configuration uses a 230V oil-free submersible motor and produces approximately 130 gallons per minute. Its spray pattern reaches up to 40 feet in height.

The 2 HP model requires a minimum pond depth of 56 inches and uses two 45-pound weights or concrete blocks for anchoring.

A 100-foot, 10-gauge submersible power cord is supplied as standard, with longer cord lengths available.

Gusher Fountain 3 HP

The 3 HP configuration uses a 230V oil-free submersible motor and produces approximately 170 gallons per minute. Its spray pattern reaches up to 50 feet in height.

The 3 HP model requires a minimum pond depth of 60 inches and uses two 55-pound weights or concrete blocks for anchoring.

A 100-foot, 10-gauge submersible power cord is supplied as standard, with longer cord lengths available.

Lighting Options

Light kits can be added to the Gusher Fountain at the time of purchase or added later. Available options include programmable color-changing LED two-light and four-light sets, as well as LED Night Glo two-light and four-light sets.

Specifications & Details

Specification	Detail
Motor Options	2 HP and 3 HP
Motor Type	Oil-Free Stainless Steel Submersible Motor
Voltage	230V
Frequency	60 Hz
Phase	Single Phase
Motor Speed	3,450 RPM
2 HP Current Draw	10 Amps at 230V
3 HP Current Draw	13.3 Amps at 230V
2 HP Flow Rate	130 GPM
3 HP Flow Rate	170 GPM
2 HP Spray Height	Up to 40 Feet
3 HP Spray Height	Up to 50 Feet
2 HP Minimum Depth	56 Inches
3 HP Minimum Depth	60 Inches
Power Cord	100 Feet Standard, 10-Gauge, Submersible
Longer Cords	Available in 150, 200, and 250 Feet Configurations
Water Compatibility	Fresh Water or Salt Water
Operation	24 Hours Per Day
Warranty	5-Year Unconditional Motor Warranty

Installation & Assembly

Included Components

The fountain assembly includes the float platform, pump assembly, stainless steel filter, stainless steel bolts, nuts, washers, and screws required for assembly. Nylon anchoring rope is not included.

Assembly

Assembly involves securing the float platform to the fountain housing, installing the stainless steel filter, attaching nylon anchoring lines to the stainless steel eye bolts, and installing the fountain head after the unit is placed in the water.

Anchoring

The fountain uses two nylon anchoring lines attached to the stainless steel eye bolts. The 2 HP model requires two 45-pound weights or concrete blocks, while the 3 HP model requires two 55-pound weights or concrete blocks. Anchors should be submerged at least 20 feet apart. Anchoring ropes are not included.

Electrical Installation

A GFCI is required for operation. The manufacturer recommends using a licensed electrical contractor. Do not use an extension cord to supply power to the motor. Proper cable size and maximum cable length must be selected according to the motor configuration and installation distance.

Maintenance & Winter Operation

Routine Maintenance

The Gusher Fountain is designed to require very little routine maintenance. When the fountain is removed from the water, the manufacturer recommends washing it with high-pressure water and visually inspecting the unit to make sure nothing is restricting water flow.

Anchoring Rope Replacement

Quality nylon anchoring rope can deteriorate over time. The manufacturer recommends replacing 3/8-inch or thicker nylon anchoring rope every five years.

Winter Operation

The manufacturer recommends leaving the fountain in the water during winter rather than removing it. Turn off the power supply during freezing conditions and restore power after the water thaws. The fountain components are designed to withstand sub-zero conditions.

Oil-Free Motor

The stainless steel submersible motor is oil-free, eliminating the need for oil changes. The design also avoids the need for a separate control box.

Warranty

5-Year Motor Warranty

Scott Aerator states that its fountains carry an unconditional 5-year motor warranty. Warranty coverage is subject to the manufacturer's warranty terms and conditions.

Frequently Asked Questions

Question	Answer
What is the Gusher Fountain designed for?	The Gusher is designed for large commercial ponds and water features where a tall vertical spray pattern, water circulation, and oxygen transfer are desired.
What motor sizes are available?	The large commercial Gusher is available with 2 HP and 3 HP motor configurations.
How high does the Gusher Fountain spray?	The 2 HP model reaches up to 40 feet, while the 3 HP model reaches up to 50 feet.
Can the Gusher be used in salt water?	Yes. The manufacturer approves the Gusher Fountain for both fresh water and salt water applications.
Can it operate continuously?	Yes. The Gusher Fountain is designed for 24-hour-per-day operation.
What pond depth is required?	The 2 HP model requires a minimum pond depth of 56 inches. The 3 HP model requires a minimum depth of 60 inches.
Does the fountain require winterizing?	The manufacturer recommends leaving the fountain in the water during winter, turning off the power during freezing conditions, and restoring power after the water thaws.
Is a GFCI required?	Yes. A GFCI is required for the fountain installation.
Can I use an extension cord?	No. The manufacturer specifically states that an extension cord should not be used to supply power to the motor.
How is the fountain anchored?	Two nylon anchoring lines attach to the fountain's stainless steel eye bolts. The 2 HP model uses two 45-pound weights or concrete blocks, while the 3 HP model uses two 55-pound weights or concrete blocks.
Are light kits available?	Yes. Color-changing LED and Night Glo LED light sets are available in two-light and four-light configurations.
