Scott Aerator DA-20 Display Aerator for Large, Commercial Ponds

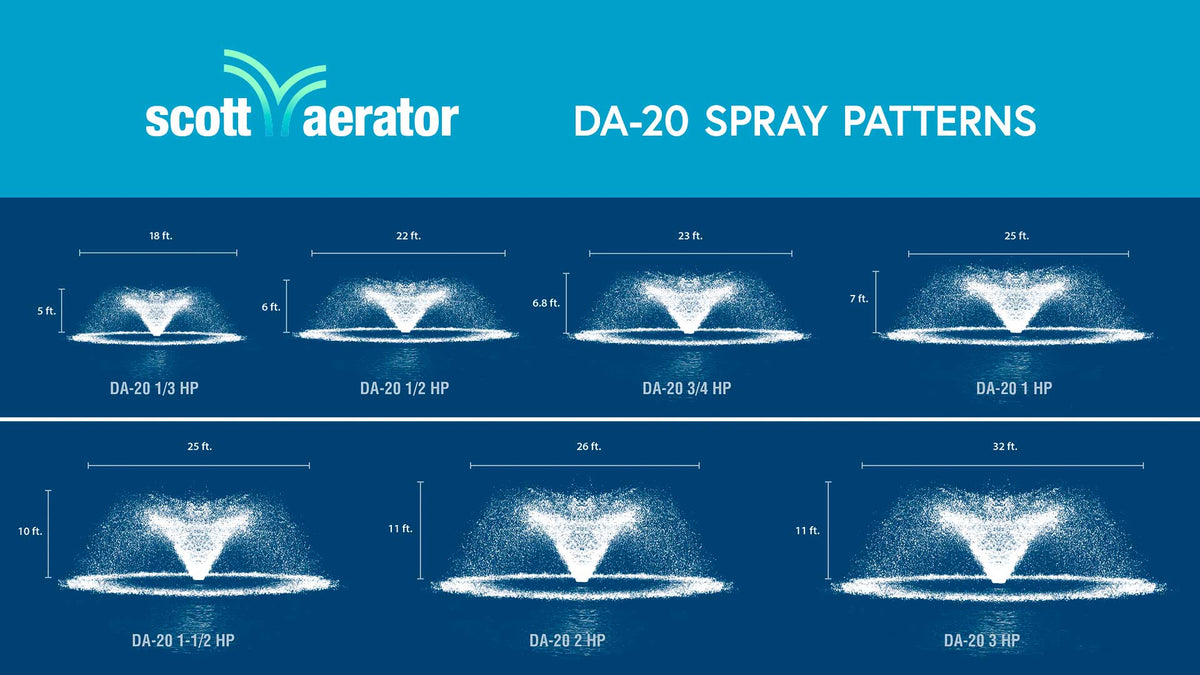

Scott Aerator DA-20 pond fountain aerator spray patterns

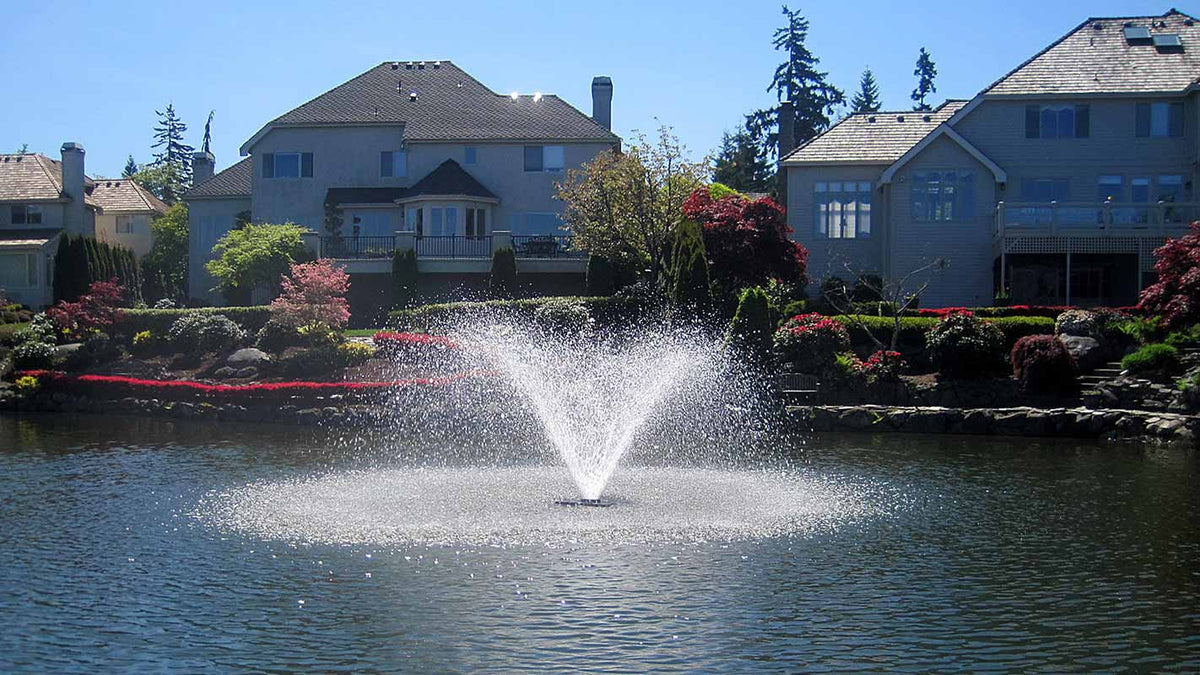

Our commercial pond aerators add a beautiful water feature to your neighborhood, golf course, or business complex.

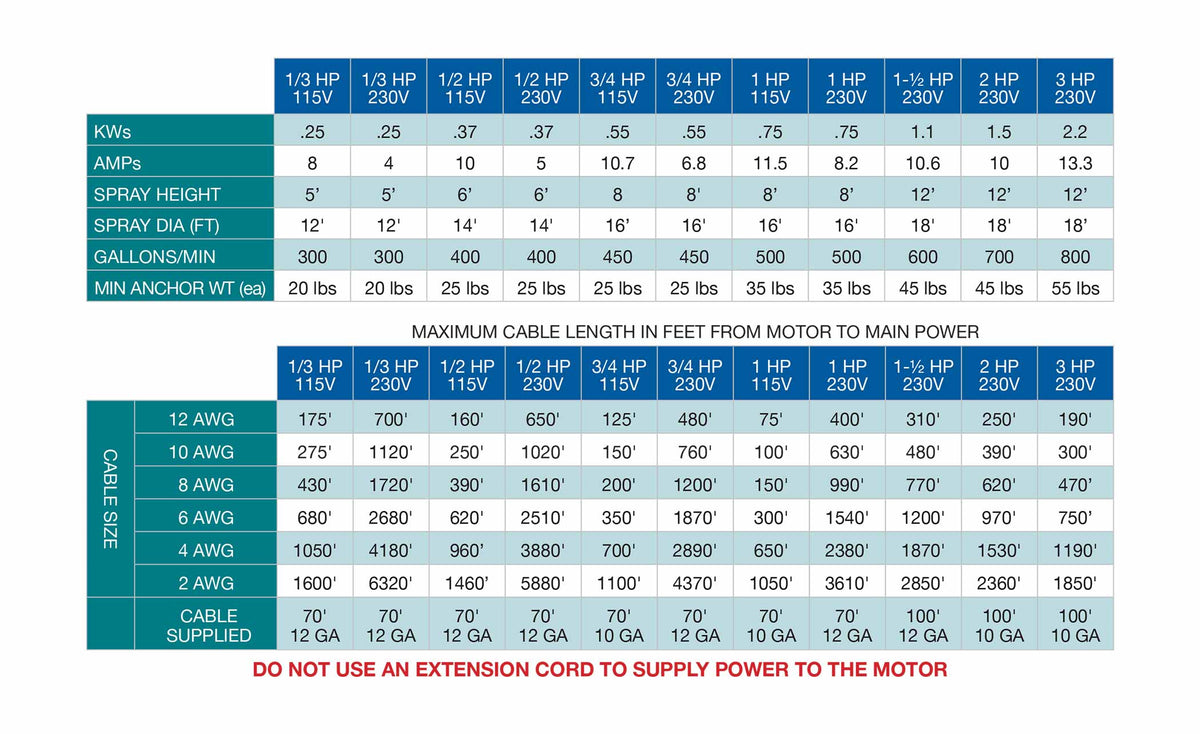

Technical specifications table for motors with various parameters like kW, amps, spray height, and cable size.

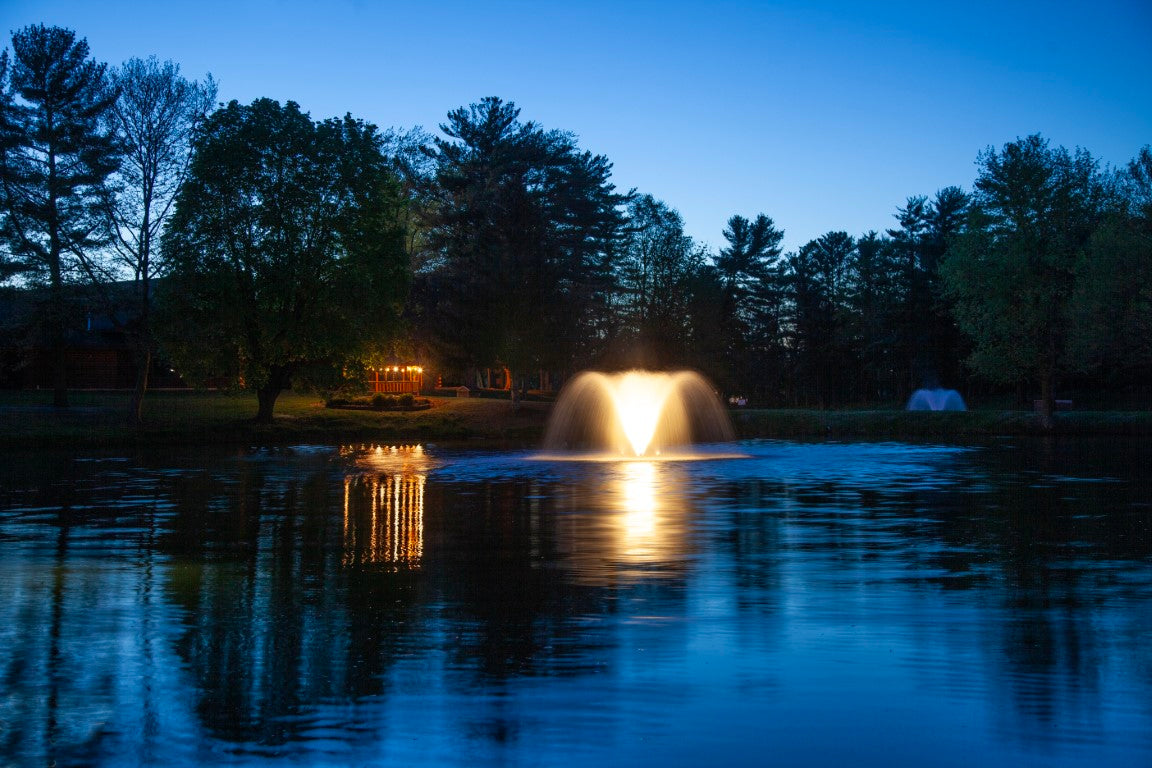

An outdoor lighting set installed around a fountain at night, highlighting the warm white glow of the LED lights.

Scott Aerator DA-20 Display Aerator for Large, Commercial Ponds

$4,049.00 $4,259.00

Options

Quick Facts

Feature	Detail
Motor Options	2 HP or 3 HP, 230V
Flow Rate	700 or 800 Gallons Per Minute
Spray Pattern	11 Feet High, 26 or 32 Feet Wide
Motor	Oil-Free Stainless Steel Submersible Motor
Operation	Designed for 24-Hour-Per-Day Operation
Water Compatibility	Fresh Water and Salt Water
Minimum Pond Depth	42 Inches
Motor Warranty	5 Years

A Note Before You Order

The DA-20 is available with 2 HP or 3 HP, 230V motors. A GFCI is required for installation, and power must always be disconnected when swimmers are present. Select the correct motor configuration and cord length for your installation before ordering. The standard 230V power cord is 100 feet long, and longer cord lengths are available.

Scott Aerator DA-20 Display Aerator for Large, Commercial Ponds

The DA-20 is a heavy-duty floating display aerator designed for large commercial ponds that need substantial water movement and oxygen transfer. Its funnel-shaped spray creates a prominent water feature while circulating hundreds of gallons of water per minute throughout the pond.

Available in 2 HP and 3 HP configurations, the DA-20 produces flow rates of 700 or 800 gallons per minute. The circulation helps distribute oxygen through the water, move surface debris and support healthier pond conditions while providing a visible focal point for commercial properties, golf courses, neighborhoods and other large landscapes.

The oil-free stainless steel submersible motor is designed for continuous operation and is approved for fresh and salt water use. The unit can remain in the pond during winter. Power should be turned off during freezing conditions and restored after the water thaws.

Configuration Guide

DA-20 2 HP

The 2 HP configuration uses a 230V oil-free motor and produces a 700 GPM flow rate. The spray pattern measures approximately 11 feet high and 26 feet wide.

It requires a minimum pond depth of 42 inches and is designed for ponds greater than 1/2 acre. Two 45-pound weights or concrete blocks and two nylon anchoring ropes are required for installation and are not included.

DA-20 3 HP

The 3 HP configuration uses a 230V oil-free motor and produces an 800 GPM flow rate. The spray pattern measures approximately 11 feet high and 32 feet wide.

It requires a minimum pond depth of 42 inches and is designed for ponds greater than 1/2 acre. Two 55-pound weights or concrete blocks and two nylon anchoring ropes are required for installation and are not included.

Specifications & Details

Specification	Detail
Motor	Oil-Free Stainless Steel Submersible Motor
Motor Sizes	2 HP and 3 HP
Voltage	230V
Frequency	60 Hz
Phase	Single Phase
Motor Speed	3,450 RPM
2 HP Flow Rate	700 GPM
3 HP Flow Rate	800 GPM
2 HP Spray Pattern	11 Feet High x 26 Feet Wide
3 HP Spray Pattern	11 Feet High x 32 Feet Wide
Current Draw	10 Amps for 2 HP; 13.3 Amps for 3 HP at 230V
Power Cord	100 Feet, 10-Gauge, Submersible; Longer Lengths Available
Minimum Pond Depth	42 Inches
Water Compatibility	Fresh Water or Salt Water
Operation	24 Hours Per Day
Warranty	5-Year Motor Warranty

Installation & Assembly

Anchoring

The DA-20 is anchored using two nylon ropes attached to the unit. The 2 HP model requires two 45-pound weights or concrete blocks, while the 3 HP model requires two 55-pound weights or concrete blocks. Anchoring weights and ropes are not included.

Electrical Installation

A GFCI is required for operation. The DA-20 uses a 230V electrical connection, and installation should comply with applicable electrical codes. Always disconnect power before entering the water or performing work on the unit.

Power Cord

A 100-foot, 10-gauge submersible power cord is provided with the 230V configuration. Longer power cord lengths can be ordered when required for the installation.

Maintenance & Winter Operation

Routine Maintenance

The DA-20 is designed for low-maintenance operation. Its oil-free submersible motor does not require oil changes, and the manufacturer states that no routine maintenance is required.

Winter Operation

The DA-20 can remain in the pond during winter. Turn off the power when freezing conditions occur and restore power after the ice thaws. The unit is designed to withstand sub-zero conditions without requiring seasonal removal or winterizing procedures.

Continuous Operation

The DA-20 is designed for 24-hour-per-day operation, allowing it to provide continuous water movement and aeration when operating conditions and the installation permit.

Warranty

5-Year Motor Warranty

The DA-20 motor is covered by a 5-year warranty against defects according to the manufacturer's warranty terms.

For complete warranty coverage, limitations and conditions, refer to the manufacturer's current warranty documentation.

Frequently Asked Questions

Question	Answer
What is the DA-20 designed to do?	It is a large floating display aerator designed to circulate water, add oxygen and create a visible fountain-style water feature in commercial ponds.
What motor sizes are available?	The large commercial DA-20 is available with 2 HP or 3 HP, 230V motors.
How much water does the DA-20 move?	The 2 HP model moves approximately 700 gallons per minute, while the 3 HP model moves approximately 800 gallons per minute.
How large is the spray pattern?	The 2 HP model produces a spray approximately 11 feet high and 26 feet wide. The 3 HP model produces a spray approximately 11 feet high and 32 feet wide.
What pond depth is required?	The DA-20 requires a minimum pond depth of 42 inches.
Can the DA-20 be used in salt water?	Yes. The DA-20 is approved for use in salt water as well as fresh water.
Can it run continuously?	Yes. The DA-20 is designed for 24-hour-per-day operation.
Is a GFCI required?	Yes. A GFCI is required for the DA-20 installation.
Can the DA-20 stay in the pond during winter?	Yes. The manufacturer recommends leaving the unit in place during winter, turning off the power while the water is frozen and restoring power after the ice thaws.
What is required to anchor the DA-20?	The 2 HP model requires two 45-pound weights or concrete blocks, while the 3 HP model requires two 55-pound weights or concrete blocks. Two nylon anchoring ropes are also required. These items are not included.
Does the DA-20 require regular maintenance?	The manufacturer states that the DA-20 requires no routine maintenance and uses an oil-free submersible motor.

Downloads

Specs & Assembly

View Specs & Assembly PDF

Aerator Comparison Brochure

View Aerator Comparison Brochure PDF

Product Video

Watch the DA-20 product video and assembly video for a closer look at the aerator, its spray pattern and the installation process.

DA-20 Product Video

Assembly Video
