Scott Aerator
Scott Aerator Bubble Pro Mini Subsurface Aerators
Estimated delivery between October 25 and October 27.
Quick Facts
A Note Before You Order
Choose the correct voltage for your installation. The compressor must be connected to a GFCI-protected outlet, and the manufacturer advises against using an extension cord. Provide a suitable weather-protected, ventilated location for the compressor and always disconnect power before servicing the system.
Scott Aerator Bubble Pro Mini Subsurface Aerator
The Bubble Pro Mini is a subsurface aeration system designed to improve oxygen levels and water circulation while keeping the equipment largely out of sight. Instead of creating a surface fountain, the system sends air through weighted tubing to a diffuser positioned below the water surface.

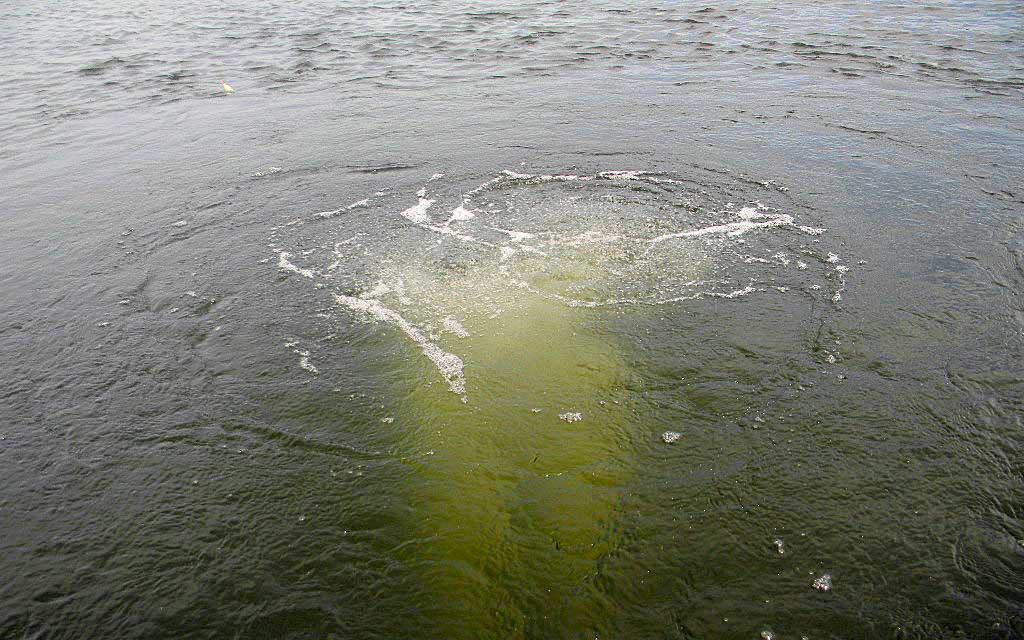

As air passes through the diffuser, thousands of small bubbles rise through the water column. This upward movement draws deeper water toward the surface, where oxygen is replenished. The Bubble Pro Mini includes a 1/4 HP rocking-piston compressor, one diffuser, 100 feet of 3/8-inch weighted tubing, an air outlet assembly with pressure relief, and the fittings and clamps needed for installation.
Configuration & Coverage Guide
Bubble Pro Mini 115V
The 115V configuration is designed for installations using a 115-volt power supply. It includes the 1/4 HP rocking-piston compressor, one diffuser, 100 feet of weighted tubing, air outlet assembly, and required fittings and clamps.
Bubble Pro Mini 230V
The 230V configuration provides the same Bubble Pro Mini aeration system with a compressor configured for 230-volt power. This version is identified by MPN 44050.23.
| Pond Depth | Approximate Coverage |
| 5 to 8 Feet | 1/4 Acre |
| 9 to 12 Feet | 1/2 Acre |
| 13 to 16 Feet | Up to 1 Acre |
Specifications & Details
Installation & Assembly
Included Components

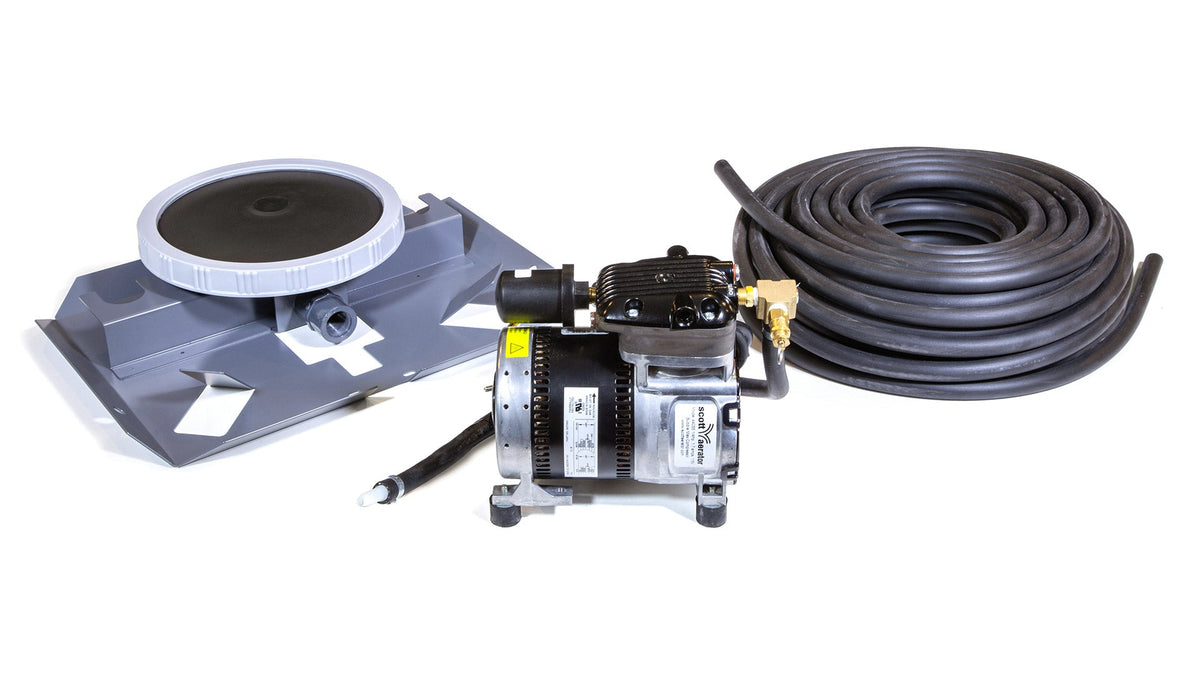

The Bubble Pro Mini kit includes one 1/4 HP compressor, one self-weighted diffuser base, one diffuser membrane, one 100-foot roll of 3/8-inch self-weighted air tubing, one single valve assembly, one barbed check valve fitting, two hose clamps, and one padded hose clamp.
Diffuser Placement
The diffuser should not be positioned at the absolute deepest point of the pond. The installation guide recommends placing it at approximately two-thirds to three-quarters of the deepest point. This helps maintain a cooler area in summer and warmer water during winter.
Compressor Placement
The compressor should be protected from rain, snow, and other harsh weather while remaining in a well-ventilated shelter. It should not sit directly on the ground, and the installation guide recommends keeping it away from locations where flooding can occur. Shaded areas are preferred when practical.
Summer Start-Up
If the pond is already stratified, the manufacturer recommends starting the system gradually. Begin with one to two hours on the first day and increase daily operating time by one to two hours during the first week before moving to continuous operation. This gradual startup helps avoid rapidly mixing stagnant bottom water.
Maintenance & Winter Operation
Routine Maintenance
The oil-free compressor is designed for continuous operation. Routine maintenance consists primarily of keeping the filter clean and replacing wearable components such as the diaphragm, piston ring, or vanes when required. The compressor should never be oiled or lubricated.
Winter Operation
The Bubble Pro Mini can be used as a winter de-icer. In freezing climates, the weighted tubing leading into the pond should be buried so ice does not form around the tubing and damage or kink the line. Use caution around ice because aeration currents can create thin ice away from the diffuser.
Service Precautions
Always disconnect power before servicing the system and relieve pressure from the air system before performing maintenance. The compressor surface becomes hot during operation, so allow it to cool before handling.
Warranty
2-Year Warranty
The Bubble Pro Mini is covered by a two-year warranty. Coverage is subject to the manufacturer's warranty terms and conditions.
Frequently Asked Questions
Downloads
Bubble Pro Mini Specs & Assembly
Bubble Pro Series Brochure
