Scott Aerator Atriarch Fountain For Medium, Residential Ponds

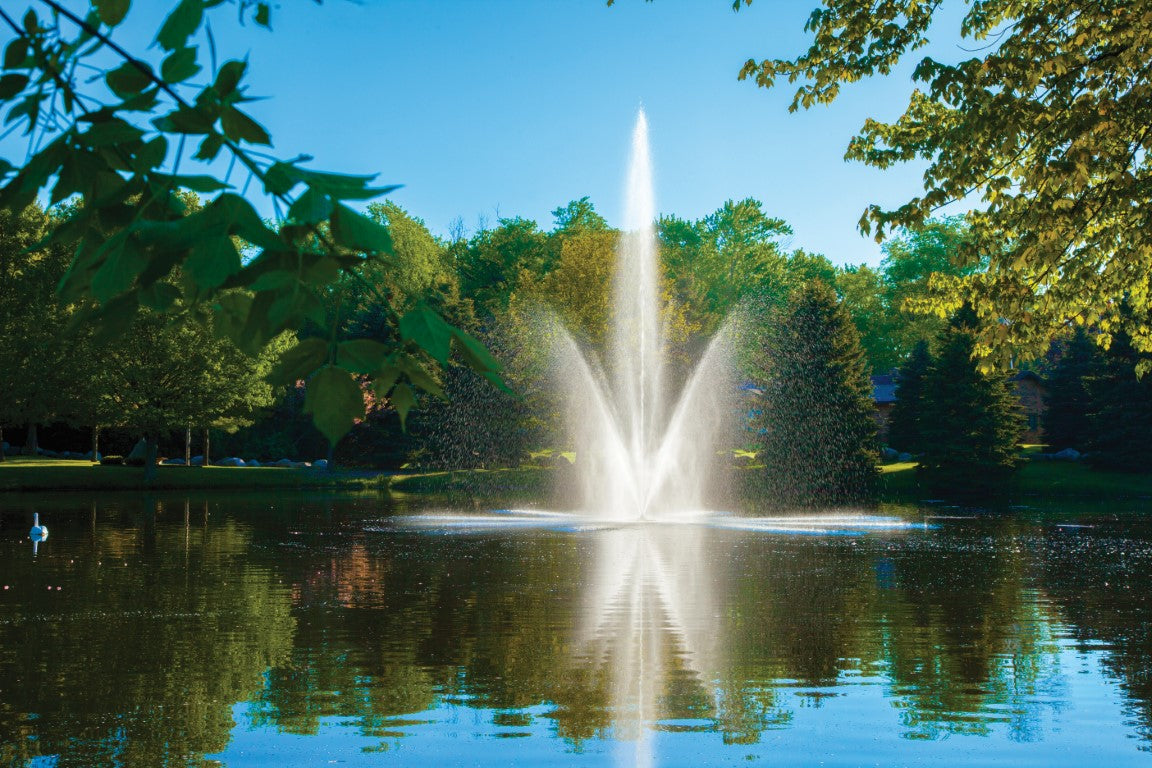

A fountain with a solid brass center nozzle surrounded by eight individual brass nozzles, situated in a pond.

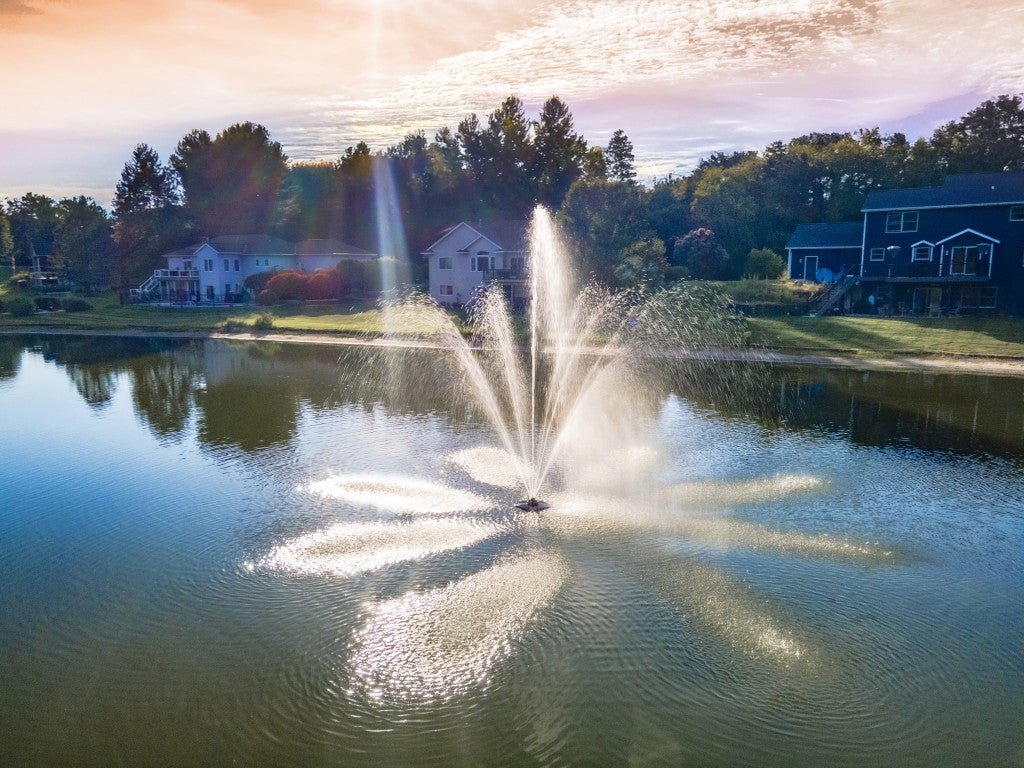

Fountain in a pond with houses and trees in the background

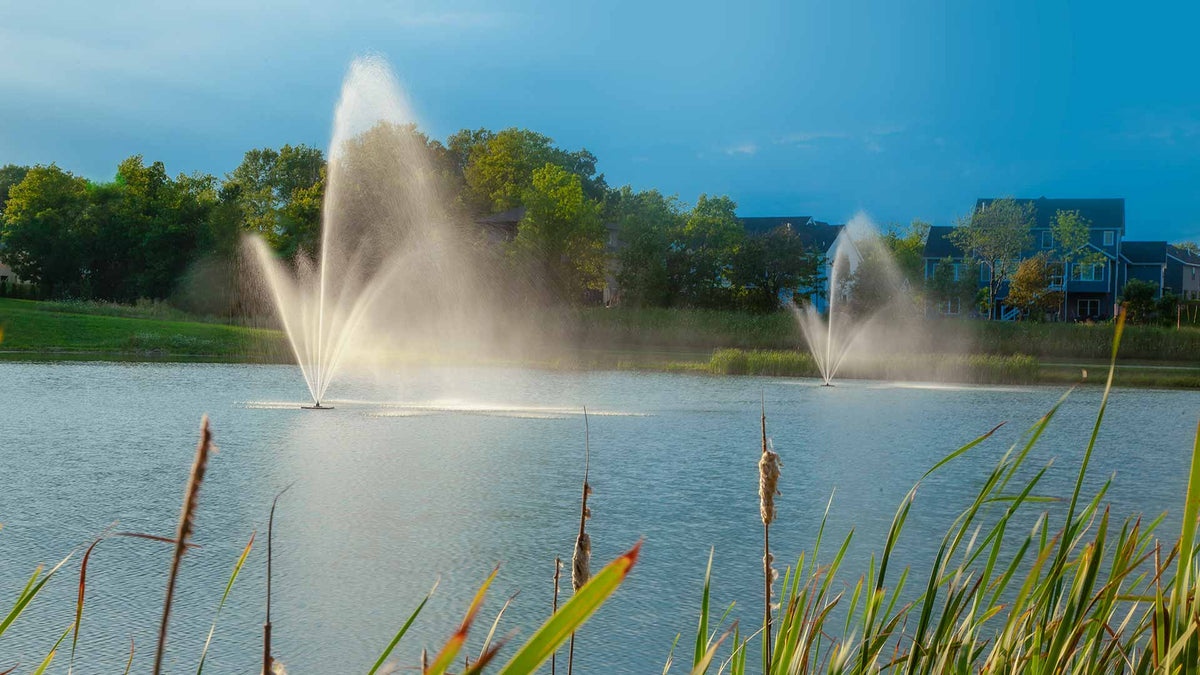

Atriarch Fountain 1 hp for residential ponds

Scott Aerator Atriarch Fountain For Medium, Residential Ponds

$3,089.00 $3,249.00

Options

Quick Facts

Feature	Detail
Motor Options	3/4 HP, 1 HP, or 1.5 HP
Voltage	115V or 230V, depending on motor configuration
Flow Rate	65, 75, or 90 Gallons Per Minute
Design	Floating Multi-Nozzle Display Fountain
Nozzle Design	Solid Brass Center Nozzle with Eight Surrounding Brass Nozzles
Motor	Oil-Free Stainless Steel Submersible Motor
Operation	Designed for 24-Hour Continuous Operation
Water Compatibility	Fresh Water and Salt Water
Motor Warranty	5 Years
Lighting	Optional LED Light Kits Available

A Note Before You Order

Select the correct motor voltage before ordering. For proper operation of a 115-volt motor, the distance from the main breaker to the fountain should not exceed 100 feet. A GFCI is required for operation, and power must always be disconnected whenever swimmers are present. The manufacturer recommends professional electrical installation for the fountain's power connection.

Scott Aerator Atriarch Fountain For Medium, Residential Ponds

The Atriarch Fountain combines a distinctive multi-nozzle water display with the circulation benefits of a floating pond fountain. A solid brass center nozzle is surrounded by eight individual brass nozzles, producing a balanced spray pattern that creates a visible focal point across medium residential ponds.

The medium residential configuration is available with 3/4 HP, 1 HP, and 1.5 HP motors. Depending on the selected configuration, the fountain delivers approximately 65, 75, or 90 gallons per minute and supports different spray dimensions and minimum pond depths. Optional LED light sets can also be added for nighttime operation.

The Atriarch uses an oil-free stainless steel submersible motor and is designed for both fresh and salt water. It is built for continuous operation and requires no routine maintenance. During freezing conditions, the manufacturer recommends turning off the power while leaving the unit in the water, then restoring power after the ice has melted.

Configuration Guide

Atriarch 3/4 HP

Available in 115V or 230V with an oil-free motor, 65 GPM flow rate, and a 25' x 35' spray dimension. The 3/4 HP model requires a minimum pond depth of 36 inches.

The 115V version uses a 70-foot submersible power cord with plug, while the 230V version uses a 70-foot submersible cord. Two 20-pound weights or concrete blocks and two nylon anchoring ropes are required and are not included.

Atriarch 1 HP

Available in 115V or 230V with an oil-free motor, 75 GPM flow rate, and a 30' x 40' spray dimension. The 1 HP model requires a minimum pond depth of 44 inches.

The 115V and 230V configurations include a 100-foot submersible power cord. Two 35-pound weights or concrete blocks and two nylon anchoring ropes are required and are not included.

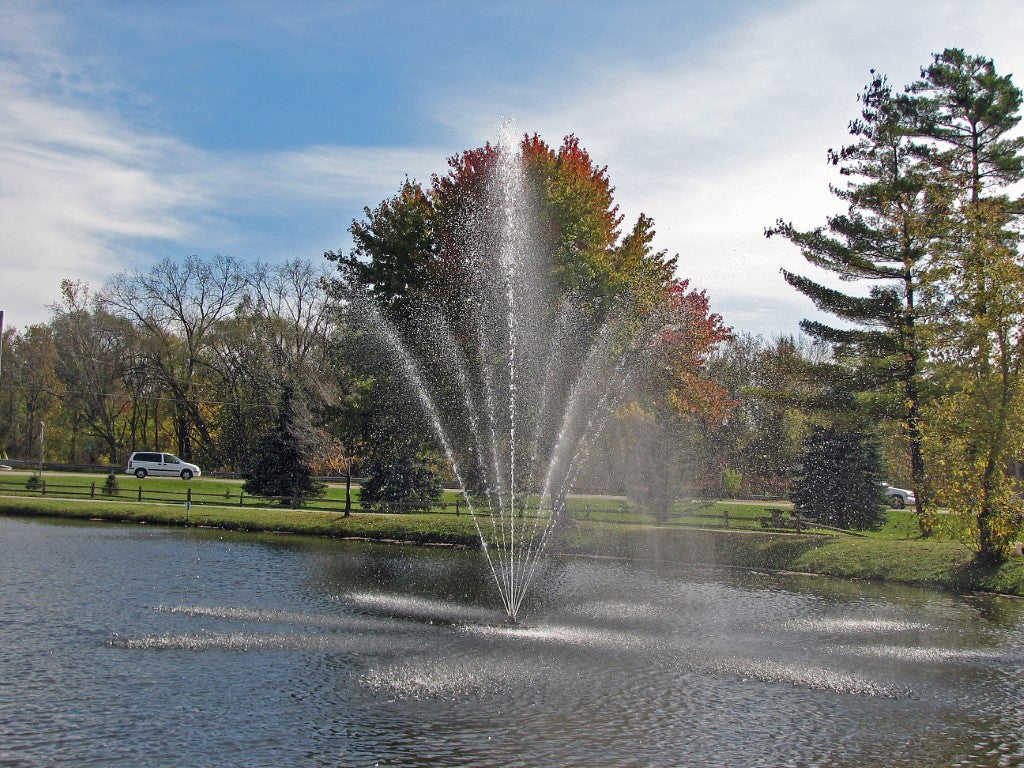

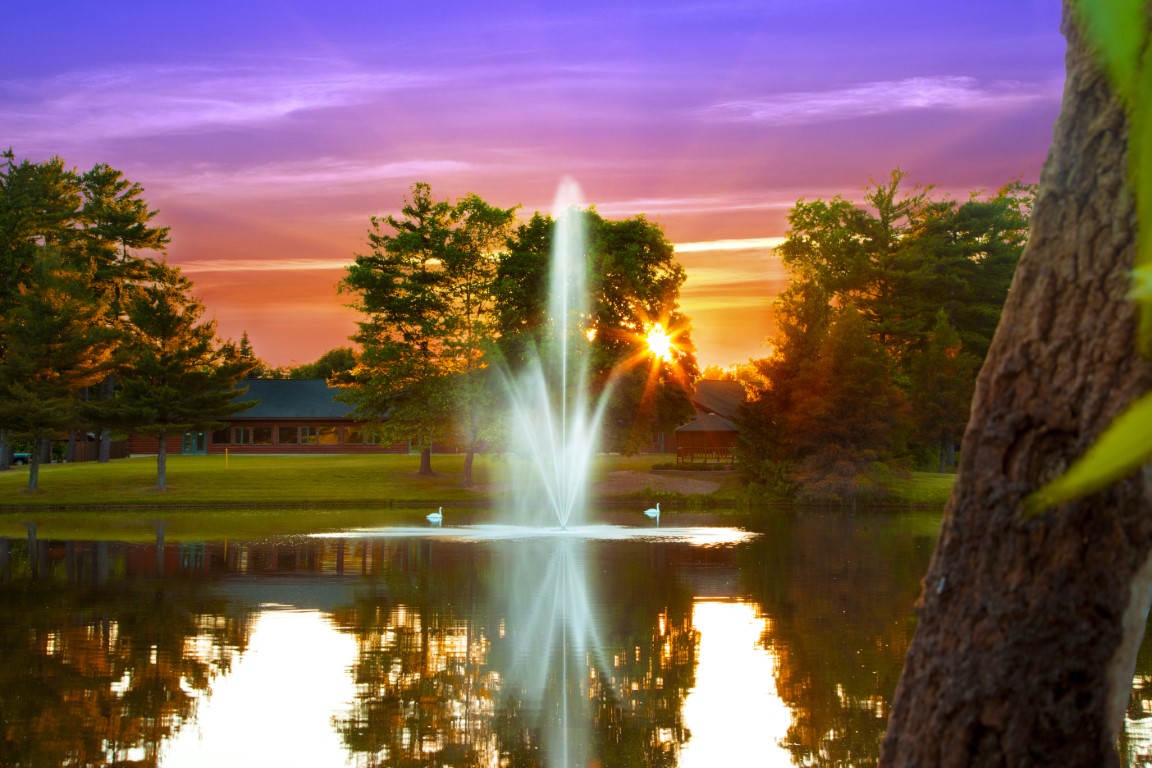

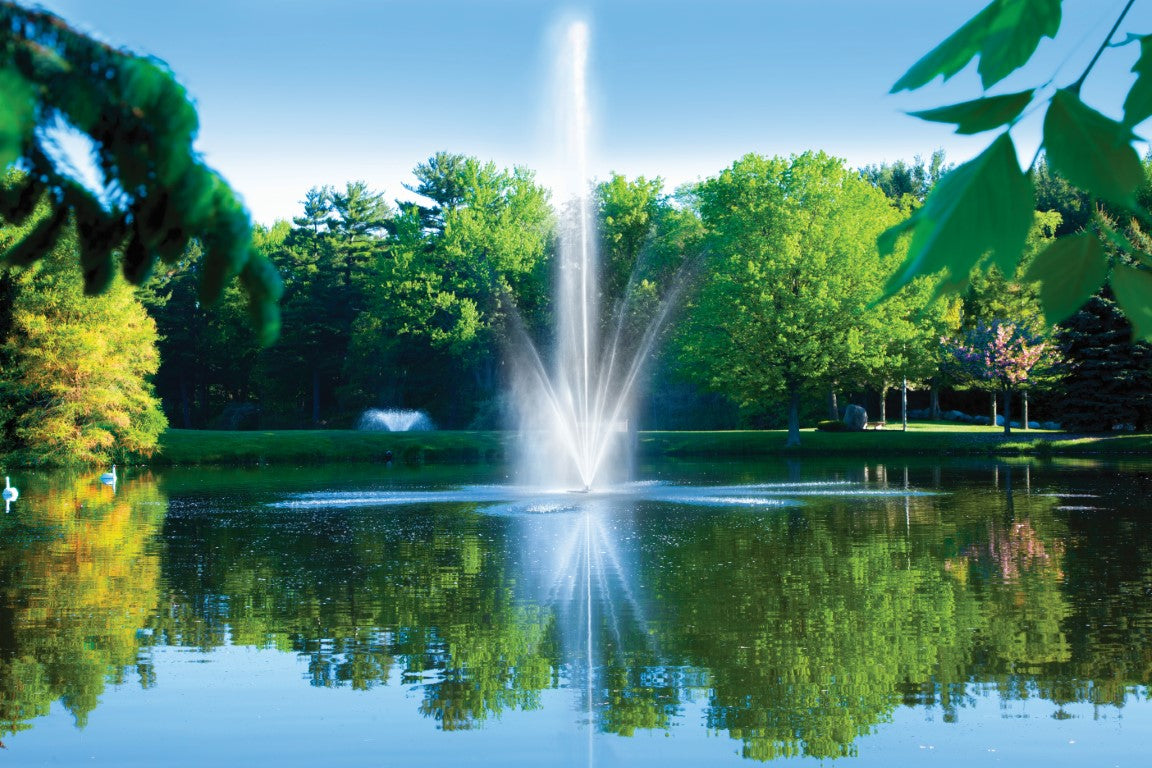

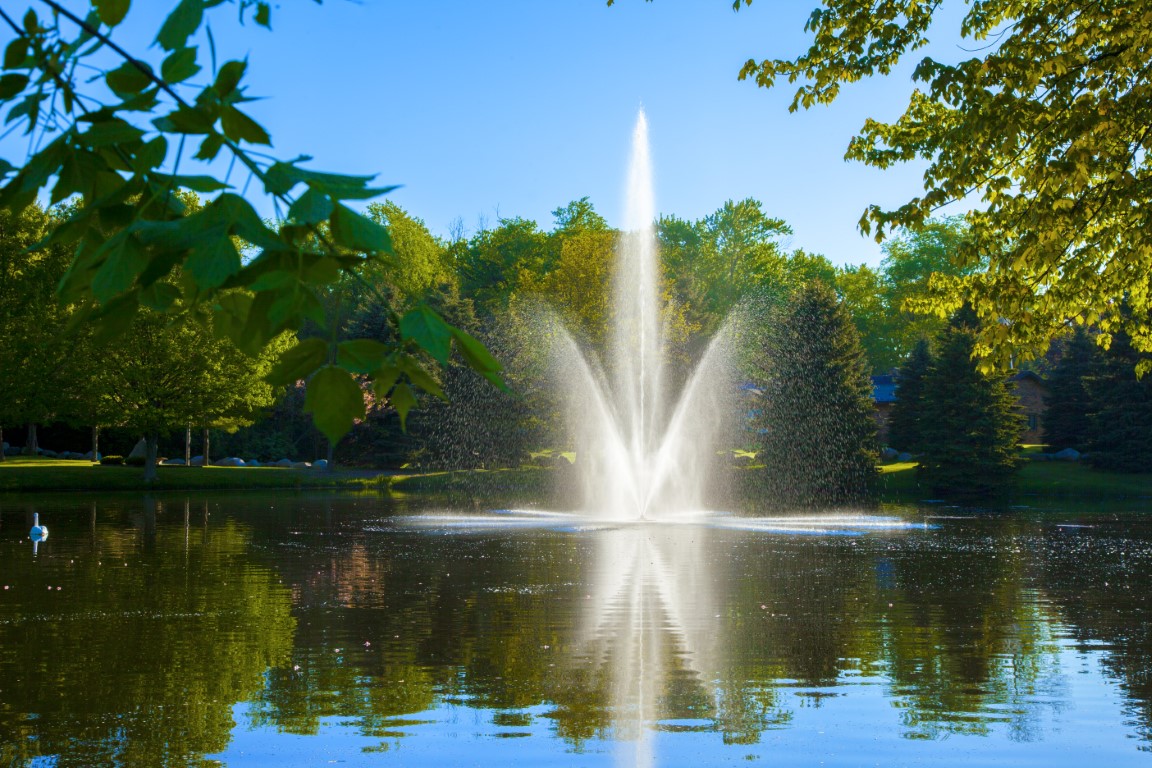

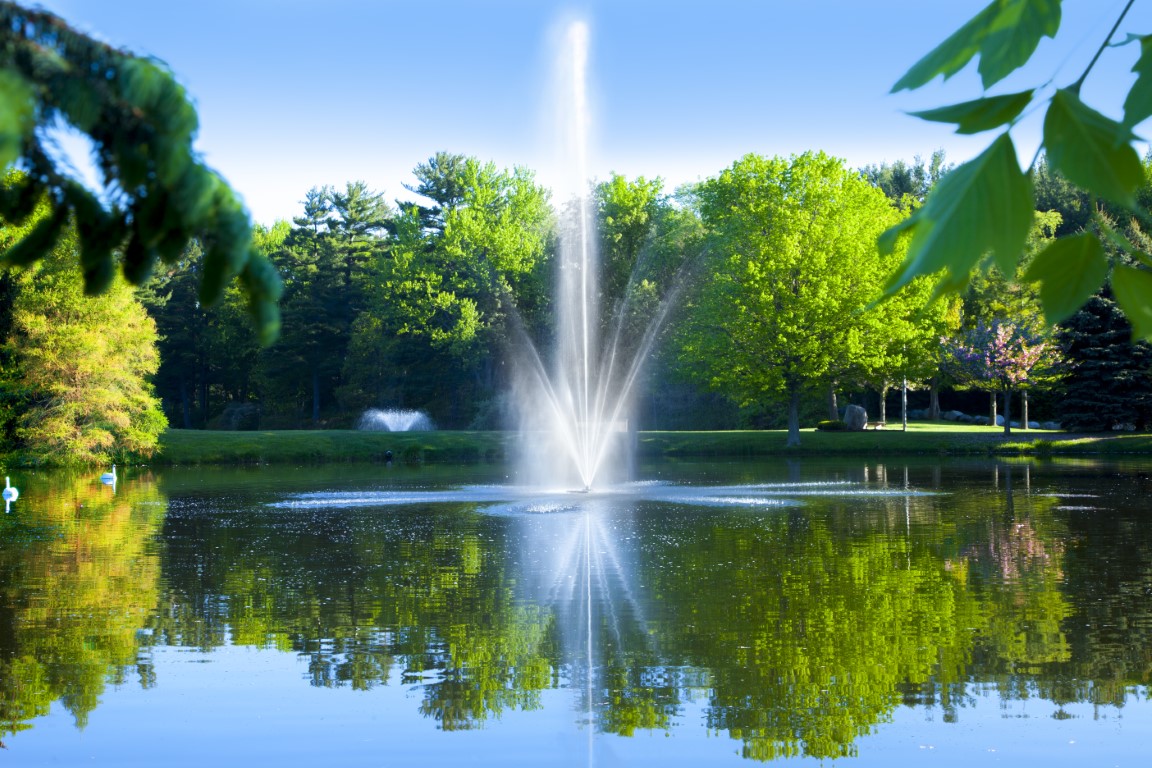

Atriarch 1.5 HP

The 1.5 HP model uses a 230V oil-free motor and provides a 90 GPM flow rate with a 40' x 50' spray dimension. A minimum pond depth of 50 inches is required.

The 1.5 HP configuration includes a 100-foot, 12-gauge submersible power cord. Two 45-pound weights or concrete blocks and two nylon anchoring ropes are required and are not included.

Specifications & Details

Specification	Detail
Motor	Oil-Free Stainless Steel Submersible Motor
Motor Sizes	3/4 HP, 1 HP, and 1.5 HP
Voltage	115V or 230V for 3/4 HP and 1 HP; 230V for 1.5 HP
Frequency	60 Hz
Phase	Single Phase
Motor Speed	3,450 RPM
Flow Rate	65 GPM, 75 GPM, or 90 GPM
Spray Dimensions	25' x 35' for 3/4 HP; 30' x 40' for 1 HP; 40' x 50' for 1.5 HP
Minimum Depth	36 inches for 3/4 HP; 44 inches for 1 HP; 50 inches for 1.5 HP
Power Cord	70 feet for 3/4 HP; 100 feet for 1 HP and 1.5 HP; longer cords available
Water Compatibility	Fresh Water or Salt Water
Operation	24 Hours Per Day
Motor Warranty	5 Years
Lighting	Optional LED Light Kits

Installation & Assembly

Included Components

The fountain assembly includes the floating fountain platform, motor assembly, brass nozzle configuration, stainless steel components, and the required hardware for assembling the unit.

Anchoring

The Atriarch requires two nylon anchoring ropes connected to the fountain and secured to weighted anchors or concrete blocks positioned on the pond bottom. The required anchor weight depends on the motor configuration. Anchoring weights and ropes are not included.

Electrical Installation

A GFCI is required for operation. Select the proper voltage for the installation, and always disconnect electrical power before entering the water or when swimmers are present. Follow the manufacturer's installation instructions and applicable electrical requirements.

Maintenance & Winter Operation

Routine Maintenance

The Atriarch uses an oil-free submersible motor and is designed to operate without routine maintenance. There is no oil to change and no control box required for normal operation.

Winter Operation

The manufacturer recommends leaving the Atriarch in the water during winter. Turn off the power during freezing conditions and leave the unit in place. Once the ice has melted and conditions are suitable for operation, restore power to the fountain.

Cold Weather Protection

The fountain is designed to remain in the pond through freezing conditions. Power should remain off while the water is frozen, then be restored after the ice melts.

Lighting Options

Optional LED Light Sets

LED lighting can be added to the Atriarch Fountain at the time of purchase or later. Available light options provide nighttime illumination around the fountain spray and can be used to create a more visible display after dark.

Light kits are available separately and should be selected according to the fountain configuration and desired lighting setup.

Warranty

5-Year Motor Warranty

The Atriarch Fountain includes a 5-year motor warranty against defects under the manufacturer's warranty terms.

Warranty coverage applies to the motor and is subject to the manufacturer's current warranty conditions and requirements.

Frequently Asked Questions

Question	Answer
What is the Atriarch Fountain designed to do?	It is a floating display fountain designed to create a multi-nozzle water display while circulating water and increasing oxygen levels in the pond.
What motor sizes are available?	The medium residential Atriarch is available with 3/4 HP, 1 HP, and 1.5 HP motor configurations.
What voltage options are available?	The 3/4 HP and 1 HP models are available in 115V or 230V configurations. The 1.5 HP model uses 230V.
What are the flow rates?	The 3/4 HP model provides approximately 65 GPM, the 1 HP model provides approximately 75 GPM, and the 1.5 HP model provides approximately 90 GPM.
What pond depth is required?	The minimum depth is 36 inches for 3/4 HP, 44 inches for 1 HP, and 50 inches for 1.5 HP.
What are the spray dimensions?	The 3/4 HP model produces a 25' x 35' spray, the 1 HP model produces a 30' x 40' spray, and the 1.5 HP model produces a 40' x 50' spray.
Can the Atriarch be used in salt water?	Yes. The Atriarch is approved for use in both fresh water and salt water.
Can it run continuously?	Yes. The Atriarch is designed for 24-hour-per-day operation.
Is a GFCI required?	Yes. A GFCI is required for operation.
Can the fountain remain in the pond during winter?	Yes. The manufacturer recommends leaving the fountain in the water during winter, turning off the power during freezing conditions, and restoring power after the ice melts.
Does the Atriarch require routine maintenance?	No routine maintenance is required. The oil-free submersible motor eliminates the need for oil changes.
Are LED lights available?	Yes. Optional LED light kits can be added when ordering the fountain or installed later.
How is the Atriarch anchored?	Two nylon ropes are used with weighted anchors or concrete blocks positioned on the pond bottom. The required anchor weight varies by motor size.

Downloads

Pond Fountain Motor Specs

View Pond Fountain Motor Specs PDF

Pond Fountain Specs & Assembly

View Pond Fountain Specs & Assembly PDF

Pond Fountain Comparison Brochure

View Pond Fountain Comparison Brochure PDF

Product Video

Watch the Atriarch Fountain video for a closer look at the fountain's display, installation, and operation.
