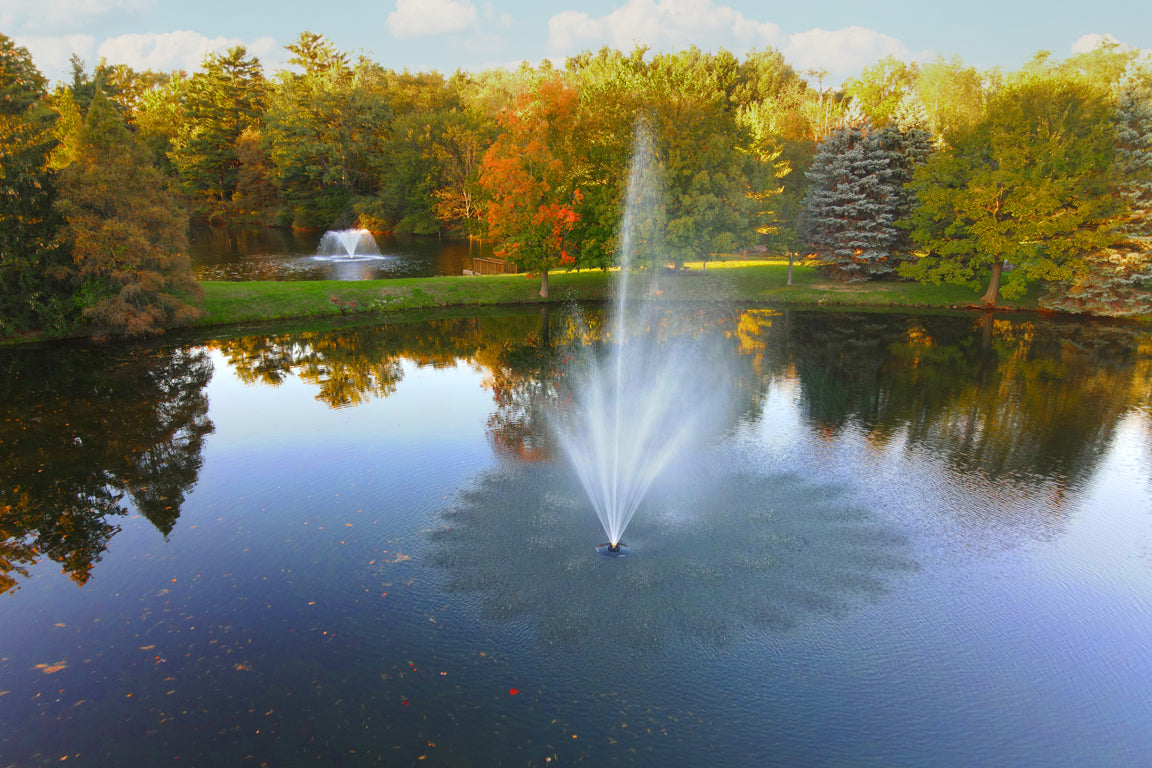

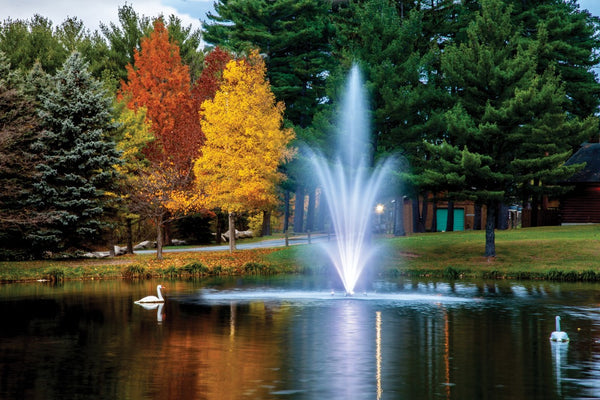

An outdoor residential pond with a fountain in the center, surrounded by trees with autumn colors.

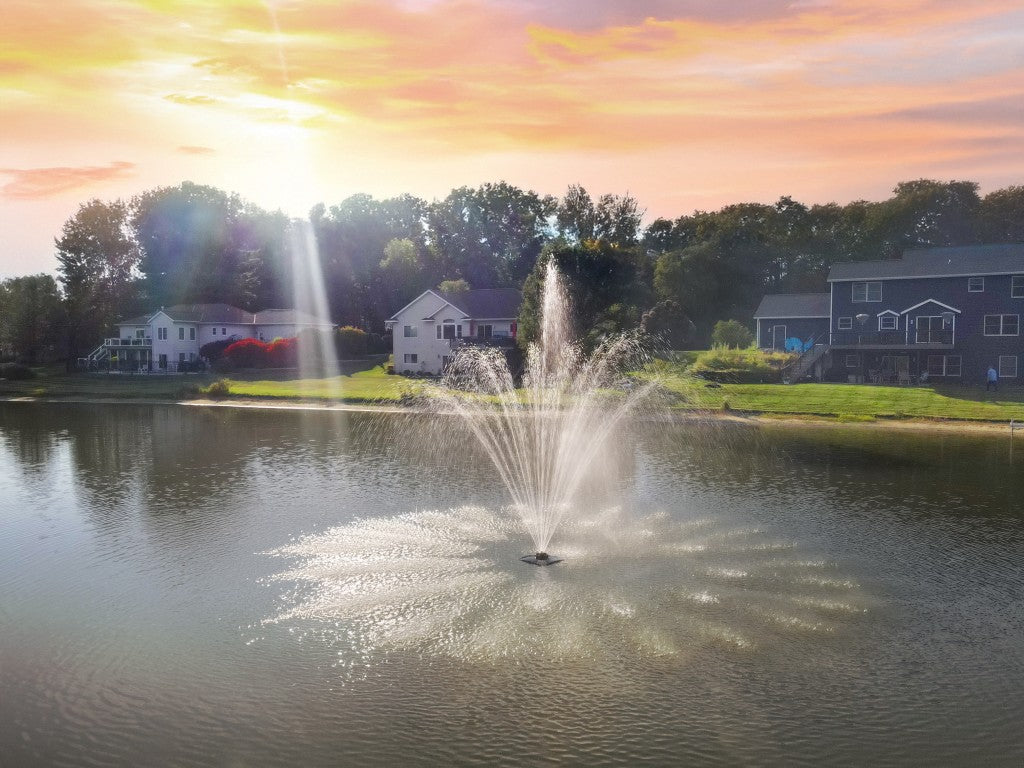

Fountain in a pond with houses and trees in the background during sunset.
Amherst Three Tier 3HP
Amherst 1.5 HP
Amherst 1 HP
Amherst 1.5 HP
Amherst
amherst fountain

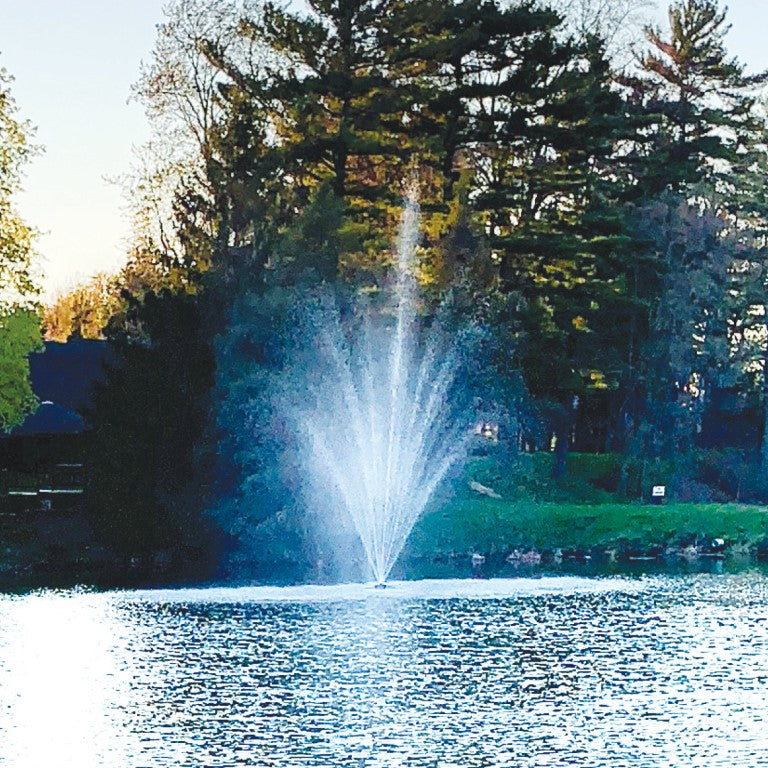

Amherst
Amherst
Fountain in a pond with houses and trees in the background
Authorized Dealer
Scott Aerator

Scott Aerator

Scott Aerator Amherst Fountain For Small, Residential Ponds

$2,706.55 $2,849.00
-5%
In stock
Motor: ½ hp 115 volts
  • ½ hp 115 volts
  • ½ hp 230 volts
  • ¾ hp 115 volts
  • ¾ hp 230 volts
Cord Length: 70 feet
  • 70 feet
  • 100 feet - Unavailable
  • 150 feet - Unavailable
  • 200 feet - Unavailable
  • 250 feet - Unavailable

Estimated delivery between October 25 and October 27.

Free Shipping
Residential and Commercial Use
Backed by Real Expert Support
Delivered With Care, Direct to Your Door
Scott Aerator Amherst Fountain For Small, Residential Ponds
$2,706.55 $2,849.00
$2,706.55 $2,849.00
Options
Motor: ½ hp 115 volts
  • ½ hp 115 volts
  • ½ hp 230 volts
  • ¾ hp 115 volts
  • ¾ hp 230 volts
Cord Length: 70 feet
  • 70 feet
  • 100 feet - Unavailable
  • 150 feet - Unavailable
  • 200 feet - Unavailable
  • 250 feet - Unavailable

Quick Facts

Feature Detail
Motor Options 1/2 HP or 3/4 HP
Voltage 115V or 230V, depending on motor configuration
Fountain Style Three-Tier Fountain with Center Column
Spray Pattern 8' x 15' with 1/2 HP; 10' x 20' with 3/4 HP
Flow Rate 50 GPM with 1/2 HP; 55 GPM with 3/4 HP
Minimum Pond Depth 36 inches for 1/2 HP; 44 inches for 3/4 HP
Water Compatibility Fresh Water and Salt Water
Operation Designed for 24-Hour-Per-Day Operation
Motor Warranty 5 Years

A Note Before You Order

Select the correct motor voltage for your installation. A GFCI is required, and the manufacturer recommends using a licensed electrical contractor. Do not use an extension cord to supply power to the motor. Always disconnect power when swimmers are present. For 115V installations, the distance from the main breaker to the fountain should not exceed 100 feet.

Scott Aerator Amherst Fountain for Small, Residential Ponds

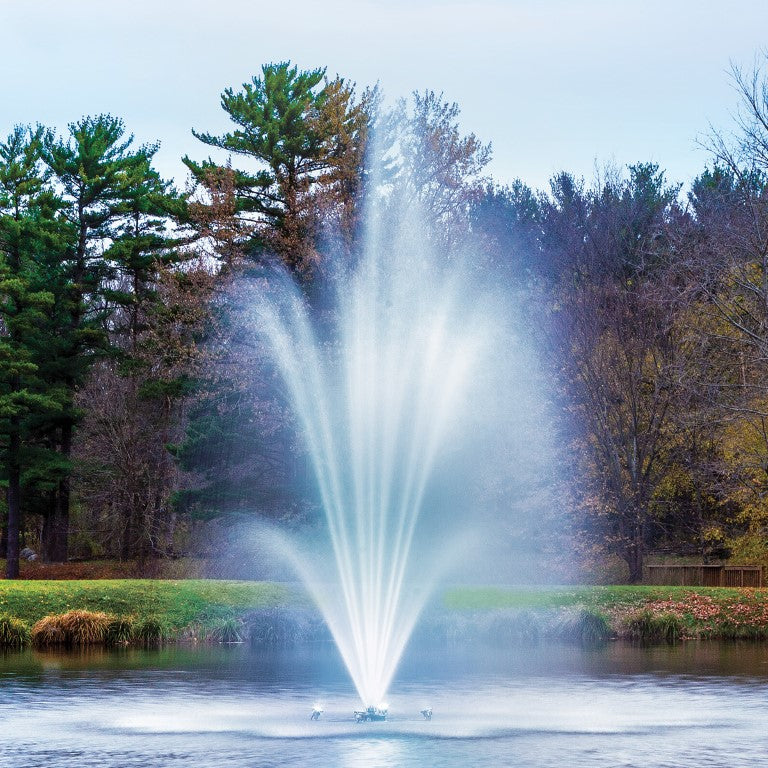

The Amherst Fountain brings a classic three-tier display to small residential ponds, creating a defined water pattern with a prominent center column. Its traditional fountain design provides a strong visual focal point while circulating water through the pond.

The small residential Amherst is available with 1/2 HP and 3/4 HP oil-free stainless steel submersible motors in 115V or 230V configurations. The 1/2 HP version produces a spray pattern measuring approximately 8 feet by 15 feet, while the 3/4 HP version produces a pattern measuring approximately 10 feet by 20 feet.

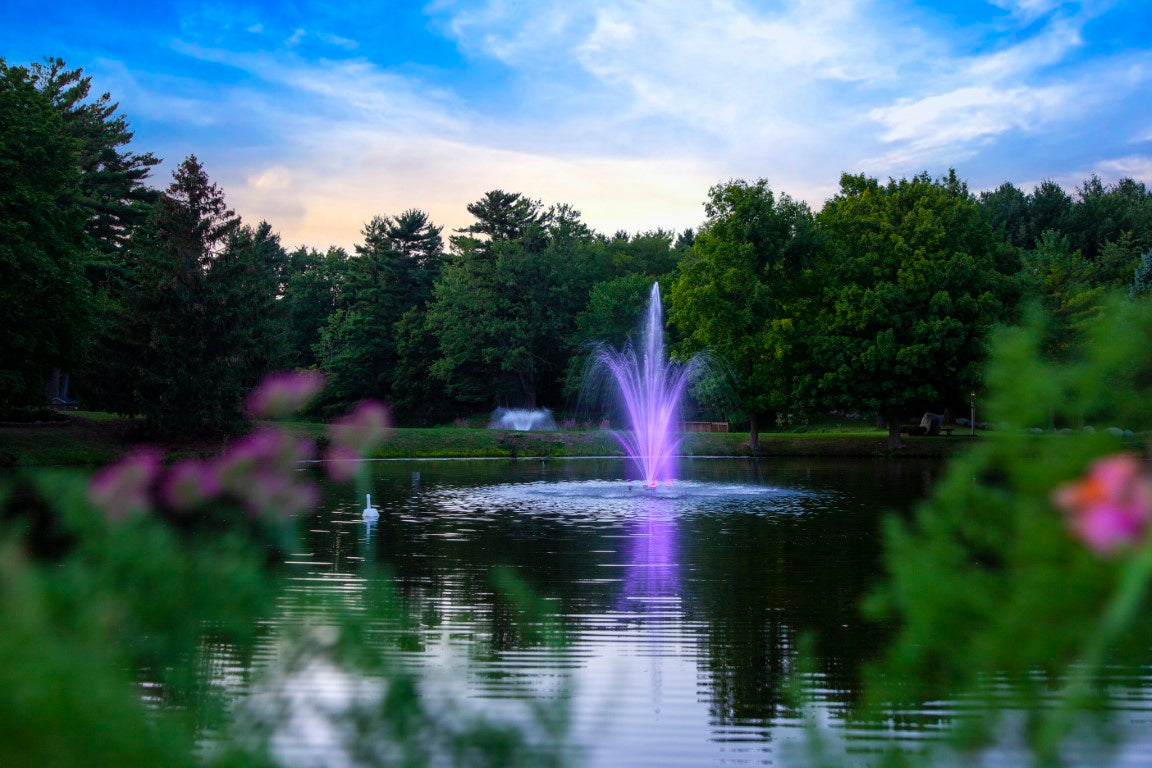

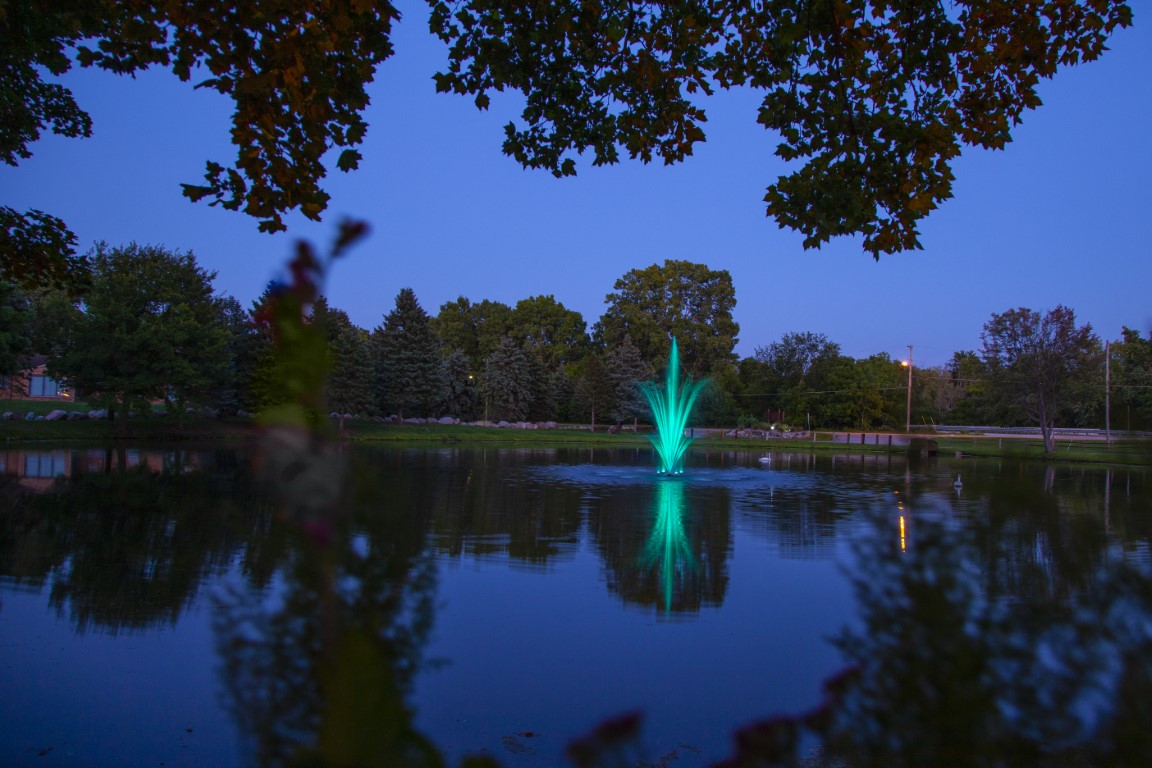

The fountain is designed for fresh or salt water and can operate continuously. Optional light sets can be added to create a nighttime display. The unit is also designed for winter operation without removing the fountain from the pond.

Configuration Guide

Amherst Fountain 1/2 HP

Available in 115V or 230V with a 50 GPM flow rate. The 1/2 HP configuration requires a minimum pond depth of 36 inches and produces an approximately 8' x 15' spray pattern.

The 115V version includes a 70-foot, 12-gauge submersible power cord with plug. The 230V version includes a 70-foot, 12-gauge submersible power cord.

Amherst Fountain 3/4 HP

Available in 115V or 230V with a 55 GPM flow rate. The 3/4 HP configuration requires a minimum pond depth of 44 inches and produces an approximately 10' x 20' spray pattern.

The 115V version includes a 70-foot, 10-gauge submersible power cord with plug. The 230V version includes a 70-foot, 12-gauge submersible power cord.

Specifications & Details
Specification Detail
Motor Oil-Free Stainless Steel Submersible Motor
Motor Sizes 1/2 HP and 3/4 HP
Voltage 115V or 230V
Frequency 60 Hz
Phase Single Phase
Motor Speed 3,450 RPM
Flow Rate 50 GPM with 1/2 HP; 55 GPM with 3/4 HP
Minimum Pond Depth 36 inches for 1/2 HP; 44 inches for 3/4 HP
Spray Dimensions 8' x 15' for 1/2 HP; 10' x 20' for 3/4 HP
Power Cord 70 feet standard; longer cords available
Water Compatibility Fresh Water or Salt Water
Operation 24 Hours Per Day
Current Draw, 1/2 HP 10 Amps at 115V; 5 Amps at 230V
Current Draw, 3/4 HP 10.7 Amps at 115V; 6.8 Amps at 230V
Safety GFCI Required; Disconnect Power When Swimmers Are Present
Installation & Assembly

Included Components

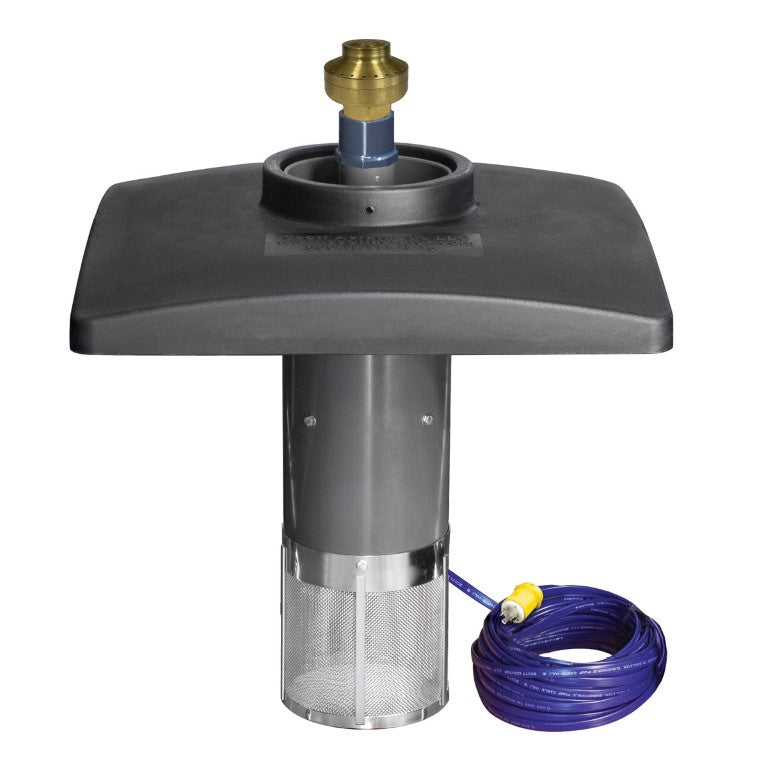

The assembly kit includes one float platform, one pump assembly, one stainless steel filter, two stainless steel bolts, stainless steel nuts and washers, and three stainless steel screws.

Anchoring

Two nylon anchoring lines attach to the fountain's stainless steel eye bolts. The fountain can be secured to shore or anchored using two concrete blocks submerged at least 20 feet apart. Anchoring rope and weights are not included.

Electrical Installation

A GFCI is required for operation. The manufacturer recommends using a licensed electrical contractor. An extension cord must not be used to supply power to the motor.

Final Assembly

After the fountain is positioned in the water, attach the fountain head, secure the anchoring lines, and complete the electrical connection. Take care not to place the fountain's weight on the stainless steel filter during handling.

Maintenance & Winter Operation

Routine Maintenance

The Amherst Fountain requires very little routine maintenance under normal operating conditions. When the fountain is removed from the water, wash it with high-pressure water and visually inspect the unit to make sure nothing is restricting water flow.

Winter Operation

The manufacturer recommends leaving the fountain in the water during winter. Turn off the power supply during freezing conditions and restore power after the water thaws. The fountain components are designed to withstand sub-zero conditions without damage.

Anchoring Line Replacement

Quality nylon anchoring rope measuring 3/8 inch or thicker should be replaced approximately every five years. This is also a suitable time to clean and inspect the fountain.

Warranty

5-Year Motor Warranty

The Amherst Fountain includes a 5-year motor warranty. Warranty coverage is subject to the manufacturer's warranty terms.

Frequently Asked Questions
Question Answer
What is the Amherst Fountain designed for? It is a three-tier pond fountain designed to create a classic water display in small residential ponds while circulating water through the fountain.
What motor sizes are available? The small residential Amherst Fountain is available with 1/2 HP and 3/4 HP motor configurations.
What voltage options are available? The available motor configurations use either 115V or 230V power.
What pond depth is required? The 1/2 HP configuration requires a minimum pond depth of 36 inches. The 3/4 HP configuration requires a minimum depth of 44 inches.
Can the Amherst Fountain be used in salt water? Yes. The Amherst Fountain is approved for use in both fresh water and salt water.
Can the fountain run continuously? Yes. The fountain is designed for 24-hour-per-day operation.
Does the fountain need to be removed during winter? No. The manufacturer recommends leaving the fountain in the water, turning off the power during freezing conditions, and restoring power after the water thaws.
Is a GFCI required? Yes. A GFCI is required for the fountain installation.
Can I use an extension cord? No. The manufacturer specifically states that an extension cord should not be used to supply power to the motor.
How is the Amherst Fountain anchored? Two nylon anchoring lines attach to the fountain's eye bolts. The fountain can be secured to shore or anchored with two concrete blocks positioned at least 20 feet apart.
Can lights be added? Yes. Light kits can be added when purchasing the fountain or added later.
Downloads

Pond Fountain Motor Specs

View Pond Fountain Motor Specs PDF

Pond Fountain Specs & Assembly

View Pond Fountain Specs & Assembly PDF

Pond Fountain Comparison Brochure

View Pond Fountain Comparison Brochure PDF

Product Video

Watch the Amherst Fountain video for a visual look at the fountain and its water display.
