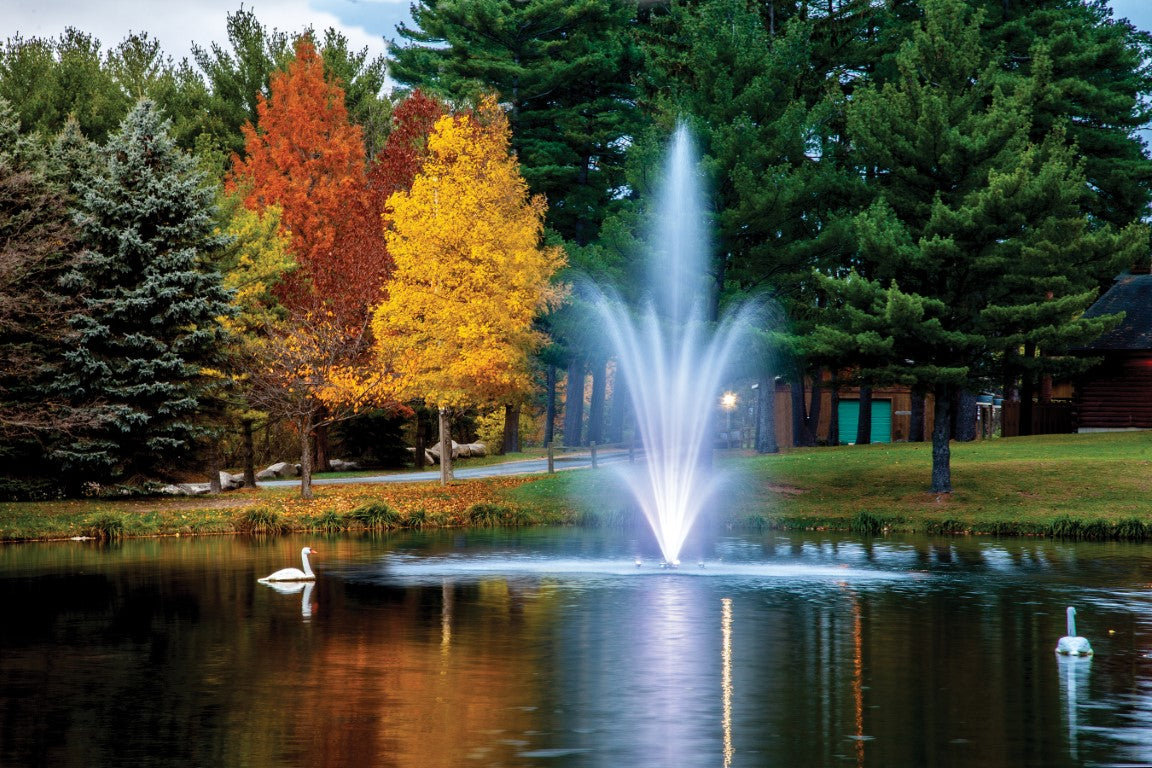

The Amherst Fountain provides beauty and a healthy aquatic environment.

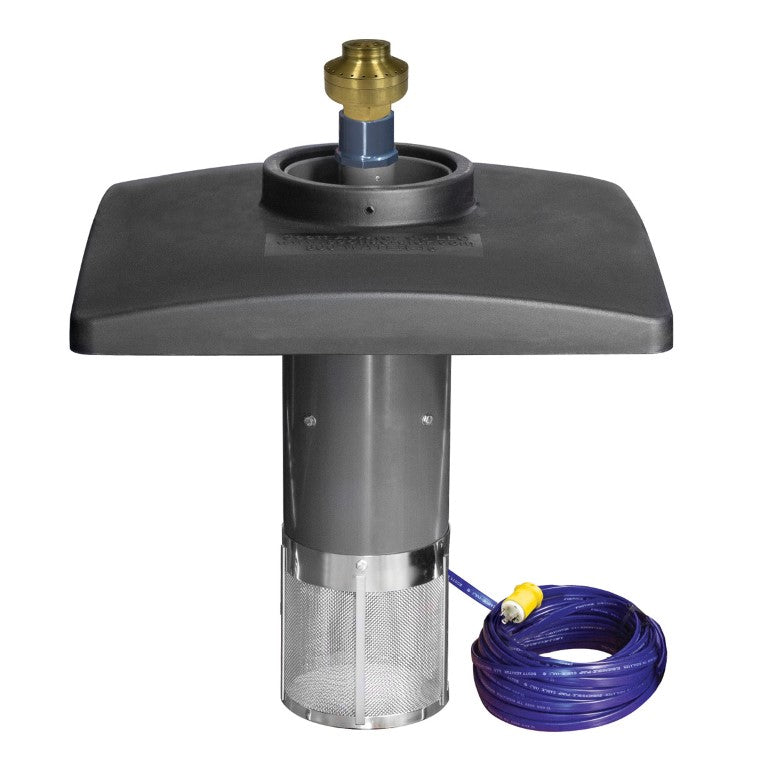

Amherst

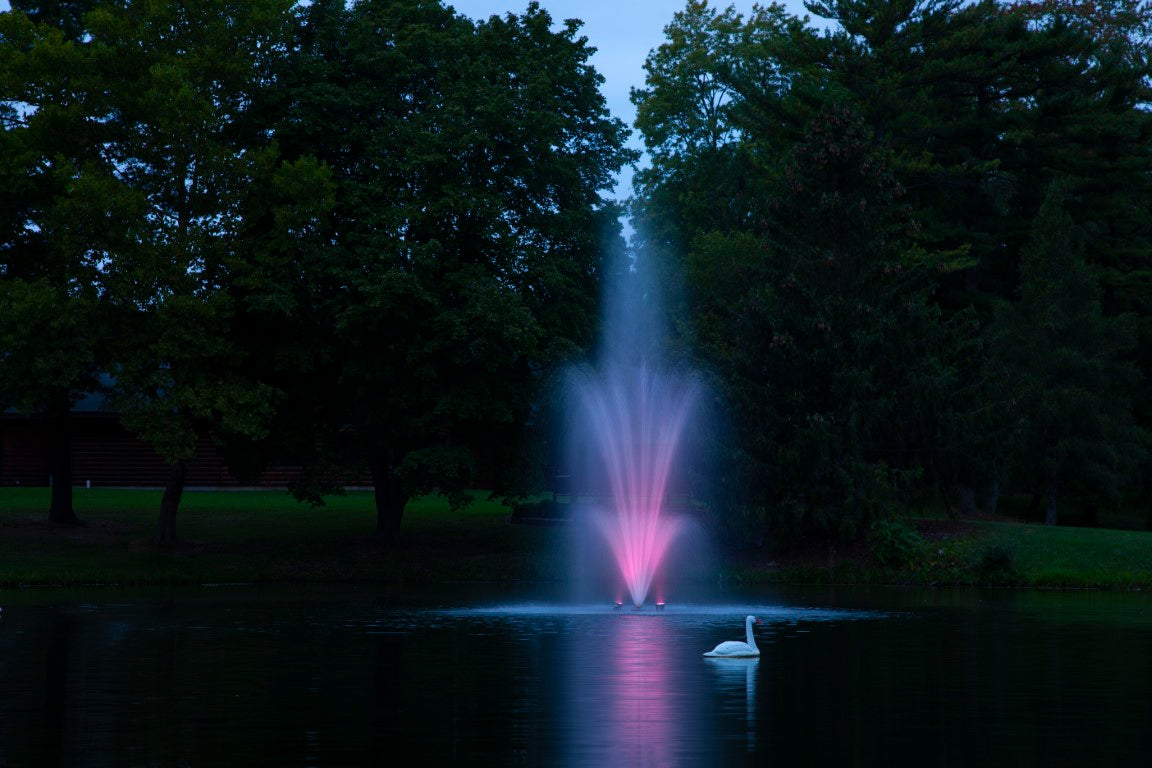

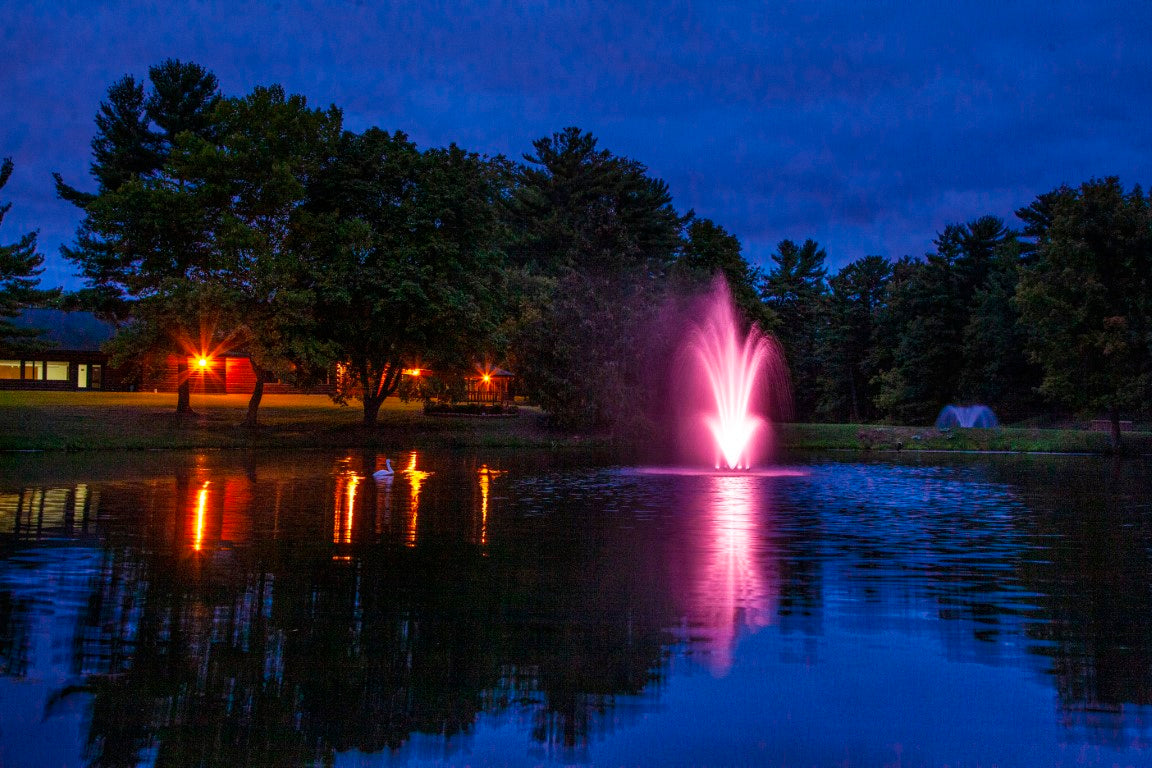

Amherst Fountain with pink LED fountain lights.

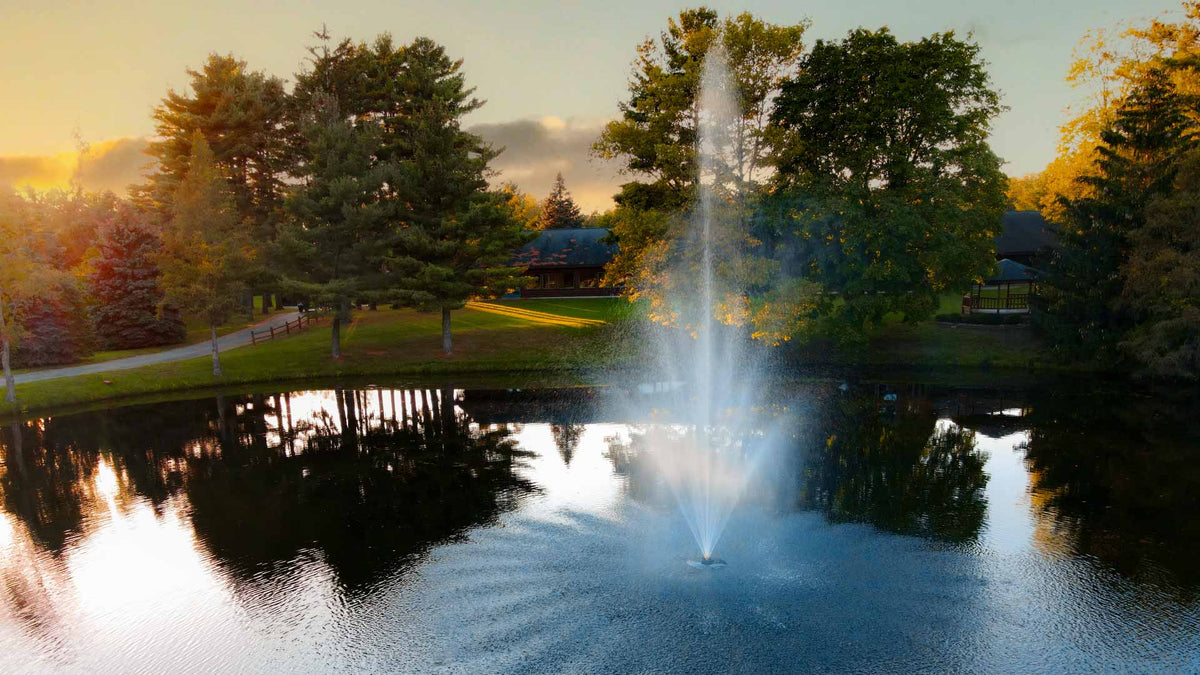

Amherst Fountain, 3 hp for large ponds

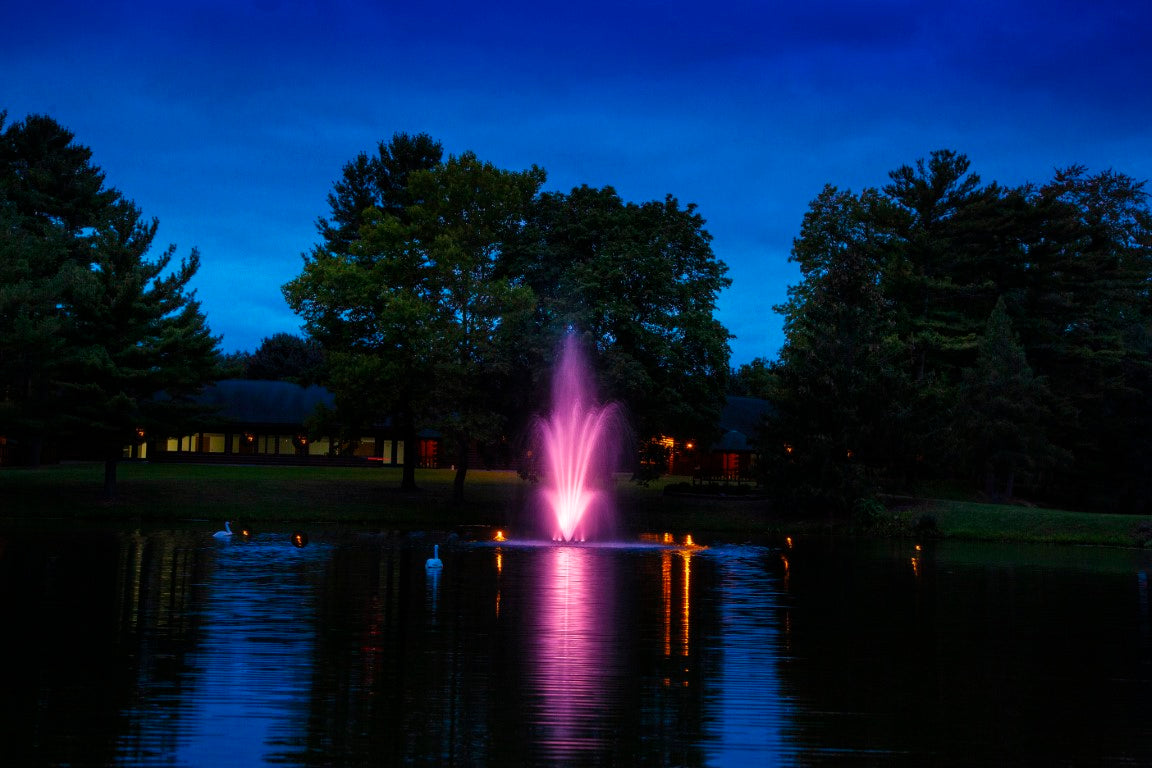

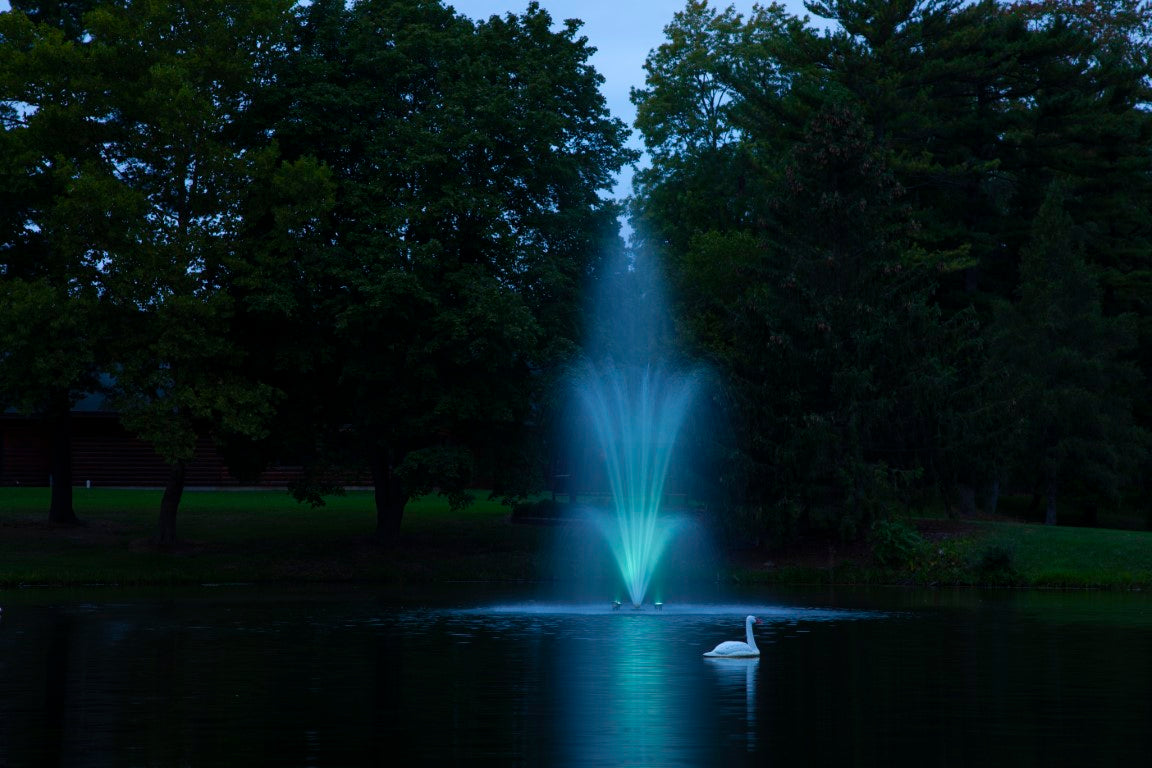

Amherst Fountain, 3 hp for large ponds with color changing LED lights.

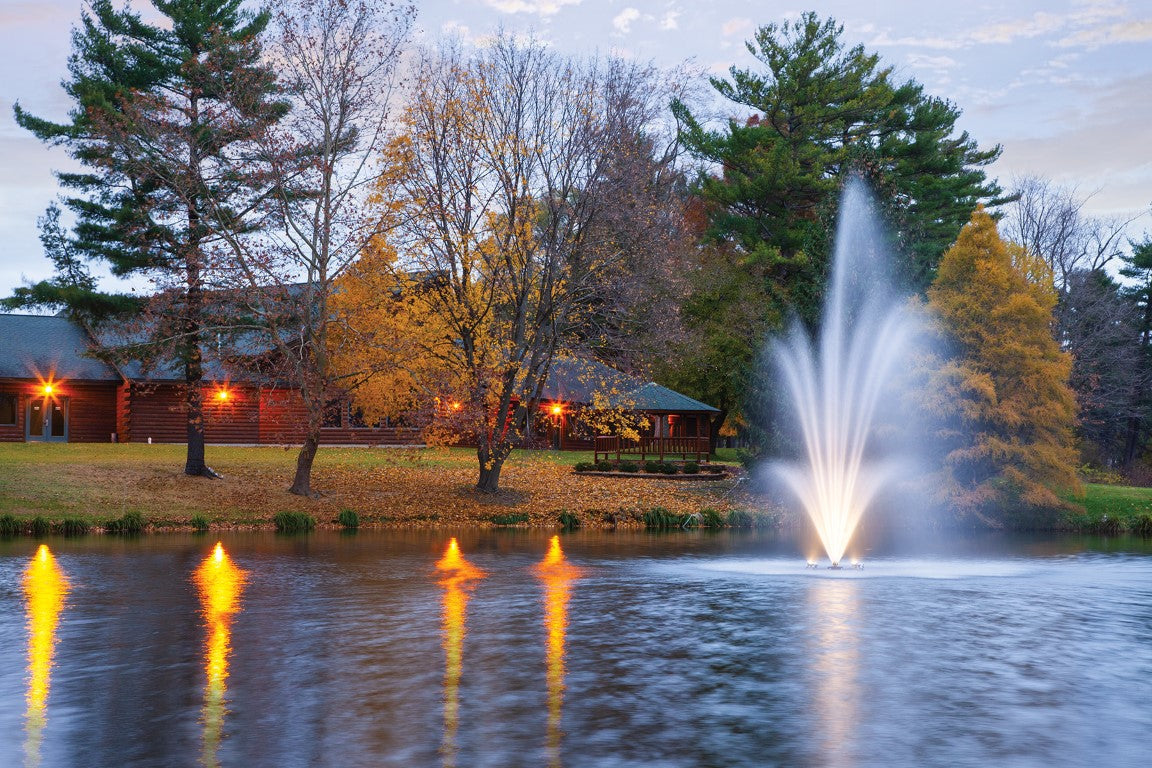

Amherst Fountain, 3 hp for large residential and commercial ponds.

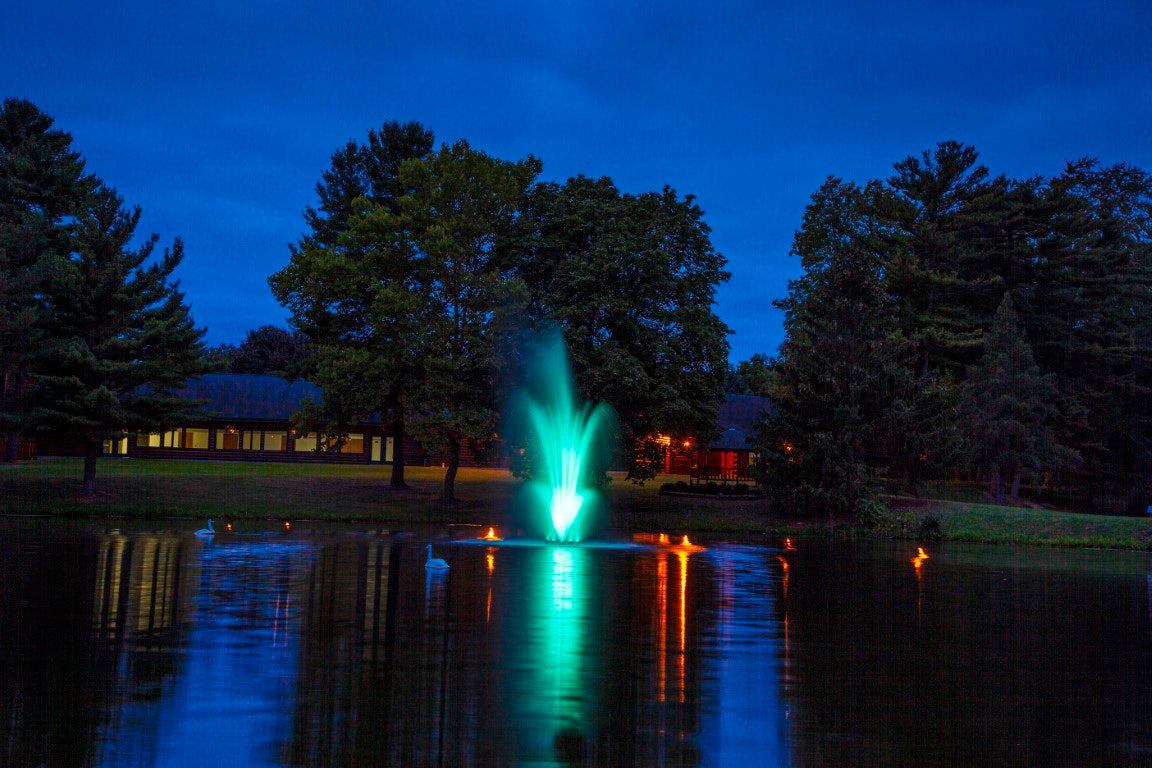

Amherst Fountain, 3 hp for large ponds with color changing LED lights.

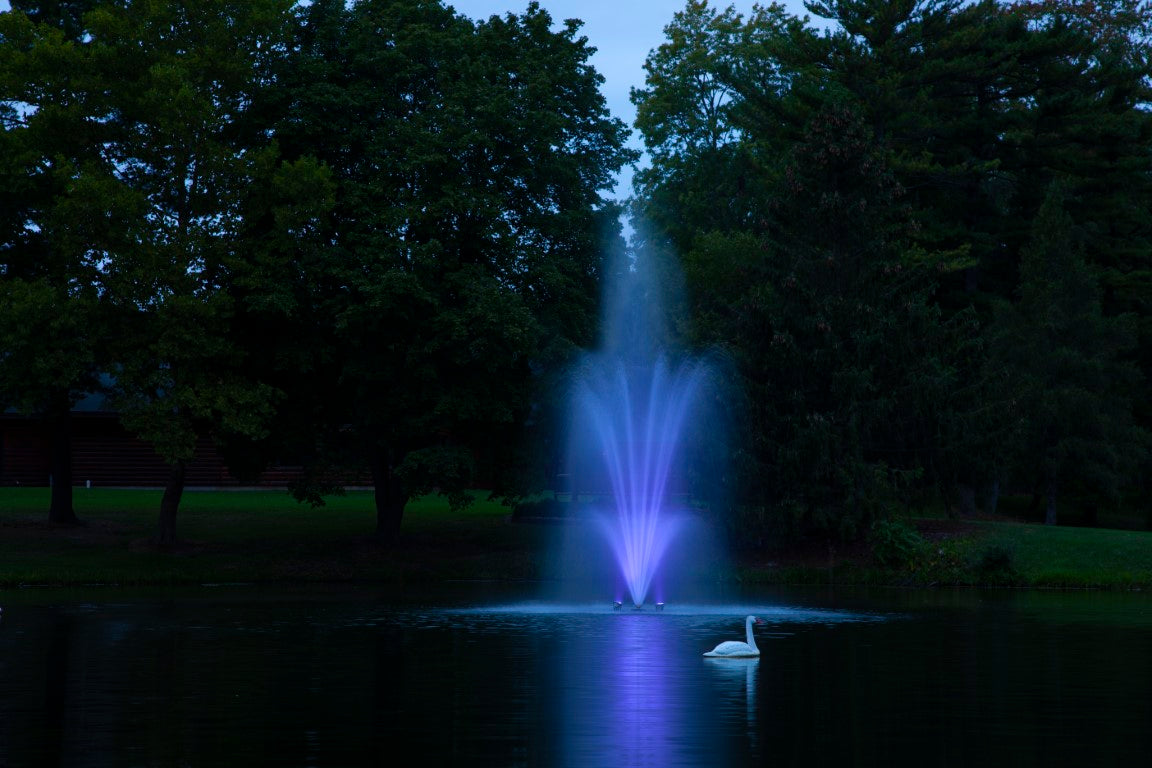

Amherst Fountain, 3 hp for large ponds with color changing LED lights.

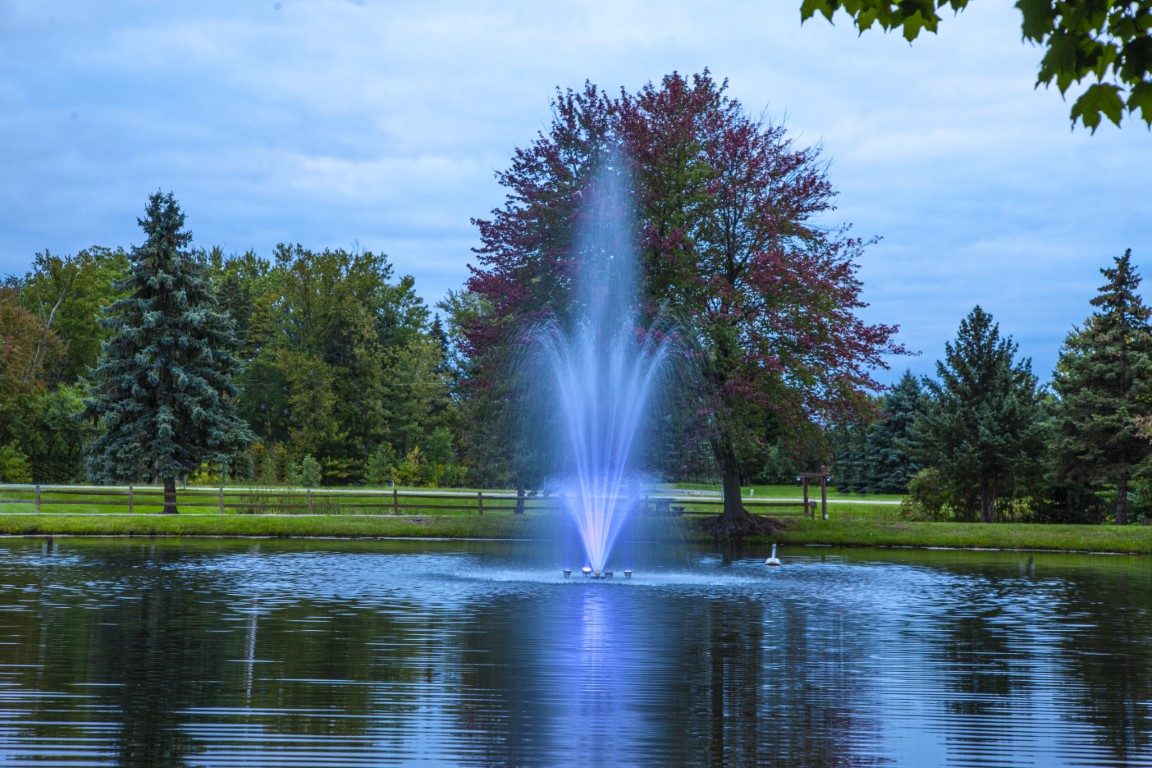

Amherst Fountain, 3 hp for large residential or commercial ponds.
Amherst Fountain, 3 hp for large ponds with color changing LED lights.

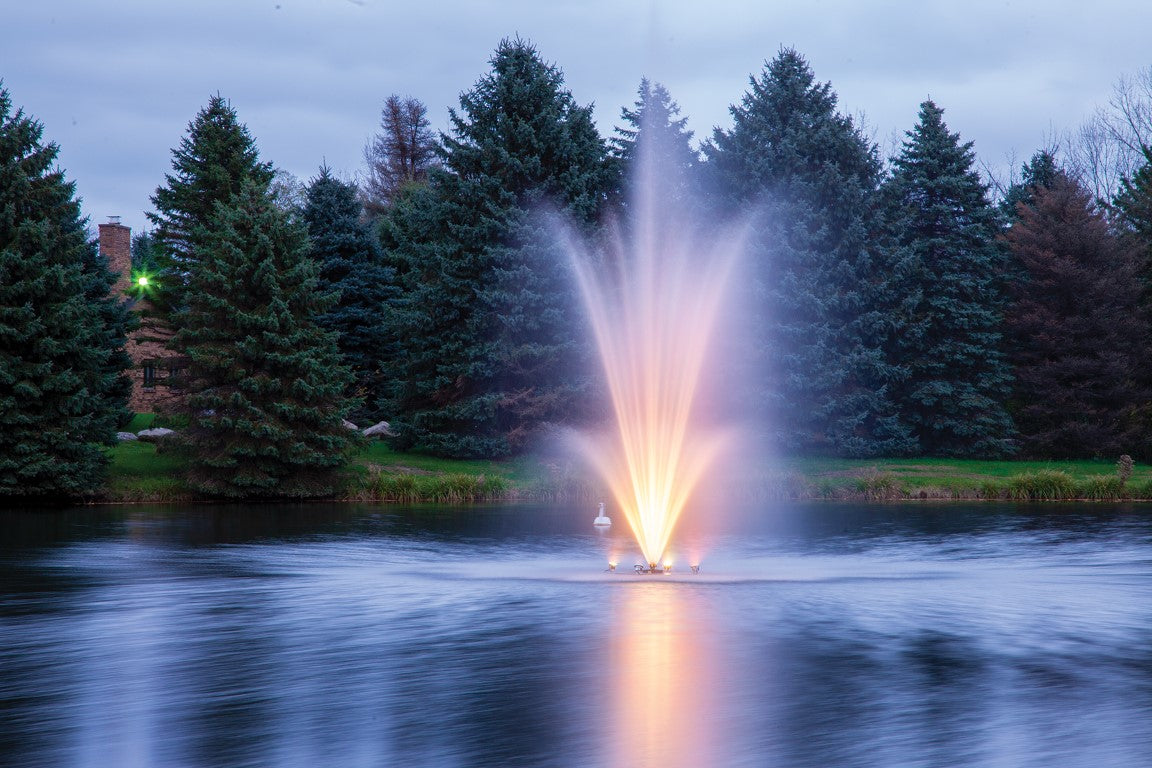

The Amherst Fountain, 3 hp is a reliable pond maintenance solution.
Amherst Fountain, 3 hp for large ponds with color changing LED lights.
Authorized Dealer
Scott Aerator

Scott Aerator

Scott Aerator Amherst Fountain For Large, Commercial Ponds

$5,229.00 $5,499.00
-5%
In stock
Motor: 2 hp 230 volts
  • 2 hp 230 volts
  • 3 hp 230 volts
Cord Length: 100 feet
  • 100 feet
  • 150 feet
  • 200 feet
  • 250 feet

Estimated delivery between October 25 and October 27.

Free Shipping
Residential and Commercial Use
Backed by Real Expert Support
Delivered With Care, Direct to Your Door
Scott Aerator Amherst Fountain For Large, Commercial Ponds
$5,229.00 $5,499.00
$5,229.00 $5,499.00
Options
Motor: 2 hp 230 volts
  • 2 hp 230 volts
  • 3 hp 230 volts
Cord Length: 100 feet
  • 100 feet
  • 150 feet
  • 200 feet
  • 250 feet

Quick Facts

Feature Detail
Motor Options 2 HP or 3 HP
Voltage 230V
Flow Rate 135 GPM for 2 HP or 170 GPM for 3 HP
Spray Dimensions 18' x 35' for 2 HP or 20' x 40' for 3 HP
Motor Oil-Free Stainless Steel Submersible Motor
Minimum Pond Depth 56 inches for 2 HP or 60 inches for 3 HP
Operation Designed for 24-Hour Continuous Operation
Water Compatibility Fresh Water and Salt Water
Motor Warranty 5 Years

A Note Before You Order

The Amherst Fountain is available in 2 HP and 3 HP configurations, both using 230V power. Select the correct motor size, cord length, and lighting option for your installation. A GFCI-equipped power source is required, and Scott Aerator recommends using a licensed electrical contractor. Do not use an extension cord to supply power to the motor, and always disconnect power when swimmers are present.

Scott Aerator Amherst Fountain for Large, Commercial Ponds

The Amherst Fountain is a large-pond display fountain designed to combine water circulation with an attractive multi-tiered spray pattern. Its three-tier design creates a defined water display while moving water across the pond surface, supporting oxygen transfer and circulation.

The large commercial Amherst is available with either a 2 HP or 3 HP oil-free stainless steel submersible motor. The 2 HP model produces 135 gallons per minute with an 18-foot by 35-foot spray pattern, while the 3 HP model produces 170 gallons per minute with a 20-foot by 40-foot spray pattern. The 3 HP configuration can produce a center column reaching up to 35 feet.

The fountain is designed for continuous operation and can remain installed during winter. Simply turn off the power during freezing conditions and restore power after the water thaws. The stainless steel, oil-free motor is approved for use in both fresh and salt water.

Configuration Guide

Amherst Fountain 2 HP

The 2 HP model uses a 230V oil-free motor and produces 135 gallons per minute. It has an 18-foot by 35-foot spray pattern and requires a minimum pond depth of 56 inches.

The standard power cord is 100 feet of 10-gauge submersible cable. Longer cable lengths are available.

Amherst Fountain 3 HP

The 3 HP model uses a 230V oil-free motor and produces 170 gallons per minute. It has a 20-foot by 40-foot spray pattern and requires a minimum pond depth of 60 inches.

The standard power cord is 100 feet of 10-gauge submersible cable. Longer cable lengths are available.

Cord Length Options

The Amherst Fountain can be ordered with 100-foot, 150-foot, 200-foot, or 250-foot power cord configurations. The appropriate cable size and maximum run depend on the motor configuration and electrical installation.

Lighting Options

Optional two-light and four-light LED sets are available in color-changing and Night Glo configurations. Lighting can be added when purchasing the fountain or installed later.

Specifications & Details
Specification Detail
Motor Options 2 HP or 3 HP
Voltage 230V
Frequency 60 Hz
Phase Single Phase
Motor Speed 3,450 RPM
Motor Type Oil-Free Stainless Steel Submersible Motor
2 HP Flow Rate 135 GPM
3 HP Flow Rate 170 GPM
2 HP Spray Dimensions 18' x 35'
3 HP Spray Dimensions 20' x 40'
2 HP Minimum Depth 56 inches
3 HP Minimum Depth 60 inches
2 HP Current Draw 10 Amps at 230V
3 HP Current Draw 13.3 Amps at 230V
2 HP Power 1.5 kW
3 HP Power 2.2 kW
Power Cord 100 feet standard; longer lengths available
Cable Gauge 10 AWG supplied for 2 HP and 3 HP models
Water Compatibility Fresh Water or Salt Water
Operation 24 Hours Per Day
Warranty 5-Year Motor Warranty; 1-Year Warranty on Other Components
Installation & Assembly

Included Components

The fountain assembly includes the float platform, pump assembly, stainless steel filter, stainless steel bolts, nuts, washers, and stainless steel screws. The nylon anchoring lines are not included.

Anchoring

Two nylon anchoring lines attach to the stainless steel eye bolts. The fountain can be secured to shore or anchored using two concrete blocks or suitable weights positioned at least 20 feet apart. The required minimum anchor weight depends on the motor configuration.

Electrical Installation

A GFCI-equipped power source is required. The installation instructions recommend using a licensed electrical contractor. The electrical cable must be sized according to the motor, cable length, and installation requirements. Do not use an extension cord to supply power to the motor.

Safety

Always disconnect power when swimmers are present. Each Amherst Fountain requires GFCI protection and should be installed according to applicable electrical codes and manufacturer instructions.

Maintenance & Winter Operation

Routine Maintenance

The Amherst Fountain requires little routine maintenance under normal operating conditions. When the fountain is removed from the water, wash it with high-pressure water and inspect the unit to make sure debris or other material is not restricting water flow.

Winter Operation

The manufacturer recommends leaving the Amherst Fountain in the water during winter rather than removing it. Turn off the power supply during freezing conditions and restore power once the water has thawed. The fountain components are designed to withstand sub-zero conditions.

Anchoring Line Replacement

Quality nylon anchoring rope should be replaced approximately every five years. Scott Aerator recommends 3/8-inch or thicker nylon rope for fountain anchoring.

Accessories & Options
Accessory What It Does
Color-Changing LED Lights Available in two-light and four-light sets with programmable color options and remote control operation.
Night Glo LED Lights Two-light and four-light sets designed to illuminate the fountain after dark.
Longer Power Cable 150-foot, 200-foot, and 250-foot cord configurations are available in addition to the standard 100-foot cable.
Timers Optional timers can be used to control fountain operating periods and reduce unnecessary runtime.
Three-Phase Motors Three-phase motor configurations are available for installations that require this electrical setup.
Warranty

5-Year Motor Warranty

The motor is covered by an unconditional 5-year warranty against defects in materials or workmanship under normal operating conditions.

Other product components are covered by a 1-year warranty from the date of purchase, subject to the manufacturer's warranty terms and conditions.

Frequently Asked Questions
Question Answer
What is the Amherst Fountain designed for? It is a large-pond display fountain designed to create an attractive water pattern while circulating water and supporting oxygen transfer.
What motor sizes are available? The large commercial Amherst Fountain is available in 2 HP and 3 HP configurations.
What voltage does the large Amherst use? The standard 2 HP and 3 HP models use 230V power.
How much water does the 2 HP model move? The 2 HP Amherst Fountain has a flow rate of 135 gallons per minute.
How much water does the 3 HP model move? The 3 HP Amherst Fountain has a flow rate of 170 gallons per minute.
How deep does my pond need to be? The 2 HP model requires a minimum pond depth of 56 inches. The 3 HP model requires a minimum depth of 60 inches.
Can the Amherst Fountain be used in salt water? Yes. The fountain is approved for use in both fresh water and salt water.
Can it run continuously? Yes. The Amherst Fountain is designed for 24-hour-per-day operation.
Does the fountain need to be removed during winter? No. Scott Aerator recommends leaving the fountain in the water, turning off the power while the water is frozen, and restoring power after the water thaws.
Is a GFCI required? Yes. A GFCI-equipped power source is required for the fountain.
Can I use an extension cord? No. The manufacturer specifically states that an extension cord should not be used to supply power to the motor.
How is the fountain anchored? Two nylon anchoring lines attach to the fountain's eye bolts. The lines can be secured to shore or connected to two suitable weighted anchors positioned at least 20 feet apart.
Are lights available? Yes. Optional two-light and four-light LED sets are available in color-changing and Night Glo configurations.
Downloads

Pond Fountain Motor Specs

View Pond Fountain Motor Specs PDF

Pond Fountain Specs & Assembly

View Pond Fountain Specs & Assembly PDF

Pond Fountain Comparison Brochure

View Pond Fountain Comparison Brochure PDF

Product Video

Watch the Amherst Fountain videos for additional views of the fountain display, installation, and operation.
