ProLake Solaer 2.0 Solar Aeration System

$15,999.99

Options

Quick Facts

Feature	Detail
System	Solaer 2.0 Solar Lake Bed Aeration System
Pond Size	Up to 3 acres with 3 diffusers or up to 4 acres with 4 diffusers
Compressors	Two EcoFlow 24V Compressors
Solar Panels	Two 24V Solar Panels with Mounting Brackets
Air Output	Up to 2.0 CFM
Maximum Diffuser Depth	25 Feet
Battery System	Four Batteries, Standard or Lithium Ion Options
Timer	Programmable Digital Timer
System Warranty	2 Years

A Note Before You Order

The Solaer 2.0 is designed for ponds and lakes where grid power is unavailable or solar power is preferred. Proper placement of the solar panels is important, as the panels should have access to sunlight throughout the day. Select the diffuser configuration and battery option that match your pond size and operating requirements.

ProLake Solaer 2.0 Solar Aeration System

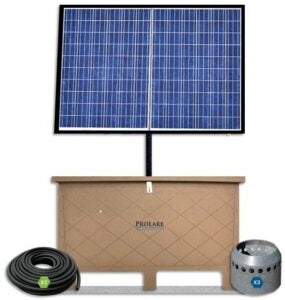

The ProLake Solaer 2.0 is a solar-powered lake bed aeration system built for ponds and lakes where electrical power is not available or solar operation is preferred. The system uses solar panels, battery storage, EcoFlow compressors, cooling fans, a programmable timer, and adjustable manifolds to deliver compressed air to submerged diffusers.

Lake bed aeration circulates water from the bottom of the pond or lake and helps increase dissolved oxygen while reducing water stratification. The Solaer 2.0 can be configured with three diffusers for ponds up to 3 acres or four diffusers for ponds up to 4 acres.

The system stores solar energy in its battery bank for operation during nighttime hours and periods of reduced sunlight. Its EcoFlow compressors provide up to 2.0 CFM, while the Duraplate diffusers are designed for continuous underwater aeration with a maximum diffuser depth of 25 feet.

Configuration Guide

Solaer 2.3

The three-diffuser configuration is designed for ponds and lakes up to 3 acres. It uses two EcoFlow 24V compressors and delivers air through three Duraplate diffusers.

The maximum diffuser depth is 25 feet, with up to 2.0 CFM of air output from the system.

Solaer 2.4

The four-diffuser configuration is designed for ponds and lakes up to 4 acres. It uses two EcoFlow 24V compressors and delivers air through four Duraplate diffusers.

The maximum diffuser depth is 25 feet, with up to 2.0 CFM of air output from the system.

Weighted Airline Option

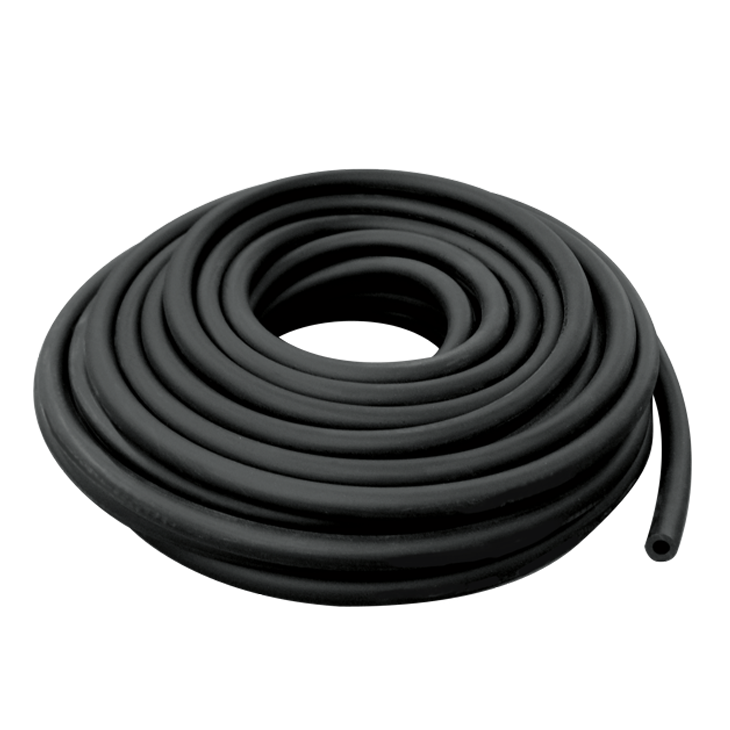

Alpine 1/2-inch self-weighted tubing is available for the system. The weighted tubing helps keep the airline positioned along the pond or lake bottom.

Specifications & Details

Specification	Detail
System	Solaer 2.0 Solar Lake Bed Aeration System
Maximum Pond Size	Up to 3 acres with 3 diffusers; up to 4 acres with 4 diffusers
Compressors	Two EcoFlow 24V Compressors
Compressor Power	48 Watts Each
Solar Panels	Two 24V Solar Panels with Mounting Brackets
System Wattage	96 Watts
Maximum Air Output	Up to 2.0 CFM
Maximum Diffuser Depth	25 Feet
Batteries	Four Batteries, Standard or Lithium Ion Options
Programmable Timer	1 Digital Timer
Adjustable Manifolds	Two 2-Valve Manifolds
Cooling Fan	1 High-Volume Cooling Fan
Tubing	1/2-Inch ID x 1-Inch OD Alpine Self-Weighted Tubing
Cabinet Dimensions	40" W x 24" L x 24" T
Equipment Pad	Large: 44" x 32" x 3", Recommended and Not Included
Operating Sound	50/60 dB

Installation & Assembly

Solar Panel Placement

Install the solar panels in a location with clear access to sunlight from sun-up to sun-down. Proper solar exposure allows the panels to charge the battery system used for nighttime and reduced-sunlight operation.

Diffuser Installation

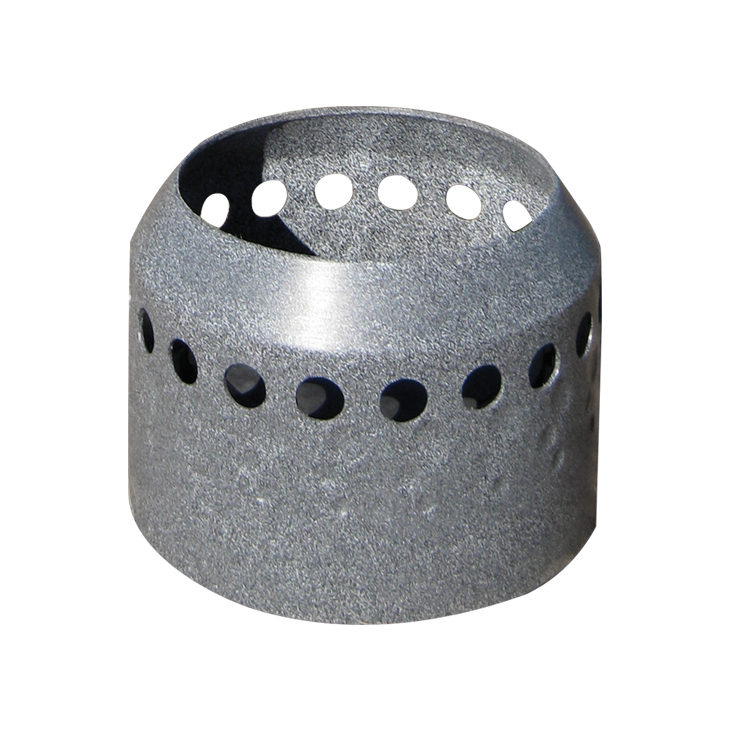

The Duraplate diffusers are installed on the pond or lake bottom and connected to the Solaer cabinet using the air tubing. The system supports diffuser placement at depths up to 25 feet.

Equipment Cabinet

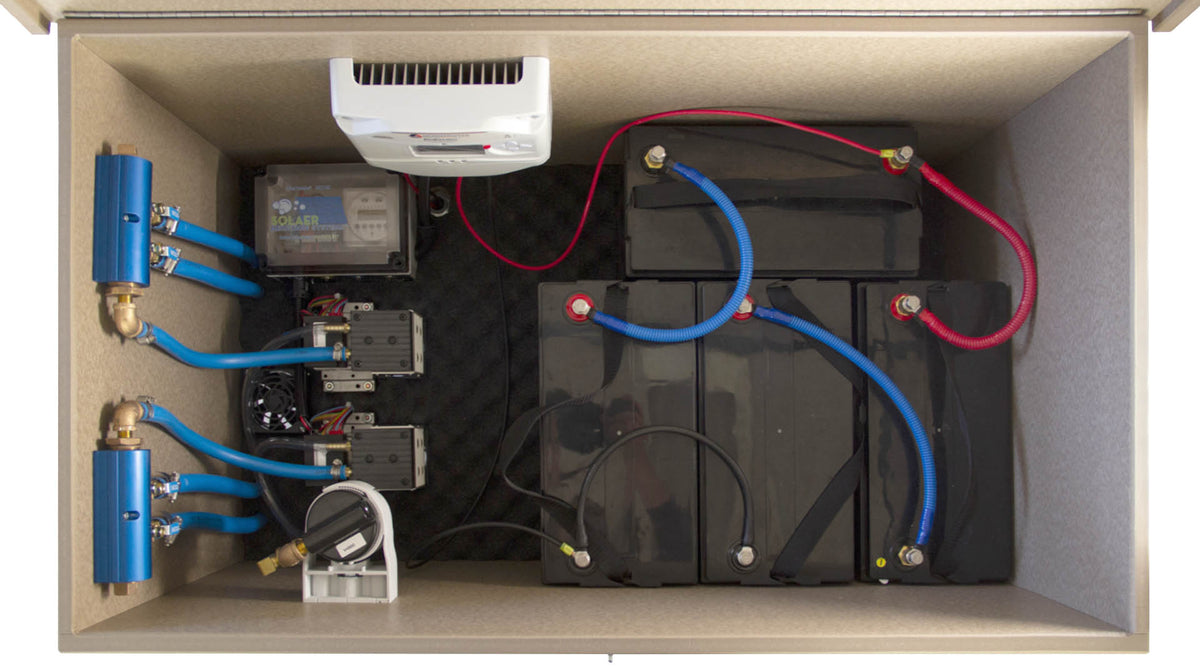

The compressors, batteries, controls, cooling fan, adjustable manifolds, and Solaer Aeration Monitoring System are housed inside the sound-deadening cabinet. A Level-Aer equipment pad is recommended for the cabinet and is not included.

Mounting

Follow the installation manual for solar panel mounting, cabinet placement, airline routing, diffuser placement, manifold connections, and system setup.

Maintenance & Operation

Solar Operation

During daylight hours, the solar panels provide energy for the system while charging the battery bank. Stored energy allows the aeration system to continue operating during nighttime hours and periods of reduced sunlight.

Air Intake Filter

Keep the air intake filter clean and follow the installation and maintenance documentation for inspection and replacement intervals.

Diffuser Maintenance

The Duraplate diffusers are designed for self-cleaning operation. Inspect the diffuser system and airline connections as part of routine equipment checks.

Seasonal Operation

The Solaer system can be used throughout the year. Follow the installation manual and local safety practices when operating aeration equipment during freezing conditions.

Warranty

Solaer 2.0 Warranty

The complete product is covered by a 2-year warranty. The cabinet and EcoFlow 24V compressors are also covered for 2 years.

The solar panels carry a 25-year warranty, while the Duraplate diffusers and Alpine self-weighted tubing carry lifetime warranties.

Warranty coverage is subject to the manufacturer's warranty terms and conditions.

Frequently Asked Questions

Question	Answer
What is the Solaer 2.0 designed for?	It is a solar-powered lake bed aeration system designed for remote ponds and lakes where electrical power is unavailable or solar operation is preferred.
How large of a pond can it aerate?	The three-diffuser configuration is designed for ponds up to 3 acres, while the four-diffuser configuration is designed for ponds up to 4 acres.
How many compressors are included?	The Solaer 2.0 includes two EcoFlow 24V compressors.
How deep can the diffusers be installed?	The maximum diffuser depth is 25 feet.
Does the system work at night?	Yes. The Solaer system stores solar energy in its battery bank for operation during nighttime hours and periods of reduced sunlight.
How many solar panels are included?	The Solaer 2.0 includes two 24V solar panels with mounting brackets.
How much air does the system produce?	The system provides up to 2.0 CFM of air output.
Does it require electricity from the shoreline?	No. The system is designed to operate from solar power and its battery backup system.
Is a mounting pole included?	The mounting pole is not included. Follow the installation documentation for mounting requirements.
Is the equipment pad included?	No. The recommended Large Level-Aer equipment pad is not included.

Downloads

Solaer 2.0 Data Sheet

View Solaer 2.0 Data Sheet PDF

Solaer Installation Manual

View Solaer Installation Manual

Product Video

Watch the Solaer 2.0 product video for an overview of the solar-powered lake bed aeration system and its operation.
