ProLake Solaer 1.0 Solar Aeration System

Solaer® 1.1 Solar Aeration System - Image 4

Solaer® 1.1 Solar Aeration System - Image 6

ProLake Solaer 1.0 Solar Aeration System

$7,999.99

Options

Quick Facts

Feature	Detail
System	ProLake Solaer® 1.0 Solar Lake Bed Aeration System
Pond Size	Up to 1 Acre with 1 Diffuser or Up to 2 Acres with 2 Diffusers
Power Source	24V Solar Power with Battery Backup
Compressor	EcoFlow™ 24V Compressor, 48 Watts
Maximum Airflow	Up to 2.0 CFM
Diffuser Depth	Up to 25 Feet
Battery Backup	Two 12V Deep Cycle AGM 115 AH Batteries
Runtime	Average of Up to 20 Hours Day and Night
Warranty	2-Year Complete Product Warranty

A Note Before You Order

Choose the correct Solaer configuration for your pond size. The 1.1 configuration uses one Duraplate™ diffuser for ponds up to 1 acre, while the 1.2 configuration uses two Duraplate™ diffusers for ponds up to 2 acres. The solar panel should be installed where it can receive direct sunlight throughout the day. A 2-inch Schedule 40 mounting pole is required for the solar panel and is not included with the system.

ProLake Solaer® 1.0 Solar Aeration System

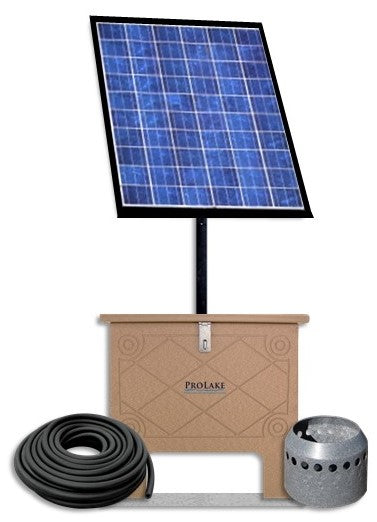

The ProLake Solaer® 1.0 is a solar-powered lake bed aeration system designed for ponds and lakes where electrical power is unavailable or where solar operation is preferred. The system uses a high-efficiency solar panel, battery backup, EcoFlow™ 24V compressor, programmable timer, cooling fan, and adjustable manifold inside a sound-deadening cabinet.

The Solaer 1.0 is available in configurations for ponds up to 1 acre or 2 acres. Compressed air is delivered through Duraplate™ diffusers positioned on the pond bottom, creating circulation through the water column while adding oxygen to the water. Battery backup allows the system to continue operating after sunlight is no longer available and provides an average of up to 20 hours of runtime day and night.

Configuration Guide

Solaer 1.1

The Solaer 1.1 configuration includes one EcoFlow™ 24V compressor and one Duraplate™ diffuser. It is designed for ponds and lakes up to 1 acre.

Maximum diffuser depth is 25 feet, with up to 2.0 CFM of airflow. The standard configuration includes two 12V deep cycle AGM 115 AH batteries and one 24V solar panel.

Solaer 1.2

The Solaer 1.2 configuration includes one EcoFlow™ 24V compressor and two Duraplate™ diffusers. It is designed for ponds and lakes up to 2 acres.

Maximum diffuser depth is 25 feet, with up to 2.0 CFM of airflow. The system uses the same 24V solar power platform and two 12V deep cycle AGM 115 AH batteries.

Solaer 1.1+ and 1.2+

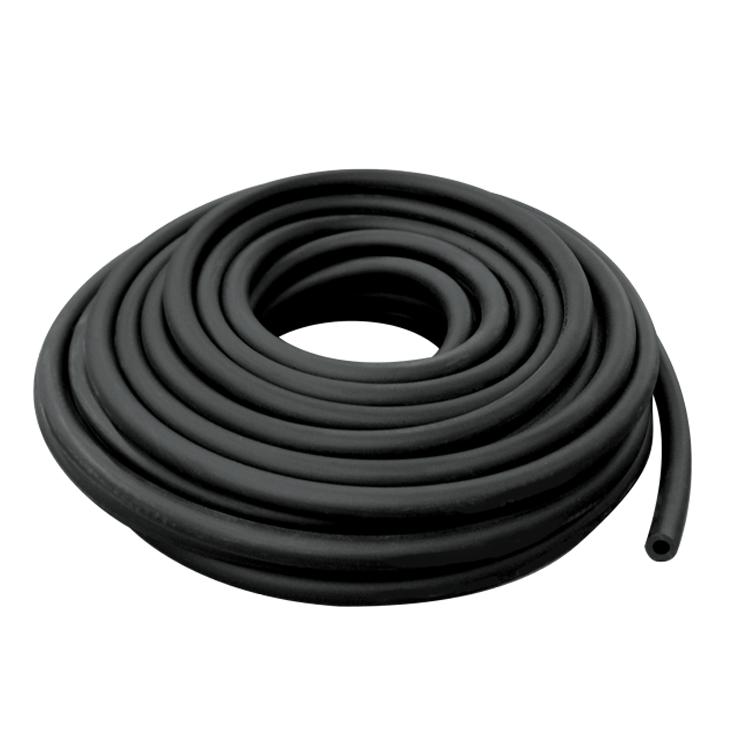

The plus configurations include Alpine™ 1/2-inch weighted airline. The 1.1+ configuration includes one 100-foot roll for its single diffuser, while the 1.2+ configuration includes two 100-foot rolls for its two-diffuser setup.

Specifications & Details

Specification	Detail
Aeration System	Solaer® 1.0
Available Configurations	Solaer 1.1 and Solaer 1.2
Maximum Pond Size	Up to 1 Acre with 1 Diffuser; Up to 2 Acres with 2 Diffusers
Compressor	EcoFlow™ 24V Compressor
Compressor Power	48 Watts
Maximum Airflow	Up to 2.0 CFM
Solar Panel	One 24V Solar Panel with Mounting Bracket
Batteries	Two 12V Deep Cycle AGM 115 AH Batteries
Diffusers	1 Duraplate™ Diffuser for 1.1; 2 Duraplate™ Diffusers for 1.2
Maximum Diffuser Depth	25 Feet
Programmable Timer	Included
Manifold	1, 2-Port Adjustable Manifold
Cooling Fan	Included
Cabinet Dimensions	28" W x 20" L x 24" T
Airline	1/2" ID x 1" OD Alpine™ Self-Weighted Tubing

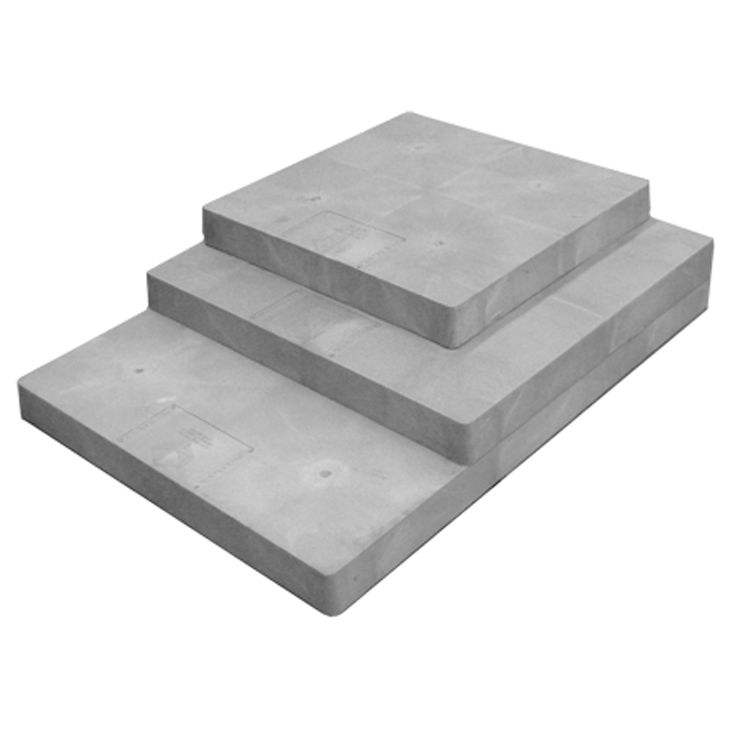

Level-Aer™ Pad	30" x 30" x 3", Recommended and Not Included
Operational Sound	50/60 dB

Installation & Assembly

Solar Panel Installation

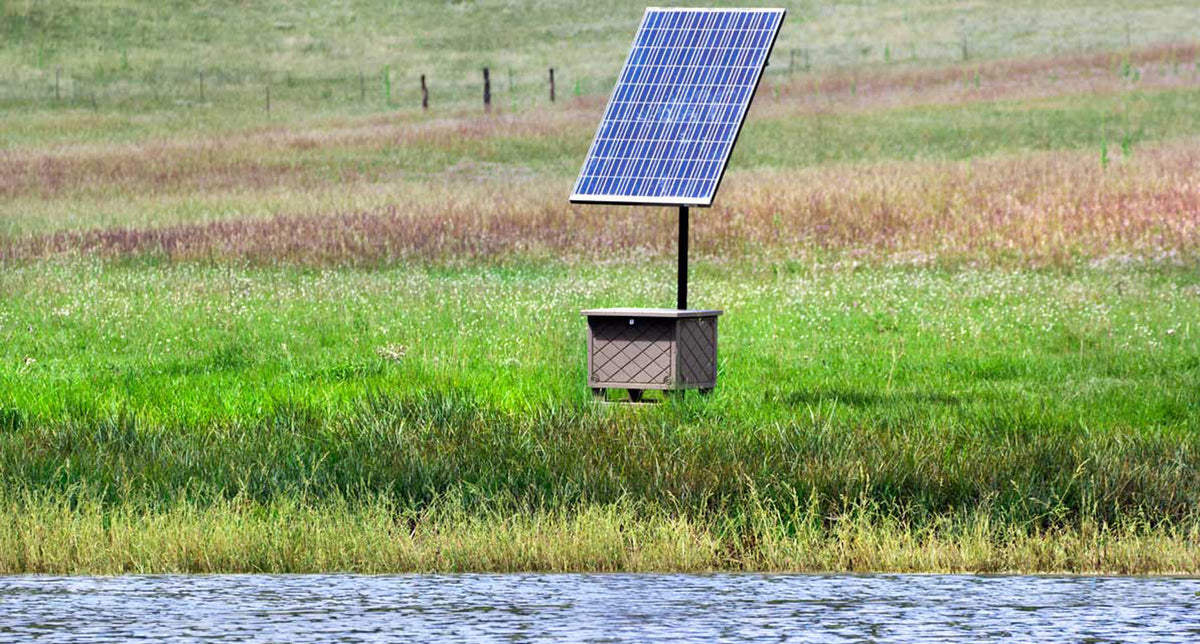

The solar panel should be positioned in an area that receives sunlight from sun-up to sun-down. A 2-inch Schedule 40 mounting pole is required and is not included with the system. The installation guide provides instructions for securing the pole and mounting the solar panel.

Cabinet Placement

The Solaer cabinet should be positioned on a stable, level surface near the pond while allowing the solar panel to be installed in an unobstructed location. A Level-Aer™ equipment pad is recommended but is not included.

Diffuser Installation

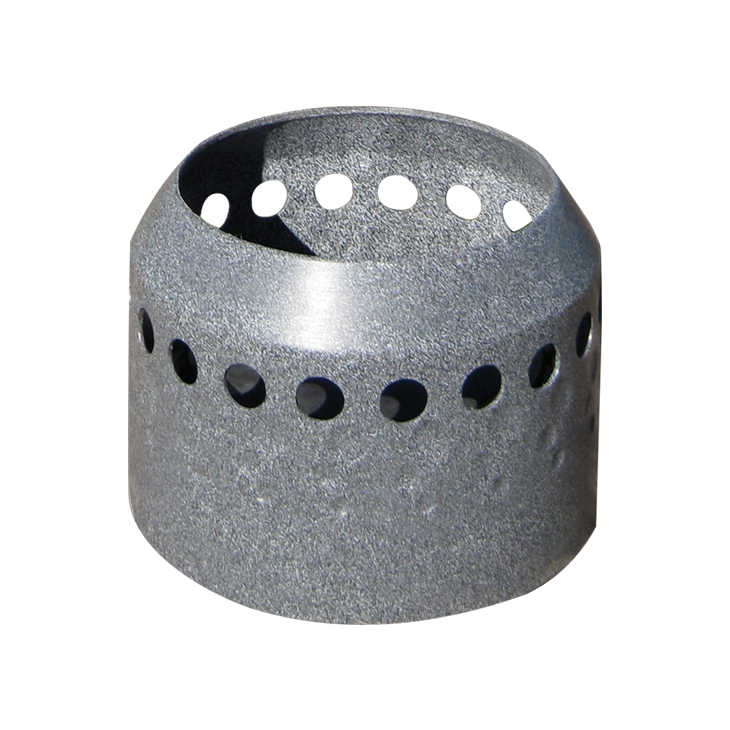

Duraplate™ diffusers are installed on the pond bottom and connected to the cabinet through the air line. The Solaer system supports diffuser placement to a maximum depth of 25 feet.

Airline Configuration

The 1.1+ system includes one 100-foot roll of Alpine™ weighted airline, while the 1.2+ system includes two 100-foot rolls. Standard 1.1 and 1.2 configurations do not include the Alpine weighted airline.

Maintenance & Operation

Solar Operation

The Solaer system uses solar energy to charge its battery supply during daylight hours. The battery backup allows the compressor to continue operating after sunlight is no longer available and provides an average of up to 20 hours of runtime day and night.

Programmable Timer

The built-in programmable timer allows the aeration schedule to be adjusted for the pond's operating needs. The system can also be manually controlled when needed.

Compressor & Cooling

The EcoFlow™ 24V compressor is housed inside the cabinet with an air intake filter and cooling fan. Keeping the intake area clear helps maintain proper airflow through the system.

Diffuser Maintenance

Duraplate™ diffusers are designed for self-cleaning, non-clogging operation. Inspect the diffuser and airline periodically as part of routine system maintenance.

Warranty

Solaer 1.0 Warranty Coverage

The complete Solaer product is covered by a 2-year warranty. The cabinet and EcoFlow™ 24V compressor are also covered for 2 years.

The solar panel carries a 25-year warranty, while the Duraplate™ diffuser and Alpine™ self-weighted tubing carry lifetime warranties according to the product data sheet.

Warranty coverage is subject to the manufacturer's warranty terms and conditions.

Frequently Asked Questions

Question	Answer
What is the Solaer 1.0 designed to do?	It is a solar-powered lake bed aeration system designed to circulate and oxygenate water in ponds and lakes where electrical power is unavailable or solar operation is preferred.
What is the difference between Solaer 1.1 and 1.2?	The Solaer 1.1 uses one Duraplate™ diffuser and is designed for ponds up to 1 acre. The Solaer 1.2 uses two Duraplate™ diffusers and is designed for ponds up to 2 acres.
Can the Solaer run at night?	Yes. The system uses battery backup to continue operating after sunlight is no longer available, with an average runtime of up to 20 hours day and night.
How deep can the diffuser be installed?	The maximum diffuser depth is 25 feet.
Does the Solaer require electricity?	No. The Solaer is designed to operate from solar power with battery backup, making it suitable for locations without electrical power at the pond or lake.
What batteries are included?	The standard system includes two 12V deep cycle AGM 115 AH batteries. A lithium-ion battery upgrade is also available.
Is a solar mounting pole included?	No. A 2-inch Schedule 40 mounting pole is required and is not included with the system.
Does the system include a timer?	Yes. A programmable digital timer is included.

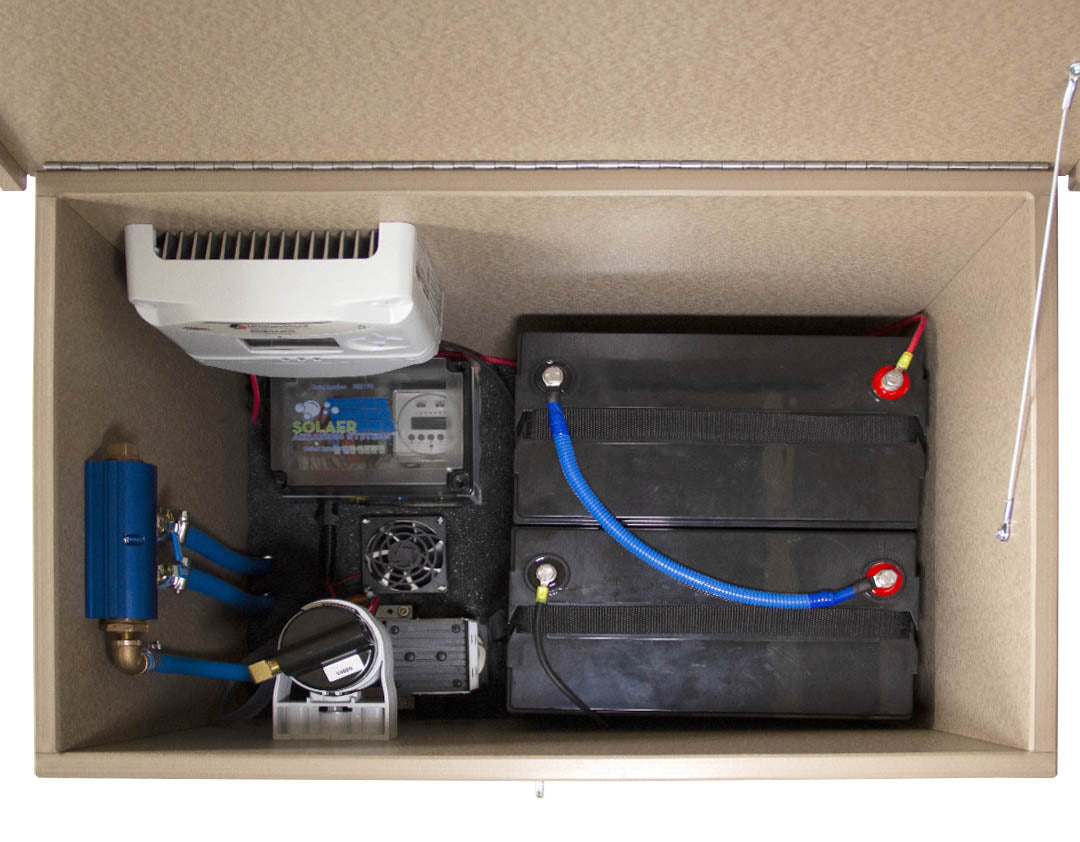

What is the Solaer cabinet made for?	The cabinet houses the compressor, batteries, controller, manifold, cooling fan, timer, and related system components in a sound-deadening enclosure.
Can the Solaer be used in a remote pond?	Yes. The Solaer is specifically designed for remote ponds and lakes where electrical power is unavailable or solar power is preferred.

Downloads

Solaer 1.0 Data Sheet

View Solaer 1.0 Data Sheet PDF

Solaer Installation Manual

View Solaer Installation Manual

Product Video

Watch the ProLake Solaer solar aeration video to learn more about the system and its operation.
