ProLake³ Electric Aeration System

$5,940.79

Options

Quick Facts

Feature	Detail
System Family	ProLake³ Electric Aeration System
Configurations	3.9, 3.10, 3.11, and 3.12
Pond & Lake Coverage	Up to 9, 10, 11, or 12 Acres Depending on Configuration
Compressors	Three 1/2 HP AerFlow™ Compressors
Diffusers	9 to 12 Duraplate™ Diffusers
Maximum Diffuser Depth	50 Feet
Maximum Airflow	Up to 15.9 CFM
Voltage	115V or 230V
Warranty	2-Year Complete Product Warranty

A Note Before You Order

Choose the ProLake³ configuration based on the surface area of your pond or lake and the number of diffuser locations required. The system is available with 115V or 230V compressors. Electrical installation should follow applicable local requirements and the manufacturer's installation instructions. The weighted airline and equipment pad are not included as standard and may need to be purchased separately.

ProLake³ Electric Aeration System

The ProLake³ Electric Aeration System is designed for ponds and lakes requiring multiple diffuser locations and higher air volume. The system uses three 1/2 HP compressors to deliver up to 15.9 CFM of air through Duraplate™ diffusers, helping move oxygen-depleted water from deeper areas toward the surface while supporting circulation throughout the water column.

Four configurations are available: ProLake³ 3.9, 3.10, 3.11, and 3.12. The model number identifies the three-compressor system and the number of Duraplate™ diffuser locations included. Depending on the configuration, the system is designed for ponds and lakes up to 9, 10, 11, or 12 acres.

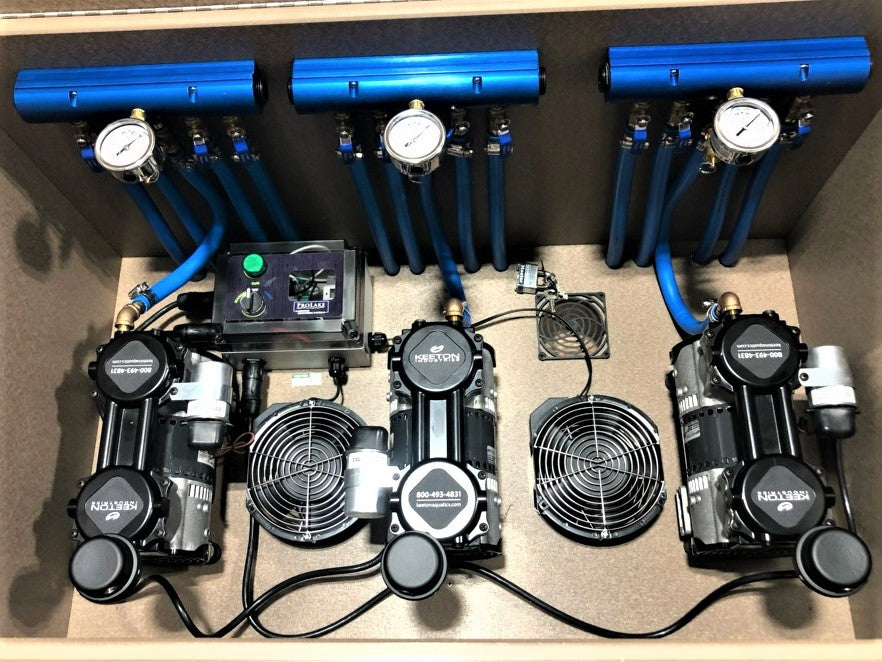

The compressors, manifolds, pressure gauge, cooling fan, and electrical components are housed in a durable sound-deadening cabinet. The cabinet can be positioned away from the water's edge when electrical access is more convenient at a remote location. ProLake states that the cabinet can be installed up to 4,000 feet from the water by running 1/2-inch PVC to a remote manifold, with airline then routed from the manifold to the Duraplate™ diffusers.

Configuration Guide

ProLake³ 3.9

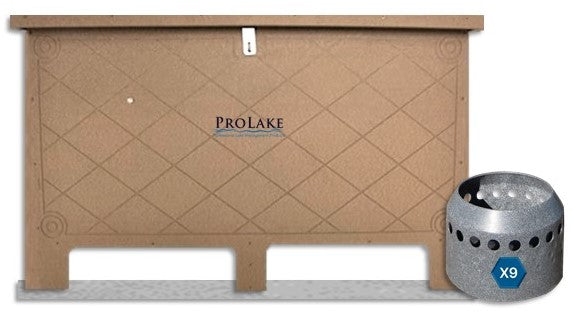

Three compressors with nine Duraplate™ diffusers. The 3.9 configuration is designed for ponds and lakes up to 9 surface acres.

Item Number: PL-3.9.

ProLake³ 3.10

Three compressors with ten Duraplate™ diffusers. The 3.10 configuration is designed for ponds and lakes up to 10 surface acres.

Item Number: PL-3.10.

ProLake³ 3.11

Three compressors with eleven Duraplate™ diffusers. The 3.11 configuration is designed for ponds and lakes up to 11 surface acres.

Item Number: PL-3.11.

ProLake³ 3.12

Three compressors with twelve Duraplate™ diffusers. The 3.12 configuration is designed for ponds and lakes up to 12 surface acres.

Item Number: PL-3.12.

Specifications & Details

Specification	Detail
System	ProLake³ Electric Aeration System
Configurations	PL-3.9, PL-3.10, PL-3.11, and PL-3.12
Compressors	Three 1/2 HP AerFlow™ Compressors
Compressor Voltage	115V or 230V
Duraplate™ Diffusers	9, 10, 11, or 12 Depending on Configuration
Maximum Diffuser Depth	50 Feet
Maximum Airflow	Up to 15.9 CFM
Amperage	12.9A at 115V for Three Compressors
Power	655 Watts
Manifold	3-Port / 4-Port Manifold
Pressure Gauge	1
Cooling Fan	1
Weighted Airline	Alpine™ 1/2-Inch Weighted Airline, Not Included
Equipment Pad	Level-Aer™ Equipment Pad Recommended, Not Included
Operating Sound	50/60 dB
Sound Insulation	1-Inch ASTM-Certified Acoustical Sound-Deadening Foam
Cabinet Dimensions	40" W x 24" L x 24" T
Airline Dimensions	1/2" ID x 1" OD

Installation & Assembly

System Layout

The ProLake³ system uses three compressors connected through a 3-port or 4-port manifold arrangement to supply air to 9 through 12 Duraplate™ diffuser locations, depending on the selected configuration.

Cabinet Location

The aeration cabinet can be installed away from the pond or lake where electrical service is easier to provide. ProLake states that the cabinet may be installed up to 4,000 feet from the water's edge using 1/2-inch PVC to a remote manifold, with airlines then connected to the diffusers.

Diffuser Placement

Duraplate™ diffusers are installed at the selected locations throughout the pond or lake. The maximum diffuser depth is 50 feet. Proper diffuser placement and airline routing should follow the system layout and installation requirements.

Electrical Installation

Electrical installation should be completed according to applicable electrical codes and the manufacturer's installation manual. Select the appropriate 115V or 230V compressor configuration for the available electrical service.

Maintenance & Operation

Compressor Maintenance

Keep the compressor cabinet clean and make sure air intake and cooling components remain free of debris. Periodic inspection of filters, airlines, manifolds, fittings, and diffuser assemblies helps maintain proper airflow.

Diffuser Maintenance

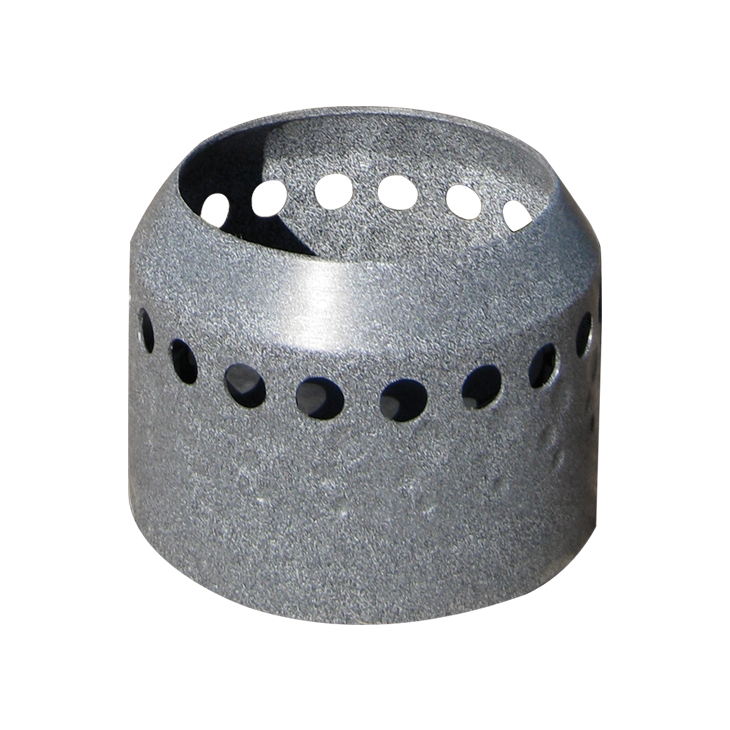

The Duraplate™ diffusers are designed to resist clogging and are intended for long-term use. Inspect the diffuser assemblies and airline connections periodically for damage, blockage, or other conditions that could reduce airflow.

Continuous Operation

The ProLake³ system is designed for 24/7 operation. Operating schedules should be selected according to the pond or lake management plan and the manufacturer's recommendations.

Warranty

2-Year Complete Product Warranty

The ProLake³ system carries a 2-year complete product warranty. The 115V or 230V compressors and cabinet are also covered for 2 years under the manufacturer's warranty terms.

Duraplate™ diffusers and Alpine™ 1/2-inch weighted airline are listed with lifetime warranties, subject to the manufacturer's warranty terms.

Applications

Recommended Applications

ProLake³ systems are suitable for a range of pond and lake applications, including HOA ponds, golf courses, recreational ponds and lakes, retention ponds, industrial retention ponds, farm ponds, ski parks, aquaculture ponds, and zoological displays.

Frequently Asked Questions

Question	Answer
What is the ProLake³ Electric Aeration System?	It is a multi-compressor bottom aeration system designed to circulate and oxygenate ponds and lakes through Duraplate™ diffusers installed near the lake or pond bottom.
What configurations are available?	The ProLake³ family includes the 3.9, 3.10, 3.11, and 3.12 configurations, with 9, 10, 11, or 12 Duraplate™ diffusers respectively.
How large of a pond can it aerate?	The listed coverage ranges from up to 9 acres for the 3.9 through up to 12 acres for the 3.12, depending on the selected configuration.
How many compressors are included?	Each ProLake³ configuration uses three 1/2 HP compressors.
How deep can the diffusers be installed?	The maximum listed diffuser depth is 50 feet.
Is the weighted airline included?	No. The Alpine™ 1/2-inch weighted airline is listed as not included with the ProLake³ system.
Can the cabinet be installed away from the pond?	Yes. ProLake states that the cabinet can be installed away from the water's edge, with the system connected to a remote manifold using 1/2-inch PVC.
What voltage options are available?	The ProLake³ compressors are available in 115V or 230V configurations.
What is the warranty?	The complete product, cabinet, and compressors are covered by a 2-year warranty. Duraplate™ diffusers and Alpine™ weighted airline are listed with lifetime warranties under the manufacturer's terms.

Downloads

ProLake³ Data Sheet

View ProLake³ Data Sheet PDF

Electric Installation Manual

View Electric Installation Manual
