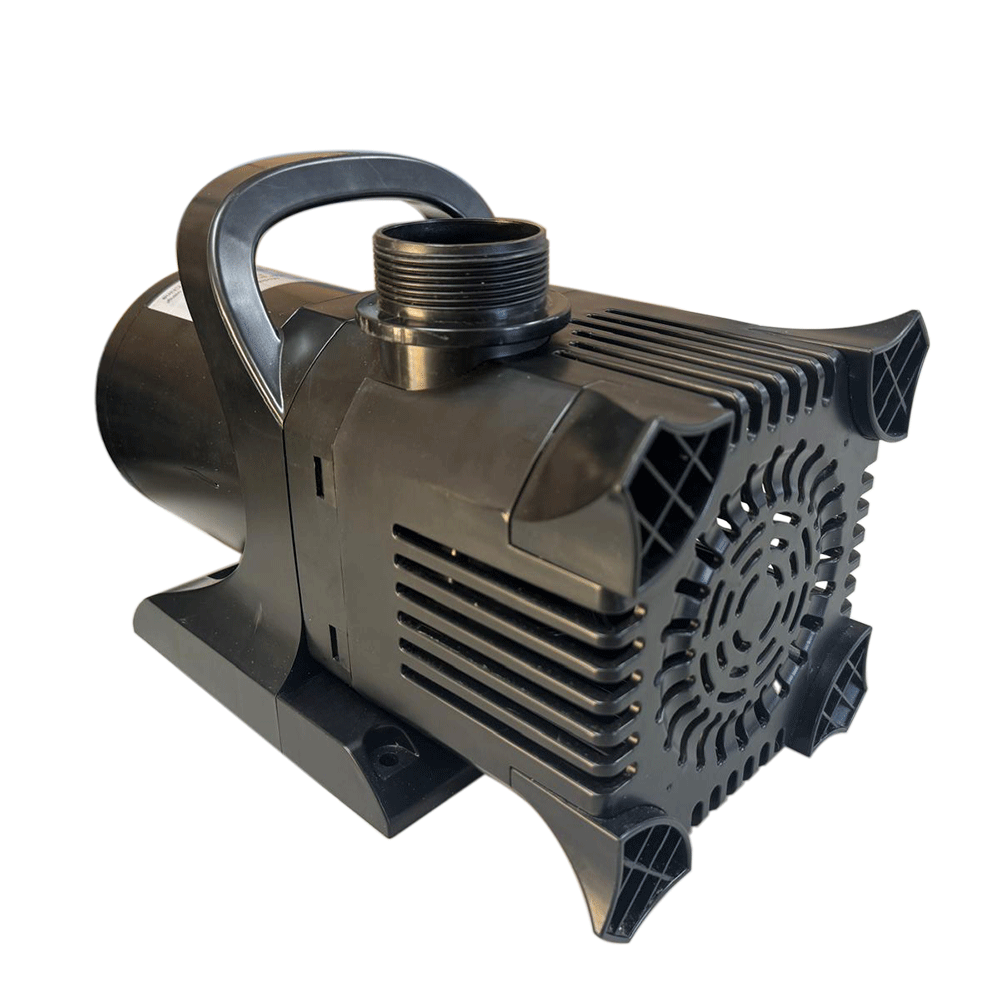

PondSelect Classic Series 1.5 HP Submersible Pump – 120V

$485.00

Options

Quick Facts

Feature	Detail
Motor	1.5 HP submersible motor
Flow Rate	9,500 GPH
Voltage	115V
Power	980 Watts
Current Draw	8 Amps
Minimum Operating Depth	24 inches
Warranty	2-year motor warranty

A Note Before You Order

This 1.5 HP pump is designed for compatible PondSelect Classic Series fountain applications. Confirm that your installation has at least 24 inches of operating depth and suitable 115V electrical service before ordering.

PondSelect Classic Series 1.5 HP Submersible Pump

The PondSelect Classic Series 1.5 HP Submersible Pump delivers strong water movement for compatible Classic Series pond fountain systems. Its 1.5 HP motor provides a flow rate of up to 9,500 gallons per hour for larger fountain configurations.

Operating at 115V with a 980 watt power draw, this pump is designed for installations with a minimum water depth of 24 inches. The motor is covered by a 2-year warranty.

Key Features

Feature	What It Offers
1.5 HP Motor	Provides the pumping power needed for the 1.5 HP Classic Series fountain configuration
9,500 GPH Flow	Moves up to 9,500 gallons of water per hour
115V Operation	Designed for 115V electrical service
Fountain Compatibility	Designed for compatible PondSelect Classic Series fountain systems
24-Inch Minimum Depth	Requires a minimum operating water depth of 24 inches
2-Year Motor Warranty	Includes a 2-year warranty covering the motor

Included Spray Patterns

Spray Pattern	Dimensions
Gusher	16 ft high × 2 ft wide
Palm	19 ft high × 52 ft wide
Trumpet Jet	12.5 ft high × 42 ft wide
Trumpet	15 ft high × 26 ft wide
Wide Plume	8.5 ft high × 50 ft wide

Specifications

Specification	Detail
Motor	1.5 HP
Flow Rate	9,500 GPH
Voltage	115V
Power	980 Watts
Current Draw	8 Amps
Float Diameter	30 inches
Mooring Rope	75 ft nylon rope
Minimum Operating Depth	24 inches
Suggested Pond Size	Up to 1.5 acres

Warranty

2-Year Motor Warranty

The PondSelect Classic Series 1.5 HP Submersible Pump includes a 2-year warranty covering the motor.

Frequently Asked Questions

Question	Answer
What is the horsepower of this pump?	This model uses a 1.5 HP submersible motor.
What is the flow rate?	The pump provides up to 9,500 gallons per hour.
What voltage does this pump use?	The pump is designed for 115V operation.
What is the minimum operating depth?	The minimum operating depth is 24 inches.
Which spray patterns are available?	The available patterns are Gusher, Palm, Trumpet Jet, Trumpet, and Wide Plume.
What size pond is this pump recommended for?	The 1.5 HP Classic Series configuration is suggested for ponds up to 1.5 acres.
Does the pump include a warranty?	Yes. The motor is covered by a 2-year warranty.
