Intermatic WiFi Time Controller

$499.95

Quick Facts

Feature	Detail
Controller Type	Smart 7-Day Digital WiFi Timer
Model	Intermatic WiFi Time Controller, SKU 20043
WiFi Connectivity	Yes, with Intermatic Connect App
Circuits	2 Independent Circuits
Input Voltage	120 to 277 VAC, 50/60 Hz
Scheduling	Programmable ON/OFF Scheduling
Minimum Schedule Interval	1 Minute
Enclosure	Outdoor Type 3R Plastic Enclosure
Memory Backup	Battery-Backed Programming Memory

A Note Before You Order

This is a hard-wired electrical control device. Installation should be completed by a qualified electrician and must follow applicable electrical codes and the controller's installation instructions. Confirm that the connected equipment and electrical supply are compatible with the controller before installation.

Intermatic WiFi Time Controller for Automated Pond Equipment

The Intermatic WiFi Time Controller provides programmable control for fountains, aerators, pumps, lighting, and other compatible outdoor equipment. Its WiFi connection allows schedules and connected loads to be managed remotely through the Intermatic Connect app.

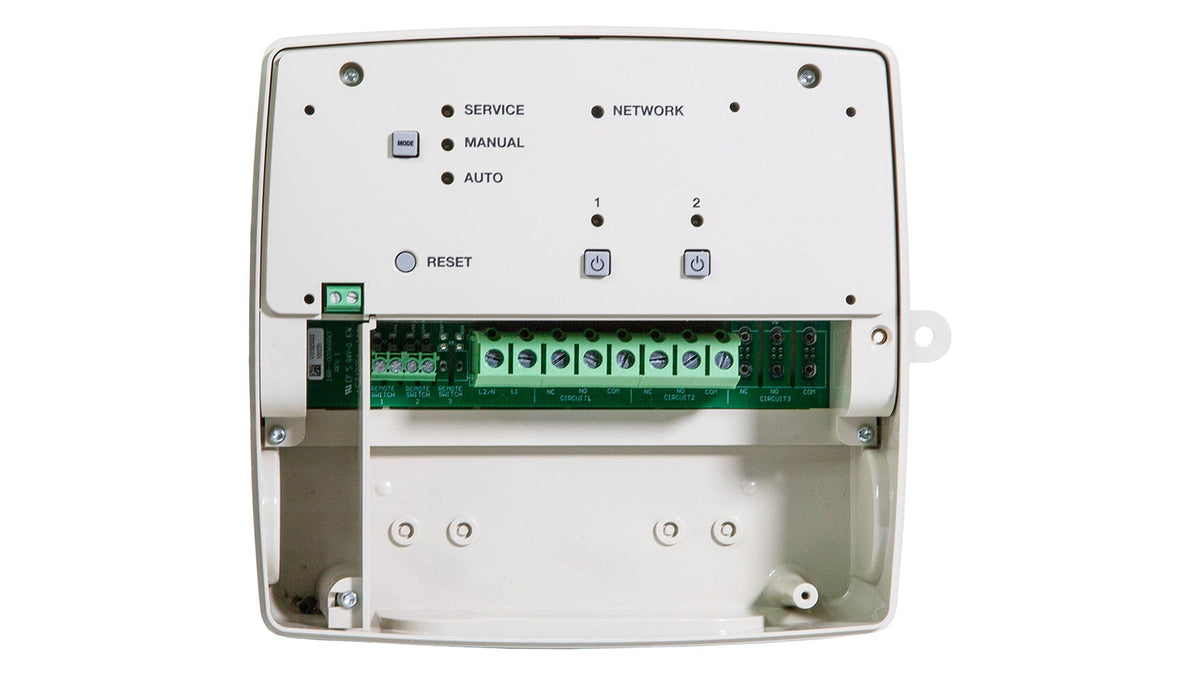

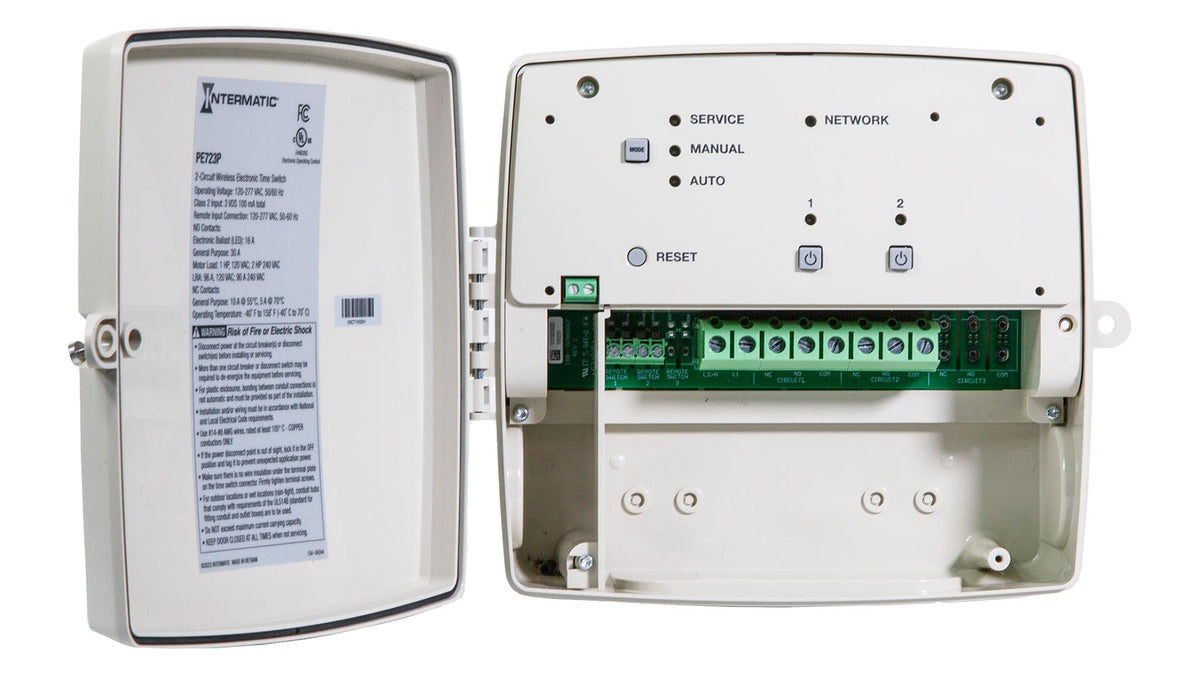

The controller supports two circuits and automatic input voltage sensing from 120 to 277 VAC. It is housed in an outdoor-rated enclosure and includes LED status indicators and battery-backed memory to help preserve programmed settings during power interruptions. The controller can also support local control and configurable circuit operation for different applications.

Smart WiFi Control

Intermatic Connect App

Once connected to a compatible WiFi network, the controller can be configured and managed through the Intermatic Connect mobile app. The app provides access to scheduling, circuit configuration, remote control, and other supported settings.

Remote Operation

WiFi connectivity allows compatible connected equipment to be controlled remotely after the timer has been configured and connected to the Intermatic Connect system.

Voice Assistant Compatibility

The controller is compatible with supported voice assistant platforms, providing an additional way to manage connected equipment when the required integrations are configured.

Specifications & Details

Specification	Detail
Model	Intermatic WiFi Time Controller, SKU 20043
WiFi	Built-In WiFi Connectivity
Number of Circuits	2
Input Voltage	120 to 277 VAC
Frequency	50/60 Hz
Operation	24-Hour, 7-Day Programmable Operation
Minimum ON/OFF Time	1 Minute
Switch Type	2x SPDT, with configurable circuit operation
Enclosure	Outdoor Type 3R Plastic
Memory Backup	Battery Backup with Non-Volatile Programming Memory
Status Indicators	LED Status Indicators
Minimum Wire Size	#14 AWG Copper Conductors
Maximum Wire Size	#8 AWG Copper Conductors

Installation & Setup

Electrical Installation

The controller is designed for hard-wired installation. Use appropriately rated fittings and copper conductors within the supported wire-size range. Wiring should follow the supplied installation instructions and applicable electrical requirements.

Circuit Configuration

The two circuits can be configured for independent switching or paired for supported DPDT applications. Circuit configuration should match the voltage and electrical requirements of the connected equipment.

App Setup

After electrical installation, device configuration and scheduling are completed through the Intermatic Connect mobile app. The app is available for compatible iOS and Android devices.

Applications

Fountains & Aerators

Use scheduled control to automate compatible pond fountains and aerators according to the desired operating schedule.

Pumps & Equipment

The controller can be used for compatible pumps, motors, lighting, and other equipment that falls within the controller's electrical ratings.

Outdoor Lighting

Programmable scheduling provides automatic ON/OFF control for compatible outdoor lighting applications.

Maintenance & Operation

Programmable Scheduling

Create recurring ON and OFF schedules for compatible connected equipment. The controller supports 24-hour, 7-day operation with minimum one-minute ON/OFF intervals.

Power Interruption

Battery-backed memory helps preserve programmed settings during a power interruption, reducing the need to re-enter schedules after power is restored.

Outdoor Enclosure

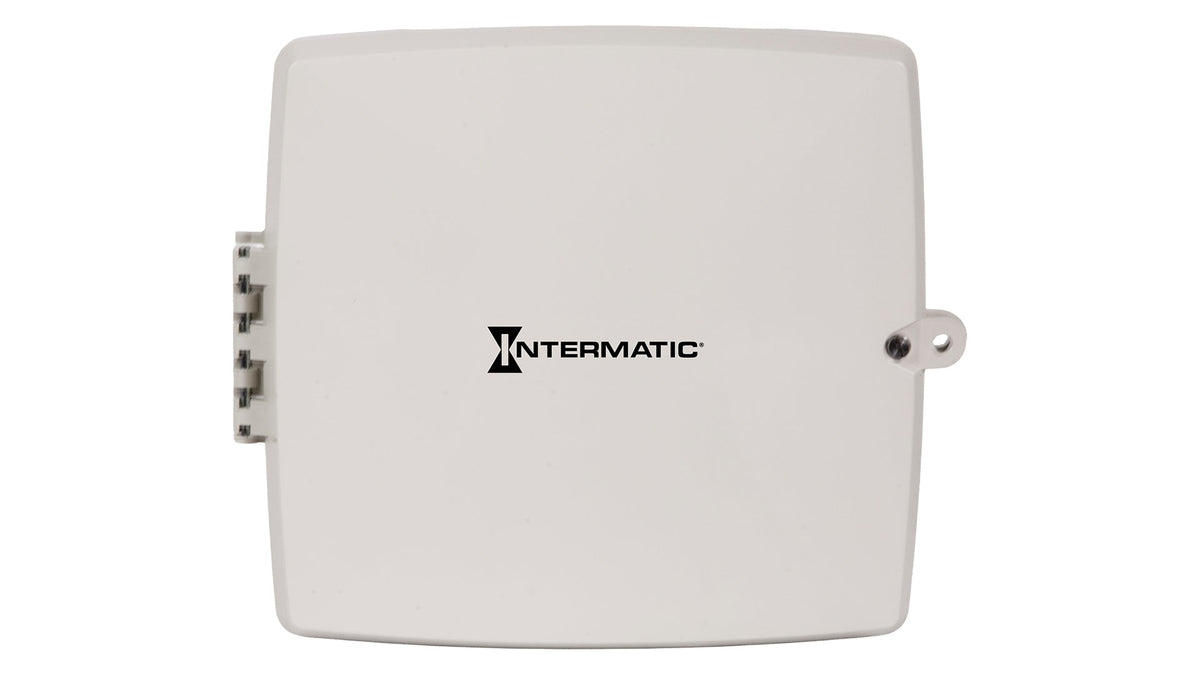

The controller uses an outdoor-rated Type 3R plastic enclosure. Keep the enclosure properly closed and maintain the installation according to the manufacturer's instructions.

Frequently Asked Questions

Question	Answer
What is the WiFi Time Controller?	It is a programmable WiFi-enabled timer designed to automate compatible fountains, aerators, pumps, lighting, and other outdoor equipment.
Can I control it remotely?	Yes. After connecting the controller to WiFi, compatible functions can be managed remotely through the Intermatic Connect app.
How many circuits does it control?	The controller provides two circuits that can be configured for independent operation or supported paired applications.
What voltage does it support?	The controller automatically senses input voltage from 120 to 277 VAC at 50/60 Hz.
Can it be used outdoors?	Yes. The controller uses an outdoor Type 3R plastic enclosure.
Will the schedule be lost during a power outage?	The controller uses battery-backed memory to preserve programmed settings during power interruptions.
Can I use it with a pond aerator?	Yes, it is designed to provide scheduled control for compatible fountains, aerators, pumps, and other equipment within its electrical ratings.
How is the controller configured?	Electrical installation is completed first, followed by device configuration and scheduling through the Intermatic Connect mobile app.

Downloads

Intermatic Connect WiFi Timer Instructions

View Installation & Programming Instructions PDF
