Intermatic 230 Volt Residential Timer

$197.95

Quick Facts

Feature	Detail
Timer Type	Electro-Mechanical Time Switch
Voltage	Automatically Detects 110 to 277 VAC
Amperage	40 Amp
Enclosure	UL Type 3R Outdoor Enclosure
Application	Residential Applications
Voltage Selection	No Selector Switches or Pins Required
SKU / MPN	20039.1
UPC	810094926328

A Note Before You Order

Confirm that this timer is suitable for your electrical application before installation. The timer automatically detects and adjusts to input voltages from 110 to 277 VAC, so no selector switches or pins are required. Electrical installation should be completed by a qualified professional in accordance with applicable electrical requirements.

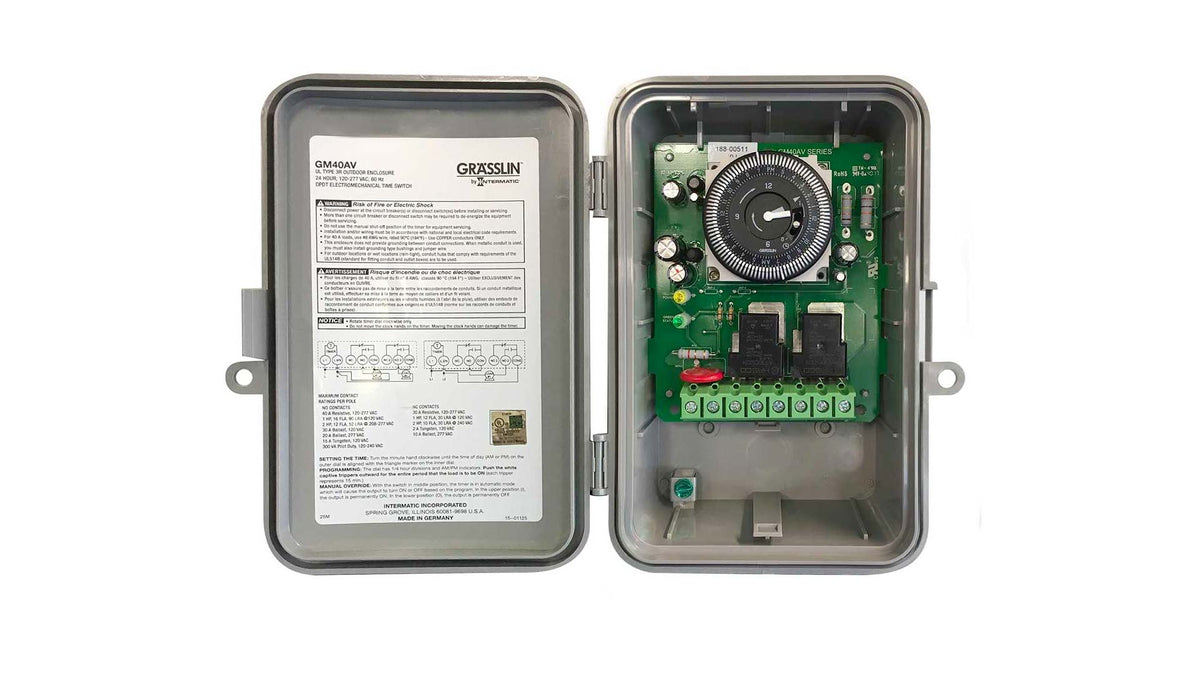

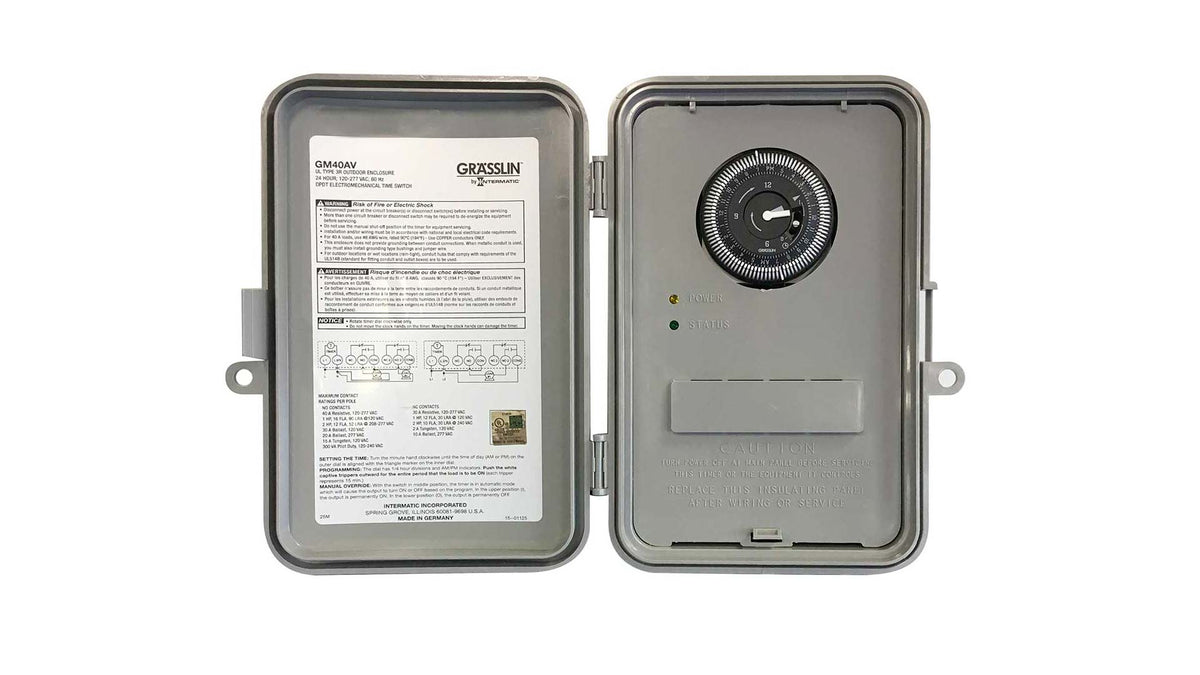

Intermatic 230 Volt Residential Timer

The Intermatic 230 Volt Residential Timer is an electro-mechanical time switch designed for residential applications where automated control is needed. Its 40-amp design supports a broad input-voltage range and automatically detects voltages between 110 and 277 VAC without requiring selector switches or pins.

The timer is housed in a compact UL Type 3R outdoor enclosure for weather-resistant protection. Its design also allows it to be retrofitted into other Intermatic enclosure styles, making it a practical option for automated control of compatible residential equipment.

Specifications & Details

Specification	Detail
Timer Type	Electro-Mechanical Time Switch
Current Rating	40 Amp
Input Voltage Range	110 to 277 VAC
Voltage Detection	Automatic
Selector Switches	Not Required
Enclosure Rating	UL Type 3R
Enclosure Type	Outdoor Enclosure
Application	Residential Applications
SKU / MPN	20039.1
UPC	810094926328

Design & Installation

Automatic Voltage Detection

The timer automatically detects and adjusts to input voltages between 110 and 277 VAC. This design eliminates the need to configure selector switches or pins for the supported voltage range.

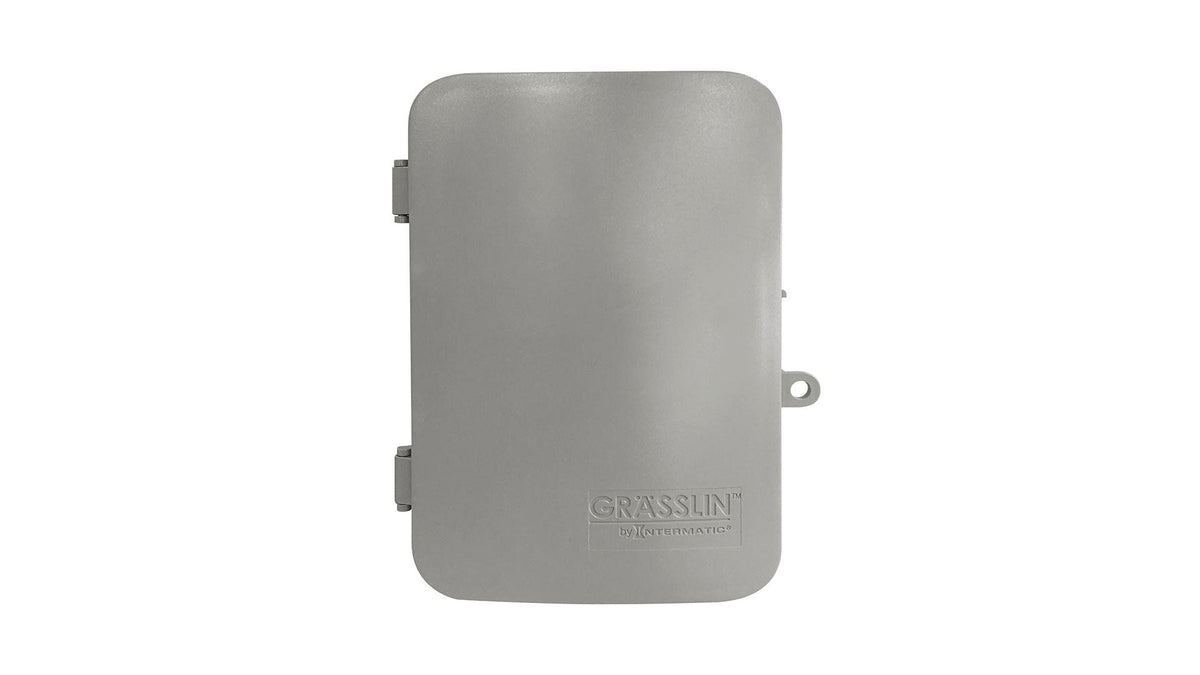

Outdoor Enclosure

The timer is housed in a compact UL Type 3R outdoor enclosure designed to provide weather-resistant protection for residential installations.

Retrofitting

The timer can be retrofitted into other Intermatic enclosure styles, providing flexibility for compatible replacement and installation applications.

Electrical Installation

Installation should be completed by a qualified electrical professional and must follow applicable electrical codes and requirements for the specific installation.

Applications & Benefits

Automated Equipment Control

The timer provides automated on and off control for compatible residential equipment, helping simplify operation and scheduling.

Residential Use

The 230 Volt Residential Timer is designed for a range of residential applications where scheduled electrical control is needed.

Energy Management

Automated scheduling can help control operating periods for compatible equipment and may help improve energy efficiency.

Frequently Asked Questions

Question	Answer
What is the Intermatic 230 Volt Residential Timer?	It is an electro-mechanical time switch designed for a wide range of residential applications.
What voltage range does it support?	The timer automatically detects and adjusts to input voltages between 110 and 277 VAC.
Does it require a voltage selector?	No. The automatic voltage detection eliminates the need for selector switches or pins within its supported input range.
What is the current rating?	The timer has a 40-amp design.
Is it suitable for outdoor use?	Yes. It is housed in a UL Type 3R outdoor enclosure designed to provide weather-resistant protection.
Can it be used as a replacement timer?	The timer can be retrofitted into other Intermatic enclosure styles, making it suitable for compatible replacement applications.
What type of timer is it?	It is an electro-mechanical time switch.
What is the model number?	The MPN and SKU are 20039.1.
What is the UPC?	The UPC is 810094926328.
