Scott Aerator Triad Fountain For Large, Commercial Ponds

$5,269.00 $5,549.00

Options

Quick Facts

Feature	Detail
Motor Options	2 HP or 3 HP
Voltage	230V Standard; 3-Phase and 50 Hz Versions Available
Nozzle Options	Rosewood, Gusher, and Skyward Brass Nozzles Included
Flow Rate	Approximately 130 to 175 GPM, Depending on Nozzle
Motor	Oil-Free Stainless Steel Submersible Motor
Operation	Designed for 24-Hour-Per-Day Operation
Water Compatibility	Fresh Water and Salt Water
Motor Warranty	5 Years

A Note Before You Order

Select the correct motor voltage and power configuration before purchasing. The Triad Fountain requires a GFCI-protected electrical installation, and power must be disconnected whenever swimmers are present. For 230V installations, use a qualified electrical professional to ensure the circuit is properly sized and installed.

Scott Aerator Triad Fountain for Large, Commercial Ponds

The Scott Aerator Triad Fountain is designed for larger commercial ponds and lakescapes where both water display and circulation are important. Three interchangeable brass nozzles are included, allowing you to change the appearance of the fountain without replacing the entire unit.

Choose from the Rosewood, Gusher, or Skyward nozzle to create different spray patterns. The fountain also circulates water and helps increase oxygen levels throughout the pond. Its oil-free stainless steel submersible motor is designed for continuous operation and can be used in fresh or salt water.

Configuration Guide

Triad Fountain 2 HP

The 2 HP configuration uses a 230V, oil-free motor with approximately 130 to 135 gallons per minute of flow, depending on the selected nozzle.

The 2 HP model requires a minimum pond depth of 56 inches and includes a 100-foot, 10-gauge submersible power cord.

Triad Fountain 3 HP

The 3 HP configuration uses a 230V, oil-free motor with approximately 170 to 175 gallons per minute of flow, depending on the selected nozzle.

The 3 HP model requires a minimum pond depth of 60 inches and includes a 100-foot, 10-gauge submersible power cord.

Spray Pattern Guide

Nozzle	2 HP / 3 HP Display

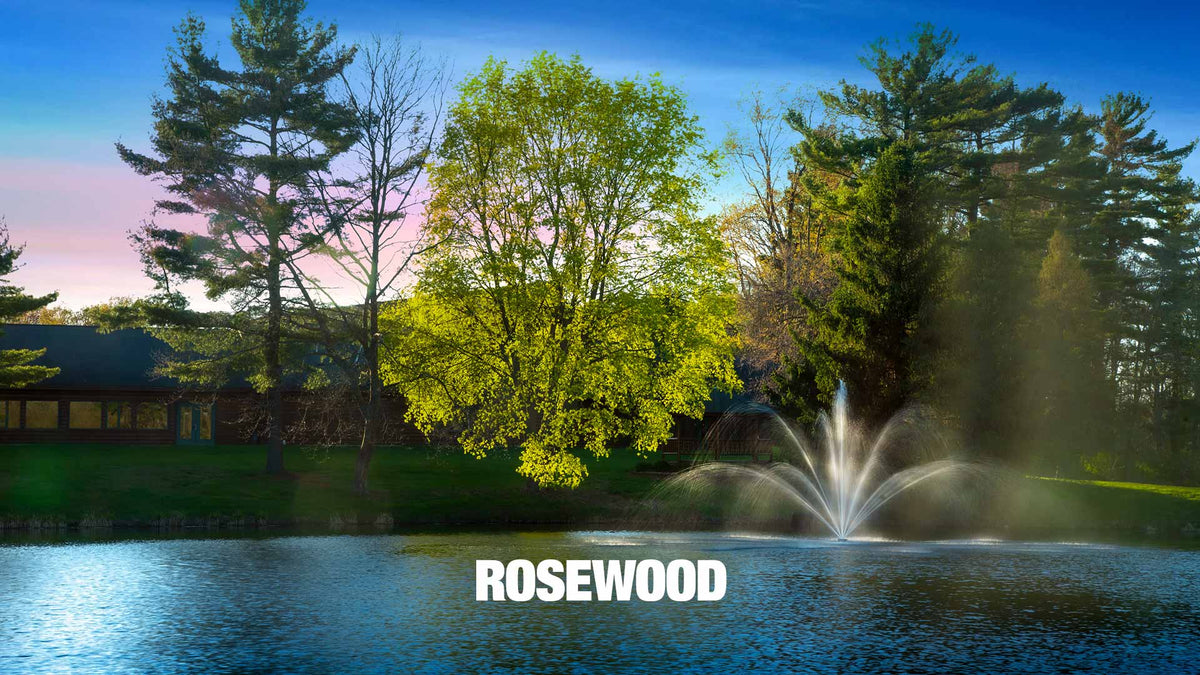

Rosewood	2 HP: Up to 35 feet high x 45 feet wide; 3 HP: Up to 45 feet high x 55 feet wide

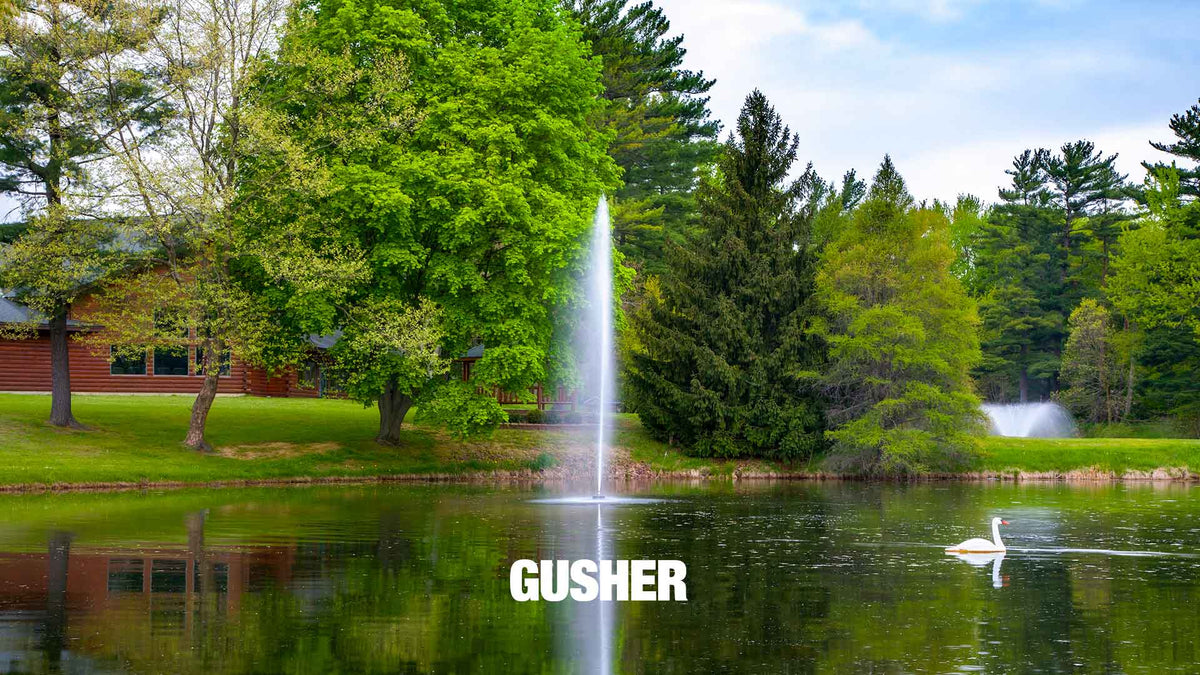

Gusher	2 HP: Up to 40 feet high; 3 HP: Up to 50 feet high

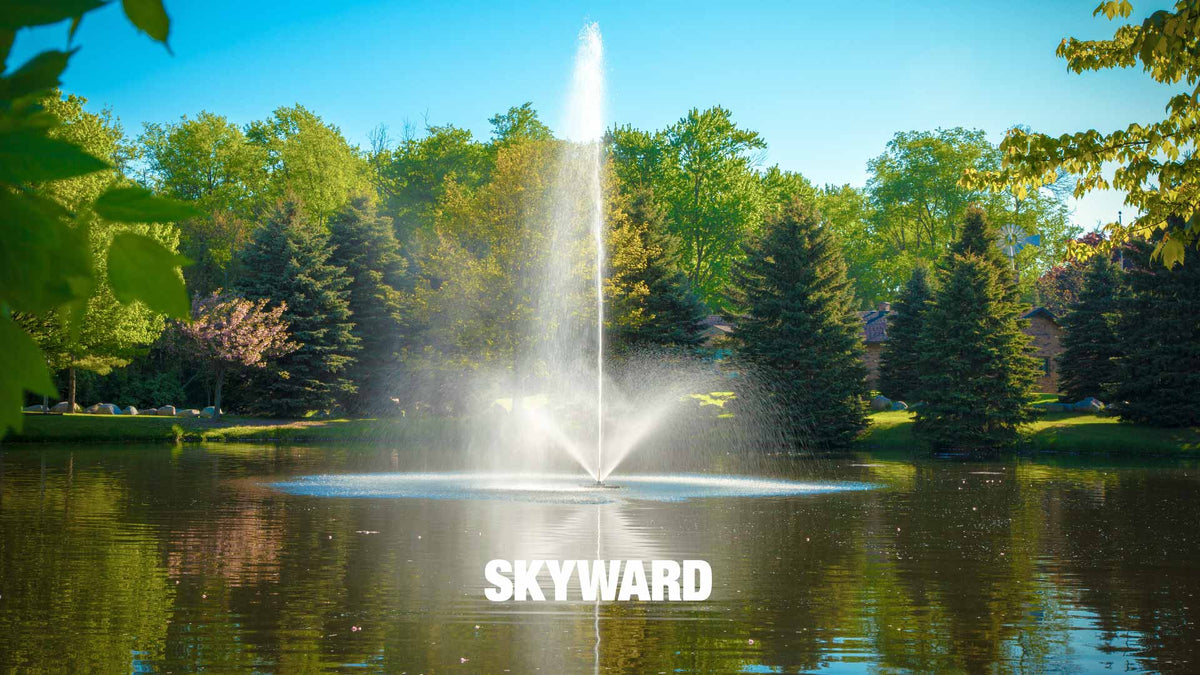

Skyward	2 HP: Up to 45 feet high x 60 feet wide; 3 HP: Up to 50 feet high x 70 feet wide

Three Display Options Included

The Rosewood nozzle creates a multi-tiered classic spray, the Gusher produces a tall vertical column, and the Skyward combines a tall central column with a broader surrounding spray. All three brass nozzles are included and can be changed without tools.

Specifications & Details

Specification	Detail
Motor	Oil-Free Stainless Steel Submersible Motor
Motor Sizes	2 HP and 3 HP
Voltage	230V Standard
Frequency	60 Hz
Phase	Single Phase; 3-Phase Versions Available
Motor Speed	3,450 RPM
2 HP Flow Rate	Approximately 130 to 135 GPM, Depending on Nozzle
3 HP Flow Rate	Approximately 170 to 175 GPM, Depending on Nozzle
2 HP Current Draw	10 Amps at 230V
3 HP Current Draw	13.3 Amps at 230V
Power Cord	100 Feet Standard, 10-Gauge Submersible; Longer Cords Available
Minimum Depth	56 Inches for 2 HP; 60 Inches for 3 HP
Water Compatibility	Fresh Water or Salt Water
Operation	24 Hours Per Day
Lighting	Optional Light Kits Available

Installation & Assembly

Easy Installation

The Triad Fountain is designed for straightforward installation. The fountain assembly is secured in the pond using two anchoring lines attached to the unit, with weighted anchors or concrete blocks positioned on the pond bottom.

Anchoring

The 2 HP configuration requires two 45-pound weights or suitable concrete blocks. The 3 HP configuration requires two 55-pound weights or concrete blocks. Two nylon anchoring ropes are also required. Anchoring weights and ropes are not included.

Electrical Installation

A GFCI is required for operation. The fountain should be installed according to applicable electrical requirements, and power must always be disconnected whenever swimmers are present.

Maintenance & Winter Operation

Routine Maintenance

The oil-free submersible motor does not require routine oil changes. The manufacturer describes the fountain as requiring no regular maintenance during normal operation.

Winter Operation

The Triad Fountain is designed to remain in the pond during winter. Turn off the power when freezing conditions are present and restore power after the ice has thawed. The fountain components are designed to withstand sub-zero conditions without requiring seasonal removal.

Salt Water Use

The Triad Fountain is approved for use in salt water as well as fresh water, making it suitable for a range of pond and lakescape environments.

Warranty

5-Year Motor Warranty

The Triad Fountain includes a 5-year warranty on the motor against defects under the manufacturer's warranty terms.

Additional warranty options may be available for selected pump and lighting configurations at the time of purchase.

Frequently Asked Questions

Question	Answer
What is the Triad Fountain designed for?	It is designed for large commercial ponds and lakescapes where a large water display, water circulation, and increased oxygen levels are desired.
How many spray patterns are included?	Three brass nozzles are included: Rosewood, Gusher, and Skyward.
Can the nozzles be changed without tools?	Yes. The included brass nozzles are designed to be changed easily without tools.
What motor sizes are available?	The large commercial Triad Fountain is available with 2 HP and 3 HP motor configurations.
What voltage does the Triad Fountain use?	The standard 2 HP and 3 HP configurations use 230V power. 3-phase and 50 Hz versions are also available.
How deep does the pond need to be?	The 2 HP model requires a minimum pond depth of 56 inches. The 3 HP model requires a minimum depth of 60 inches.
Can the Triad Fountain run continuously?	Yes. The fountain is designed for 24-hour-per-day operation.
Can it be used in salt water?	Yes. The Triad Fountain is approved for both fresh water and salt water.
Are lights available?	Yes. Optional fountain light kits can be added when purchasing the fountain or added later.
Does it require winterizing?	No seasonal removal is required. The manufacturer recommends turning off the power during freezing conditions and restoring power after the water thaws.
Is a GFCI required?	Yes. A GFCI is required for the Triad Fountain installation.
What is required to anchor the fountain?	The 2 HP model requires two 45-pound weights or concrete blocks, while the 3 HP model requires two 55-pound weights or concrete blocks. Two nylon anchoring ropes are also required.
