Scott Aerator Skyward Fountain For Large, Commercial Ponds

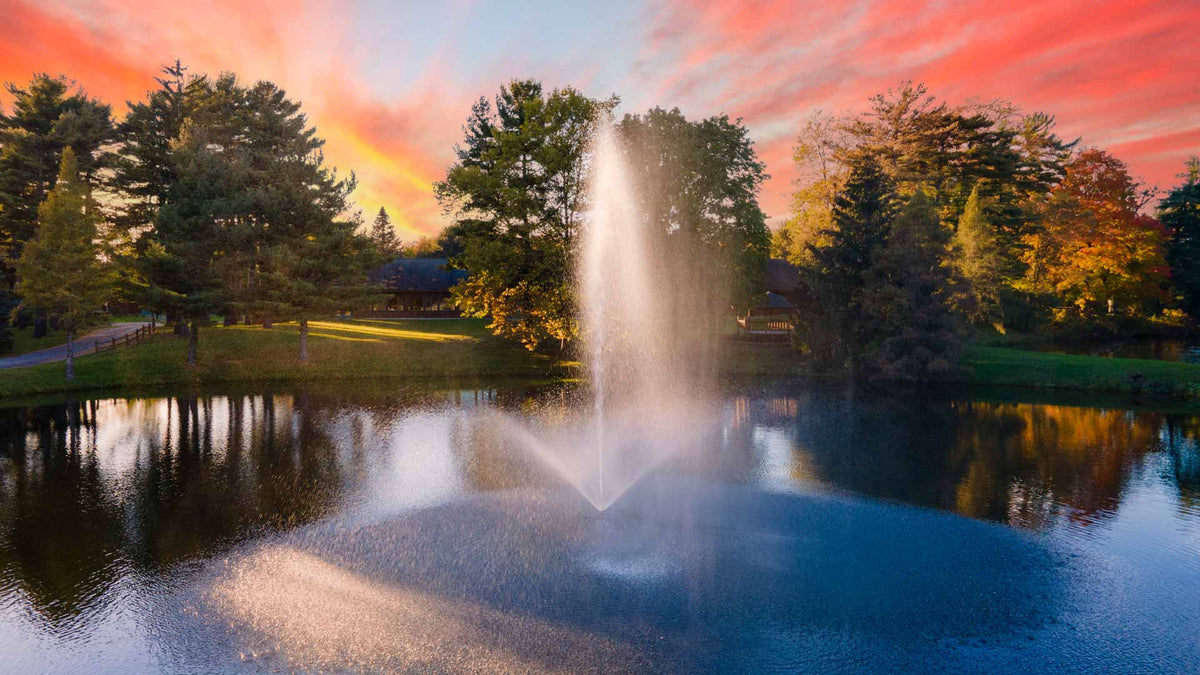

Skyward Fountain 3hp - Reliable and Durable

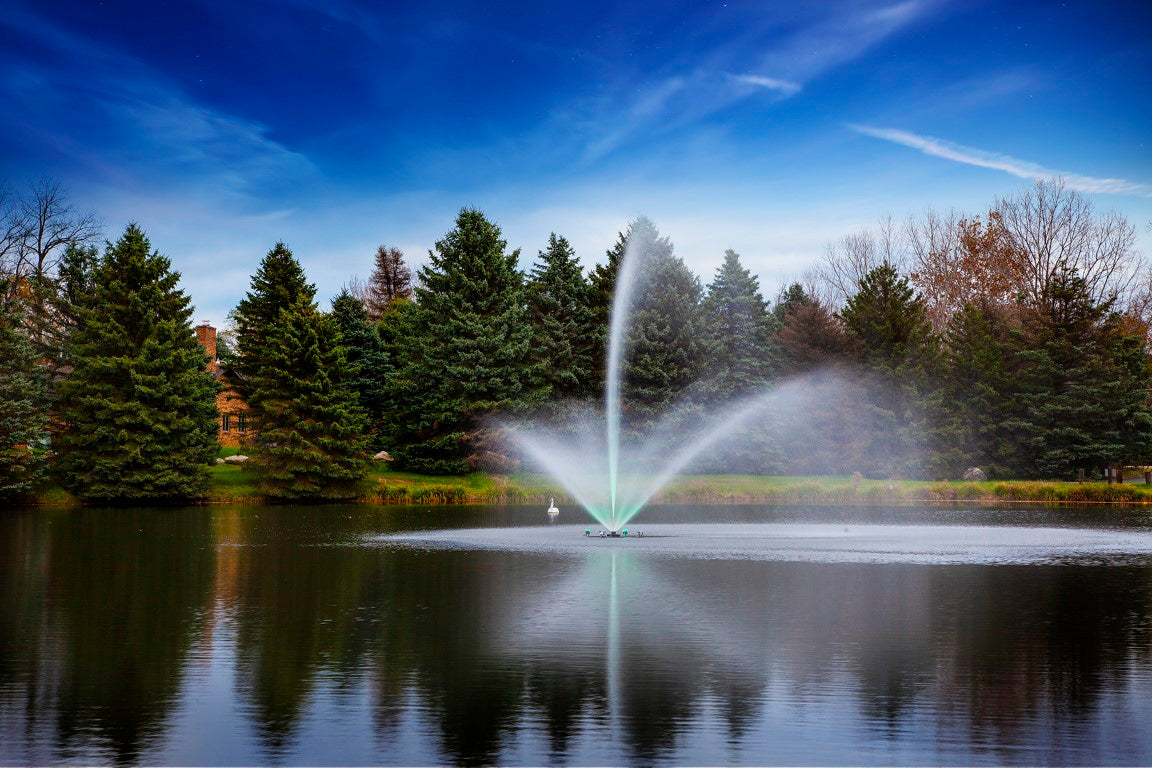

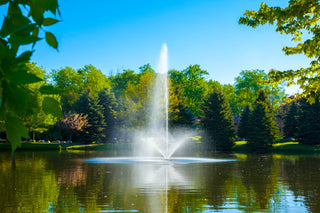

A pond fountain with a central stream and side jets creating a spray pattern in a pond, with trees in the background.

Scott Aerator Skyward Fountain For Large, Commercial Ponds

$5,039.00 $5,299.00

Options

Quick Facts

Feature	Detail
Motor Options	2 HP or 3 HP
Voltage	230V
Flow Rate	135 GPM or 175 GPM
Center Stream	Up to 45 feet with 2 HP or 50 feet with 3 HP
Side Jet Diameter	60 feet with 2 HP or 70 feet with 3 HP
Motor	Oil-Free Stainless Steel Submersible Motor
Water Compatibility	Fresh Water and Salt Water
Operation	Designed for 24-Hour-Per-Day Operation
Motor Warranty	5 Years

A Note Before You Order

The Skyward Fountain uses a 230V motor and requires a GFCI-protected electrical installation. Select the correct motor and power cable length for your installation before ordering. The manufacturer recommends using a licensed electrical contractor and specifically states that an extension cord should not be used to supply power to the motor. Always disconnect power when swimmers are present.

Scott Aerator Skyward Fountain For Large, Commercial Ponds

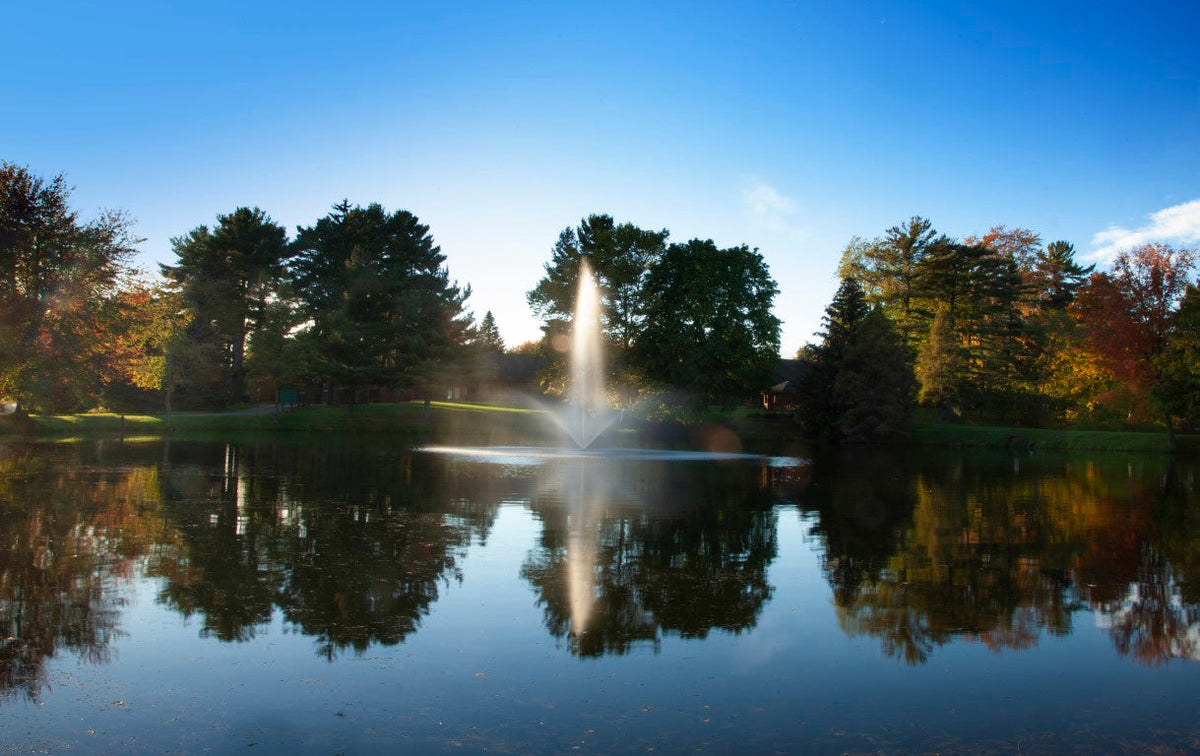

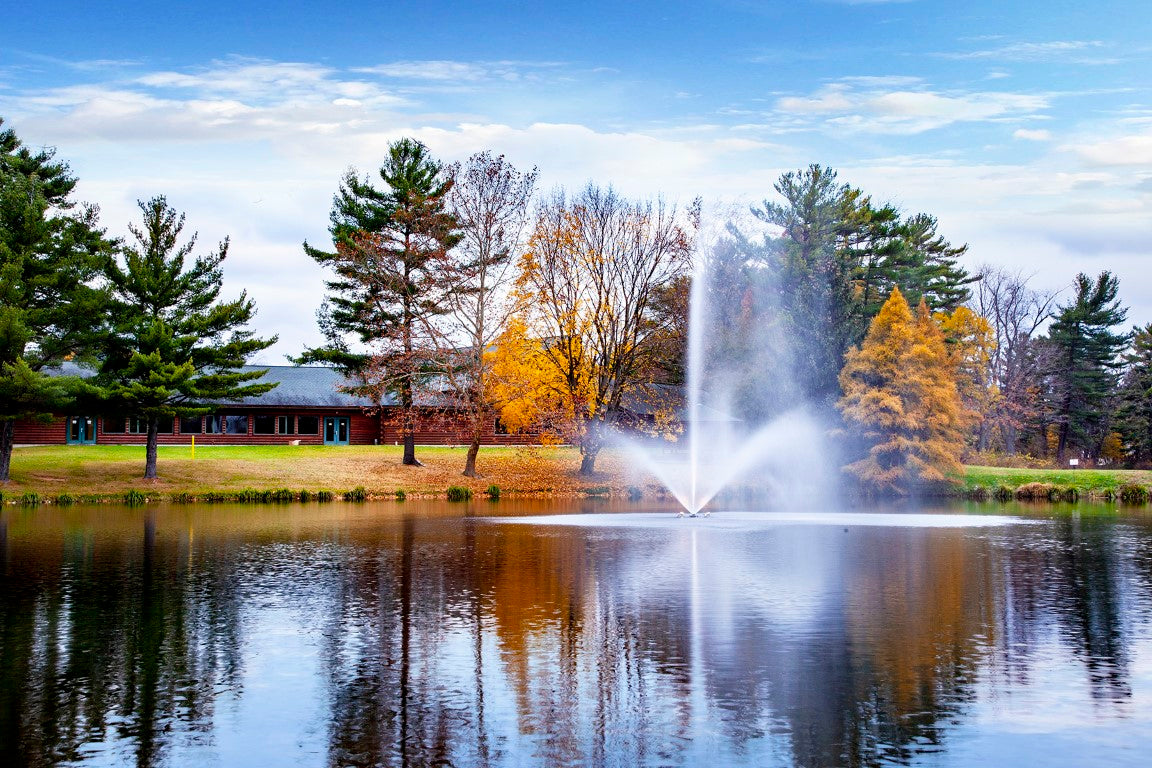

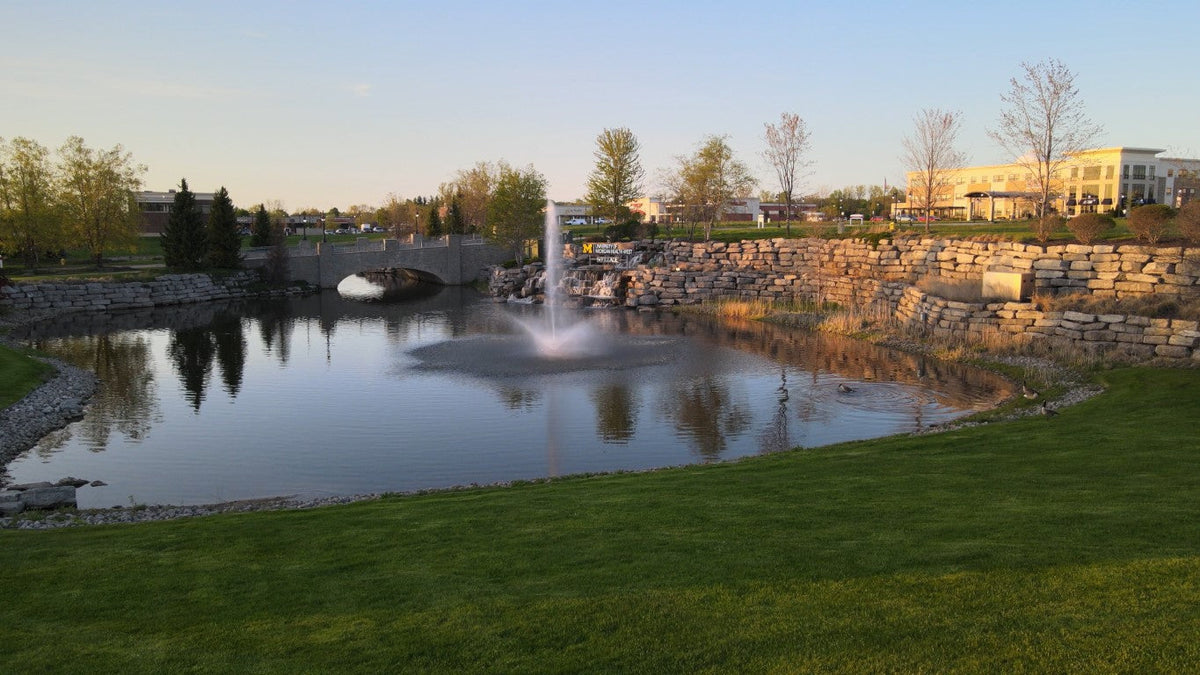

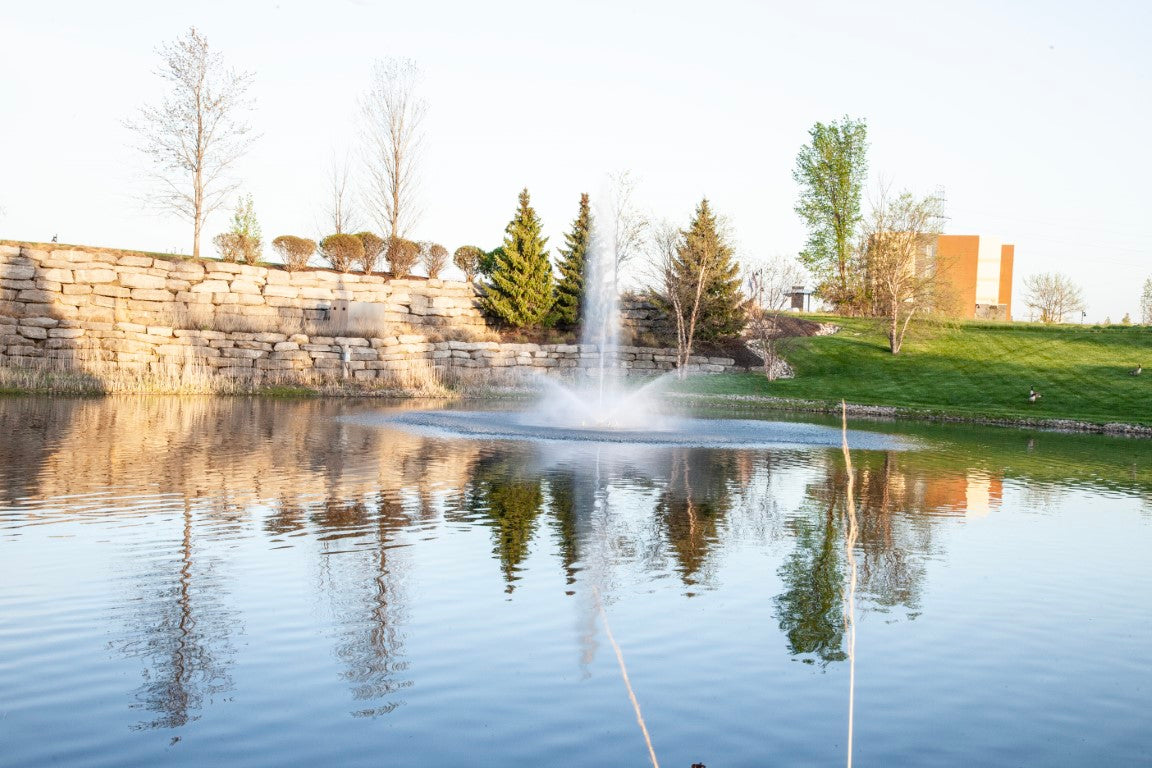

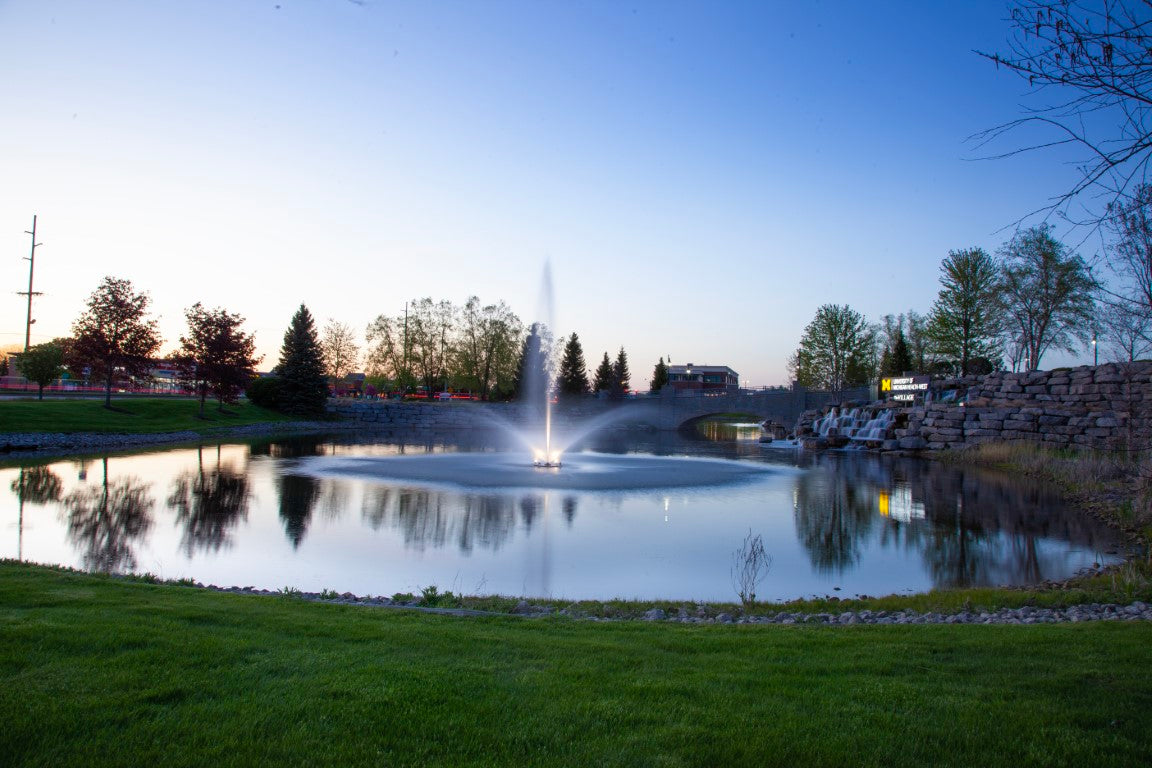

The Scott Aerator Skyward is a large-pond display fountain designed to combine water movement with a prominent center stream and wide side spray pattern. Available with 2 HP and 3 HP motors, the Skyward creates a tall central column of water while spreading water outward across a broad area of the pond.

The 2 HP model produces a center stream reaching up to 45 feet with side jets extending approximately 60 feet in diameter. The 3 HP model reaches up to 50 feet in the center with a side spray pattern approximately 70 feet in diameter. Both configurations use oil-free stainless steel submersible motors, are designed for continuous operation, and are approved for saltwater applications.

Configuration Guide

Skyward 2 HP

The 2 HP configuration uses a 230V oil-free motor and delivers approximately 135 gallons per minute. The center stream reaches up to 45 feet, while the angled side jets create a spray pattern approximately 60 feet in diameter.

A minimum pond depth of 54 inches is required for the 2 HP model.

Skyward 3 HP

The 3 HP configuration uses a 230V oil-free motor and delivers approximately 175 gallons per minute. The center stream reaches up to 50 feet, while the angled side jets create a spray pattern approximately 70 feet in diameter.

A minimum pond depth of 64 inches is required for the 3 HP model.

Lighting Options

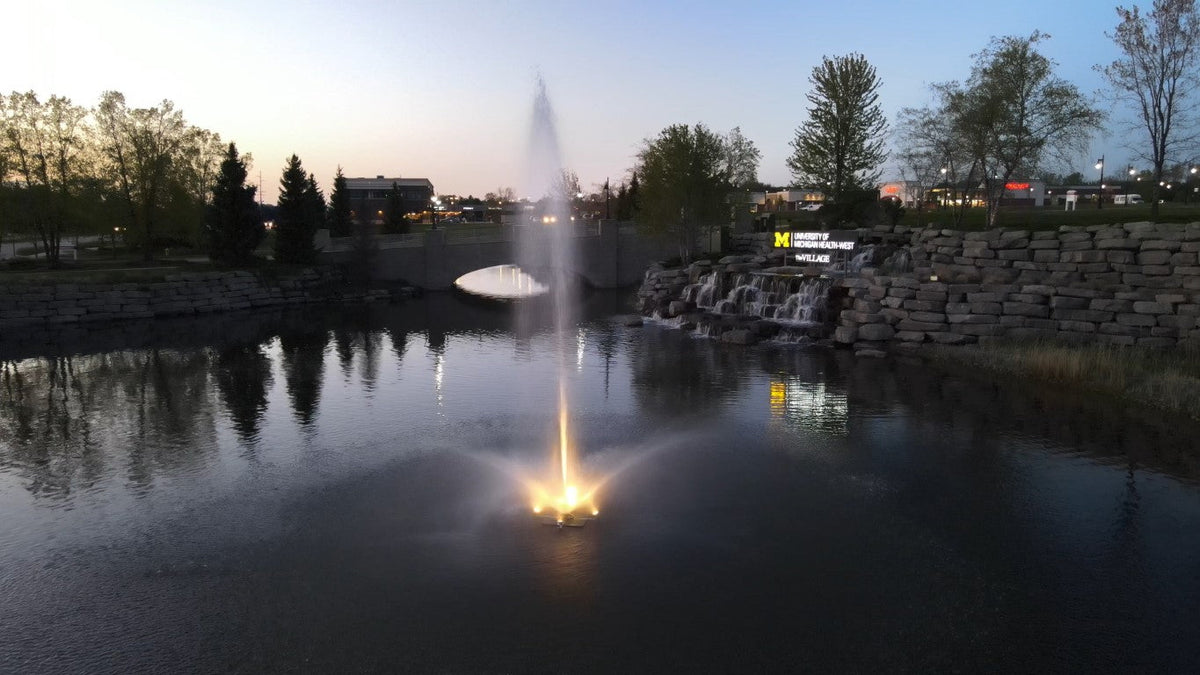

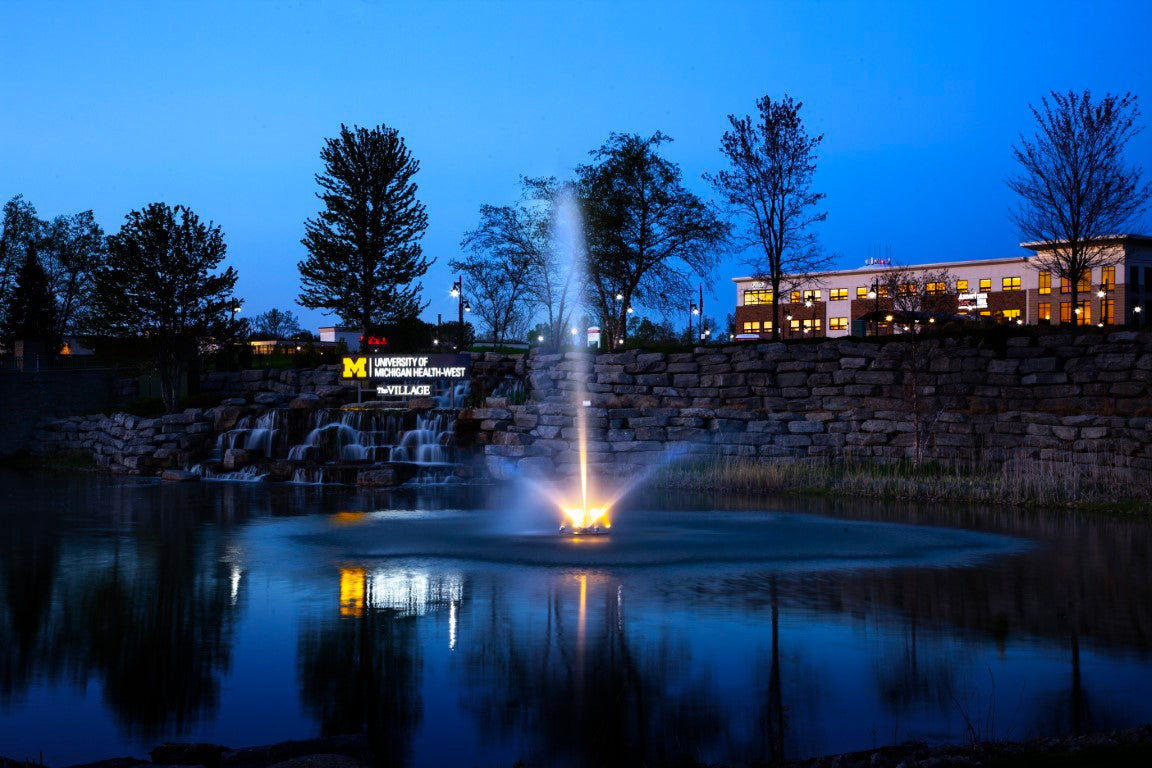

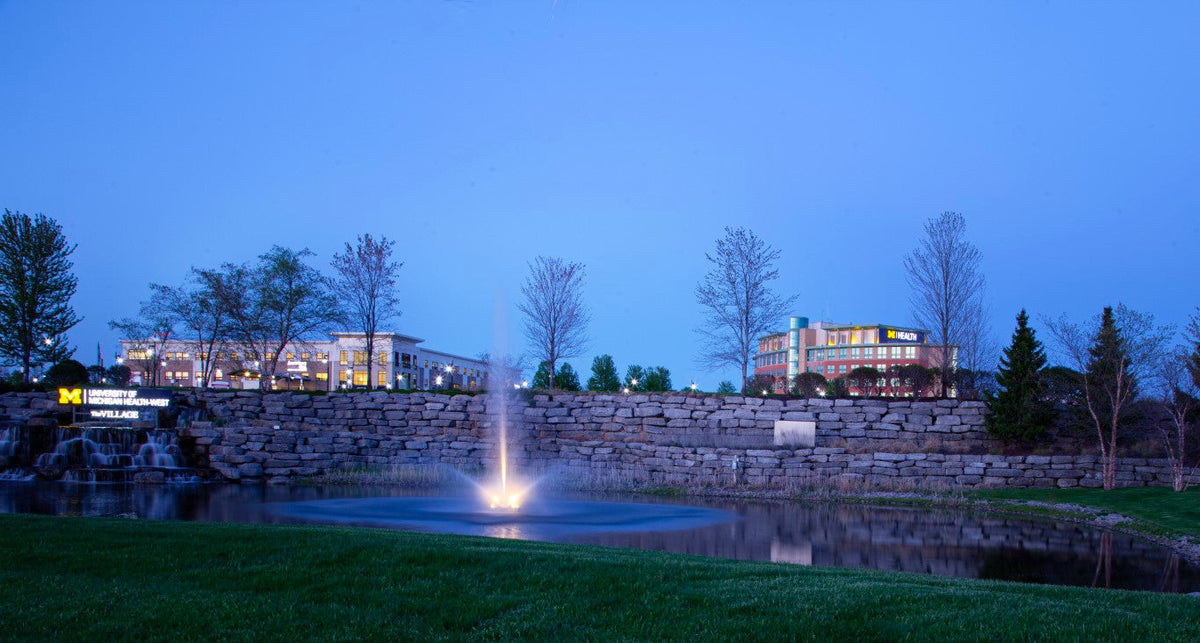

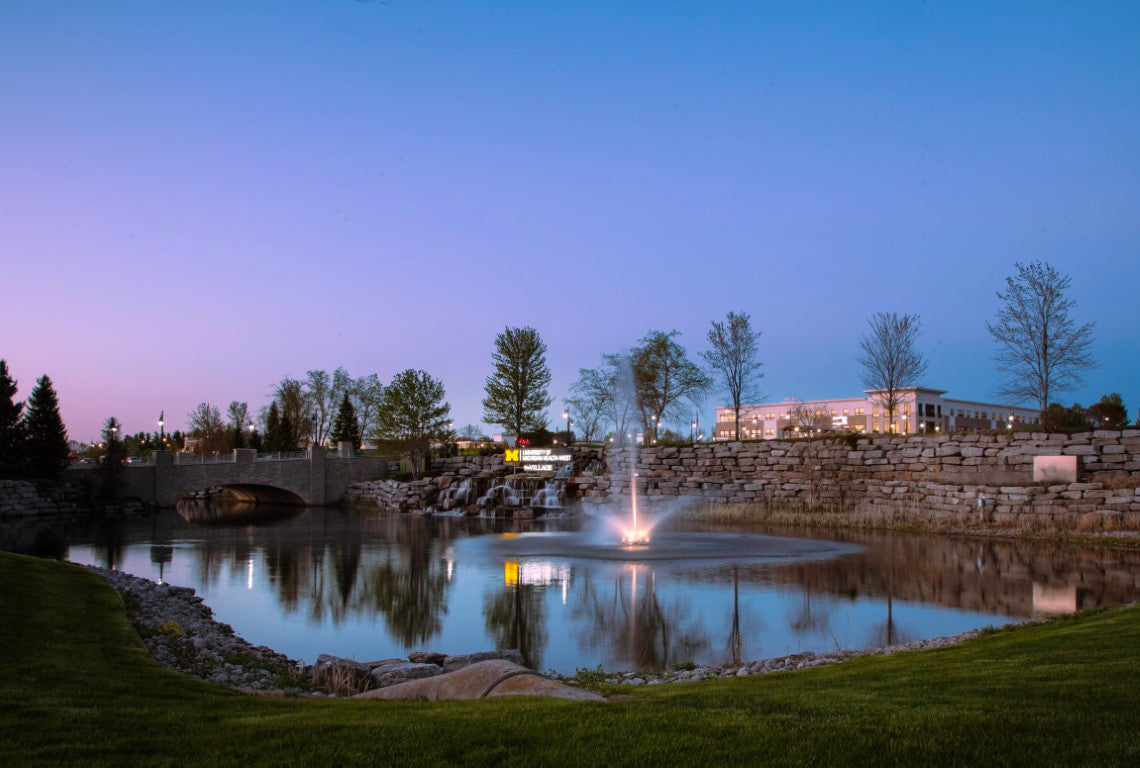

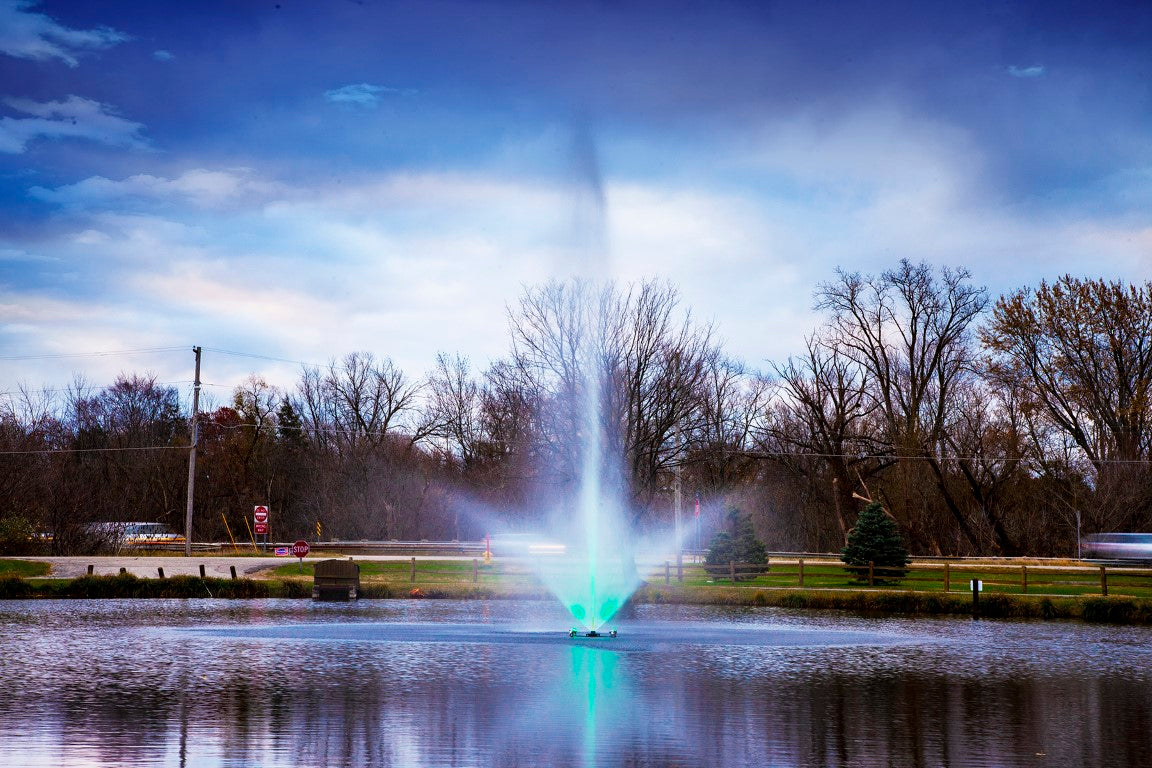

The Skyward can be ordered without lights or with optional LED lighting. Available choices include two-light or four-light color-changing LED sets and two-light or four-light LED Night Glo sets.

Power Cable Options

The Skyward is available with multiple power cable lengths, including 100, 150, 200, and 250 feet depending on the selected configuration. Longer cable options are available for installations where the power source is farther from the fountain.

Specifications & Details

Specification	Detail
Motor	Oil-Free Stainless Steel Submersible Motor
Motor Options	2 HP or 3 HP
Voltage	230V
Frequency	60 Hz
Phase	Single Phase
2 HP Motor	12.6 Amps, 2,280 Watts
3 HP Motor	14 Amps, 3,000 Watts
2 HP Flow Rate	135 GPM
3 HP Flow Rate	175 GPM
2 HP Center Stream	45 Feet
3 HP Center Stream	50 Feet
2 HP Side Jet Pattern	60 Feet Diameter
3 HP Side Jet Pattern	70 Feet Diameter
Minimum Depth	54 Inches for 2 HP; 64 Inches for 3 HP
Standard Cable	100 Feet, 10-Gauge Submersible
Water Compatibility	Fresh Water or Salt Water
Operation	24 Hours Per Day
Warranty	5-Year Motor Warranty

Installation & Assembly

Included Components

The fountain assembly includes the float platform, pump assembly, stainless steel filter, stainless steel bolts, nuts, washers, and stainless steel screws required for assembly.

Assembly

Assembly involves securing the float to the fountain housing, installing the stainless steel filter, attaching nylon anchoring lines to the stainless steel eye bolts, and fitting the fountain head before placing the unit in the water.

Anchoring

Two nylon anchoring lines attach to the fountain eye bolts. The lines can be secured to shore or attached to submerged concrete blocks positioned at least 20 feet apart. Anchoring ropes and weights are not included.

Electrical Installation

A GFCI is required. The manufacturer recommends using a licensed electrical contractor and specifically states that an extension cord should not be used to supply power to the motor. Power must always be disconnected when swimmers are present.

Maintenance & Winter Operation

Routine Maintenance

The Skyward requires little routine maintenance under normal operating conditions. When the fountain is removed from the water, the manufacturer recommends washing it with high-pressure water and visually inspecting the unit to make sure nothing is restricting water flow.

Anchoring Rope Replacement

Anchoring ropes can deteriorate over time. When quality nylon rope measuring 3/8 inch or thicker is used, the manufacturer recommends replacing the anchoring ropes every five years.

Winter Operation

Scott Aerator designs its water features to avoid time-consuming winterizing procedures. Follow the manufacturer's operating and electrical guidance for freezing conditions and never operate the fountain when ice or other conditions could create an unsafe situation.

Power Cable Sizing

The correct cable size and maximum cable length depend on the motor configuration. The manufacturer's motor specification chart should be used when planning longer electrical runs. The listed distances are measured from the pump motor to the circuit breaker.

Warranty

5-Year Motor Warranty

The Skyward motor is covered by an unconditional 5-year motor warranty from Scott Aerator.

Warranty coverage remains subject to the manufacturer's warranty terms and conditions.

Frequently Asked Questions

Question	Answer
What is the Skyward Fountain designed for?	The Skyward is a large display fountain designed for commercial and large pond installations where a tall center stream and broad side spray pattern are desired.
What motor sizes are available?	The Skyward is available with 2 HP and 3 HP, 230V motor configurations.
How high does the 2 HP Skyward spray?	The 2 HP model produces a center stream reaching up to 45 feet, with side jets creating a spray pattern approximately 60 feet in diameter.
How high does the 3 HP Skyward spray?	The 3 HP model produces a center stream reaching up to 50 feet, with side jets creating a spray pattern approximately 70 feet in diameter.
What pond depth is required?	The 2 HP model requires a minimum pond depth of 54 inches. The 3 HP model requires a minimum pond depth of 64 inches.
Can the Skyward be used in salt water?	Yes. Both Skyward configurations are approved for saltwater applications.
Can the Skyward operate continuously?	Yes. The Skyward is designed for 24-hour-per-day operation.
Does the Skyward require a GFCI?	Yes. A GFCI is required for operation, and the manufacturer recommends using a licensed electrical contractor.
Can I use an extension cord?	No. The manufacturer specifically states that an extension cord should not be used to supply power to the motor.
How is the Skyward anchored?	Two nylon anchoring lines attach to the fountain eye bolts. The lines can be secured to shore or attached to submerged concrete blocks positioned at least 20 feet apart.
Are lights available?	Yes. The Skyward can be configured with optional two-light or four-light color-changing LED sets or LED Night Glo light sets.
How long is the standard power cable?	The Skyward 2 HP and 3 HP configurations are supplied with a 100-foot, 10-gauge submersible cable. Longer cable lengths are available.

Downloads

Pond Fountain Motor Specs

View Pond Fountain Motor Specs PDF

Pond Fountain Specs & Assembly

View Pond Fountain Specs & Assembly PDF

Pond Fountain Comparison Brochure

View Pond Fountain Comparison Brochure PDF

Product Video

Watch the Skyward Fountain video for a visual look at the fountain's spray pattern, operation, and installation.
