Scott Aerator Shallow Water Adapter

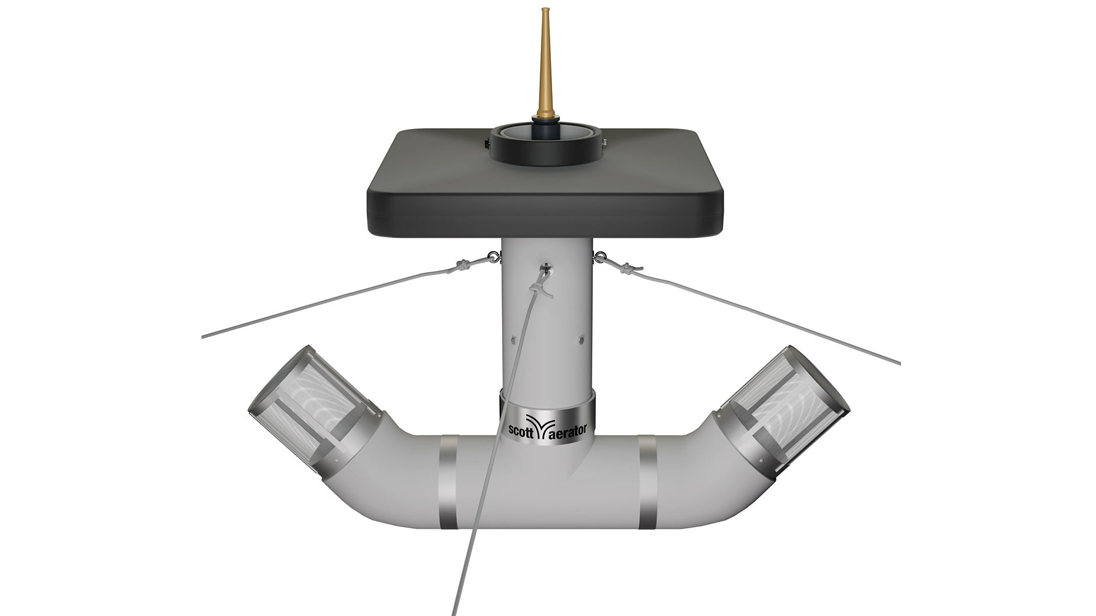

A shallow water fountain adapter with a central attachment point and directional pipes for water flow control.

Scott Aerator Shallow Water Adapter

$895.95

Options

Quick Facts

Feature	Detail
Application	Shallow ponds and lakes
Minimum Water Depth	As shallow as 28 inches
Compatible Equipment	Scott Aerator fountains and aerators
Aerator Compatibility	DA-20, North Star, and Boilermaker
Kit Versions	Aerator Version or Fountain Version
Aerator Kit	Includes stainless steel debris shield
Fountain Kit	Includes stainless steel filter basket
Warranty	5-Year Motor Warranty, 1-Year Other Components

A Note Before You Order

The Shallow Water Adapter is designed for use with Scott Aerator equipment only. The adapter does not include a fountain or aerator, which must be purchased separately.

All shallow water base purchases require the customer's existing unit to be shipped to Scott Aerator with a repair request so the adapter can be properly fitted.

Scott Aerator Shallow Water Adapter for Shallow Ponds

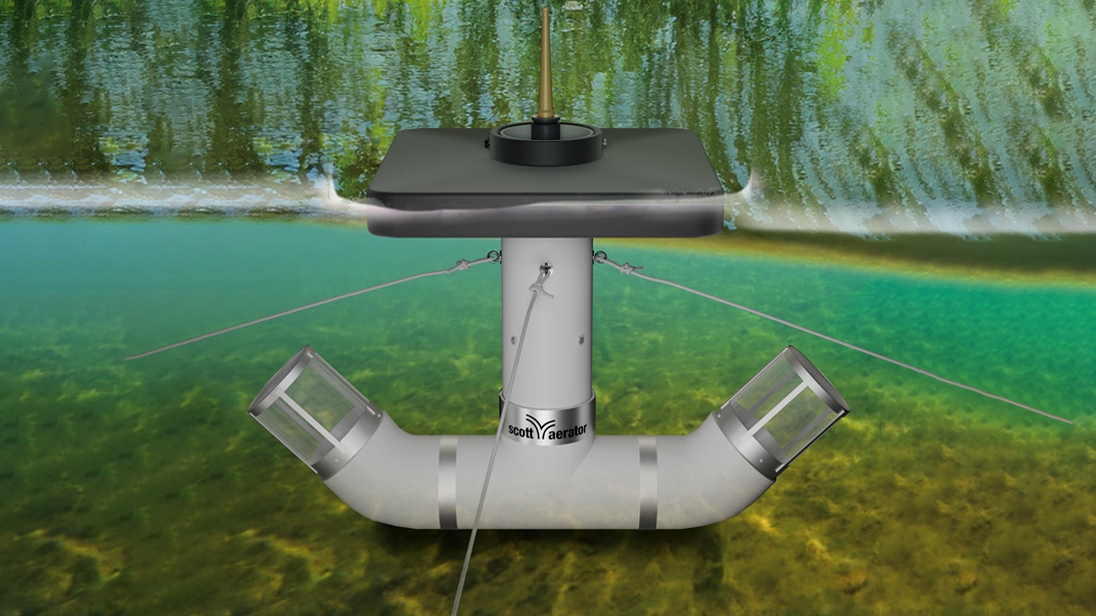

The Scott Aerator Shallow Water Adapter allows compatible fountain and aerator systems to operate in ponds and lakes where water depth is limited. Designed for installations as shallow as 28 inches, the adapter provides a practical solution for bringing water movement and aeration to shallow-water locations.

The adapter is available in versions for Scott Aerator fountains and aerators. The aerator version is compatible with the DA-20, North Star, and Boilermaker product lines and includes a stainless steel debris shield. The fountain version includes a stainless steel filter basket.

The adapter can help maintain water circulation and oxygenation in shallow areas while allowing fountain systems to create a continuous water display. The fountain or aerator itself is not included with the adapter.

Configuration Guide

Aerator Version - 14500.KIT

The aerator version is designed for compatible Scott Aerator aerators and includes a stainless steel debris shield. It is intended for use with the DA-20, North Star, and Boilermaker aerator lines.

UPC: 810094929152. MPN: 14500.KIT.

Fountain Version - 14510.KIT

The fountain version is designed for compatible Scott Aerator fountain systems and includes a stainless steel filter basket for the water intake.

UPC: 810094929183. MPN: 14510.KIT.

Shallow Water Capability

The adapter is designed for water depths as shallow as 28 inches. Actual operating depth requirements can vary depending on the motor or pump configuration being used.

Specifications & Details

Specification	Detail
Product Type	Shallow Water Fountain and Aerator Adapter
Minimum Water Depth	28 inches
Brand Compatibility	Scott Aerator products only
Aerator Compatibility	DA-20, North Star, and Boilermaker
Aerator Version	14500.KIT
Aerator Protection	Stainless Steel Debris Shield
Fountain Version	14510.KIT
Fountain Protection	Stainless Steel Filter Basket
Fountain or Aerator Included	No, sold separately
Motor Warranty	5 Years
Other Component Warranty	1 Year

Installation & Assembly

Kit Components

The assembly instructions list the float platform, motor/pump assembly, fountain nozzle for fountain models, stainless steel filters or debris shields, stainless steel bolts, nuts, washers, and screws as kit components. Hardware varies by the selected configuration.

Assembly

The assembly process includes positioning the float over the discharge port, securing the float with the supplied hardware, installing the stainless steel filter or debris shield, and attaching the fountain head where applicable.

Anchoring

The assembly instructions call for nylon anchoring ropes to be attached to the stainless steel eye bolts. For the fountain assembly, the ropes are secured to four 8 x 8 x 16 inch cinder blocks submerged at least 12 feet apart.

Electrical Installation

Electrical installation requires a ground fault circuit interrupter and the manufacturer recommends using a licensed electrical contractor. An extension cord should not be used to supply power to the motor.

Maintenance & Winter Operation

Routine Maintenance

The manufacturer describes its water features as requiring little routine maintenance. When the unit is removed from the water, it is recommended to wash it with high-pressure water and inspect the entire fountain or aerator for debris or anything restricting water flow.

Anchoring Rope

Quality nylon anchoring rope measuring 3/8 inch or thicker should be replaced every five years. The manufacturer recommends inspecting the anchoring system whenever the unit is removed from the water.

Winter Operation

The manufacturer recommends leaving the unit in the water during winter rather than removing it. Turn the power supply off while the water is frozen and restore power after the water thaws. The manufacturer states that the components are designed to withstand sub-zero conditions.

Warranty

5-Year Motor Warranty

Standard Scott Aerator products are covered by a five-year warranty against motor defects in materials or workmanship under normal operating conditions.

Other product components are covered by a one-year warranty from the date of purchase, subject to the manufacturer's warranty terms.

Frequently Asked Questions

Question	Answer
What does the Shallow Water Adapter do?	It allows compatible Scott Aerator fountains and aerators to operate in shallow-water locations where standard installation depth may not be available.
How shallow can the water be?	The adapter is designed for water depths as shallow as 28 inches, although the required depth can vary by motor or pump configuration.
Does the adapter include a fountain or aerator?	No. The fountain or aerator is sold separately.
Which aerators are compatible?	The aerator version is designed for the Scott Aerator DA-20, North Star, and Boilermaker aerator lines.
What is included with the aerator version?	The aerator version includes a stainless steel debris shield.
What is included with the fountain version?	The fountain version includes a stainless steel filter basket.
Can the adapter be used with another brand of fountain or aerator?	No. The manufacturer specifies that the Shallow Water Adapter is for use with Scott Aerator products only.
Does the existing unit need to be sent to Scott Aerator?	Yes. Scott Aerator states that shallow water base purchases require the customer's unit to be shipped to Scott Aerator with a repair request for proper fitting.
Is a GFCI required?	Yes. The assembly instructions require the use of a ground fault circuit interrupter.
Can I use an extension cord?	No. The manufacturer specifically states that an extension cord should not be used to supply power to the motor.
Can the unit remain in the water during winter?	Yes. The manufacturer recommends leaving the unit in the water, turning off the power during freezing conditions, and restoring power after the water thaws.

Downloads

Shallow Pond Fountain Assembly Instructions

View Shallow Pond Fountain Assembly Instructions PDF
