Scott Aerator Cambridge Fountain For Small, Residential Ponds

$2,349.00 $2,469.00
-5%
In stock
Motor: ½ hp 115 volts
  • ½ hp 115 volts
  • ½ hp 230 volts
  • ¾ hp 115 volts
  • ¾ hp 230 volts
Cord Length: 70 feet
  • 70 feet
  • 100 feet - Unavailable
  • 150 feet - Unavailable
  • 200 feet - Unavailable
  • 250 feet - Unavailable

Estimated delivery between October 25 and October 27.

Free Shipping
Residential and Commercial Use
Backed by Real Expert Support
Delivered With Care, Direct to Your Door
Scott Aerator Cambridge Fountain For Small, Residential Ponds
$2,349.00 $2,469.00
$2,349.00 $2,469.00
Options
Motor: ½ hp 115 volts
  • ½ hp 115 volts
  • ½ hp 230 volts
  • ¾ hp 115 volts
  • ¾ hp 230 volts
Cord Length: 70 feet
  • 70 feet
  • 100 feet - Unavailable
  • 150 feet - Unavailable
  • 200 feet - Unavailable
  • 250 feet - Unavailable

Quick Facts

Feature Detail
Motor Options 1/2 HP or 3/4 HP
Voltage 115V or 230V, depending on motor configuration
Spray Pattern Multi-Tiered Classic Cambridge Pattern
Display Size Up to 25 Feet High x 35 Feet Wide
Flow Rate 65 Gallons Per Minute
Motor Oil-Free Stainless Steel Submersible Motor
Operation Designed for 24-Hour-Per-Day Operation
Water Compatibility Fresh Water and Salt Water
Motor Warranty 5 Years

A Note Before You Order

Select the correct motor voltage and cord length for your installation. Scott Aerator specifies that 115V motors should be installed no more than 100 feet from the main breaker. A GFCI is required, and the manufacturer recommends using a licensed electrical contractor. Do not use an extension cord to supply power to the motor. Always disconnect power when swimmers are present.

Scott Aerator Cambridge Fountain For Small, Residential Ponds

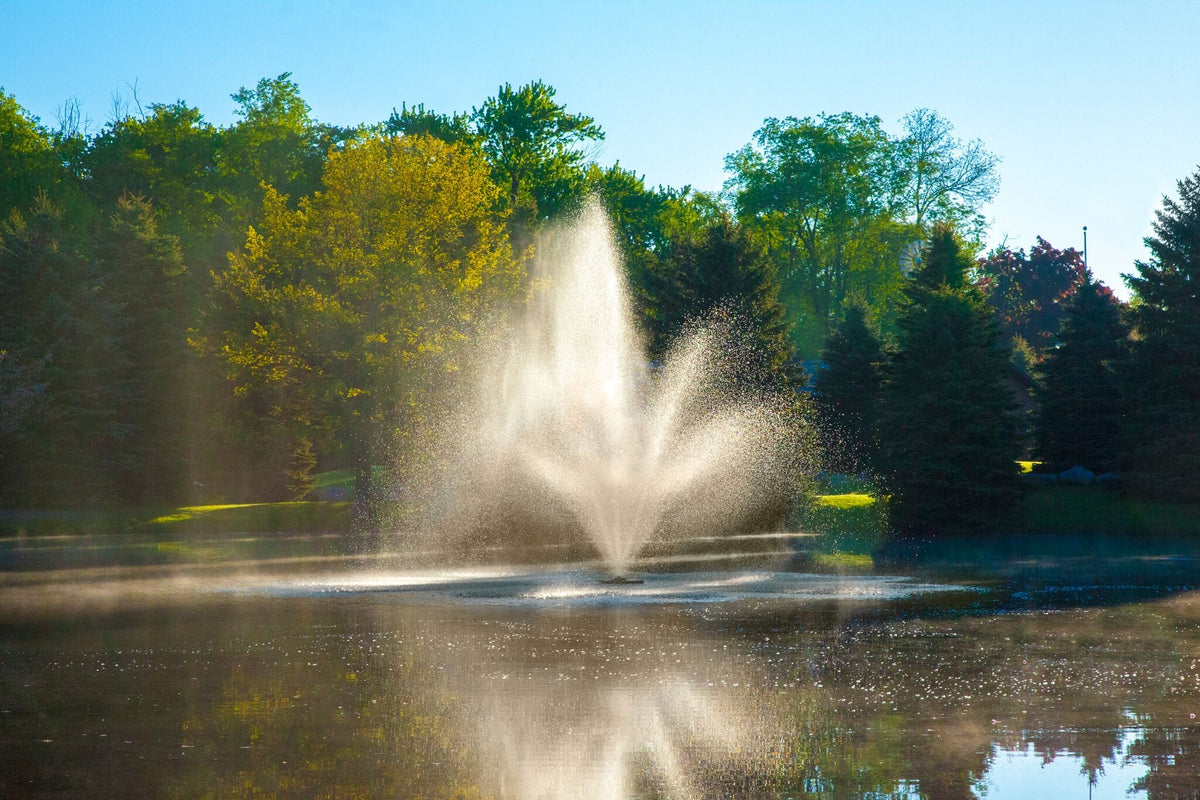

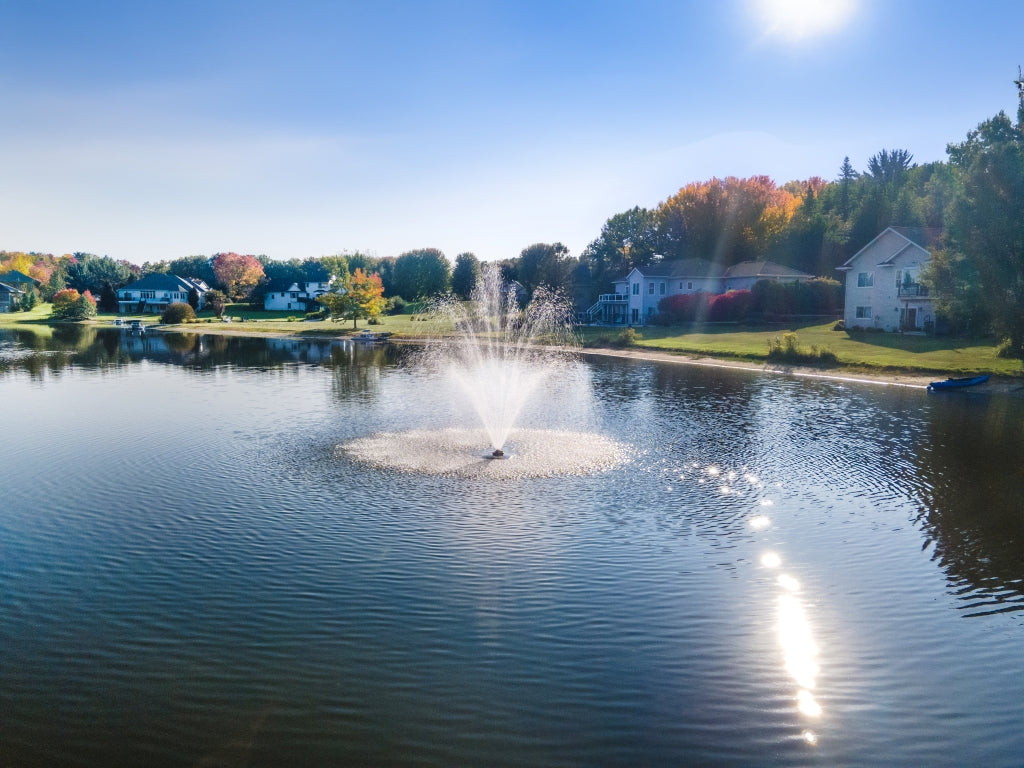

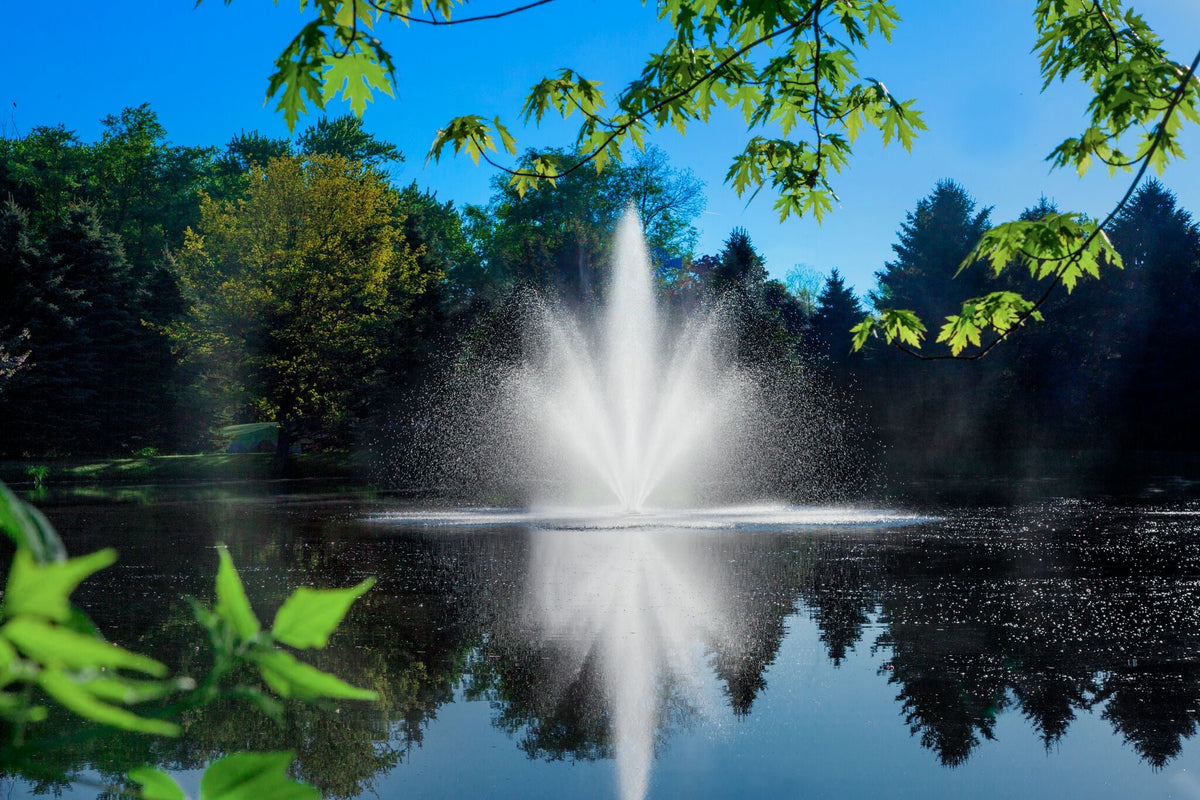

The Cambridge Fountain creates a multi-tiered classic spray pattern designed to add movement and visual interest to small residential ponds. Its display can reach up to 25 feet high and 35 feet wide while circulating water through a 65 GPM flow rate.

The Cambridge is available with 1/2 HP and 3/4 HP oil-free stainless steel submersible motors in 115V or 230V configurations. The fountain is designed for continuous operation, works in both fresh and salt water, and accepts optional light kits for nighttime display. Its components are designed to remain in the water through winter when the power is turned off.

Configuration Guide

Cambridge 1/2 HP

The 1/2 HP Cambridge is available in 115V or 230V configurations and produces a 65 GPM flow rate. Cord lengths and optional lighting packages can be selected based on the installation.

The fountain requires a minimum pond depth of 44 inches.

Cambridge 3/4 HP

The 3/4 HP Cambridge is available in 115V or 230V configurations and produces a 65 GPM flow rate. The 3/4 HP model creates the Cambridge spray pattern up to 25 feet high and 35 feet wide.

The fountain requires a minimum pond depth of 44 inches.

Lighting Options

Optional lighting packages include two-light and four-light Color Changing LED sets and two-light and four-light LED Night Glo sets. Light kits can be added at the time of purchase or later.

Specifications & Details
Specification Detail
Motor Oil-Free Stainless Steel Submersible Motor
Motor Sizes 1/2 HP and 3/4 HP
Voltage 115V or 230V
Frequency 60 Hz
Phase Single Phase
Motor Speed 3,450 RPM
Power 0.55 kW
Flow Rate 65 GPM
Current Draw 10.7 Amps at 115V; 6.8 Amps at 230V
Minimum Pond Depth 44 Inches
Spray Height Up to 25 Feet
Spray Width Up to 35 Feet
Power Cord 100 Feet Standard; Longer Cords Available
115V Cord 100 Feet, 10-Gauge, Submersible, With Plug
230V Cord 100 Feet, 12-Gauge, Submersible
Water Compatibility Fresh Water or Salt Water
Operation 24 Hours Per Day
Anchoring Two 20-Pound Weights or Concrete Blocks Required
Anchoring Lines Two Nylon Ropes Required; Not Included
Nozzle Cambridge Brass Nozzle Included
Installation & Assembly

Included Components

The assembly kit includes the float platform, pump assembly, stainless steel filter, two stainless steel bolts, stainless steel nuts and washers, and three stainless steel screws.

Anchoring

Two nylon anchoring lines attach to the stainless steel eye bolts. The fountain can be secured to shore or anchored with two concrete blocks submerged at least 20 feet apart. The anchoring ropes and weights are not included.

Electrical Installation

A GFCI is required for operation. The manufacturer recommends using a licensed electrical contractor. Do not use an extension cord to supply power to the motor, and always disconnect power when swimmers are present.

Cable Requirements

The correct cable size and maximum cable length depend on motor horsepower and voltage. The supplied cable is 100 feet for the Cambridge configuration, with longer lengths available. The manufacturer's motor specifications should be followed when determining the required cable size and length.

Maintenance & Winter Operation

Routine Maintenance

The Cambridge requires little routine maintenance under normal operating conditions. When the fountain is removed from the water, the manufacturer recommends washing it with high-pressure water and visually inspecting the unit to make sure nothing is restricting water flow.

Winter Operation

The manufacturer recommends leaving the fountain in the water during winter. Turn off the power supply during freezing conditions and restore power after the water thaws. The fountain components are designed to withstand sub-zero conditions without damage.

Anchoring Line Replacement

Quality nylon anchoring rope that is 3/8 inch or thicker should be replaced every five years. When replacing the ropes, the fountain can also be cleaned and inspected for anything that may restrict water flow.

Warranty

5-Year Motor Warranty

The Cambridge Fountain motor carries an unconditional 5-year motor warranty from Scott Aerator, subject to the manufacturer's warranty terms.

Frequently Asked Questions
Question Answer
What spray pattern does the Cambridge create? The Cambridge creates a multi-tiered classic spray pattern that can reach up to 25 feet high and 35 feet wide.
What motor sizes are available? The Cambridge Fountain is available with 1/2 HP and 3/4 HP motor configurations.
Can the Cambridge be used in salt water? Yes. The Cambridge is designed for use in both fresh water and salt water.
Can the Cambridge run continuously? Yes. The fountain is designed for 24-hour-per-day operation.
What pond depth is required? A minimum pond depth of 44 inches is required.
Does the Cambridge require winterizing? The manufacturer recommends leaving the fountain in the water during winter, turning off the power while the water is frozen, and restoring power after the water thaws.
Is a GFCI required? Yes. A GFCI is required for the fountain installation.
Can I use an extension cord? No. The manufacturer specifically states that an extension cord should not be used to supply power to the motor.
How is the Cambridge anchored? Two nylon anchoring lines attach to the fountain's eye bolts. The unit can be secured to shore or anchored using two concrete blocks submerged at least 20 feet apart.
Can lights be added? Yes. Color Changing LED and LED Night Glo light kits are available in two-light and four-light configurations.
Downloads

Pond Fountain Motor Specs

View Pond Fountain Motor Specs PDF

Pond Fountain Specs & Assembly

View Pond Fountain Specs & Assembly PDF
