Scott Aerator Cambridge Fountain For Medium, Residential Ponds

$2,879.00 $3,029.00

Options

Quick Facts

Feature	Detail
Motor	1 HP Oil-Free Stainless Steel Submersible Motor
Voltage	115V or 230V
Flow Rate	75 Gallons Per Minute
Spray Pattern	Multi-Tiered Classic Cambridge Pattern
Spray Dimensions	Up to 30 Feet High × 40 Feet Wide
Operation	Designed for 24-Hour-Per-Day Operation
Water Compatibility	Fresh Water and Salt Water
Minimum Pond Depth	44 Inches
Motor Warranty	5 Years

A Note Before You Order

Select the correct motor voltage and cord length for your installation. For proper operation of a 115-volt motor, the distance from the main breaker to the fountain must not exceed 100 feet. If the distance is greater than 100 feet, select a 230-volt motor. A GFCI is required, and power must always be disconnected when swimmers are present.

Scott Aerator Cambridge Fountain For Medium, Residential Ponds

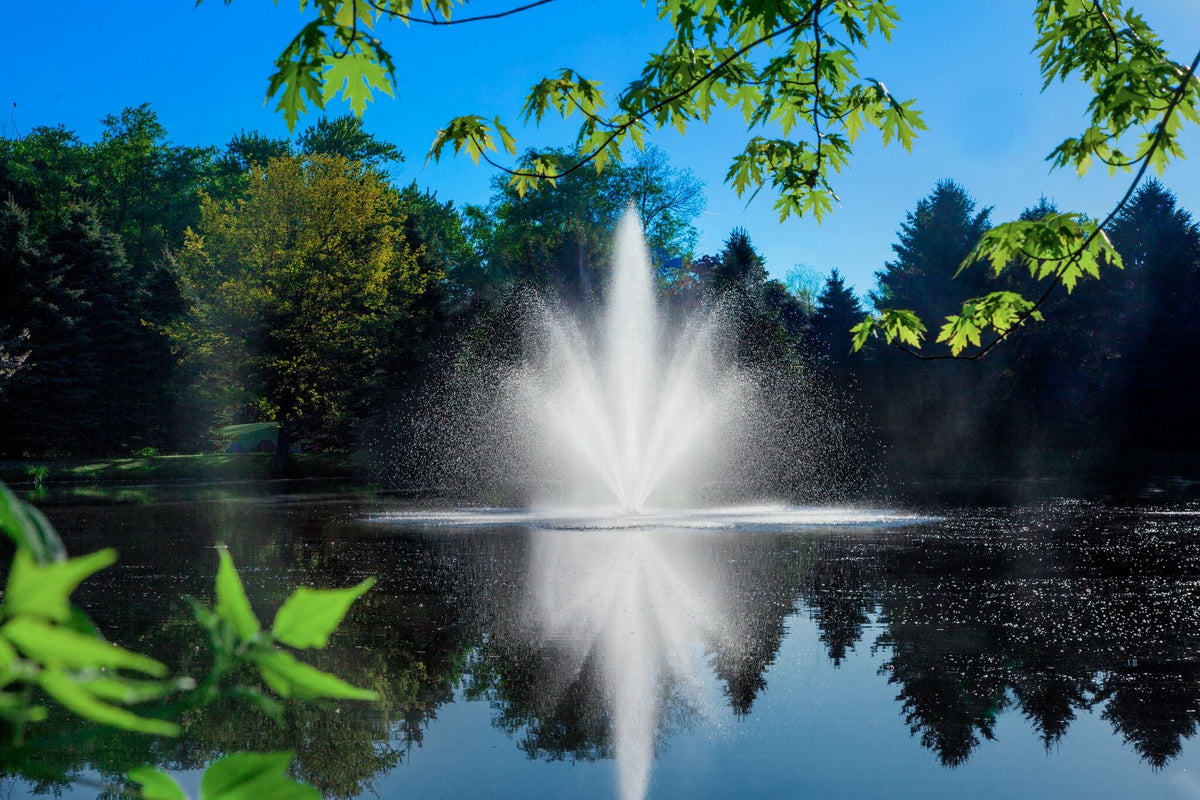

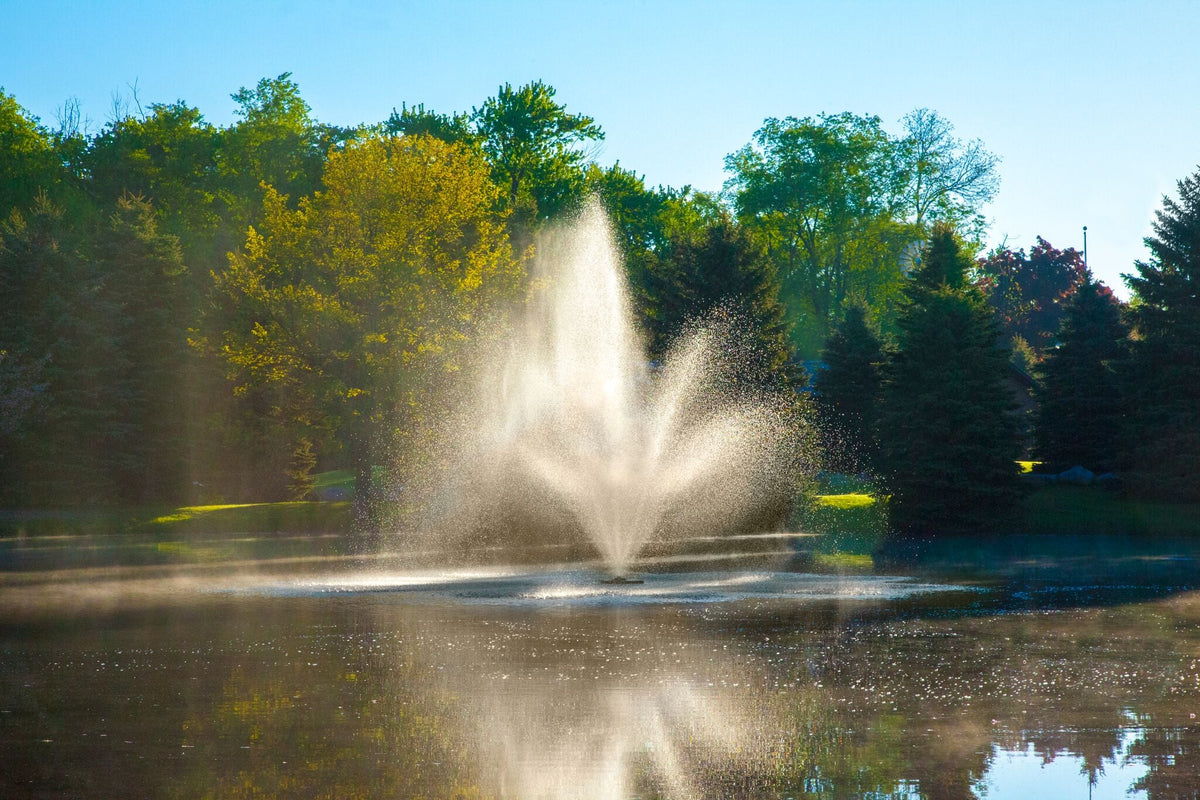

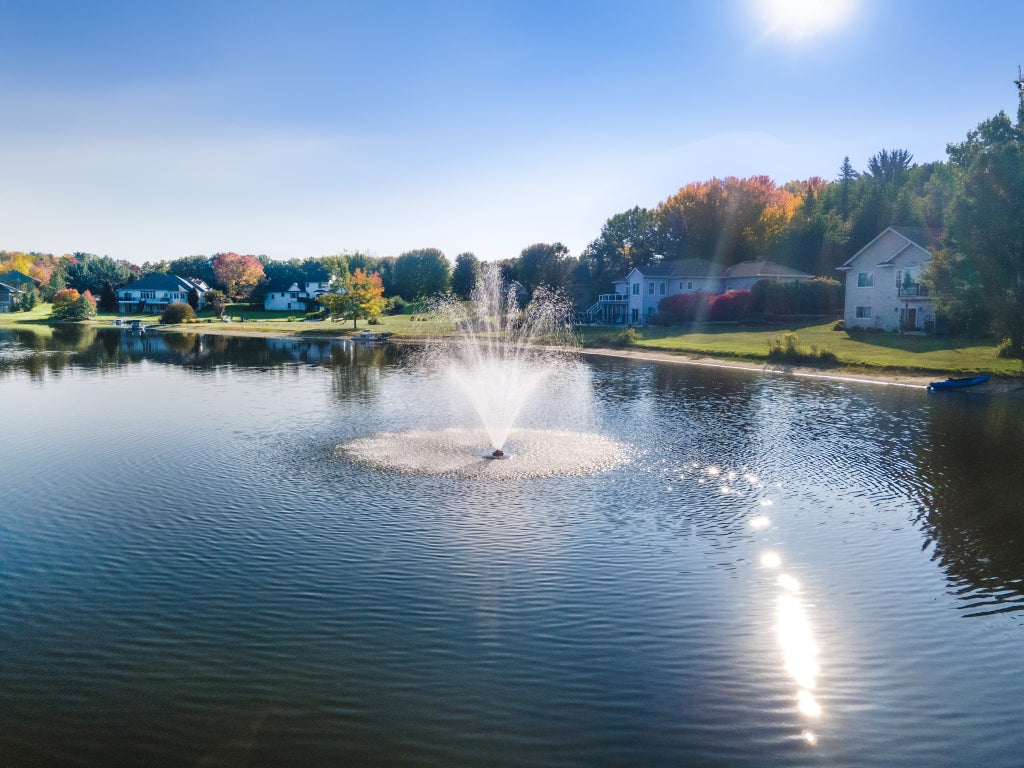

The Cambridge Fountain creates a classic multi-tiered spray pattern designed for medium-sized residential ponds. The 1 HP system produces a display reaching up to 30 feet high and 40 feet wide while circulating and oxygenating the water.

The oil-free stainless steel submersible motor is designed for continuous operation with no routine oil changes or control box required. The fountain is approved for salt water, can be equipped with optional fountain lighting, and is designed to remain in place during winter with the power turned off during freezing conditions.

Configuration Guide

1 HP 115V

The 1 HP 115V configuration uses an oil-free motor with an available 100-foot power cord. The 115V motor requires the distance from the main breaker to the fountain to be no more than 100 feet for proper operation.

The standard 115V cord is 100 feet, 10-gauge, submersible, and supplied with a plug.

1 HP 230V

The 1 HP 230V configuration is available with longer power cord options, including 100, 150, 200, and 250 feet.

The standard 230V cord is 100 feet, 12-gauge, and submersible. Longer cord lengths can be ordered when needed for the installation.

Optional Fountain Lighting

The Cambridge Fountain can be ordered with optional two-light or four-light LED systems. Available options include color-changing LED lights and Night Glo LED lights. Lighting can also be added after the initial fountain purchase.

Specifications & Details

Specification	Detail
Motor	1 HP Oil-Free Stainless Steel Submersible Motor
Voltage	115V or 230V
Frequency	60 Hz
Phase	Single Phase
Motor Speed	3,450 RPM
Motor Power	0.75 kW
Current Draw	11.5 Amps at 115V; 8.2 Amps at 230V
Flow Rate	75 GPM
Spray Pattern	Cambridge Multi-Tiered Classic Pattern
Spray Dimensions	Up to 30 Feet High × 40 Feet Wide
Minimum Pond Depth	44 Inches
Power Cord	115V: 100 Feet, 10-Gauge; 230V: 100 Feet, 12-Gauge
Longer Cord Options	Available in Greater Lengths; 230V Options Include 150, 200, and 250 Feet
Water Compatibility	Fresh Water and Salt Water
Operation	24 Hours Per Day
Nozzle	Cambridge Brass Nozzle Included
Anchoring	Two 35-Pound Weights or Concrete Blocks and Two Nylon Ropes Required; Not Included
Warranty	5-Year Motor Warranty

Installation & Assembly

Anchoring

The Cambridge Fountain requires two 35-pound weights or concrete blocks and two nylon anchoring ropes. The anchoring materials are not included with the fountain. Proper anchoring keeps the fountain positioned correctly during operation.

Electrical Installation

A GFCI Ground Fault Circuit Interrupter is required. The power supply must be selected according to the installation distance and motor voltage. Always disconnect power whenever swimmers are present.

Installation Requirements

The fountain requires a minimum pond depth of 44 inches. The Cambridge brass nozzle is included, and the fountain is designed for straightforward installation. The manufacturer's assembly instructions should be followed for complete installation and anchoring details.

Maintenance & Winter Operation

Routine Maintenance

The Cambridge Fountain is designed for low-maintenance operation. Its oil-free submersible motor does not require oil changes, and the manufacturer states that no routine maintenance is required.

Winter Operation

The fountain can remain in the pond during winter. Turn off the power when freezing conditions occur and leave the fountain in place. Once the ice thaws in spring, restore power and the fountain can return to operation.

Environmental Conditions

The Cambridge Fountain is built for outdoor pond environments and is designed to withstand subzero conditions when operated according to the manufacturer's winter instructions. It is also designed for use in both fresh water and salt water.

Warranty

5-Year Motor Warranty

The Cambridge Fountain includes a 5-year motor warranty. The manufacturer's warranty applies according to its published warranty terms and conditions.

Frequently Asked Questions

Question	Answer
What spray pattern does the Cambridge Fountain produce?	The Cambridge produces a classic multi-tiered spray pattern reaching up to 30 feet high and 40 feet wide with the 1 HP configuration.
What motor size is available for this model?	The medium residential Cambridge Fountain uses a 1 HP oil-free stainless steel submersible motor.
Is the Cambridge Fountain available in 115V and 230V?	Yes. The 1 HP Cambridge Fountain is available in both 115V and 230V configurations.
What pond depth is required?	The Cambridge Fountain requires a minimum pond depth of 44 inches.
Can the Cambridge Fountain be used in salt water?	Yes. The fountain is designed and approved for use in both fresh water and salt water.
Can it run continuously?	Yes. The Cambridge Fountain is designed for 24-hour-per-day operation.
Does the fountain require winterizing?	The manufacturer recommends leaving the fountain in place during winter, turning off the power during freezing conditions, and restoring power after the ice thaws.
Is a GFCI required?	Yes. A GFCI Ground Fault Circuit Interrupter is required for the fountain installation.
What is included for anchoring?	Two 35-pound weights or concrete blocks and two nylon anchoring ropes are required, but these anchoring materials are not included.
Can lighting be added?	Yes. Optional two-light and four-light LED systems are available, including color-changing and Night Glo LED options.
What warranty is included?	The Cambridge Fountain includes a 5-year motor warranty.

Downloads

Pond Fountain Motor Specs

View Pond Fountain Motor Specs PDF

Pond Fountain Specs & Assembly

View Pond Fountain Specs & Assembly PDF
