Scott Aerator Baystone Fountain For Medium, Residential Ponds

$2,879.00 $3,029.00

Options

Quick Facts

Feature	Detail
Motor	1 HP Oil-Free Stainless Steel Submersible Motor
Voltage	115V or 230V
Flow Rate	75 Gallons Per Minute
Spray Pattern	Center Peak with Traditional Outer Spray
Spray Dimensions	Up to 14 Feet High × 30 Feet Wide
Minimum Pond Depth	44 Inches
Operation	Designed for 24-Hour-Per-Day Operation
Water Compatibility	Fresh Water and Salt Water
Motor Warranty	5 Years

A Note Before You Order

Select the correct motor voltage and power configuration before purchasing. A GFCI is required for installation, and the manufacturer recommends using a licensed electrical contractor. For a 115V motor, the distance from the main breaker to the fountain should not exceed 100 feet. Do not use an extension cord to supply power to the motor. Always disconnect power when swimmers are present.

Scott Aerator Baystone Fountain For Medium, Residential Ponds

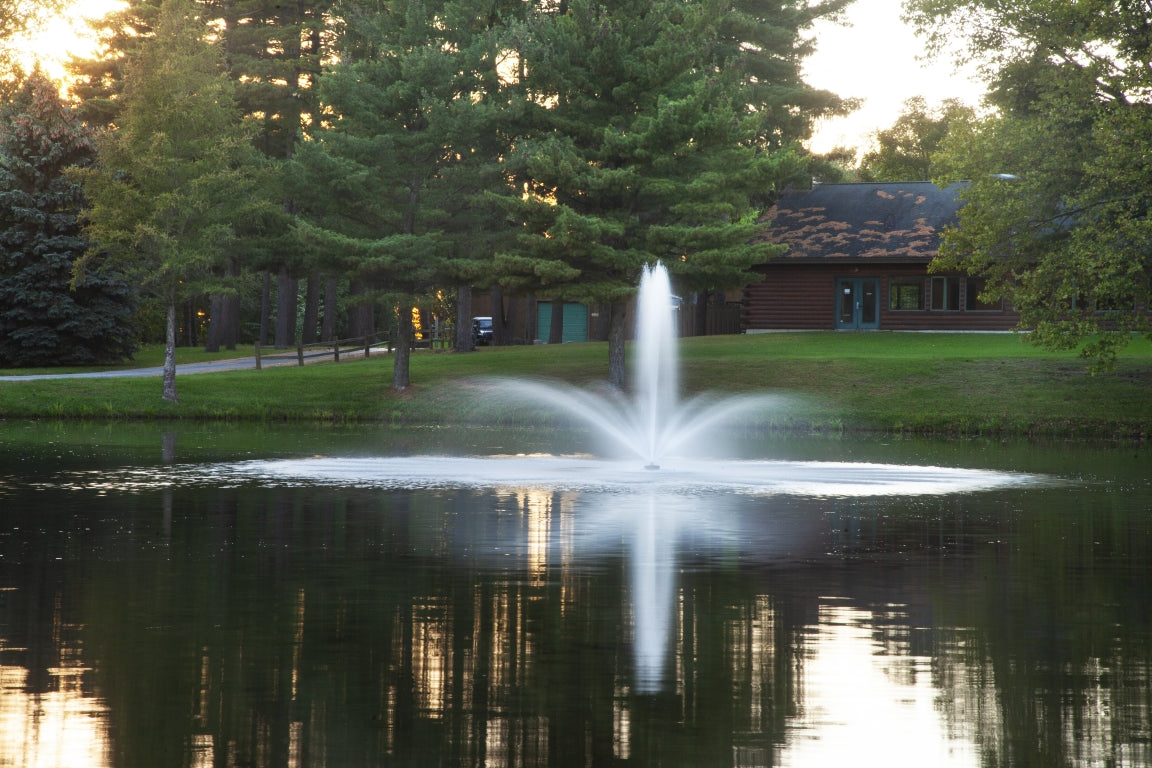

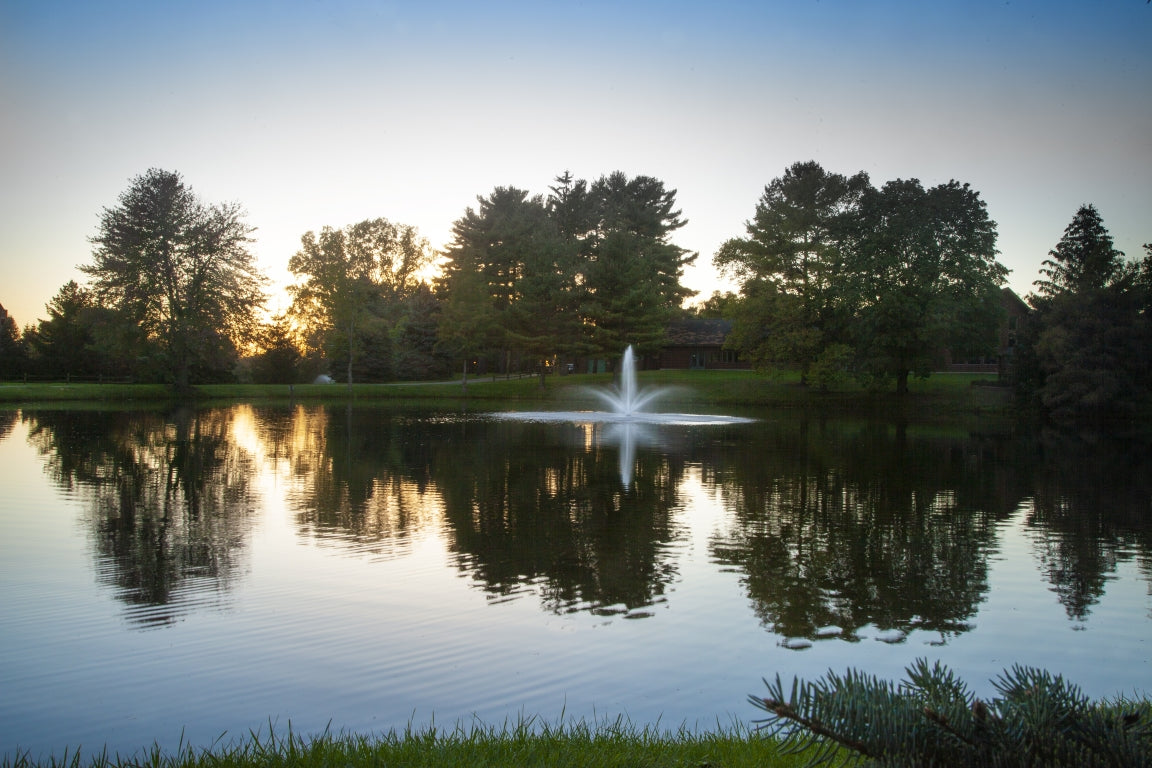

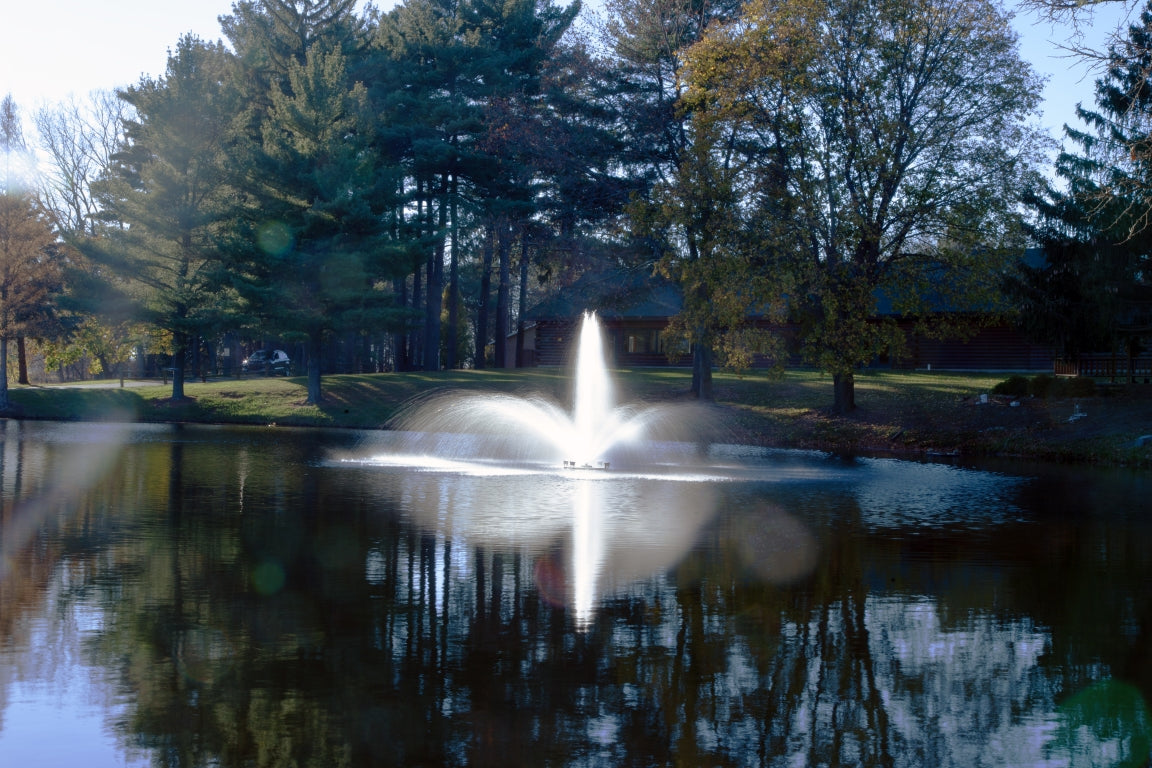

The Baystone Fountain is designed for medium-sized residential ponds and combines a center peak with a traditional outer spray pattern. The 1 HP fountain produces a water display up to 14 feet high and 30 feet wide while circulating 75 gallons of water per minute.

The Baystone uses an oil-free stainless steel submersible motor and is available in 115V or 230V configurations. It is designed for continuous operation, requires a minimum pond depth of 44 inches, and can be used in both fresh and salt water. Optional light kits can also be added to the fountain at purchase or later.

Configuration Guide

Baystone 1 HP, 115V

The 115V configuration uses a 1 HP oil-free submersible motor with an 11.5-amp current draw and a 75 GPM flow rate.

A 100-foot, 10-gauge submersible power cord with plug is supplied. The distance from the main breaker to the fountain should not exceed 100 feet for proper operation.

Baystone 1 HP, 230V

The 230V configuration uses a 1 HP oil-free submersible motor with an 8.2-amp current draw and a 75 GPM flow rate.

A 100-foot, 12-gauge submersible power cord is supplied. Longer power cord lengths can be ordered when required for the installation.

Light Kit Options

Optional fountain light kits can be added when ordering the Baystone or installed later. The standard fountain configuration does not include a light set.

Specifications & Details

Specification	Detail
Motor	1 HP Oil-Free Stainless Steel Submersible Motor
Voltage	115V or 230V
Power	0.75 kW
Frequency	60 Hz
Phase	Single Phase
Motor Speed	3,450 RPM
Current Draw	11.5 Amps at 115V; 8.2 Amps at 230V
Flow Rate	75 GPM
Minimum Pond Depth	44 Inches
Power Cord	115V: 100 Feet, 10 Gauge; 230V: 100 Feet, 12 Gauge
Spray Height	Up to 14 Feet
Spray Width	Up to 30 Feet
Water Compatibility	Fresh Water or Salt Water
Operation	24 Hours Per Day
Anchoring	Two 35-Pound Weights or Concrete Blocks Required
Anchoring Lines	Two Nylon Ropes Required, Not Included
Warranty	5-Year Motor Warranty; 1-Year Warranty on Other Components

Installation & Assembly

Included Components

The assembly includes the float platform, pump assembly, stainless steel filter, stainless steel bolts, nuts, washers, and stainless steel screws required for assembly.

Assembly

The fountain is assembled by securing the float platform to the housing, installing the stainless steel filter, and attaching the anchoring lines to the stainless steel eye bolts. Once the fountain is placed in the water, the fountain head is screwed into position.

Anchoring

Two nylon anchoring lines attach to the fountain's stainless steel eye bolts. The lines can be secured to shore or connected to two concrete blocks or other suitable weighted anchors positioned at least 20 feet apart. Anchoring lines and weights are not included.

Electrical Installation

A GFCI is required for operation, and the manufacturer recommends using a licensed electrical contractor. The motor must be connected using the appropriate cable size and length for the selected voltage. Do not use an extension cord to supply power to the motor.

Maintenance & Winter Operation

Routine Maintenance

The Baystone requires very little routine maintenance under normal operating conditions. When the fountain is removed from the water, the manufacturer recommends washing it with high-pressure water and inspecting the complete unit to make sure nothing is restricting water flow.

Anchoring Line Replacement

Quality nylon anchoring rope that is 3/8 inch or thicker should be replaced every five years. This provides an opportunity to inspect and clean the fountain at the same time.

Winter Operation

The manufacturer recommends leaving the Baystone in the water during winter rather than removing it. Turn off the power supply during freezing conditions and restore power once the water thaws. The fountain components are designed to withstand sub-zero conditions without damage.

Warranty

5-Year Motor Warranty

The Baystone motor is covered by a 5-year warranty against defects in materials or workmanship under normal operating conditions.

Other product components are covered by a 1-year warranty from the date of purchase, subject to the manufacturer's warranty terms.

Frequently Asked Questions

Question	Answer
What is the Baystone Fountain designed to do?	It is a floating pond fountain designed to create a center peak with a traditional outer spray pattern while circulating water throughout the pond.
What motor size does the Baystone use?	The medium residential Baystone uses a 1 HP oil-free stainless steel submersible motor.
Is the Baystone available in 115V and 230V?	Yes. The 1 HP Baystone is available in both 115V and 230V configurations.
How large is the Baystone spray pattern?	The spray can reach up to 14 feet high and 30 feet wide.
What pond depth is required?	A minimum pond depth of 44 inches is required for the Baystone Fountain.
Can the Baystone be used in salt water?	Yes. The Baystone is designed for use in both fresh water and salt water.
Can the Baystone run continuously?	Yes. The fountain is designed for 24-hour-per-day operation.
Does the Baystone require winterizing?	No special winterizing procedure is required. The manufacturer recommends leaving the fountain in the water, turning off the power during freezing conditions, and restoring power after the water thaws.
Is a GFCI required?	Yes. A GFCI is required for the Baystone Fountain installation.
Can I use an extension cord?	No. The manufacturer specifically states that an extension cord should not be used to supply power to the motor.
How is the Baystone anchored?	Two nylon anchoring lines attach to the fountain's eye bolts and can be secured to shore or connected to two weighted anchors positioned at least 20 feet apart.
Are light kits available?	Yes. Optional fountain light kits can be added when purchasing the fountain or installed later.

Downloads

Pond Fountain Motor Specs

View Pond Fountain Motor Specs PDF

Pond Fountain Specs & Assembly

View Pond Fountain Specs & Assembly PDF
