Scott Aerator Atriarch Fountain For Large, Commercial Ponds

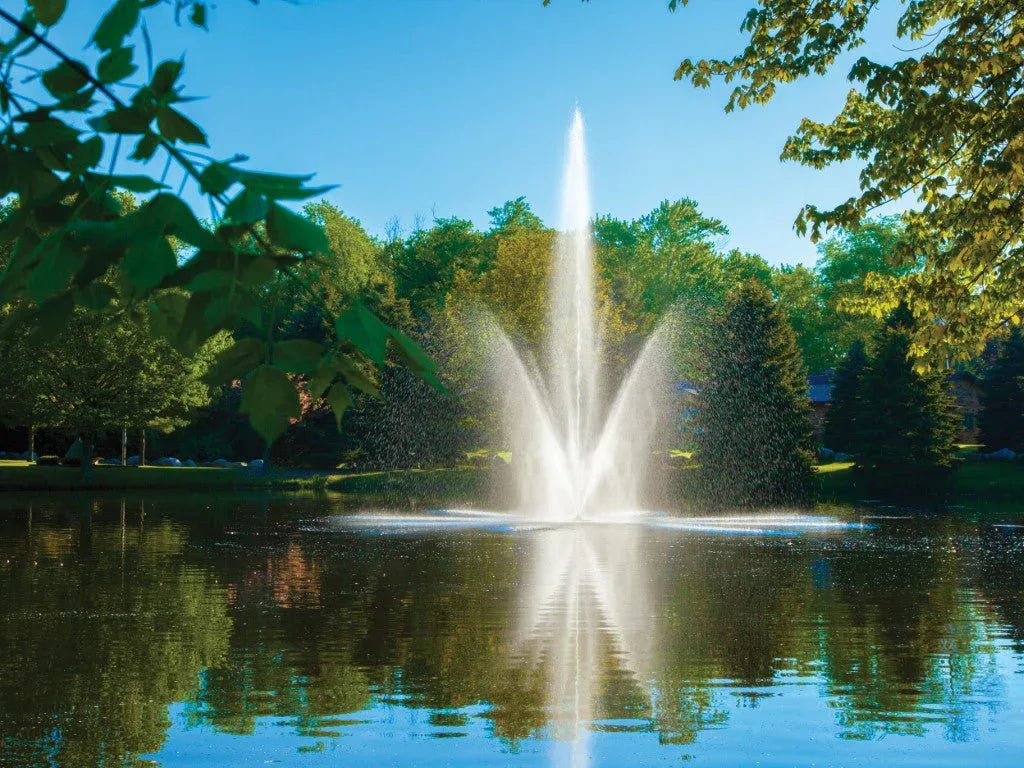

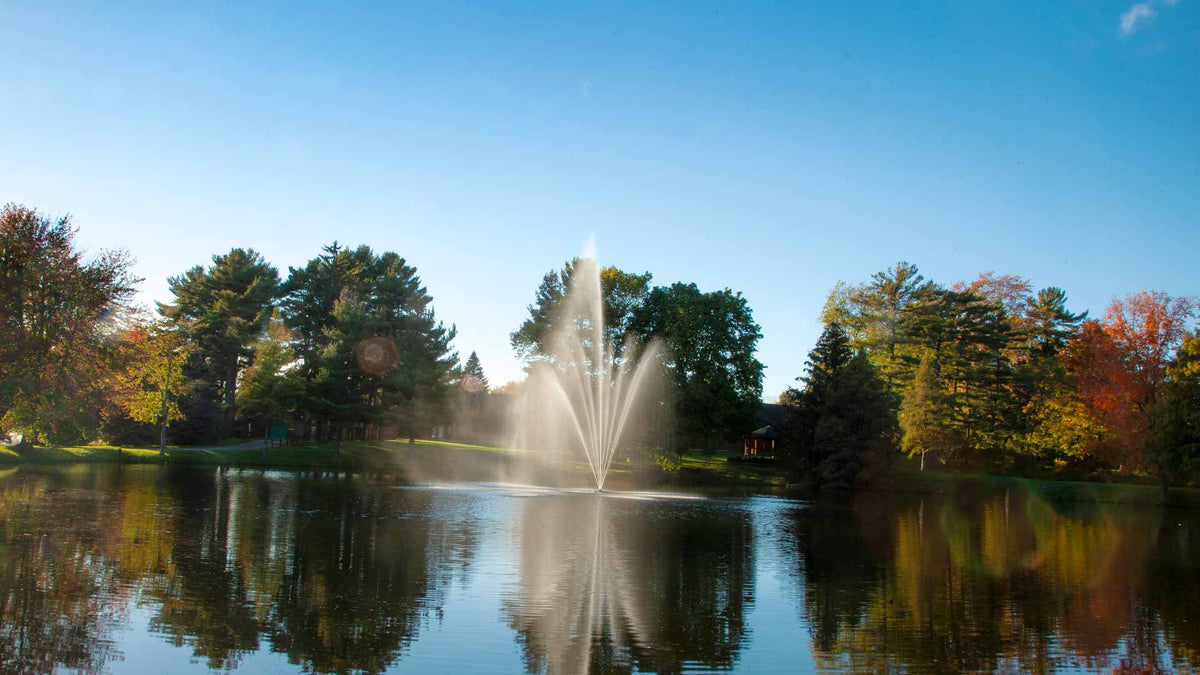

Fountain in a park with trees and clear blue sky

Scott Aerator Atriarch Fountain for Commercial Ponds and Applications

Scott Aerator Atriarch Fountain For Large, Commercial Ponds

$5,229.00 $5,499.00

Options

Quick Facts

Feature	Detail
Motor Options	2 HP or 3 HP
Voltage	230V standard
Flow Rate	155 GPM or 180 GPM
Spray Dimensions	50' x 60' or 60' x 70'
Design	Brass Center Jet with Eight Brass Side Jets
Power Cord	100 Feet, 10-Gauge, Submersible
Water Compatibility	Fresh Water and Salt Water
Motor Warranty	5 Years

A Note Before You Order

The Atriarch for large commercial ponds uses 230-volt power and is available with 2 HP or 3 HP motors. A GFCI is required, and power must always be disconnected whenever swimmers are present. Select the correct motor and cord configuration for your installation before ordering. Longer power cords can be ordered when needed.

Scott Aerator Atriarch Fountain for Large, Commercial Ponds

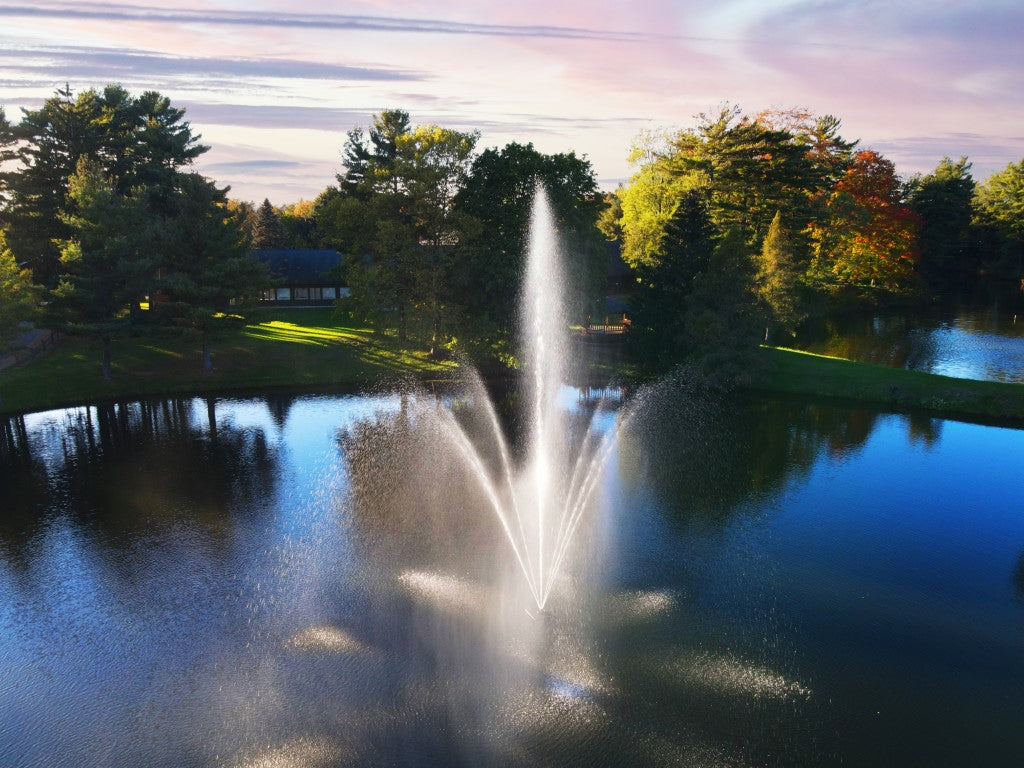

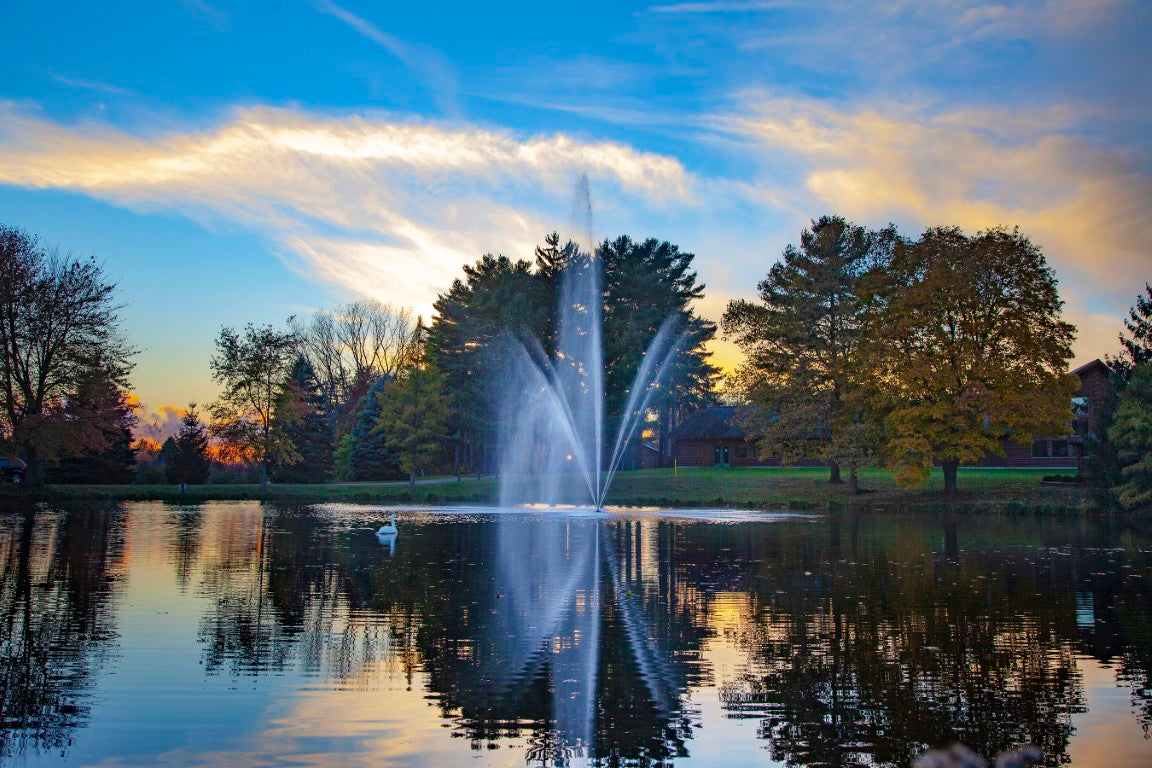

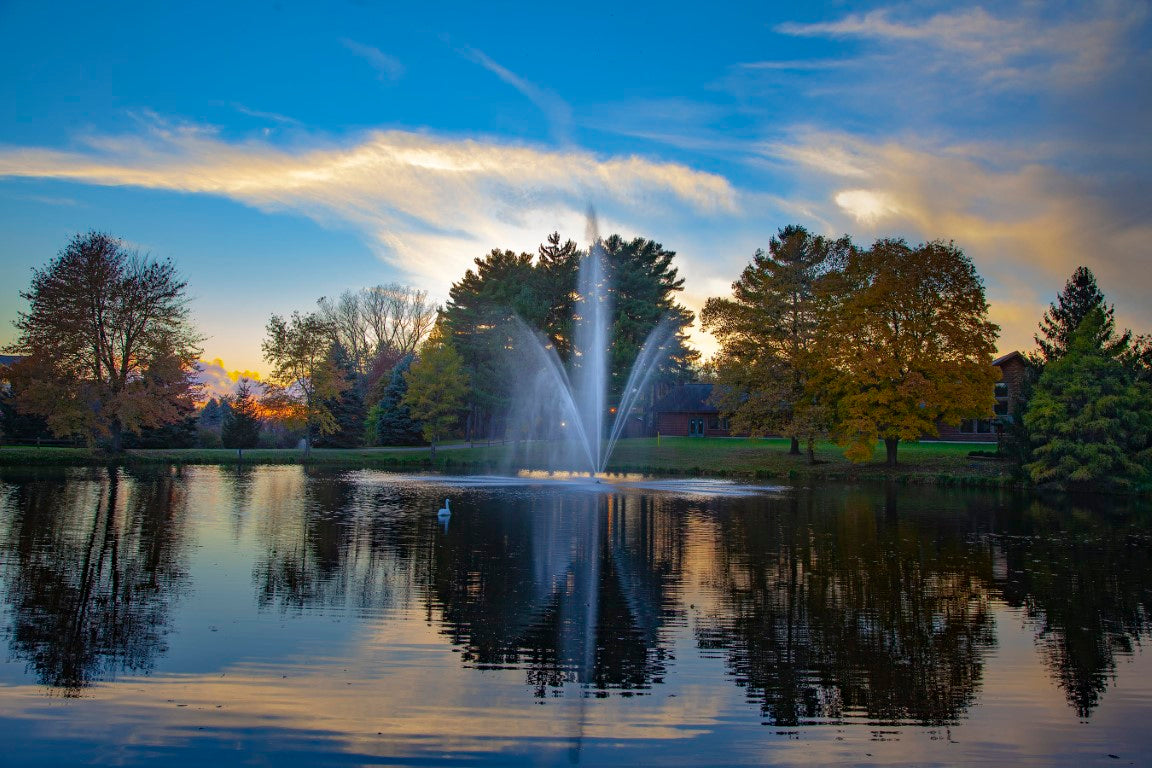

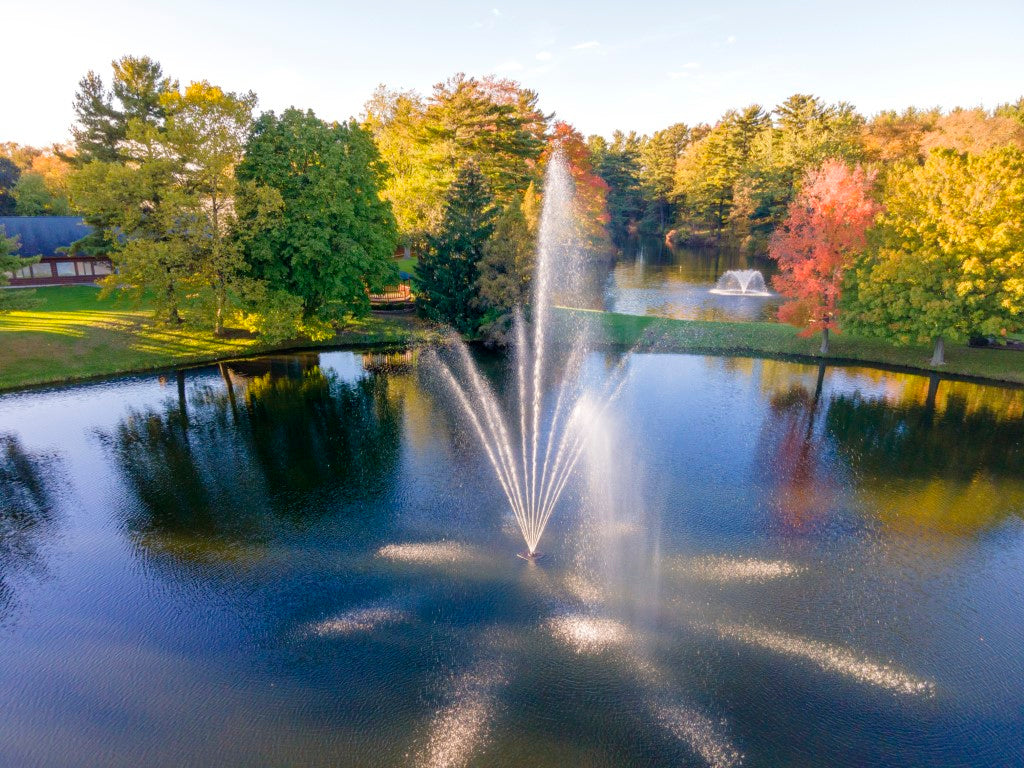

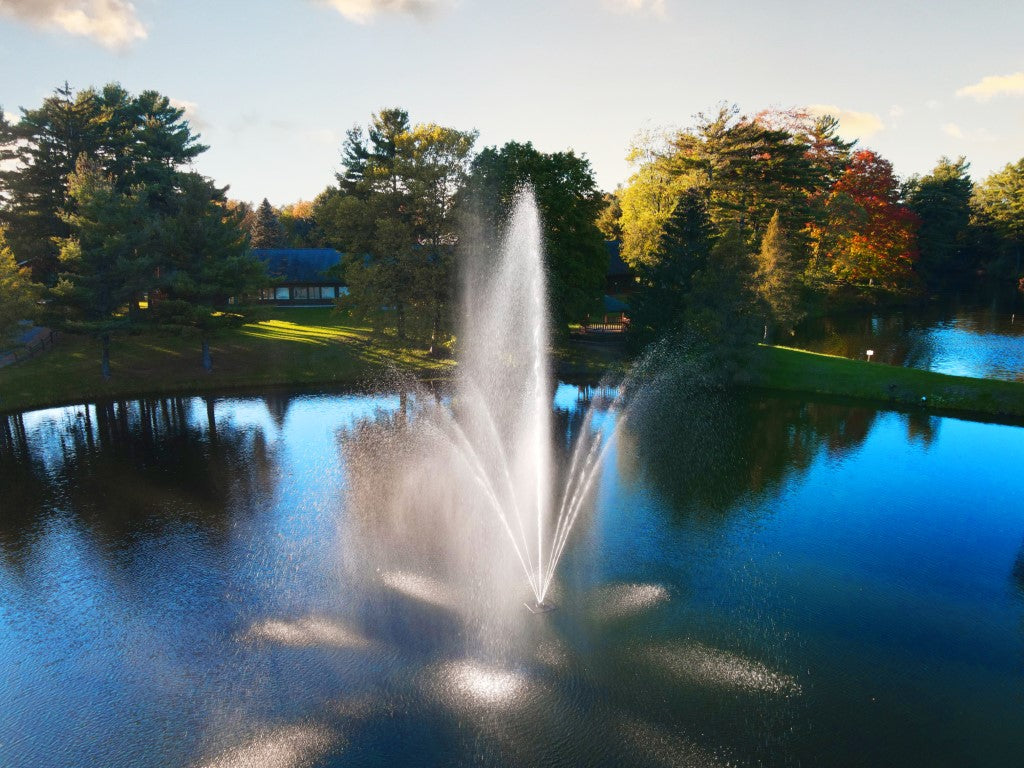

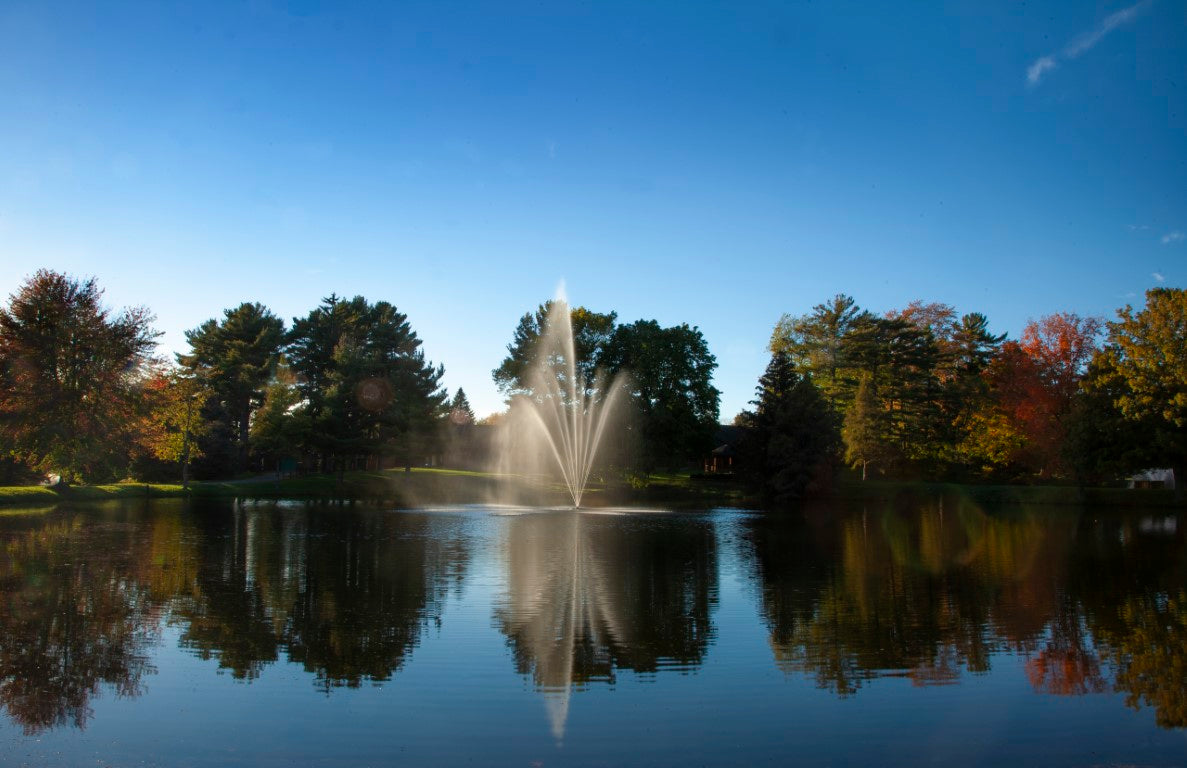

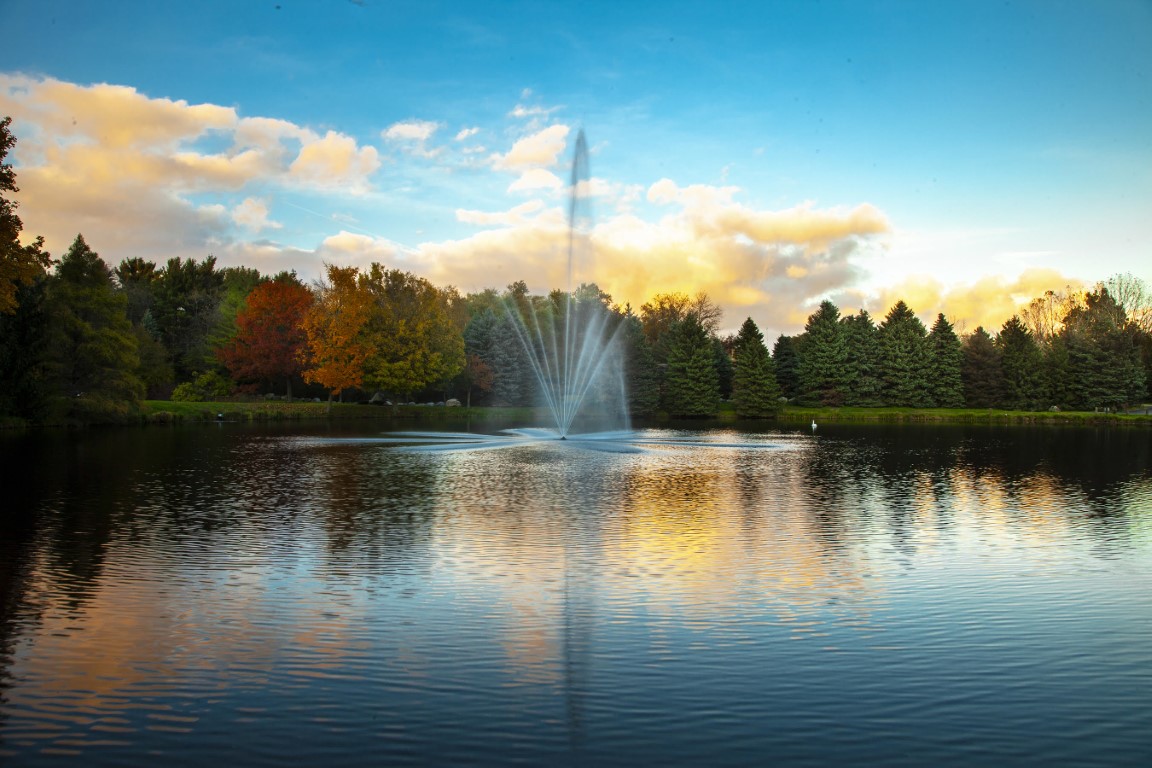

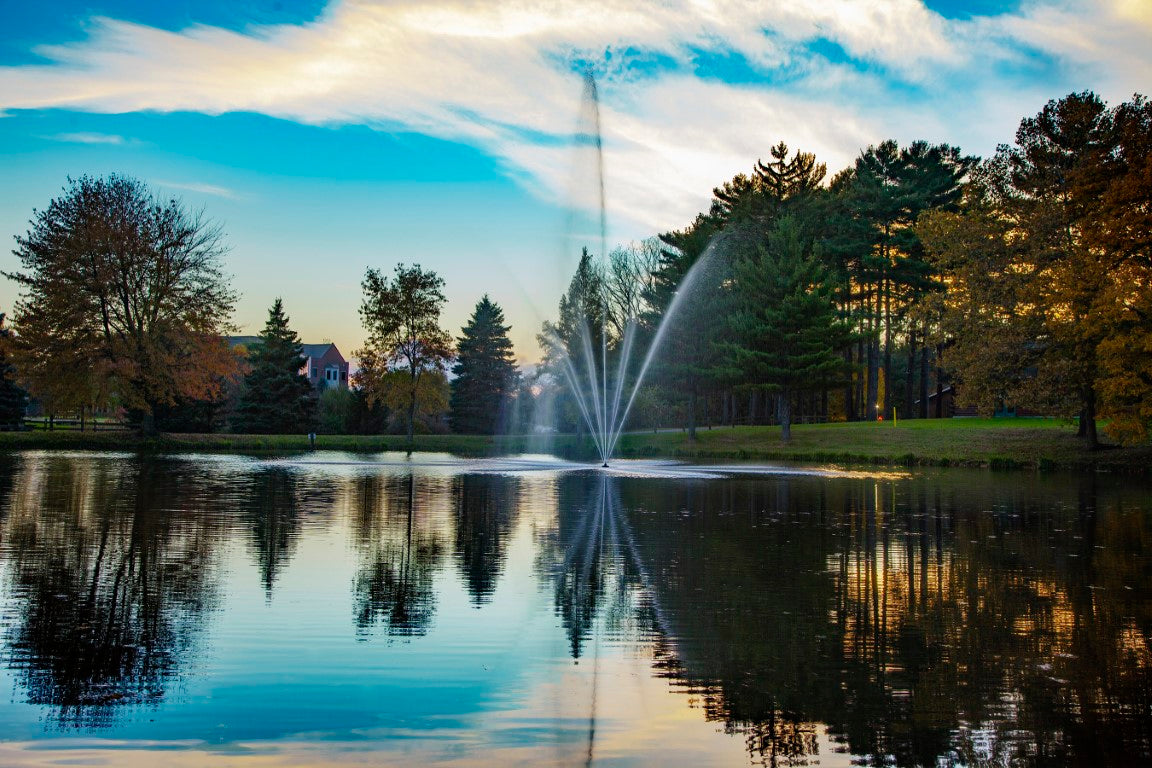

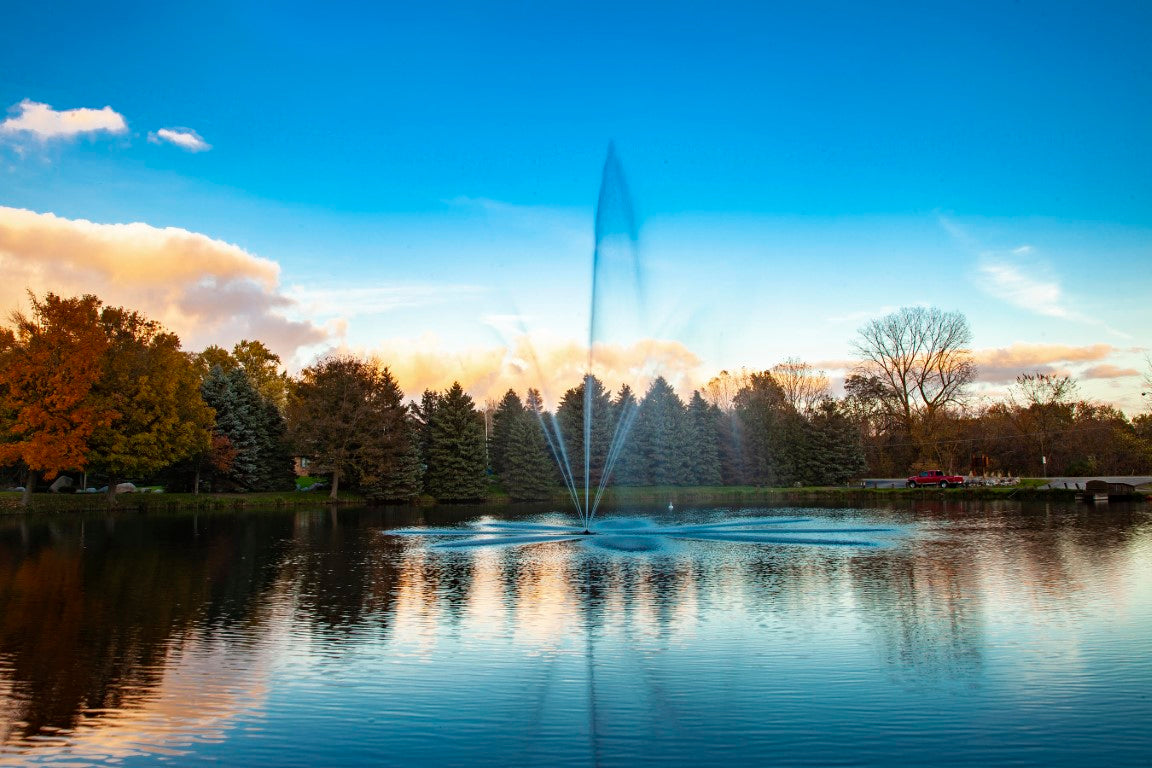

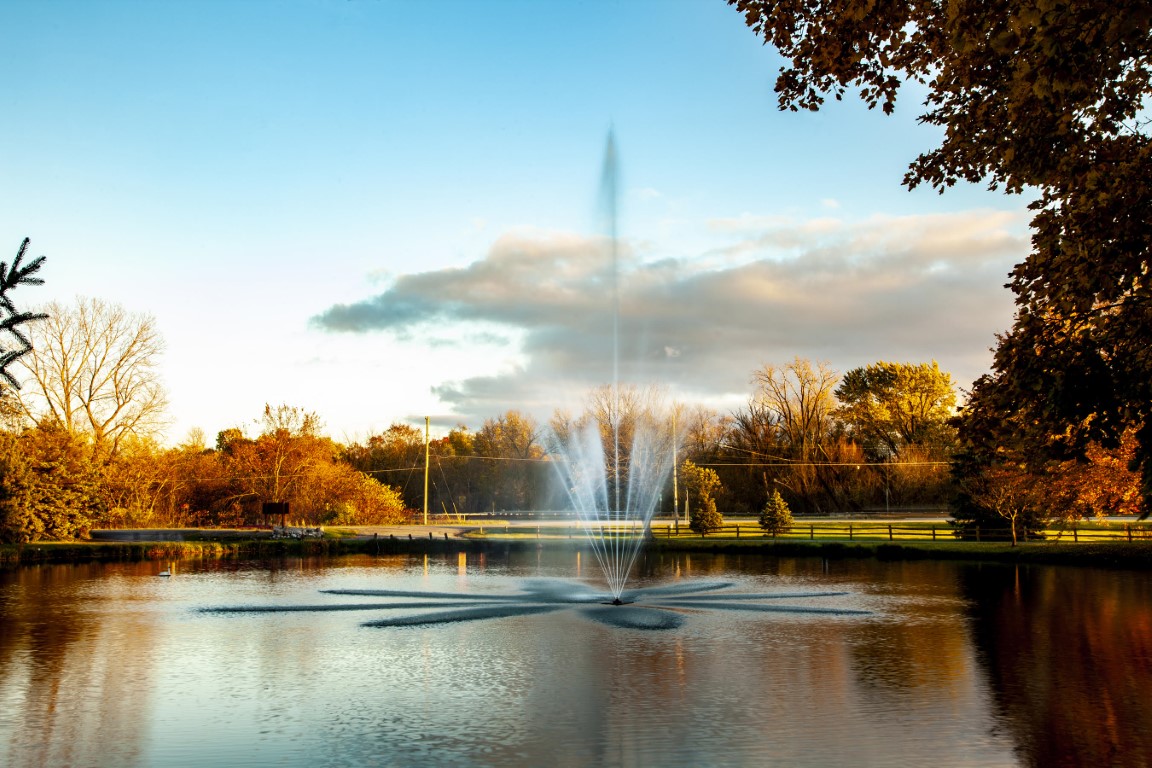

The Atriarch Fountain is designed for large commercial ponds and other substantial water features where a prominent fountain display is needed. Its brass center jet is surrounded by eight additional brass nozzles, creating a broad, balanced spray pattern that serves as a visible focal point while also circulating water throughout the pond.

The large commercial version is available with 2 HP and 3 HP oil-free, stainless steel submersible motors. The 2 HP model delivers 155 gallons per minute with a 50' x 60' spray pattern, while the 3 HP model delivers 180 gallons per minute with a 60' x 70' spray pattern.

Optional LED lighting can be added to create a nighttime display. The fountain is designed for continuous operation, requires no routine maintenance, and can remain in the water during winter when the power is turned off while the water is frozen.

Configuration Guide

Atriarch 2 HP

The 2 HP configuration uses a 230V oil-free motor operating at 60 Hz, single phase, and 3,450 RPM. It produces approximately 155 gallons per minute and draws 10 amps at 230V.

The 2 HP model requires a minimum pond depth of 56 inches and produces a spray pattern measuring approximately 50' x 60'.

Atriarch 3 HP

The 3 HP configuration uses a 230V oil-free motor operating at 60 Hz, single phase, and 3,450 RPM. It produces approximately 180 gallons per minute and draws 13.3 amps at 230V.

The 3 HP model requires a minimum pond depth of 60 inches and produces a spray pattern measuring approximately 60' x 70'.

Optional Lighting

LED light kits can be added to the Atriarch Fountain at the time of purchase or installed later. Lighting options are available for creating an illuminated fountain display after dark.

Specifications & Details

Specification	Detail
Motor Options	2 HP and 3 HP
Motor Type	Oil-Free Stainless Steel Submersible Motor
Voltage	230V
Frequency	60 Hz
Phase	Single Phase
Motor Speed	3,450 RPM
2 HP Flow Rate	155 GPM
3 HP Flow Rate	180 GPM
2 HP Spray Dimensions	50' x 60'
3 HP Spray Dimensions	60' x 70'
2 HP Minimum Depth	56 Inches
3 HP Minimum Depth	60 Inches
Power Cord	100 Feet, 10-Gauge, Submersible
2 HP Current Draw	10 Amps at 230V
3 HP Current Draw	13.3 Amps at 230V
Water Compatibility	Fresh Water or Salt Water
Operation	24 Hours Per Day
Motor Warranty	5 Years

Installation & Assembly

Installation

The Atriarch is designed for straightforward installation. The fountain floats on the pond surface and is secured using two anchoring lines connected to the unit's anchor points.

Anchoring

The 2 HP model requires two 45-pound weights or concrete blocks for anchoring. The 3 HP model requires two 55-pound weights or concrete blocks. Two nylon anchoring ropes are also required. Anchoring weights and ropes are not included.

Electrical Installation

A GFCI is required for operation. The Atriarch uses 230-volt power in the 2 HP and 3 HP configurations. Electrical installation should follow applicable electrical codes and manufacturer instructions.

Safety

Always disconnect power whenever swimmers are present. The Atriarch is ARL-tested and designed to comply with applicable UL standards and the National Electric Code when installed as a complete package.

Maintenance & Winter Operation

Routine Maintenance

The Atriarch uses an oil-free stainless steel submersible motor and is designed to operate without routine maintenance. There is no oil to change and no control box is required for normal operation.

Winter Operation

The manufacturer recommends leaving the Atriarch in the water during winter. Turn off the power while the water is frozen and restore power after the ice has melted and temperatures have risen. The unit is designed to remain in place during freezing conditions.

Salt Water Use

The Atriarch is approved for use in salt water as well as fresh water, making it suitable for a range of pond and water feature environments.

Warranty

5-Year Motor Warranty

The Atriarch Fountain includes an unconditional 5-year motor warranty from Scott Aerator.

Warranty coverage is subject to the manufacturer's warranty terms and conditions.

Frequently Asked Questions

Question	Answer
What is the Atriarch Fountain designed for?	The large commercial Atriarch is designed for large ponds and commercial water features where a broad fountain display and continuous water circulation are desired.
What motor sizes are available?	The large commercial Atriarch is available with 2 HP and 3 HP, both using 230V power.
How much water does the 2 HP model move?	The 2 HP Atriarch has a flow rate of approximately 155 gallons per minute and a spray pattern of approximately 50' x 60'.
How much water does the 3 HP model move?	The 3 HP Atriarch has a flow rate of approximately 180 gallons per minute and a spray pattern of approximately 60' x 70'.
What pond depth is required?	The 2 HP model requires a minimum pond depth of 56 inches. The 3 HP model requires a minimum pond depth of 60 inches.
Can the Atriarch be used in salt water?	Yes. The Atriarch is approved for use in both fresh water and salt water.
Can the Atriarch run continuously?	Yes. The Atriarch is designed for 24-hour-per-day operation.
Does the Atriarch require routine maintenance?	No routine maintenance is required. The fountain uses an oil-free stainless steel submersible motor, so there is no oil to change.
Can the fountain remain in the pond during winter?	Yes. The manufacturer recommends leaving the unit in the water during winter, turning the power off while the water is frozen, and restoring power after the ice melts.
Is a GFCI required?	Yes. A GFCI is required for the Atriarch Fountain installation.
What is required to anchor the fountain?	The 2 HP model requires two 45-pound weights or concrete blocks and two nylon ropes. The 3 HP model requires two 55-pound weights or concrete blocks and two nylon ropes. Anchoring materials are not included.
Can LED lights be added?	Yes. Compatible LED light kits can be added when ordering the fountain or installed later.
How long is the standard power cord?	The standard power cord is 100 feet long, 10-gauge, and submersible. Longer cord lengths can be ordered.

Downloads

Pond Fountain Motor Specs

View Pond Fountain Motor Specs PDF

Pond Fountain Specs & Assembly

View Pond Fountain Specs & Assembly PDF

Pond Fountain Comparison Brochure

View Pond Fountain Comparison Brochure PDF

Product Video

Watch the Atriarch Fountain video to see the fountain display and get a closer look at its design for large pond and commercial applications.
