Easy Pro Replacement Diffusers

$219.95

Options

Quick Facts

Feature	Detail
Diffuser Options	US Solar Mounts High-Efficiency O2, Easy-Pro Single, or Easy-Pro Double
Application	Subsurface Pond Aeration Systems
Easy-Pro Air Range	1.6 to 6 CFM
Easy-Pro Tubing	Accepts 3/8", 1/2", or 5/8" tubing
Easy-Pro Material	Powder-Coated Carbon Steel and EPDM Membrane
Easy-Pro Warranty	5 Years
US Solar Air Range	1 to 10 CFM
US Solar Tubing	Accepts 3/8" or 1/2" airline
US Solar Lift Rate	600 GPM at 6 ft. depth

Easy Pro Pond Products Replacement Diffusers

Replacement diffusers provide the underwater air distribution point for subsurface pond aeration systems. They sit near the bottom of the pond and release air through the diffuser membrane, creating fine bubbles that rise through the water column and help move oxygen throughout the pond.

This replacement diffuser selection includes the Easy-Pro Single Diffuser, Easy-Pro Double Diffuser, and US Solar Mounts High-Efficiency O2 Diffuser. The Easy-Pro Single Diffuser is used with Bubble Pro and Bubble Pro Mini systems, while the Double Diffuser is used with Bubble Pro Max and Bubble Pro Max XL systems. The US Solar diffuser provides a separate high-efficiency option for compatible compressed-air systems.

Diffuser Options

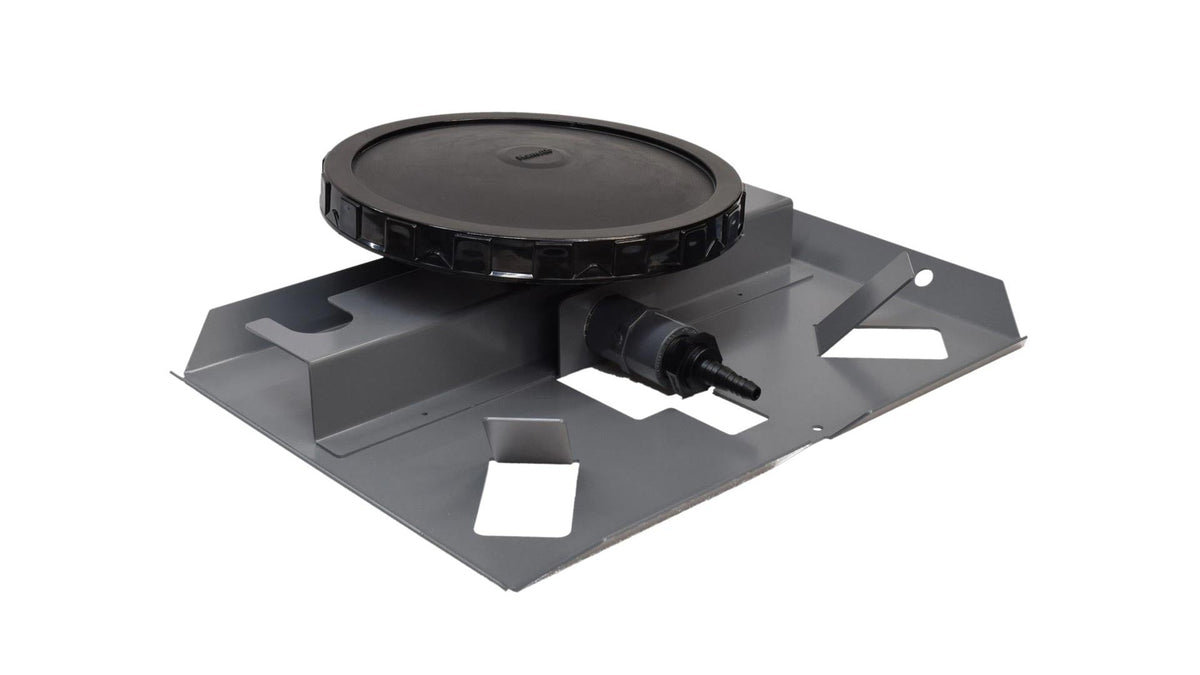

Easy-Pro Single Diffuser

The Easy-Pro Single Diffuser is supplied as the standard diffuser for Scott Aerator Bubble Pro and Bubble Pro Mini subsurface aeration systems. It uses a round EPDM rubber membrane and a powder-coated carbon steel body.

The diffuser operates with compressed air from 1.6 to 6 CFM and accepts 3/8", 1/2", or 5/8" tubing.

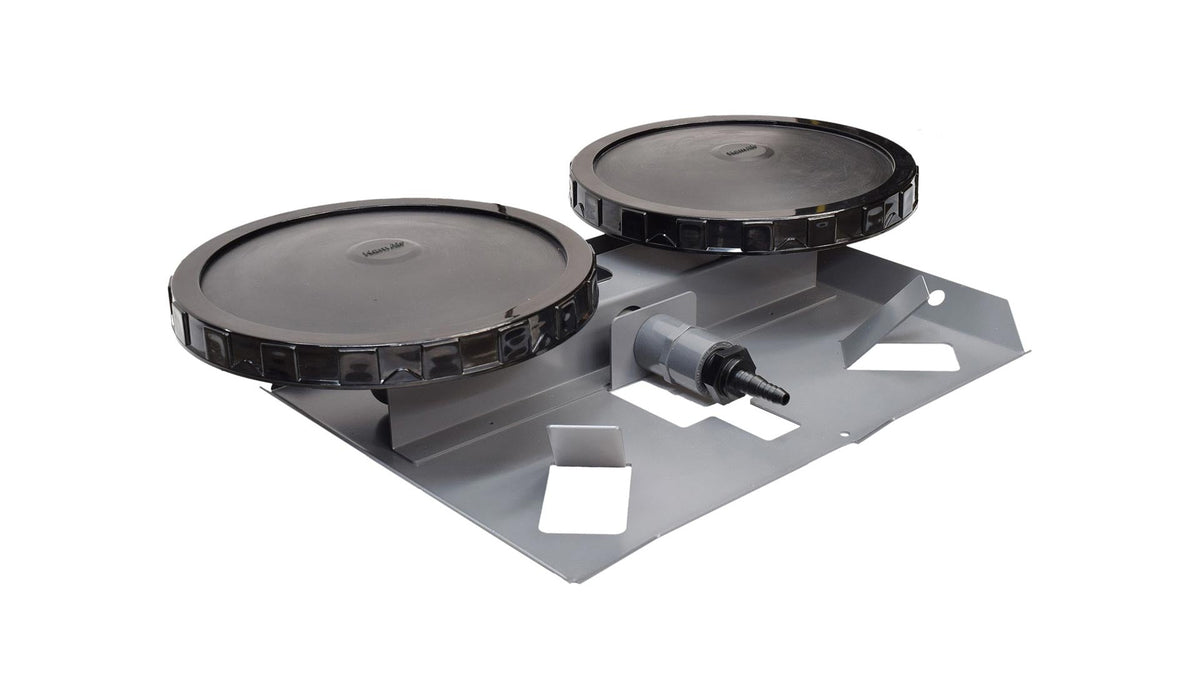

Easy-Pro Double Diffuser

The Easy-Pro Double Diffuser is supplied as the standard diffuser for Scott Aerator Bubble Pro Max and Bubble Pro Max XL subsurface aeration systems. It uses the same powder-coated carbon steel construction and EPDM rubber membrane design.

The diffuser operates with compressed air from 1.6 to 6 CFM and accepts 3/8", 1/2", or 5/8" tubing.

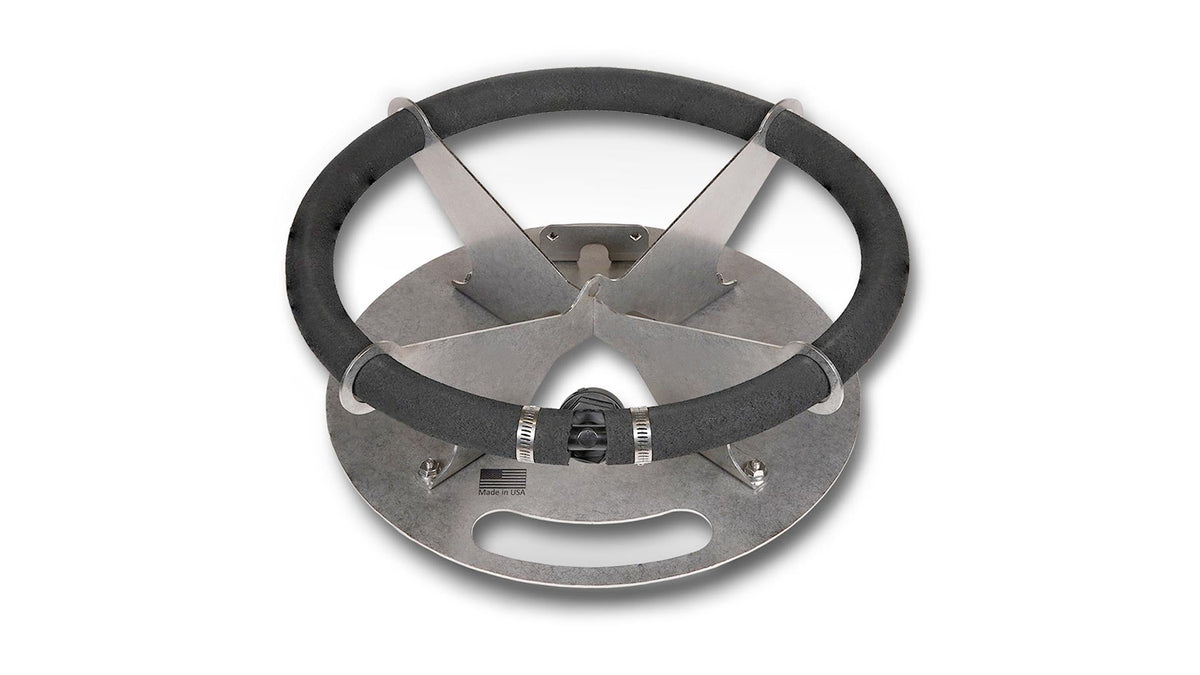

US Solar Mounts High-Efficiency O2 Diffuser

The US Solar Mounts High-Efficiency O2 Diffuser uses micro-porous tubing to distribute compressed air through the pond. Its stainless steel and EPDM construction is designed for both fresh and salt water applications.

It accepts 3/8" or 1/2" airline, operates with 1 to 10 CFM of compressed air, and provides a listed lift rate of 600 gallons per minute at 6 feet of water depth.

Specifications & Details

Specification	Detail
Easy-Pro Single Material	Powder-Coated Carbon Steel and Round EPDM Rubber Membrane
Easy-Pro Double Material	Powder-Coated Carbon Steel and Round EPDM Rubber Membrane
Easy-Pro Air Requirement	1.6 to 6 CFM
Easy-Pro Inlet Fittings	3/8", 1/2", or 5/8" Tubing
US Solar Material	Stainless Steel and EPDM Rubber
US Solar Air Requirement	1 to 10 CFM
US Solar Airline Compatibility	3/8" or 1/2" Airline
US Solar Lift Rate	600 GPM at 6 ft. Depth
US Solar Components	Check Valve and Hose Strain Relief Clamp Included
US Solar Tubing	Not Included

Installation & Application

Subsurface Aeration

Subsurface aeration places one or more diffuser modules near the bottom of the pond. Weighted airline connects the diffuser to an air compressor on shore, allowing compressed air to be released through the diffuser.

Air Distribution

As air passes through the diffuser, small bubbles rise toward the surface and create an upward current. This movement lifts water from deeper areas and helps distribute oxygen through the water column.

Compatibility

Select the replacement diffuser that matches your aeration system and airline requirements. The Easy-Pro Single and Double Diffusers are designed for their corresponding Scott Aerator subsurface systems.

Benefits

Oxygen Transfer

Diffusers release air below the surface, creating bubbles that increase contact between air and water as the bubbles rise through the pond.

Water Lift

The rising bubbles create an upward water current that helps move deeper water toward the surface.

Pond Circulation

Moving water through the pond helps distribute oxygen and can support natural decomposition of organic muck and sediment.

Warranty

Easy-Pro Warranty

The Easy-Pro Single and Double Diffusers include a five-year warranty according to the manufacturer.

The US Solar Mounts High-Efficiency O2 Diffuser includes a lifetime warranty.

Frequently Asked Questions

Question	Answer
What is a replacement diffuser used for?	A replacement diffuser releases compressed air near the bottom of a pond to create fine bubbles and help move oxygen through the water.
Which diffuser is used with Bubble Pro systems?	The Easy-Pro Single Diffuser is supplied with the Bubble Pro and Bubble Pro Mini systems.
Which diffuser is used with Bubble Pro Max systems?	The Easy-Pro Double Diffuser is supplied with the Bubble Pro Max and Bubble Pro Max XL systems.
What tubing sizes fit the Easy-Pro diffusers?	The Easy-Pro Single and Double Diffusers accept 3/8", 1/2", or 5/8" tubing.
What air volume do the Easy-Pro diffusers require?	The Easy-Pro Single and Double Diffusers are designed for compressed air from 1.6 to 6 CFM.
Can the US Solar diffuser be used in salt water?	Yes. The US Solar Mounts High-Efficiency O2 Diffuser is designed for use in both fresh and salt water.
What tubing fits the US Solar diffuser?	The US Solar diffuser accepts 3/8" or 1/2" airline.
Does the US Solar diffuser include tubing?	No. Tubing is not included with the US Solar diffuser.
What warranty does the Easy-Pro diffuser have?	The Easy-Pro Single and Double Diffusers include a five-year warranty.
