Scott Aerator Tripod Oscillator Adapter

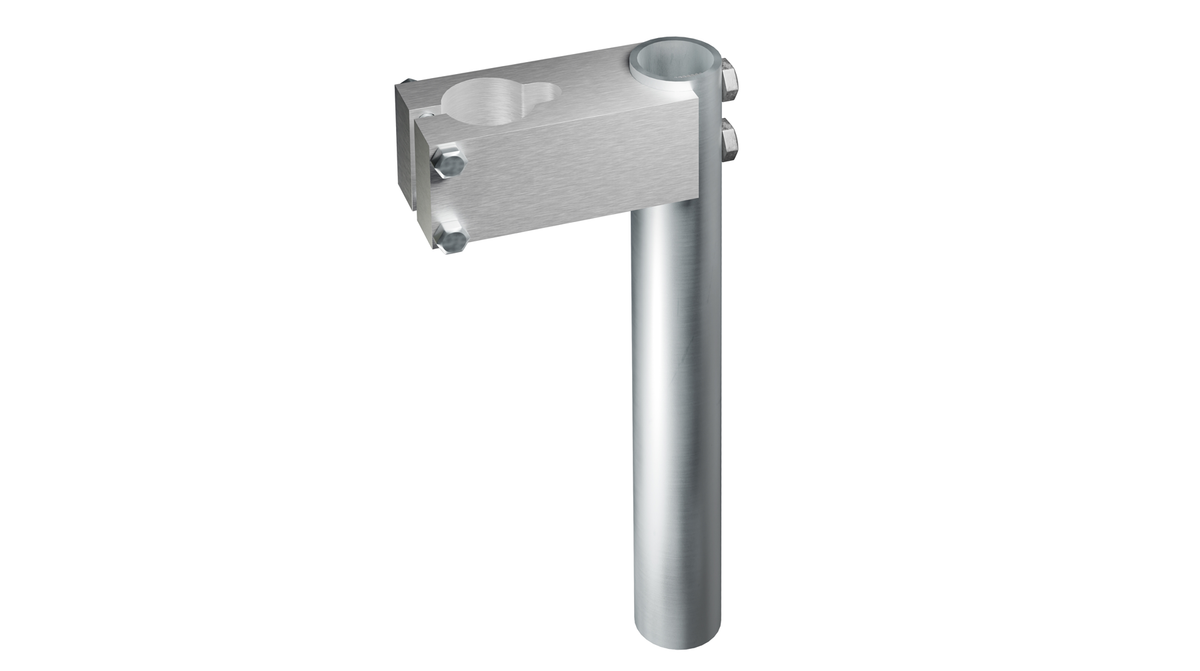

A silver-colored metal tripod oscillator adaptor with a vertical orientation.

$189.95

Quick Facts

Feature	Detail
Product Type	Tripod Oscillator Adapter
Adapter Length	8 Inches
Required For	Using an Oscillator with a Tripod Mount
Compatible Equipment	AquaSweep or De-Icer with an Oscillator and Tripod Mount
Function	Connects the Oscillator to the Tripod Mount
Movement	Allows Rotating Movement for Increased Range
UPC	810094929145
MPN	20026.4

A Note Before You Order

The Tripod Oscillator Adapter is required when an Oscillator is being used with a Tripod Mount. This adapter is not a standalone AquaSweep or De-Icer mount. Make sure your setup includes the compatible Tripod Mount and Oscillator before ordering.

Scott Aerator Tripod Oscillator Adapter

The Tripod Oscillator Adapter provides the connection needed to use a Scott Aerator Oscillator with a Tripod Mount. The 8-inch adapter connects the Oscillator to the Tripod Mount, allowing compatible AquaSweep or De-Icer equipment to rotate for greater operating range.

Designed as part of a freestanding mounting setup, the adapter works with the Tripod Mount when an Oscillator is added to the system. It provides the mounting connection required for this configuration while keeping the equipment positioned for directional movement.

Compatibility & Configuration

Tripod Mount Configuration

The Tripod Oscillator Adapter is required when an Oscillator is installed with a Tripod Mount. The adapter provides the connection between the Oscillator and the Tripod mounting system.

AquaSweep or De-Icer Setup

The adapter is used as part of a setup that combines a Tripod Mount, Oscillator, and compatible AquaSweep or De-Icer equipment. The resulting configuration allows the equipment to rotate for increased range.

Adapter Size

The Tripod Oscillator Adapter measures 8 inches and is designed specifically for connecting the Oscillator to the Tripod Mount.

Specifications & Details

Specification	Detail
Product	Tripod Oscillator Adapter
Length	8 Inches
Primary Function	Connects an Oscillator to a Tripod Mount
Required Configuration	Oscillator Used with Tripod Mount
Compatible Equipment	AquaSweep or De-Icer
UPC	810094929145
MPN	20026.4

Installation & Assembly

Oscillator Mounting Bracket

The assembly instructions show the oscillator mounting bracket being secured to the stationary pole of the Oscillator. The bracket is positioned with its post facing away from the Oscillator control and slightly below the midpoint of the pole.

Stabilizer Flange

The Stabilizer Flange is positioned over the Oscillator poles during assembly. The instructions specify placing the bushing marked in red facing downward on the oscillating pole before completing the adjustment.

Mounting Position

The completed mounting bracket post is inserted downward into the hole in the Tripod Mount's Center Hub and secured using the adjustment pin as shown in the assembly instructions.

Safety & Adjustment

Disconnect Power First

Always disconnect power before making adjustments to the equipment. The assembly instructions also state that power must be disconnected whenever swimmers are present.

Extension Cords

Extension cords must not be used with the equipment. Follow the manufacturer's electrical installation requirements when connecting the system to power.

GFCI Protection

The assembly instructions specify supplying power through a standard 110/230 volt receptacle protected by a GFCI.

Frequently Asked Questions

Question	Answer
What is the Tripod Oscillator Adapter used for?	It connects a Scott Aerator Oscillator to a Tripod Mount so compatible AquaSweep or De-Icer equipment can rotate as part of the freestanding mounting setup.
Is the adapter required for an Oscillator and Tripod Mount?	Yes. The Tripod Oscillator Adapter is required when using an Oscillator with a Tripod Mount.
How long is the adapter?	The adapter is 8 inches long.
What equipment can be used with this setup?	The Tripod Oscillator Adapter is used with compatible AquaSweep or De-Icer equipment together with an Oscillator and Tripod Mount.
Does the adapter allow the equipment to rotate?	Yes. The adapter allows the Oscillator to be connected to the Tripod Mount, providing the mounting configuration used for rotating operation.
Can I use an extension cord?	No. The assembly instructions specifically state that extension cords must not be used.
Is a GFCI required?	Yes. The assembly instructions specify a standard 110/230 volt receptacle protected by a GFCI.
When should power be disconnected?	Power should always be disconnected before making adjustments and whenever swimmers are present.

Downloads

Tripod Mount Assembly

View Tripod Mount Assembly PDF
