Scott Aerator Dock Mount De-Icer

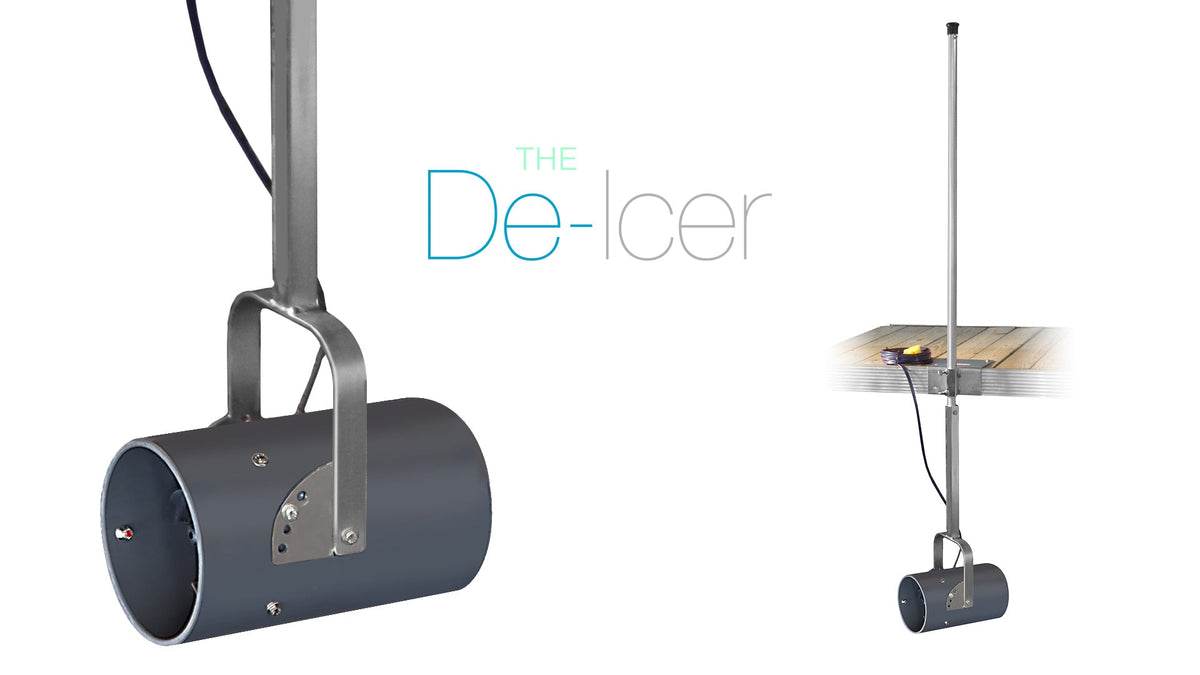

Metallic cylindrical de-icer with a handle on a white background, featuring the text 'The De-Icer'.

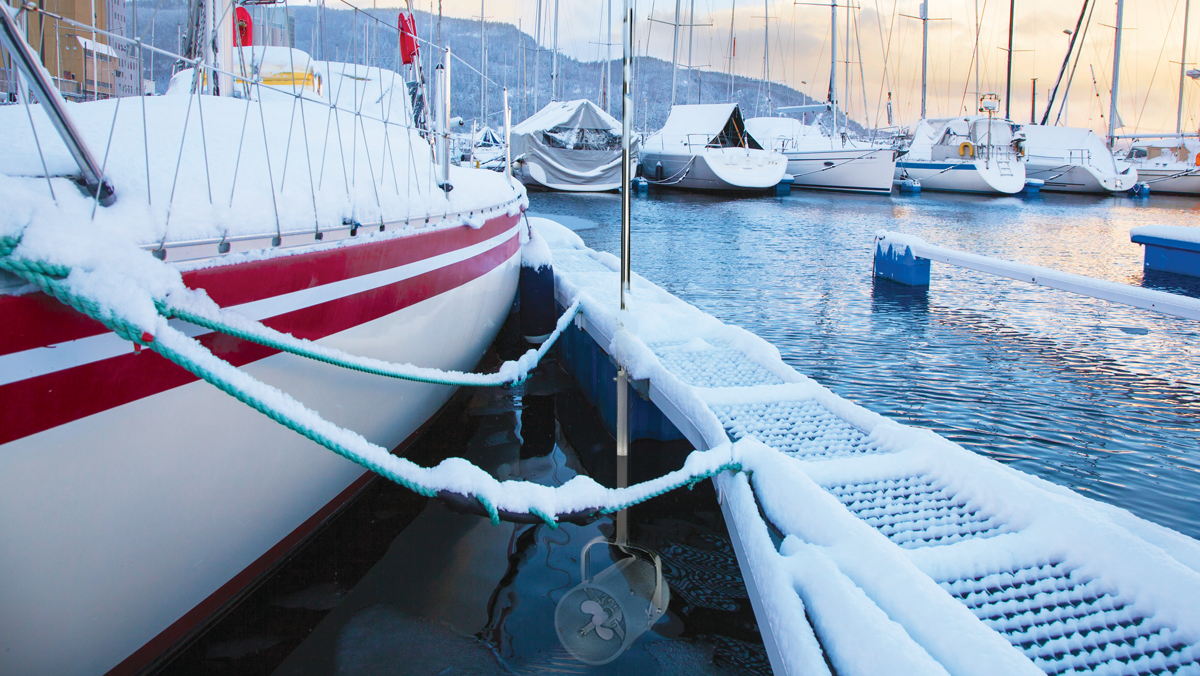

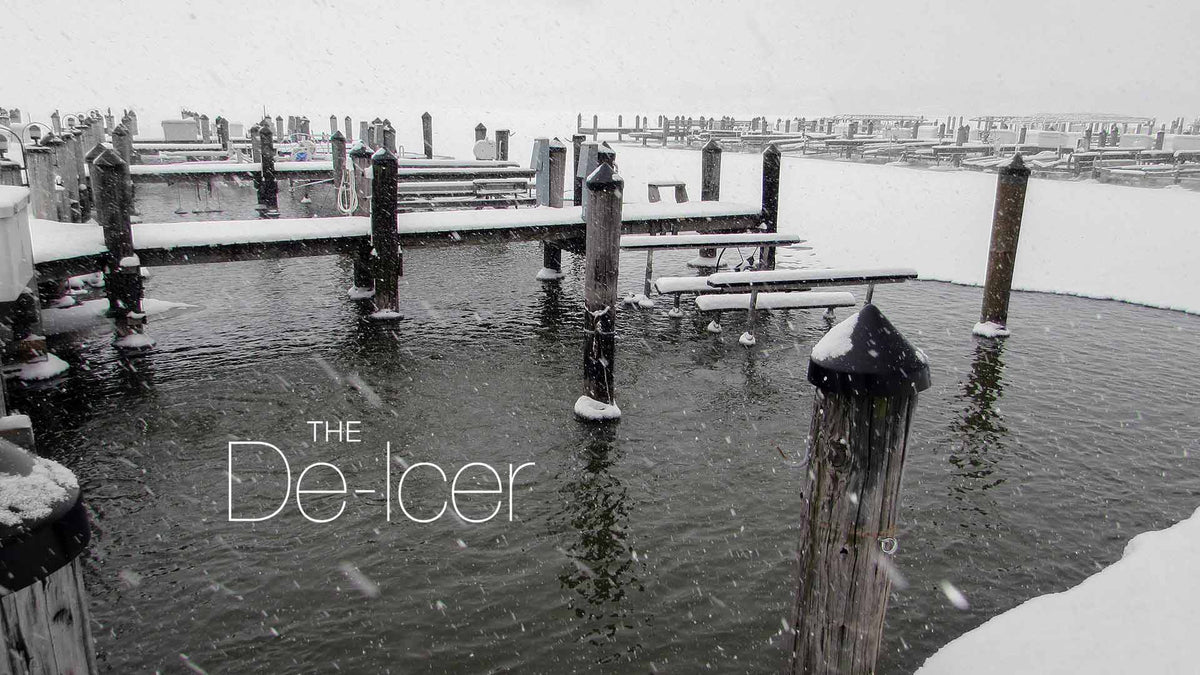

Snowy marina scene showing wooden docks and pilings partially covered in snow with an open water area around a de-icing device; snowflakes falling and calm water visible under overcast sky.

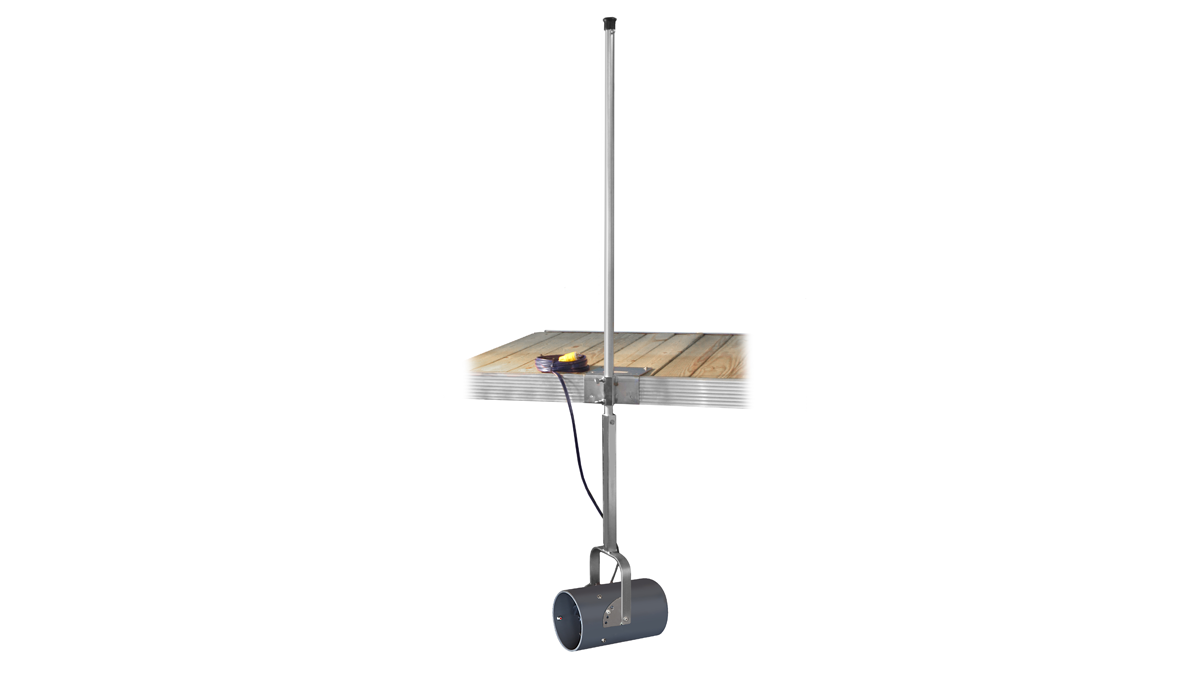

A dock-mounted de-icer device with a stainless steel yoke assembly reaching into the water, with options for different mounting types such as the Aquasweep shown.

Scott Aerator Dock Mount De-Icer

$1,379.00

Options

Quick Facts

Feature	Detail
Motor Options	1/3 HP, 1/2 HP, 3/4 HP, or 1 HP
Voltage	115V or 230V, depending on motor configuration
Flow Rate	300 to 500 Gallons Per Minute
Ice Protection	Moves warmer water upward to help prevent ice formation around waterfront structures
Construction	High-Density Polyurethane and Stainless Steel
Motor	Oil-Free, Fully Submersible, Maintenance-Free Motor
Speed	3,450 RPM
Water Compatibility	Fresh Water and Salt Water
Motor Warranty	5 Years

A Note Before You Order

Select the correct motor voltage and power configuration for your installation. A GFCI is required, and the manufacturer recommends that the unit be connected according to applicable electrical requirements. Do not use an extension cord to supply power to the motor. Always disconnect power whenever swimmers are present.

Scott Aerator Dock Mount De-Icer

The Scott Aerator Dock Mount De-Icer helps protect docks, boats, pilings, marinas, boathouses, and other waterfront structures from damaging winter ice. By circulating warmer water from below the surface upward, the de-icer helps keep water moving around protected areas and reduces the conditions that allow ice to build up around dock structures.

The Dock Mount De-Icer uses an oil-free, fully submersible motor with a 3,450 RPM operating speed. Motor options range from 1/3 HP through 1 HP, with flow rates from 300 to 500 gallons per minute. The standard dock plate provides a secure mounting point, while optional mounting systems are available for different dock and waterfront configurations.

Configuration Guide

Dock Mount De-Icer 1/3 HP

Available in 115V or 230V configurations with a 300 GPM flow rate and a 40-foot flow distance. The motor operates at 3,450 RPM.

The standard dock-mount configuration includes a 25-foot, 12-gauge submersible power cord.

Dock Mount De-Icer 1/2 HP

Available in 115V or 230V configurations with a 400 GPM flow rate and a 50-foot flow distance. The motor operates at 3,450 RPM.

The standard dock-mount configuration includes a 25-foot, 12-gauge submersible power cord.

Dock Mount De-Icer 3/4 HP

Available in 115V or 230V configurations with a 450 GPM flow rate and a 60-foot flow distance. The motor operates at 3,450 RPM.

The standard dock-mount configuration includes a 25-foot power cord, with 10-gauge cable supplied for 115V and 12-gauge cable supplied for 230V.

Dock Mount De-Icer 1 HP

Available in 115V or 230V configurations with a 500 GPM flow rate and a 75-foot flow distance. The motor operates at 3,450 RPM.

The standard dock-mount configuration includes a 25-foot power cord, with 10-gauge cable supplied for 115V and 12-gauge cable supplied for 230V.

Specifications & Details

Specification	Detail
Motor Options	1/3 HP, 1/2 HP, 3/4 HP, and 1 HP
Voltage	115V or 230V
Frequency	60 Hz
Phase	Single Phase
Motor Speed	3,450 RPM
Flow Rate	300, 400, 450, or 500 GPM
Flow Distance	40, 50, 60, or 75 feet depending on motor size
Oscillator Diameter	80 to 150 feet depending on motor size
Power Cord	25 feet standard for Dock Mount models; longer cords available
Cable	12-gauge or 10-gauge submersible cable depending on motor configuration
Construction	High-Density Polyurethane and Stainless Steel
Water Compatibility	Fresh Water and Salt Water
Maintenance	No Routine Motor Maintenance Required
Motor Warranty	5 Years

Installation & Assembly

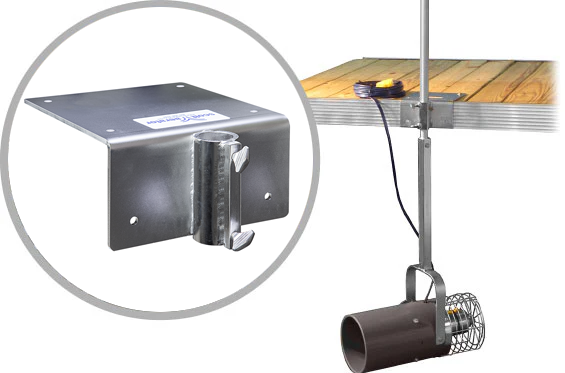

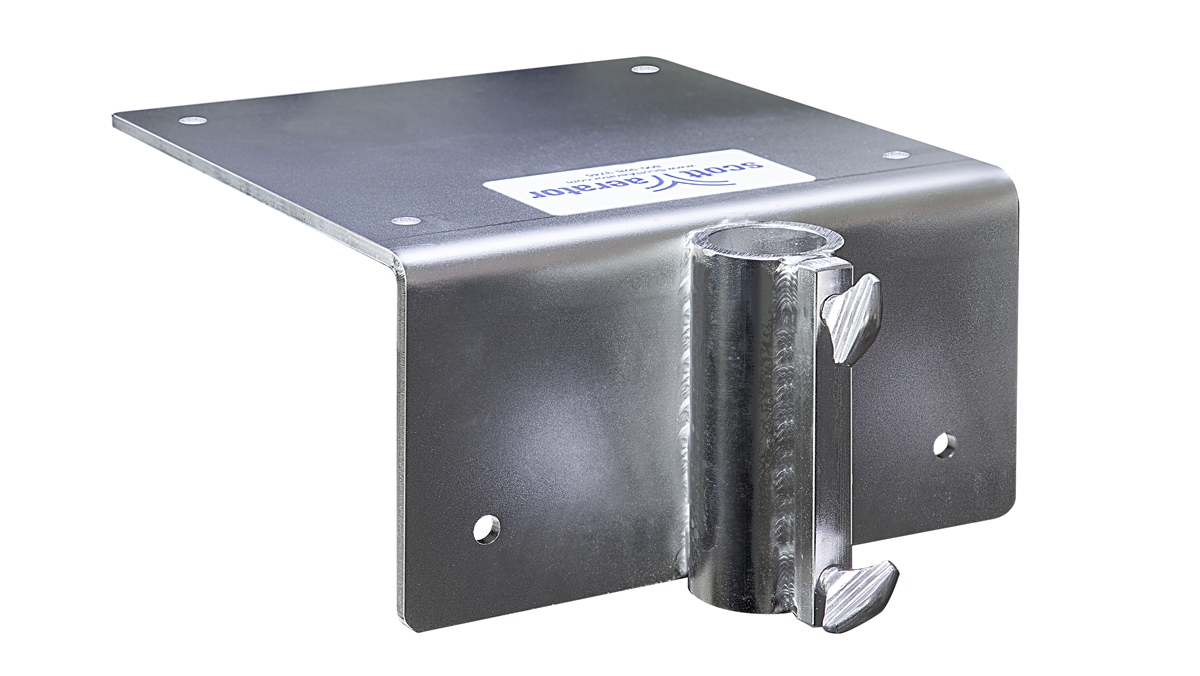

Standard Dock Plate

The standard stainless steel dock plate provides the mounting point for the Dock Mount De-Icer. It can be secured to a suitable wooden or metal dock after confirming that the dock framing is strong enough to accept the mounting hardware.

Positioning

For dock mounting, the installation guide recommends positioning the De-Icer 12 to 18 inches below the water surface for optimum performance. The housing angle and direction can be adjusted as needed, with approximately 45 degrees upward toward the surface recommended for water flow.

Depth Adjustment

The stainless steel pole allows the unit to be raised or lowered for changing water levels. Loosen the two dock plate thumb screws, adjust the De-Icer to the desired position, and retighten the screws securely.

Electrical Installation

Power should be supplied through a GFCI-protected receptacle. Extension cords should not be used to supply power to the motor. Always disconnect power when swimmers are present.

Included Components

The dock-mount assembly includes the De-Icer housing assembly, stainless steel pole, dock plate, lubricating compound, two stainless steel thumb screws, four stainless steel washers, and four stainless steel screws.

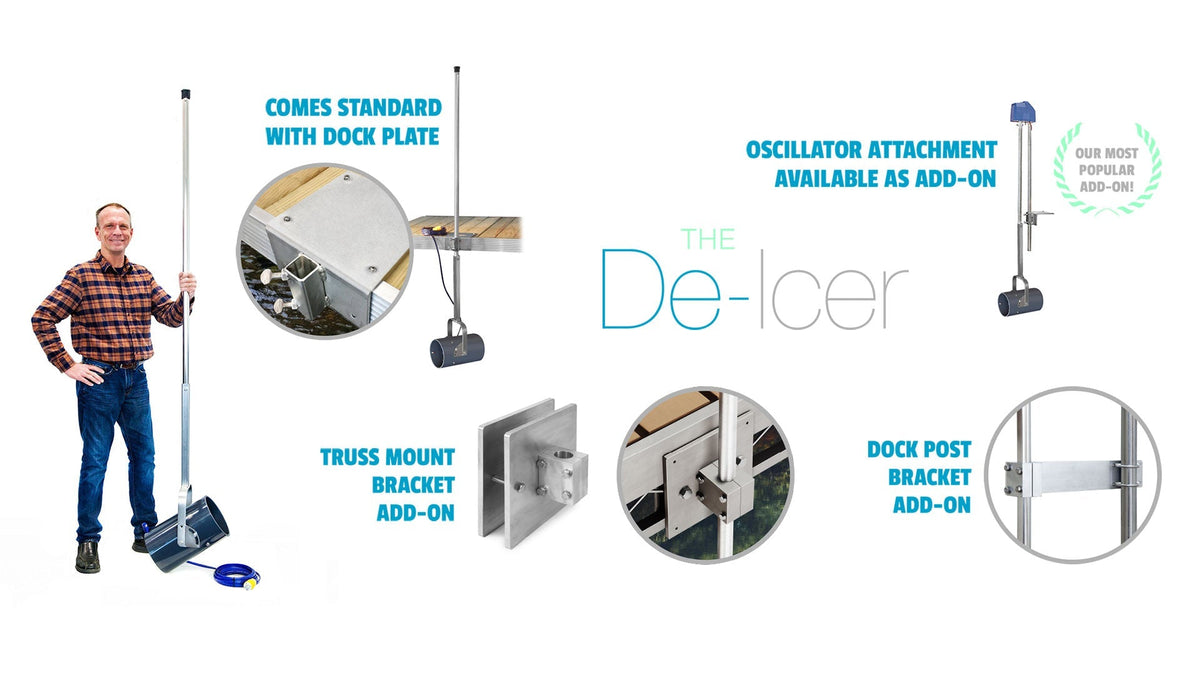

Mounting Options & Accessories

Dock Post Bracket

The optional dock post bracket provides an alternative mounting solution for round metal dock posts. The bracket fits posts up to 2-1/2 inches in diameter and can accommodate larger U-clamp rings up to 4 inches in diameter.

Truss Mount

The optional truss mount is designed for metal docks and similar framing where a different mounting method is needed. It replaces the standard dock plate.

Tripod Mount

The optional tripod mount allows the De-Icer to be positioned directly on the lake or pond bottom where dock mounting is not practical. This provides another installation option for areas such as boat lifts, swim areas, marinas, and other waterfront locations.

Quick Release Adapter

The optional quick release adapter allows the De-Icer to be repositioned between multiple dock mounting plates and can make seasonal removal more convenient.

Oscillator

The optional programmable oscillator automatically changes the direction of the De-Icer. The system can rotate in 20-degree increments every 20 minutes and allows the desired sweep range to be programmed for broader water circulation.

Maintenance & Winter Operation

Routine Maintenance

The De-Icer requires little to no routine maintenance under normal operating conditions. When the unit is removed from the water, the manufacturer recommends washing it with high-pressure water and visually inspecting the complete unit to make sure nothing is restricting water flow.

Propeller Replacement

As a general maintenance guideline, the manufacturer recommends replacing the De-Icer propeller assembly approximately every three years. This can be performed on-site as part of routine service.

Storage

If the De-Icer is removed from the lake or pond, the manufacturer states that the pump should be stored submerged in a 5-gallon bucket of water to help prevent damage to the pump seals.

Thumb Screw Lubrication

The dock plate thumb screws are supplied with a stainless-steel lubricating compound. Periodic lubrication of the thumb screws is required for proper operation and for warranty validation according to the installation guide.

Warranty & Safety

5-Year Motor Warranty

Standard Scott Aerator products are covered by a 5-year warranty against motor defects in materials or workmanship under normal operating conditions.

Other product components are covered by a 1-year warranty from the date of purchase, subject to the manufacturer's warranty terms.

Electrical Safety

A GFCI is required. Do not use an extension cord to supply power to the motor. Always disconnect power when swimmers are present and follow applicable electrical installation requirements.

Frequently Asked Questions

Question	Answer
What is the Dock Mount De-Icer designed to do?	It circulates warmer water from below the surface to help prevent ice formation around docks, boats, pilings, marinas, and other waterfront structures.
What motor sizes are available?	The Dock Mount De-Icer is available in 1/3 HP, 1/2 HP, 3/4 HP, and 1 HP configurations.
What voltage options are available?	Motor configurations are available in 115V or 230V, with additional three-phase and 50 Hz versions available for certain applications.
How much water does the De-Icer move?	Flow rates range from 300 GPM for the 1/3 HP model to 500 GPM for the 1 HP model.
How deep should the Dock Mount De-Icer be installed?	The installation guide recommends positioning the De-Icer approximately 12 to 18 inches below the water surface for optimum performance.
Can it be used in salt water?	Yes. The Dock Mount De-Icer is approved for use in salt water as well as fresh water.
Does it require a GFCI?	Yes. A GFCI is required for operation.
Can I use an extension cord?	No. The manufacturer specifically states that an extension cord should not be used to supply power to the motor.
What mounting options are available?	The standard dock plate is included. Optional dock post, truss, tripod, and quick release mounting systems are available depending on the installation.
Does the Dock Mount De-Icer require regular maintenance?	The motor requires little to no routine maintenance. The manufacturer recommends periodic inspection, cleaning when removed from the water, and propeller replacement approximately every three years.
What warranty is included?	The motor carries a 5-year warranty against defects in materials or workmanship under normal operating conditions. Other components are covered for 1 year from the date of purchase.

Downloads

De-Icer Motor Specs

View De-Icer Motor Specs PDF

De-Icer Specs & Assembly

View De-Icer Specs & Assembly PDF

Product Video

Watch the Dock Mount De-Icer video for a visual look at the unit and its installation.
