ProLake Remote Manifolds

$499.53

Options

Quick Facts

Feature	Detail
Port Options	4-Port or 8-Port Remote Manifold
Remote Distance	Up to 4,000 Feet From the Aeration Unit
Airline Connection	Single 3/4-Inch Airline From Aeration Cabinet
Airline Type	PVC or Flex Airline
Junction Box	Durable HDPE Plastic Junction Valve Box
Fittings	Brass Fittings
Primary Use	Remote Air Distribution and Flow Adjustment
Item Numbers	40.1052 and 40.1053

A Note Before You Order

Choose the 4-port or 8-port manifold based on the number of airline runs your aeration system requires. The remote manifold is designed to let the aeration cabinet remain closer to an available electrical outlet while the manifold is positioned near the pond or lake. Confirm the required airline length and routing before installation.

ProLake Remote Manifolds

ProLake Remote Manifolds provide a practical way to position an aeration system away from the shoreline when the most convenient electrical outlet is located farther from the pond or lake. The system allows the aeration cabinet to be installed near a house, storage building, or another suitable location while air is carried to a remote manifold near the water.

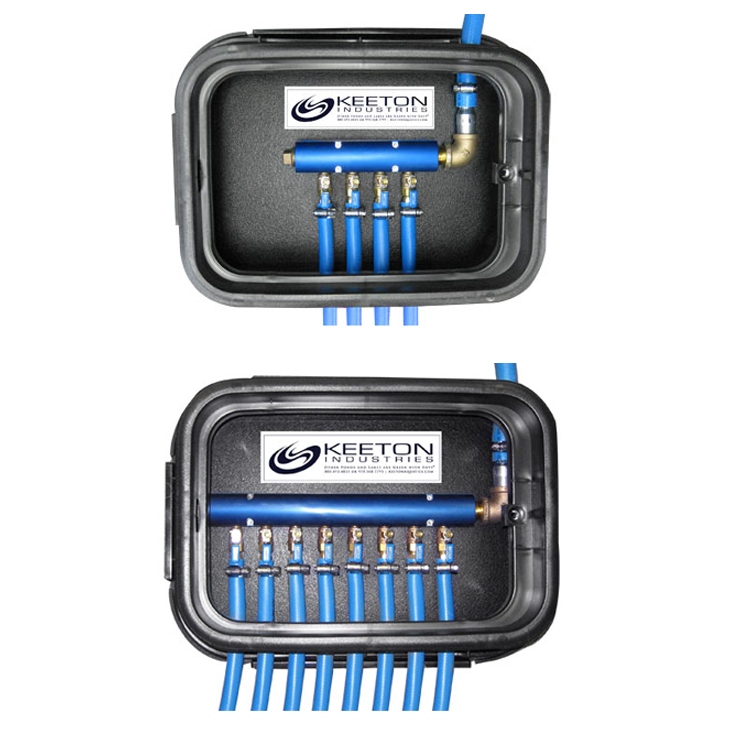

Available in 4-port and 8-port configurations, the remote manifold consolidates multiple airline connections into one junction box and makes individual air control adjustments more convenient. The manifold can be used with a single 3/4-inch airline from the aeration cabinet, with individual airlines then routed from the manifold toward the diffusers.

Configuration Guide

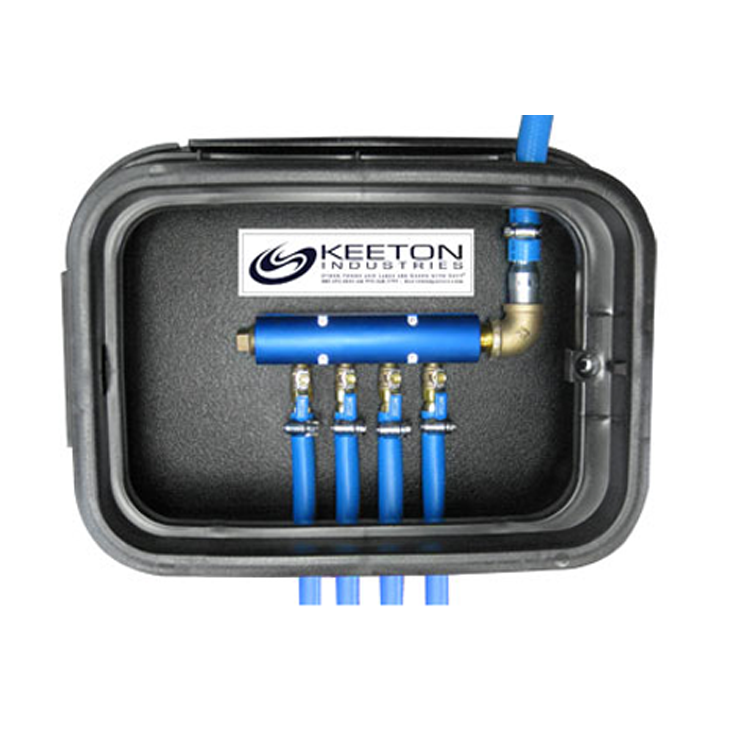

4-Port Remote Manifold

The 4-port configuration provides four valve connections for distributing air to multiple airline runs. It is identified by item number 40.1052.

This configuration is suited to installations that require up to four individually controlled airline connections from the remote junction point.

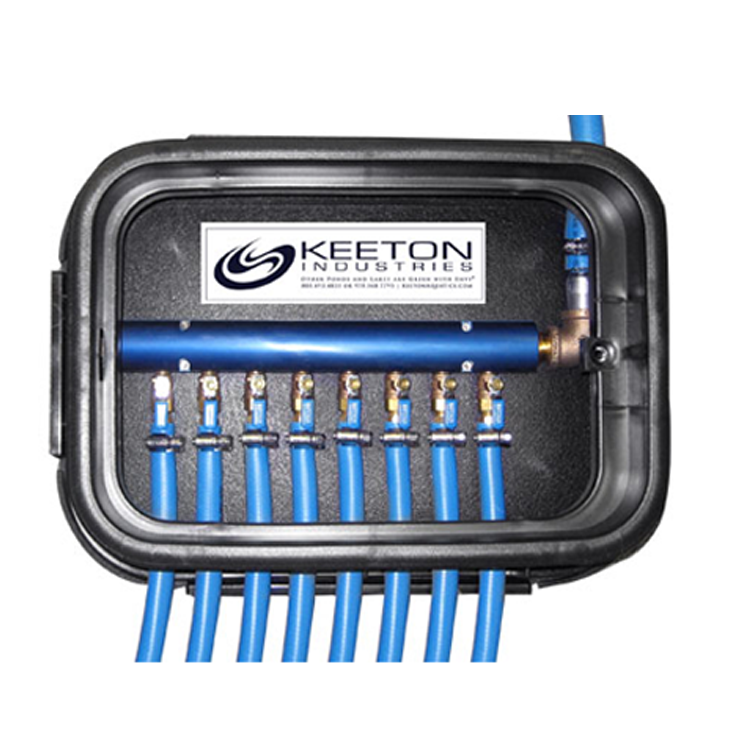

8-Port Remote Manifold

The 8-port configuration provides eight valve connections for installations requiring additional airline connections. It is identified by item number 40.1053.

This configuration provides additional capacity when more individual airline runs need to be controlled from one remote junction point.

Specifications & Details

Specification	Detail
Product Type	Remote Aeration Manifold
Port Options	4 Port or 8 Port
4-Port Item Number	40.1052
8-Port Item Number	40.1053
Maximum Remote Distance	Up to 4,000 Feet From the Aeration Unit
Main Airline	3/4-Inch Airline From Aeration Cabinet
Main Airline Material	PVC or Flex
Junction Box Material	HDPE Plastic
Fittings	Brass
Included	Junction Valve Box, Remote Manifold and Fittings

Installation & Assembly

Remote Airline Routing

The aeration cabinet can be positioned near an available electrical outlet rather than directly beside the pond. A single 3/4-inch airline is routed from the aeration cabinet toward the remote manifold, which is positioned closer to the water.

Manifold Connections

Once the main airline reaches the remote manifold, the individual airline runs can be connected to the available manifold ports and routed toward the aeration diffusers.

Air Control

The remote manifold consolidates the airline connections into one accessible box and provides convenient control adjustments for the connected air lines.

Placement & Storage

Flexible Equipment Placement

The remote manifold allows the aeration equipment to be placed where electrical service is more convenient. ProLake states that the aeration system can be installed up to 4,000 feet away from the remote manifold when the appropriate airline configuration is used.

Winter-Time Storage

The remote manifold provides a convenient location for consolidating airline connections and can make seasonal system storage and organization easier.

Frequently Asked Questions

Question	Answer
What is a remote manifold used for?	It allows the aeration cabinet to be positioned away from the pond while distributing air through multiple airline connections closer to the water.
How far can the aeration system be from the water?	ProLake states that its systems can be installed up to 4,000 feet away by running an airline from the aeration cabinet to a remote manifold.
What port options are available?	The ProLake Remote Manifold is available in 4-port and 8-port configurations.
What is included?	The kit includes the junction valve box, remote manifold, and fittings.
What size airline connects to the remote manifold?	The ProLake product page specifies a single 3/4-inch airline from the aeration cabinet to the remote manifold.
Can the main airline be PVC or Flex?	Yes. ProLake specifies PVC or Flex for the main airline connection.
What are the item numbers?	Item 40.1052 is the 4-valve remote manifold and item 40.1053 is the 8-valve remote manifold.
What material is the junction valve box?	The junction valve box is made from durable HDPE plastic.

Downloads

ProLake Remote Manifold Data Sheet

View ProLake Remote Manifold Data Sheet PDF
