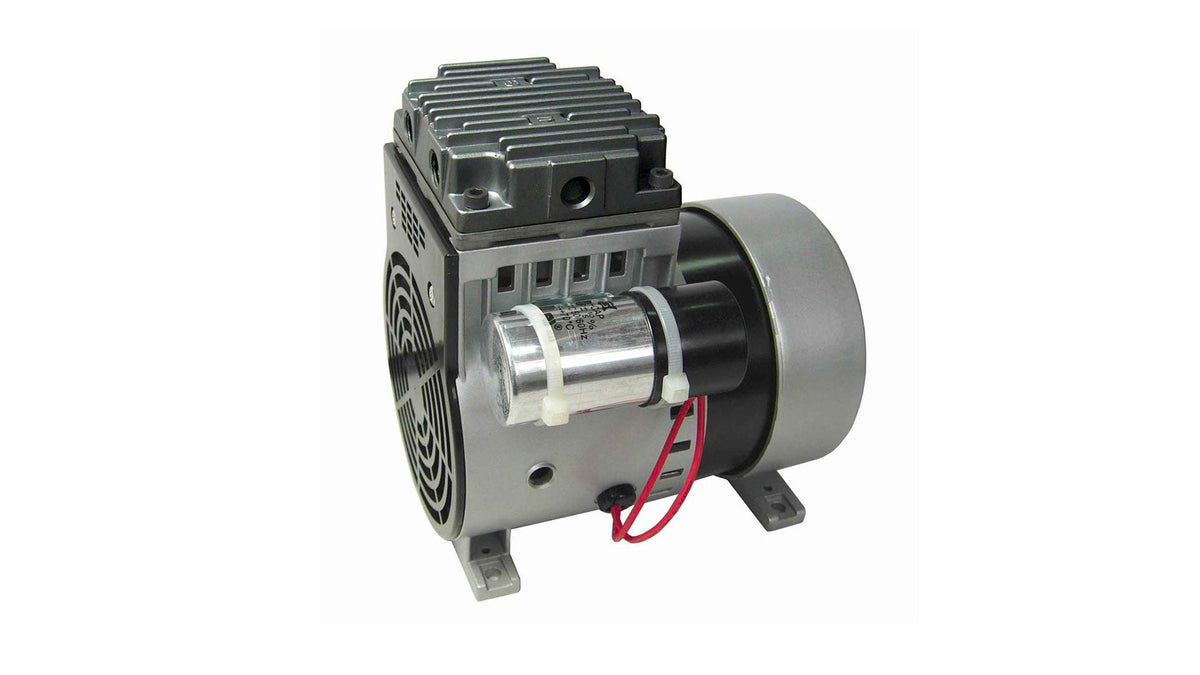

Easy Pro ¼ hp Bubble Pro Compressor

$659.95

Options

Quick Facts

Feature	Detail
Compressor Type	1/4 HP Rocking-Piston Compressor
Voltage Options	115V or 230V
Operation	Designed for 24-Hour Operation
Lubrication	Oil-Free Operation
Air Flow	2 CFM at 10-Foot Depth
Current Draw	1.7 Amps at 115V; 0.9 Amps at 230V
Construction	Lightweight Die-Cast Aluminum Components
Applications	Bubble Pro, Bubble Pro Mini, and Compatible Aeration Systems

A Note Before You Order

Choose the correct voltage configuration for your installation. The compressor is available in 115V and 230V versions, so confirm the electrical requirements before ordering.

Easy Pro Pond Products ¼ HP Bubble Pro Compressor

The ¼ HP Bubble Pro Compressor is a heavy-duty rocking-piston compressor designed for continuous pond aeration. Its oil-free design supplies air to subsurface aeration systems without placing electrical equipment in the water.

The compressor is available in 115V and 230V configurations and produces 2 CFM at a 10-foot operating depth. It is used with Bubble Pro and Bubble Pro Mini subsurface aerators and can also be paired with other compatible aeration systems.

Configuration Guide

115V Configuration

The 115V version operates at 1.7 amps and is identified by MPN 44055.

UPC: 810094921552.

230V Configuration

The 230V version operates at 0.9 amps and is identified by MPN 44056.

UPC: 810094921569.

Air Output

The compressor provides 2 CFM of air flow at a 10-foot depth and is intended for use with subsurface pond aeration systems.

Specifications & Details

Specification	Detail
Compressor Type	1/4 HP Rocking-Piston
Voltage	115V or 230V
Current Draw	1.7 Amps at 115V; 0.9 Amps at 230V
Air Flow	2 CFM at 10-Foot Depth
Operation	Designed for 24-Hour Operation
Lubrication	Oil-Free
Housing Components	Lightweight Die-Cast Aluminum
Cylinder	Hard-Coated for Wear Resistance
Bearings	Permanently Lubricated
Piston Seal	Easily Replaceable
115V MPN	44055
230V MPN	44056

Design & Construction

Rocking-Piston Design

The 1/4 HP rocking-piston design is built for continuous aeration service and is used with subsurface pond aeration systems.

Oil-Free Operation

The oil-free compressor design delivers air to the pond system without introducing oil into the aeration air supply.

Durable Components

The compressor uses lightweight die-cast aluminum components, a hard-coated cylinder for wear resistance, permanently lubricated bearings, and a replaceable piston seal.

Applications & Compatibility

Bubble Pro Systems

This compressor is used with the Bubble Pro and Bubble Pro Mini subsurface aerators.

Other Aeration Systems

The compressor can also be used with other compatible subsurface aeration systems when the system's air requirements match the compressor's output.

Pond Aeration

Air supplied by the compressor can be routed through weighted tubing to submerged diffusers, where rising bubbles help circulate pond water and support oxygen transfer.

Frequently Asked Questions

Question	Answer
What type of compressor is this?	It is a 1/4 HP rocking-piston compressor designed for pond aeration applications.
What voltage options are available?	The compressor is available in 115V and 230V configurations.
How much air does it produce?	The compressor produces 2 CFM at a 10-foot depth.
Is the compressor oil-free?	Yes. The compressor uses an oil-free operating design.
Can it run continuously?	Yes. The compressor is designed for 24-hour operation.
What is the current draw?	The 115V configuration draws 1.7 amps, while the 230V configuration draws 0.9 amps.
What systems can use this compressor?	It is used with Bubble Pro and Bubble Pro Mini subsurface aerators and can also work with other compatible aeration systems.
What are the MPNs?	The 115V model is MPN 44055 and the 230V model is MPN 44056.
